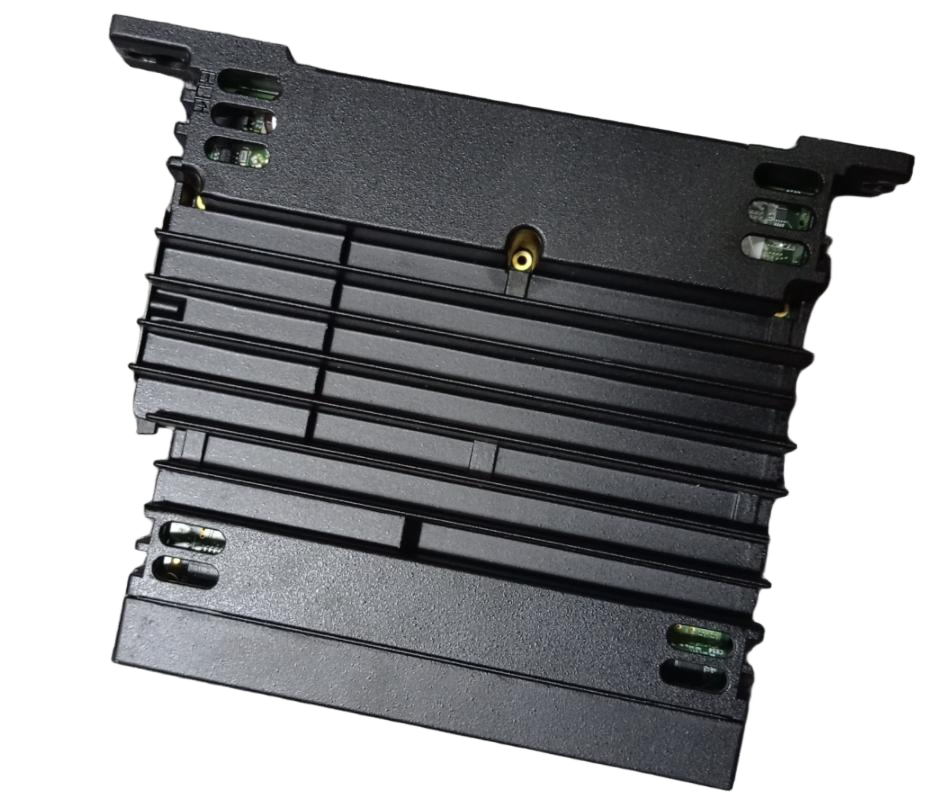

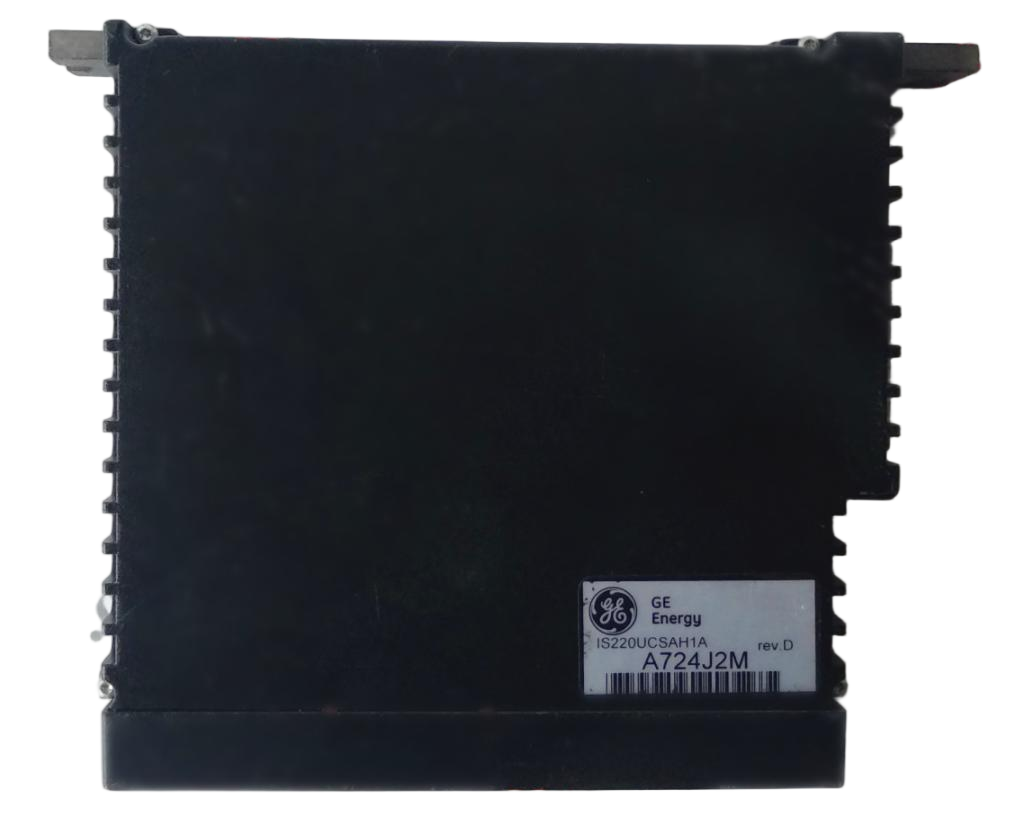

GE IS220UCSAH1A UCSA Standalone Controller Module

The IS220UCSAH1A is a controller module within General Electric's (GE) Mark VIe control system, belonging to the UCSA series. This controller is a stand-alone computer module designed for industrial automation and process control applications, suitable for a wide range of industrial settings such as gas turbines, steam turbines, wind power generation, and balance of plant (BoP) applications. The UCSA controller utilizes a high-performance real-time operating system and a modular hardware design, offering high reliability and flexibility, making it well-suited for applications with demanding control performance requirements.

Key Features and Functions

1. High-Performance Processing Capability

• The IS220UCSAH1A is equipped with a Freescale Power QUICC II PRO processor running at 667 MHz, providing strong data processing capabilities.

• It features 256 MB of DDR SDRAM and flash-backed SRAM, ensuring fast and stable program execution.

2. Multiple Network Communication Interfaces

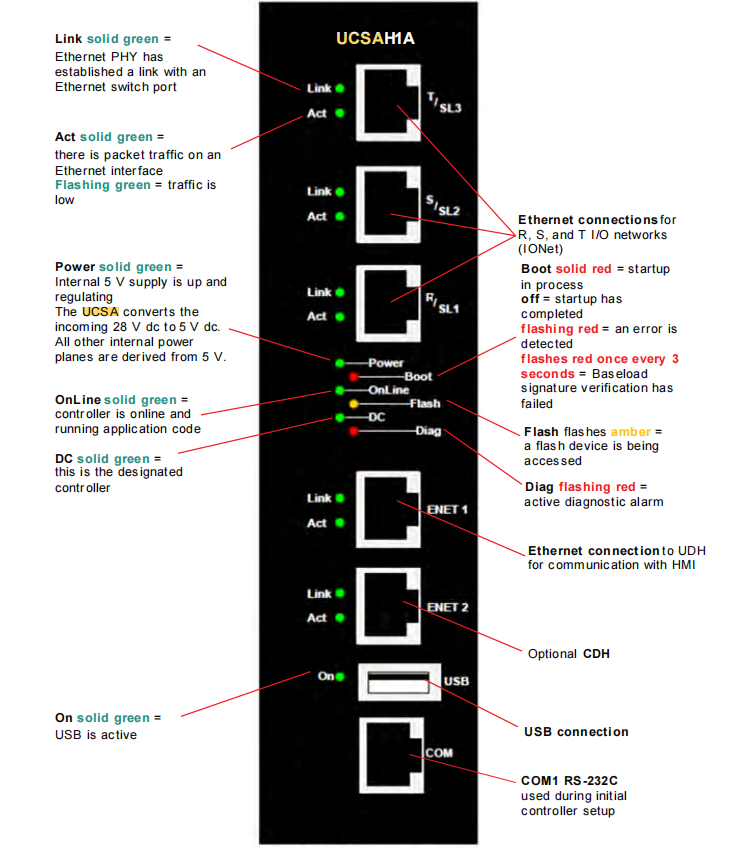

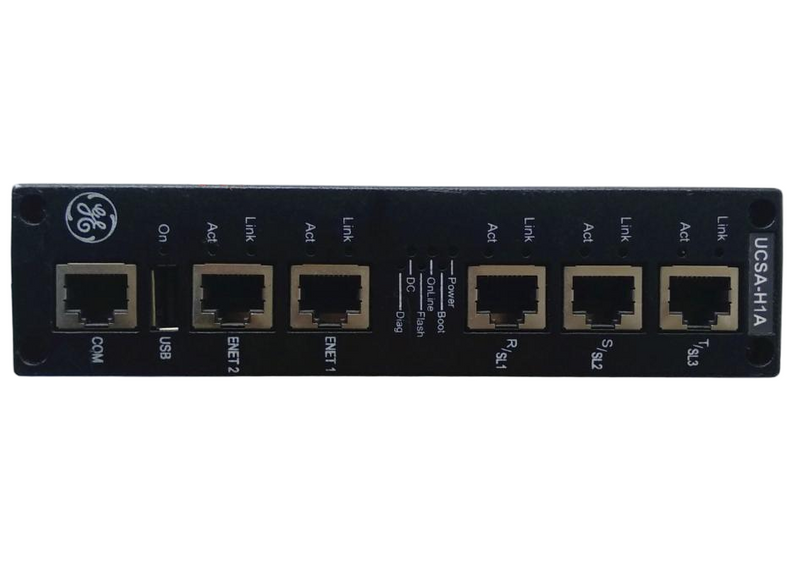

• Provides three dedicated IONet (I/O Network) Ethernet interfaces (R, S, T) for connecting to distributed I/O modules, supporting Simplex, Dual, or TMR (Triple Modular Redundancy) configurations.

• Includes one Unit Data Highway (UDH) Ethernet interface for communication with human-machine interfaces (HMIs), the ToolboxST engineering station, and other control systems.

• Supports multiple industrial communication protocols, including Modbus TCP, OPC UA, and EGD (Ethernet Global Data).

3. Real-Time Operating System

• Uses the QNX Neutrino real-time, multi-tasking operating system to ensure high-precision timing and rapid response for control tasks.

• Supports online modification and downloading of control logic without requiring a system shutdown.

4. Fanless, Compact Design

• The module employs a fanless cooling design, relying on natural convection, making it suitable for industrial environments with high dust or humidity.

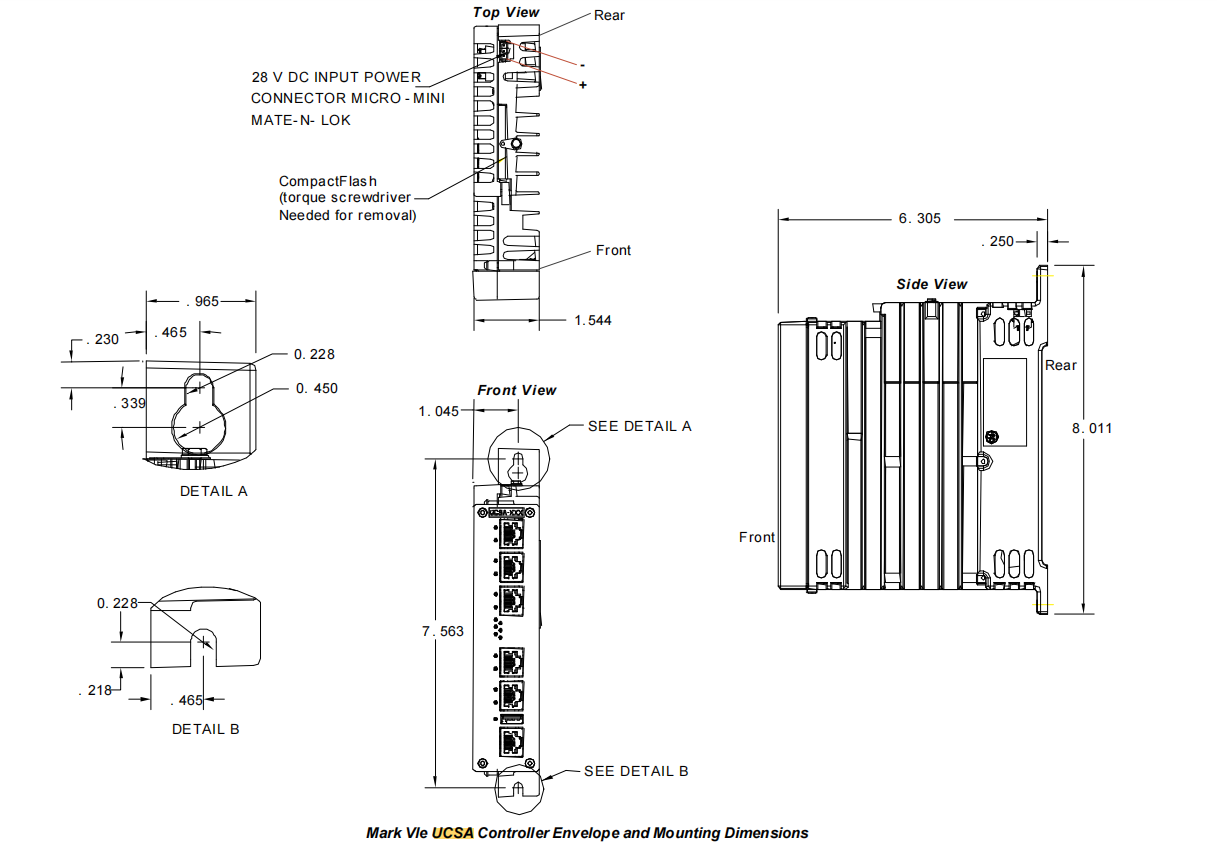

• It features a compact structure for direct panel mounting, requiring minimal space.

5. High-Reliability Design

• All I/O networks are connected to each controller, ensuring that the system continues to receive all input data even if one controller fails or is under maintenance, avoiding a single point of failure.

• Supports the IEEE 1588 precision clock synchronization protocol, ensuring time synchronization accuracy within ±100 microseconds between I/O modules and the controller.

6. Flexible Programming and Configuration

• Supports control logic programming based on Function Blocks and Ladder Logic.

• Configurable, debuggable, and maintainable via GE's ToolboxST software using a graphical interface.

Working Principle

As the core of the Mark VIe control system, the IS220UCSAH1A controller is responsible for executing user-written control logic and coordinating the entire system's operation. Its working principle is as follows:

1. Data Acquisition and Processing

• The controller periodically acquires field data from distributed I/O modules (such as analog inputs, digital inputs, temperature modules) via the IONet interfaces.

• After pre-processing, the data is stored in the controller's real-time database.

2. Control Logic Execution

• The controller runs the control program created in ToolboxST, performing calculations based on input signals and preset logic to generate control outputs.

• Supports various control algorithms, including PID regulation, sequential control, and interlock protection.

3. Communication and Data Exchange

• Exchanges data with upper-level systems (e.g., HMI, historians, DCS) via the UDH network for functions such as monitoring, alarming, and trend recording.

• Supports redundant network configurations to enhance communication reliability.

4. Status Monitoring and Diagnostics

• The controller continuously monitors its own operational status and that of connected I/O modules, triggering diagnostic alarms upon detecting anomalies.

• Supports online diagnostics and remote maintenance for quick fault identification and resolution.
