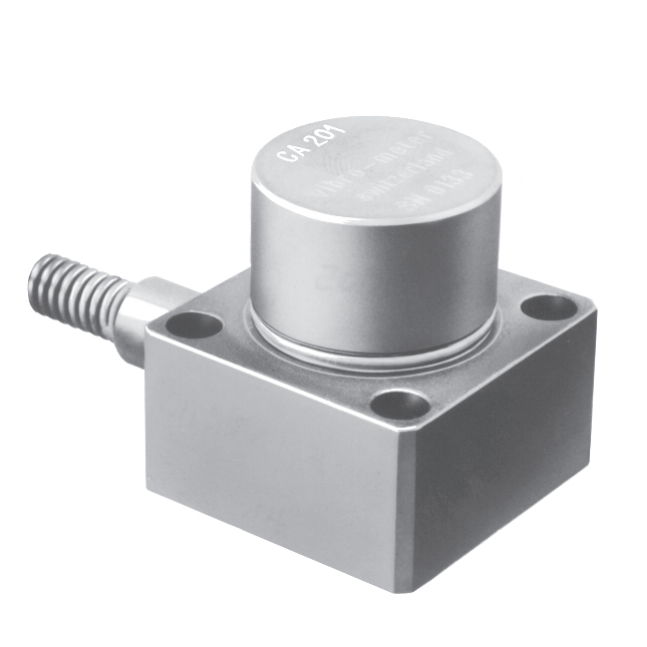

The CA201 Piezoelectric Accelerometer is a classic industrial-grade piezoelectric vibration sensor introduced belongs to the proven VM product line. Designed for continuous vibration monitoring in harsh industrial environments, this sensor features a symmetrical shear-mode piezoelectric sensing element and a fully sealed, welded stainless steel construction, renowned for its high reliability and stability.
The CA201 offers high sensitivity (100 pC/g) and a wide dynamic range, making it suitable for vibration measurement from low-speed rotating equipment to medium- and high-speed machinery. The product was available in versions certified to the then-applicable CENELEC standards for explosion protection, allowing use in designated hazardous areas. Its signature integral cable, fitted with a stainless steel braided protective hose welded to the sensor body, ensures long-term sealing and mechanical strength under severe operating conditions. The CA201 is a reliable choice for vibration monitoring of critical equipment (such as compressors, pumps, fans, and generators) in industrial predictive maintenance systems.
The CA201 piezoelectric accelerometer operates based on the piezoelectric effect. Its core sensing element is a specially polarized polycrystalline piezoelectric ceramic material, assembled in a mechanical "shear" configuration. When the sensor's base vibrates with the measured object, an internal seismic mass applies a shear force to the piezoelectric crystal due to inertia.
When piezoelectric material is subjected to mechanical stress, its internal lattice structure deforms, causing the positive and negative charge centers to separate. This generates an electrical charge proportional to the applied force (i.e., acceleration) on the electrode surfaces. This charge output signal is high-impedance.
The sensor utilizes a "shear" design, which decouples the sensitive piezoelectric element from deformation and thermal disturbances of the sensor base and housing. This design gives the CA201 low sensitivity to mounting surface strain (base bending) and ambient temperature changes, resulting in more stable and accurate vibration signals.
The charge signal output by the CA201 requires processing by an external charge amplifier (charge converter). The primary function of the charge amplifier is to convert the high-impedance charge signal into a low-impedance voltage signal, amplify it, and normalize it for subsequent reading and analysis by data acquisition systems, PLCs, or monitoring instruments. The accuracy and stability of the entire measurement chain rely on the sensor's own high insulation resistance and low-noise cable design.
The CA201 is widely used in industrial vibration monitoring fields demanding high reliability:
Rotating Machinery Monitoring: Bearing vibration monitoring for critical equipment such as gas turbines, steam turbines, centrifugal and reciprocating compressors, large water pumps, generator sets, and induced draft fans.
Process Industries: Condition monitoring and fault warning for pumps, agitators, and gearboxes in industries like petrochemicals, natural gas processing, and pharmaceuticals.
Hazardous Areas: Versions with specific explosion-proof certifications (e.g., CENELEC EEx ib) could be used in plant areas with potentially explosive atmospheres (applicability must be confirmed based on the specific certificate).
General Industrial Manufacturing: Providing predictive maintenance support for various critical production equipment to prevent unplanned downtime.
High-Reliability Construction: Fully sealed austenitic stainless steel welded housing, with the sensor and stainless steel protective hose welded as one unit, offering high protection level, corrosion resistance, moisture resistance, and oil resistance.
Excellent Signal Characteristics: High sensitivity (100 pC/g). The shear design provides very low sensitivity to base strain and thermal transients, ensuring true and reliable signals.
Robust and Durable: Heavy-duty industrial design, capable of withstanding shocks up to 500 g. The integral armored cable provides excellent mechanical protection.
Proven Explosion-Proof Certification: Available in versions certified to then-applicable CENELEC standards (e.g., EEx ib IIC T5), suitable for specific hazardous locations.
Wide Operating Temperature Range: Sensor body operating temperature range up to -54°C to +260°C, suitable for most high-temperature industrial environments.
Standardized Installation: Uses universal mounting hole patterns and screws for easy installation, requiring no additional insulating washers.
Proven Track Record: As a member of the classic vibro-meter® product line, it has a wide range of successful application cases and reputation worldwide.
The CA201 Piezoelectric Accelerometer is a classic industrial-grade piezoelectric vibration sensor introduced belongs to the proven VM product line. Designed for continuous vibration monitoring in harsh industrial environments, this sensor features a symmetrical shear-mode piezoelectric sensing element and a fully sealed, welded stainless steel construction, renowned for its high reliability and stability.
The CA201 offers high sensitivity (100 pC/g) and a wide dynamic range, making it suitable for vibration measurement from low-speed rotating equipment to medium- and high-speed machinery. The product was available in versions certified to the then-applicable CENELEC standards for explosion protection, allowing use in designated hazardous areas. Its signature integral cable, fitted with a stainless steel braided protective hose welded to the sensor body, ensures long-term sealing and mechanical strength under severe operating conditions. The CA201 is a reliable choice for vibration monitoring of critical equipment (such as compressors, pumps, fans, and generators) in industrial predictive maintenance systems.
The CA201 piezoelectric accelerometer operates based on the piezoelectric effect. Its core sensing element is a specially polarized polycrystalline piezoelectric ceramic material, assembled in a mechanical "shear" configuration. When the sensor's base vibrates with the measured object, an internal seismic mass applies a shear force to the piezoelectric crystal due to inertia.
When piezoelectric material is subjected to mechanical stress, its internal lattice structure deforms, causing the positive and negative charge centers to separate. This generates an electrical charge proportional to the applied force (i.e., acceleration) on the electrode surfaces. This charge output signal is high-impedance.
The sensor utilizes a "shear" design, which decouples the sensitive piezoelectric element from deformation and thermal disturbances of the sensor base and housing. This design gives the CA201 low sensitivity to mounting surface strain (base bending) and ambient temperature changes, resulting in more stable and accurate vibration signals.
The charge signal output by the CA201 requires processing by an external charge amplifier (charge converter). The primary function of the charge amplifier is to convert the high-impedance charge signal into a low-impedance voltage signal, amplify it, and normalize it for subsequent reading and analysis by data acquisition systems, PLCs, or monitoring instruments. The accuracy and stability of the entire measurement chain rely on the sensor's own high insulation resistance and low-noise cable design.
The CA201 is widely used in industrial vibration monitoring fields demanding high reliability:
Rotating Machinery Monitoring: Bearing vibration monitoring for critical equipment such as gas turbines, steam turbines, centrifugal and reciprocating compressors, large water pumps, generator sets, and induced draft fans.
Process Industries: Condition monitoring and fault warning for pumps, agitators, and gearboxes in industries like petrochemicals, natural gas processing, and pharmaceuticals.
Hazardous Areas: Versions with specific explosion-proof certifications (e.g., CENELEC EEx ib) could be used in plant areas with potentially explosive atmospheres (applicability must be confirmed based on the specific certificate).
General Industrial Manufacturing: Providing predictive maintenance support for various critical production equipment to prevent unplanned downtime.
High-Reliability Construction: Fully sealed austenitic stainless steel welded housing, with the sensor and stainless steel protective hose welded as one unit, offering high protection level, corrosion resistance, moisture resistance, and oil resistance.
Excellent Signal Characteristics: High sensitivity (100 pC/g). The shear design provides very low sensitivity to base strain and thermal transients, ensuring true and reliable signals.
Robust and Durable: Heavy-duty industrial design, capable of withstanding shocks up to 500 g. The integral armored cable provides excellent mechanical protection.
Proven Explosion-Proof Certification: Available in versions certified to then-applicable CENELEC standards (e.g., EEx ib IIC T5), suitable for specific hazardous locations.
Wide Operating Temperature Range: Sensor body operating temperature range up to -54°C to +260°C, suitable for most high-temperature industrial environments.
Standardized Installation: Uses universal mounting hole patterns and screws for easy installation, requiring no additional insulating washers.
Proven Track Record: As a member of the classic vibro-meter® product line, it has a wide range of successful application cases and reputation worldwide.
| Category | Parameter | Specification | Conditions / Notes |
|---|---|---|---|
| Electrical Characteristics | Sensitivity | 100 pC/g ±5% | 120 Hz, 23°C ±5°C |
| Dynamic Measurement Range | 0.0001 g to 200 g (peak) | Random vibration | |
| Overload Capacity (Peak) | ≤ 250 g | ||
| Linearity | 0.0001-20 g: ≤1% 20-200 g: ≤2% (max.) | ||
| Transverse Sensitivity | ≤ 5% | ||
| Insulation Resistance | ≥ 1 x 10⁹ Ω | ||
| Capacitance (6m cable) | Pin to Pin: 3300 pF (nom.) Pin to Case: 1200 pF (nom.) | ||
| Frequency Characteristics | Frequency Response | 0.5 Hz to 3000 Hz (±5%) | Low cutoff depends on conditioner used |
| 3 kHz to 4.5 kHz (≤±10%) | |||
| Resonant Frequency (Mounted) | 11 kHz (nominal) | ||
| Environmental Characteristics | Operating Temp. Range - Zone A (Sensor) - Zone B (Cable) | -54°C to +260°C -54°C to +125°C (Ex version: +100°C) (*Cable resistant to +260°C) | Zone definition per drawing |
| Temperature Error | 23°C to 125°C: Typ. 0.1%/°C At 250°C: Typ. +25% | Referenced to 23°C | |
| Shock Acceleration | ≤ 500 g (peak) | Half sine, 1 ms | |
| Explosion-Proof Certification | CENELEC Certified versions available | Conformity Cert. No.: PTB Ex-80/2183 Protection Level: EEx ib IIC T5 | |
| Protection & Sealing | Austenitic Stainless Steel, fully welded | Corrosion & humidity resistant | |
| Base Strain Sensitivity | ≤ 1 x 10⁻⁵ g/µε | ||
| Mechanical Characteristics | Housing Material | Austenitic Stainless Steel | |
| Cable Type | Twisted pair shielded cable, with stainless steel sheath | ||
| Cable Weight | Approx. 122 g/m | ||
| Mounting Screws | 4 × M6 x 35 | Hex Socket | |
| Mounting Washers | 4 × M6 Spring Washers | ||
| Recommended Mounting Torque | 15 N·m | ||
| Cable Min. Bending Radius | 50 mm | ||
| Signal & Connection | Output Type | Charge Output | |
| Pin System | 2-pole, insulated from case | ||
| Required Conditioner | Charge Amplifier | ||
| Cable Configuration | Integral cable with stainless steel protective hose | Standard Lengths: 3 m or 6 m | |
| Physical Data | Sensor Weight (with 3m cable) | Approx. 600 g | |
| Calibration | Factory Dynamic Calibration (5 g peak, 120 Hz, +23°C) | Typically no field recalibration needed | |
| Dimensions | Refer to mechanical drawing on datasheet page 1 |
| Category | Parameter | Specification | Conditions / Notes |
|---|---|---|---|
| Electrical Characteristics | Sensitivity | 100 pC/g ±5% | 120 Hz, 23°C ±5°C |
| Dynamic Measurement Range | 0.0001 g to 200 g (peak) | Random vibration | |
| Overload Capacity (Peak) | ≤ 250 g | ||
| Linearity | 0.0001-20 g: ≤1% 20-200 g: ≤2% (max.) | ||
| Transverse Sensitivity | ≤ 5% | ||
| Insulation Resistance | ≥ 1 x 10⁹ Ω | ||
| Capacitance (6m cable) | Pin to Pin: 3300 pF (nom.) Pin to Case: 1200 pF (nom.) | ||
| Frequency Characteristics | Frequency Response | 0.5 Hz to 3000 Hz (±5%) | Low cutoff depends on conditioner used |
| 3 kHz to 4.5 kHz (≤±10%) | |||
| Resonant Frequency (Mounted) | 11 kHz (nominal) | ||
| Environmental Characteristics | Operating Temp. Range - Zone A (Sensor) - Zone B (Cable) | -54°C to +260°C -54°C to +125°C (Ex version: +100°C) (*Cable resistant to +260°C) | Zone definition per drawing |
| Temperature Error | 23°C to 125°C: Typ. 0.1%/°C At 250°C: Typ. +25% | Referenced to 23°C | |
| Shock Acceleration | ≤ 500 g (peak) | Half sine, 1 ms | |
| Explosion-Proof Certification | CENELEC Certified versions available | Conformity Cert. No.: PTB Ex-80/2183 Protection Level: EEx ib IIC T5 | |
| Protection & Sealing | Austenitic Stainless Steel, fully welded | Corrosion & humidity resistant | |
| Base Strain Sensitivity | ≤ 1 x 10⁻⁵ g/µε | ||
| Mechanical Characteristics | Housing Material | Austenitic Stainless Steel | |
| Cable Type | Twisted pair shielded cable, with stainless steel sheath | ||
| Cable Weight | Approx. 122 g/m | ||
| Mounting Screws | 4 × M6 x 35 | Hex Socket | |
| Mounting Washers | 4 × M6 Spring Washers | ||
| Recommended Mounting Torque | 15 N·m | ||
| Cable Min. Bending Radius | 50 mm | ||
| Signal & Connection | Output Type | Charge Output | |
| Pin System | 2-pole, insulated from case | ||
| Required Conditioner | Charge Amplifier | ||
| Cable Configuration | Integral cable with stainless steel protective hose | Standard Lengths: 3 m or 6 m | |
| Physical Data | Sensor Weight (with 3m cable) | Approx. 600 g | |
| Calibration | Factory Dynamic Calibration (5 g peak, 120 Hz, +23°C) | Typically no field recalibration needed | |
| Dimensions | Refer to mechanical drawing on datasheet page 1 |
To ensure optimal performance and lifespan of the CA201 accelerometer, installation must follow strict procedures. This guide synthesizes requirements from the CA201 datasheet and the general installation manual for the series.
Safety First: Before installing an explosion-proof (Ex) version in a hazardous area, it is imperative to consult and strictly adhere to all regulations and safety conditions for use specified in the provided CENELEC Certificate of Conformity (e.g., PTB Ex-80/2183).
Location Principles:
Optimal Position: Install as close to the bearing housing as possible to directly capture shaft vibration.
Rigid Foundation: Must be installed on a highly rigid mechanical structure (e.g., the bearing housing itself).
Prohibited: Do not install on machine casings, cover plates, or any weak components prone to local resonance, as this will severely distort measurement signals.
The quality of the mounting surface directly determines measurement accuracy.
Cleaning and Leveling: Thoroughly clean the installation area. The mounting surface must be flat and smooth.
Specific Technical Requirements (referencing the CA202/CAxxx series installation manual):
Flatness: Should be machined to a flatness of 0.01 mm.
Surface Finish: Achieve grade N7 or better.
Perpendicularity: The mounting surface must be perpendicular to the desired vibration measurement direction (sensitive axis).
Layout and Drilling:
Precisely mark the positions for the 4 mounting holes according to the CA201 base pattern.
Drill holes approximately 20 mm deep using a Ø4.8 mm drill bit.
Tapping:
Tap M6 threads in the holes to a minimum effective depth of 14 mm.
Completely remove all metal chips and oil from the holes.
Prepare Parts: Have ready 4 pieces of M6 x 35 hexagon socket head cap screws and 4 pieces of M6 spring washers.
Use Threadlocker: Evenly apply LOCTITE 241 or equivalent performance threadlocking adhesive to the screw threads. This is crucial to prevent loosening in vibrating environments and allows for future disassembly.
Position the Sensor: Place the spring washers on the screws, align with the CA201 mounting holes.
Tightening:
Using a torque wrench, tighten the 4 screws gradually and evenly in a diagonal sequence.
The final tightening torque must be 15 N·m. Do not exceed this torque to avoid damaging the sensor base or threads.
Important Note: The CA201 is internally electrically insulated. No additional insulating washers are required under the sensor base during installation.
Incorrect cable handling is a primary cause of measurement noise.
Minimum Bending Radius: During routing, the bending radius of the cable (including stainless steel hose) must not be less than 50 mm.
Fixing Interval: Secure the cable along its route using suitable tube clips (for ~Ø8 mm cable). The distance between fixing points should be 100 to 200 mm, not too sparse.
Avoid Interference Sources: The cable route should be kept away from high-voltage cables, high-current lines, frequency converters, or other strong electromagnetic interference sources.
Fixing Method: Drill and tap holes in the support structure, use screws and washers to secure the clips. It is recommended to also apply LOCTITE 241 to the fixing screws.
Purpose: Regular fixing effectively suppresses "triboelectric effect" noise caused by cable movement and friction, which manifests as low-frequency interference signals.
Charge Amplifier Required: The CA201 is a charge output type and must be connected to a dedicated charge amplifier (e.g., Meggitt's IPC series or other compatible models) to convert charge to a standard voltage signal.
Wiring: Connect the two cores of the CA201 integral cable correctly to the high-impedance input terminal according to the charge amplifier's instructions. The cable shield is typically terminated at the amplifier end.
Grounding and Isolation:
It is recommended to use an Electrical Isolator in the signal chain (after the amplifier) to break potential ground loop interference.
The entire measurement system should follow a "single-point grounding" principle, usually grounded at the control system end.
Transmission Line Protection: The signal transmission line from the charge amplifier to the control room should use shielded twisted pair cable and can be run through metallic conduit or cable trays for mechanical protection.
For special installation requirements, accessories provided by Meggitt can be used, such as:
Junction Box: e.g., JB 105, JB 116, used for cable transition and connection.
Mounting Adapters: For uneven surfaces or applications requiring thermal isolation (refer to the MA133 kit mentioned in CA202 materials).
To ensure optimal performance and lifespan of the CA201 accelerometer, installation must follow strict procedures. This guide synthesizes requirements from the CA201 datasheet and the general installation manual for the series.
Safety First: Before installing an explosion-proof (Ex) version in a hazardous area, it is imperative to consult and strictly adhere to all regulations and safety conditions for use specified in the provided CENELEC Certificate of Conformity (e.g., PTB Ex-80/2183).
Location Principles:
Optimal Position: Install as close to the bearing housing as possible to directly capture shaft vibration.
Rigid Foundation: Must be installed on a highly rigid mechanical structure (e.g., the bearing housing itself).
Prohibited: Do not install on machine casings, cover plates, or any weak components prone to local resonance, as this will severely distort measurement signals.
The quality of the mounting surface directly determines measurement accuracy.
Cleaning and Leveling: Thoroughly clean the installation area. The mounting surface must be flat and smooth.
Specific Technical Requirements (referencing the CA202/CAxxx series installation manual):
Flatness: Should be machined to a flatness of 0.01 mm.
Surface Finish: Achieve grade N7 or better.
Perpendicularity: The mounting surface must be perpendicular to the desired vibration measurement direction (sensitive axis).
Layout and Drilling:
Precisely mark the positions for the 4 mounting holes according to the CA201 base pattern.
Drill holes approximately 20 mm deep using a Ø4.8 mm drill bit.
Tapping:
Tap M6 threads in the holes to a minimum effective depth of 14 mm.
Completely remove all metal chips and oil from the holes.
Prepare Parts: Have ready 4 pieces of M6 x 35 hexagon socket head cap screws and 4 pieces of M6 spring washers.
Use Threadlocker: Evenly apply LOCTITE 241 or equivalent performance threadlocking adhesive to the screw threads. This is crucial to prevent loosening in vibrating environments and allows for future disassembly.
Position the Sensor: Place the spring washers on the screws, align with the CA201 mounting holes.
Tightening:
Using a torque wrench, tighten the 4 screws gradually and evenly in a diagonal sequence.
The final tightening torque must be 15 N·m. Do not exceed this torque to avoid damaging the sensor base or threads.
Important Note: The CA201 is internally electrically insulated. No additional insulating washers are required under the sensor base during installation.
Incorrect cable handling is a primary cause of measurement noise.
Minimum Bending Radius: During routing, the bending radius of the cable (including stainless steel hose) must not be less than 50 mm.
Fixing Interval: Secure the cable along its route using suitable tube clips (for ~Ø8 mm cable). The distance between fixing points should be 100 to 200 mm, not too sparse.
Avoid Interference Sources: The cable route should be kept away from high-voltage cables, high-current lines, frequency converters, or other strong electromagnetic interference sources.
