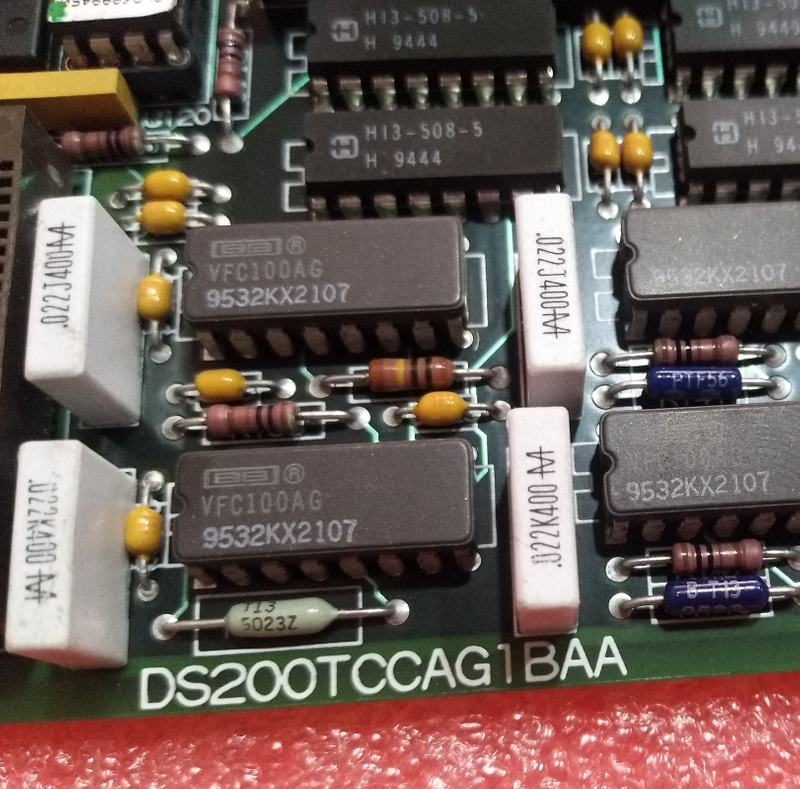

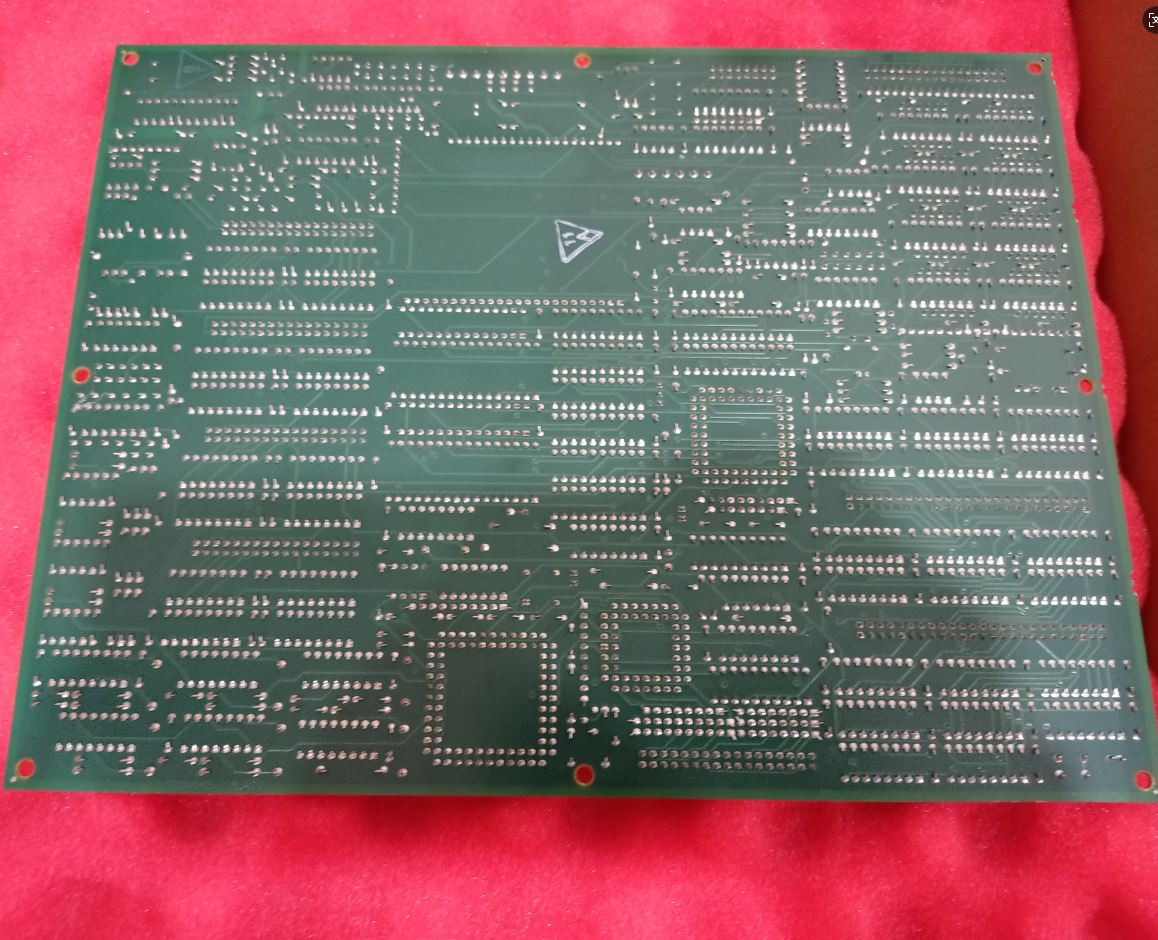

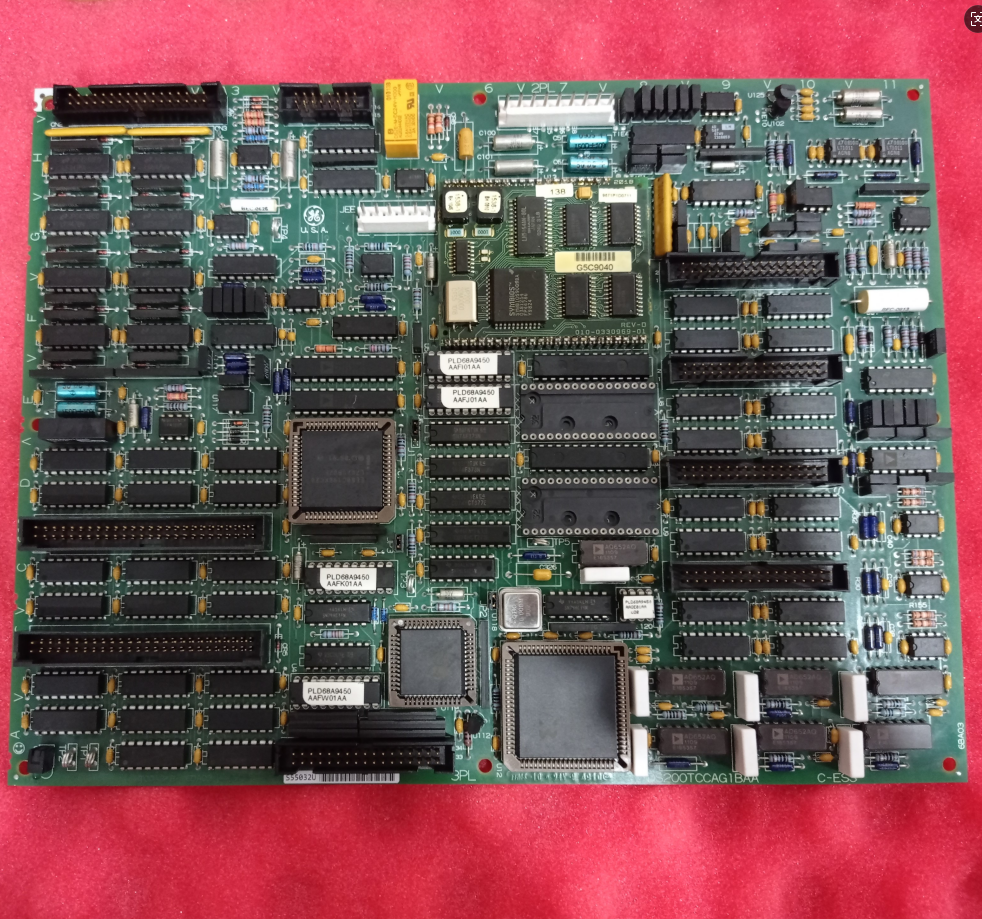

GE DS200TCCAG1B (DS200TCCAG1BAA) Common Analog Input/Output Board

The DS200TCCAG1B (DS200TCCAG1BAA) Common Analog Input/Output Board is the core signal processing board within the <R5> Analog I/O Core of GE's SPEEDTRONIC Mark V LM Turbine Control System. It is specifically responsible for the centralized acquisition and output of high-precision, multi-type generic process analog signals. Deployed in Slot 2 (Location 2) of the <R5> core, it acts as the "brain" for analog signal processing within this core, efficiently and accurately introducing a large number of non-critical (typically for monitoring) yet vital analog sensor signals from the field into the digital control system.

In the hierarchical control architecture of the Mark V LM for aeroderivative gas turbines, the <R5> core is typically tasked with extended monitoring, performance calculation, and auxiliary control. The DS200TCCA is the hardware cornerstone for fulfilling this role. It processes various signals including Resistance Temperature Detector (RTD) temperature, Thermocouple (TC) temperature, 4-20mA process variables (e.g., pressure, flow), and shaft monitoring (voltage/current). Its design aims to provide high channel density, excellent measurement accuracy, flexible software configuration, and reliable long-term stability, ensuring power plant operators have access to comprehensive and accurate data on unit health and performance. This data forms a solid foundation for optimized operation, preventive maintenance, and fault diagnosis.

II. Detailed Technical Specifications and Channel Capabilities

The DS200TCCAG1B (DS200TCCAG1BAA) is a highly integrated, multifunctional analog signal conditioning board with comprehensive and powerful specifications:

1. Analog Input Channels:

• Resistance Temperature Detector (RTD) Inputs: Provides up to 30 RTD input channels (via JCC, JDD connectors). Supports multiple industrial standard RTD types, including 100Ω Platinum (SAMA, DIN, MINCO, Rosemount, etc.), 10Ω Copper, and special 200Ω high-precision Platinum. Each channel provides precise constant current excitation and high-resolution measurement, suitable for temperature monitoring points requiring higher accuracy, such as bearing temperatures and stator coil temperatures.

• Thermocouple (TC) Inputs: Via the JAR/ST connectors, in conjunction with the TBQA termination board, it can support up to 42 thermocouple inputs (depending on the <R5> TBQA configuration). Supports J, K, E, T, and other thermocouple types. It incorporates cold junction compensation circuits (located on the TBQA), providing wide-range temperature measurement capability, suitable for high-temperature zone monitoring, such as exhaust thermocouples.

• 4-20mA Analog Current Inputs: Via the JBB connector, provides up to 14 4-20mA current input channels. These channels connect to various transmitters converting process variables to standard current signals (e.g., pressure, differential pressure, flow transmitters). The board uses precision sampling resistors internally to convert current to voltage for measurement.

• Specialized Shaft Monitoring Inputs:

• Shaft Voltage Input: Monitors generator or turbine shaft voltage to ground, used to detect shaft current insulation condition.

• Shaft Current Input: Monitors current flowing through the shaft grounding device. Combined with shaft voltage, it is used to assess shaft insulation health. These are important predictive maintenance parameters.

2. Analog Output Channels:

• 4-20mA Analog Current Outputs: Via the JAA connector, provides 16 independent 4-20mA current output channels. The outputs have high load-driving capability (maximum 500Ω load) and are typically used to drive remote indicating instruments, recorders, or serve as signal sources to the plant-wide Distributed Control System (DCS). Output accuracy and stability are high.

3. Hardware Interfaces and Connections:

• Core Data Bus:

• 3PL: 34-conductor ribbon cable data bus. This is the main channel for high-speed data exchange between the TCCA and the STCA board in its <R5> core. All input data conditioned and digitized by the TCCA is uploaded to the I/O Engine via this bus, while simultaneously receiving output data commands from the I/O Engine.

• 2PL: Power distribution bus, bringing operating power from the TCPS board.

• Signal Interface Connectors:

• JAA: Output connector, sends the 16 channels of 4-20mA output signals to the CTBA termination board.

• JBB: Input connector, receives 14 channels of 4-20mA inputs and shaft voltage/current signals from the CTBA termination board.

• JCC & JDD: Input connectors, receive up to 30 channels of RTD input signals from the TBCA termination board.

• JAR/ST: Input connectors, receive up to 42 channels of thermocouple inputs and cold junction compensation signals from the TBQA termination board.

• JC: Receives power supply diagnostic signals from the TCPS power board.

• JEE: Typically not used.

• Hardware Configuration Jumpers:

• J1: Used to enable/disable the onboard RS-232 serial communication port. This port is primarily for factory testing and advanced diagnostics; it is usually disabled during normal operation.

• JP2: Oscillator Disable Jumper. Used to disable the internal oscillator during board testing; must be enabled for normal operation.

• JP3: Factory Test Jumper. Should not be changed by the user.

III. Integration and Signal Flow within the Mark V LM System

The DS200TCCAG1B (DS200TCCAG1BAA) occupies a pivotal, connecting position within the <R5> core, with connections defining a clear monitoring signal path:

1. Connection to the Core Controller (STCA/UCPB):

• The final destination and source of commands for all signals are the STCA board and its UCPB (I/O Engine). The TCCA exchanges data periodically with the STCA board via the 3PL data bus. The 486DX processor in the UCPB manages the TCCA's configuration, data packaging, and transmission to the Control Engine <R> via the COREBUS.

2. Connection to Field Signals (via Termination Boards):

• CTBA: Connects mA inputs/outputs and shaft monitoring signals.

• TBCA: Connects RTD temperature signals.

• TBQA: Connects thermocouple temperature signals.

• The TCCA does not connect directly to field cables but interfaces through four high-density termination boards:

• This design separates the signal conditioning board (TCCA) from the physical wiring terminals, improving noise immunity, maintainability, and modularity.

3. Complete Signal Flow:

• Input Flow (Example: RTD): Field RTD Sensor → TBCA Terminal Block → (via JCC/JDD cable) → TCCA Board (provides excitation, measures voltage, linearizes, digitizes) → (via 3PL bus) → STCA/UCPB I/O Engine → (via COREBUS) → Control Engine <R>, used for monitoring display, performance calculation, alarms.

• Output Flow: Control Engine <R> or HMI setpoint → (via COREBUS) → STCA/UCPB I/O Engine → (via 3PL bus) → TCCA Board (performs D/A conversion and current driving) → (via JAA cable) → CTBA Terminal Block → Remote Instrument or DCS.

IV. Core Functions, Features, and Technical Advantages

1. High-Density, Multi-Signal Type Integration:

• The TCCA integrates conditioning circuits for temperature (RTD, TC), generic process variables (mA), and specialized mechanical variables (shaft monitoring) on a single board. This significantly reduces the number of boards required in the <R5> core, simplifies system structure, improves reliability, and lowers spare parts inventory costs.

2. High-Precision Measurement and Linearization:

• For different sensor types, the TCCA's onboard firmware and software provide high-precision signal conditioning algorithms and linearization look-up tables.

• RTD Measurement: Uses high-stability constant current sources and precision measurement circuits. Software supports multiple international standard conversion tables, ensuring full-range accuracy from low to high temperatures.

• Thermocouple Measurement: Combined with the cold junction compensation circuit on the TBQA, it accurately compensates for ambient temperature changes at the junction box, enabling true temperature measurement. Software supports various thermocouple types (J, K, E, T) and their corresponding nonlinear compensation curves.

• This combined hardware/software linearization approach is more flexible and economical than traditional separate transmitters and facilitates centralized management and calibration.

3. Flexible Software Configuration:

• Signal type, range, engineering units, filter constants, etc., for all channels are configured in the Mark V LM's I/O Configuration Editor software without hardware changes.

• For example, one channel can be software-configured as a "100Ω Pt100 DIN 43760" RTD with a 0-200°C range; another can be configured as a "Type K" thermocouple with a 0-1300°C range. This flexibility greatly simplifies engineering design and field modifications.

4. Comprehensive Diagnostics and Monitoring:

• Input Loop Diagnostics: Capable of detecting input signal faults such as over-range (>20.5mA), under-range (<3.5mA), open circuit (for TC/RTD), and generating detailed diagnostic alarms to help maintenance personnel quickly locate sensor or wiring issues.

• Power Supply Monitoring: Monitors power status from the TCPS board via the JC connector.

• Onboard Processor Self-Test: Continuously performs memory checks, communication checks, and other self-diagnostics.

5. Reliable Shaft Insulation Monitoring Interface:

• Integrated dedicated shaft voltage and current input channels provide a direct, reliable hardware interface for implementing generator shaft grounding monitoring and protection. This is an important function for preventing shaft current corrosion and protecting large rotating machinery.

6. Stable Analog Outputs:

• The 16 mA output channels provide stable, low-ripple current signals, supporting long-distance transmission to control room instruments. They are a reliable data source for plant-wide monitoring networks like DCS.

V. Application Configuration, Commissioning, and Engineering Practice

Typical Application Scenarios:
In an LM gas turbine power plant, signals connected to the TCCA in the <R5> core typically include:

• Generator/Transformer Monitoring: Generator winding temperatures (RTD), bearing temperatures (RTD), hydrogen/air cooler temperatures (RTD/TC).

• Auxiliary System Monitoring: Lube oil system temperatures (RTD), fuel forward system pressure/temperature (mA/RTD), cooling water system temperatures (RTD).

• Performance Calculation Parameters: Ambient temperature, compressor inlet temperature (for efficiency calculation).

• Shaft Health Monitoring: Shaft voltage, shaft current.

• Remote Indication Outputs: Sending key unit parameters (e.g., speed, load, exhaust temperature) as 4-20mA signals to the main control room instrument panels.

Installation and Hardware Configuration:

1. Securely insert the TCCA board into Slot 2 of the <R5> core.

2. Connect the 2PL power cable and 3PL data bus to the backplane.

3. Connect JAA, JBB, JCC, JDD, JAR/ST to their corresponding termination boards (CTBA, TBCA, TBQA) using the specified cables.

4. Verify Hardware Jumpers: Ensure J1 (RS232 port) is disabled (unless for diagnostics) and JP2 (oscillator) is enabled.

Software Configuration Steps (in TCI Software):

1. In the I/O Configuration Editor, create a configuration page for the TCCA board.

2. Configure Channel by Channel:

• For RTD Channels: Select RTD type (e.g., Pt100 DIN), range units (°C or °F), alarm limits.

• For TC Channels: Select thermocouple type (e.g., Type K), range, cold junction source (automatically associated with TBQA).

• For mA Input Channels: Set engineering range limits (e.g., 0-10 bar), engineering units, filter time.

• For mA Output Channels: Define the internal software signal source for the output (e.g., MW_DISP) and set the corresponding engineering range for the output (0-100% output corresponds to 0-50 MW).

• For Shaft Monitoring Channels: Configure appropriate range and gain.

3. Compile the configuration into the IOCFG.AP1 file, download it to the controller, and reboot the <R5> core for the configuration to take effect.

Power-up Commissioning and Verification:

1. Communication Verification: Confirm in the HMI's DIAGC screen that the <R5> core and TCCA board communicate normally, with no related diagnostic alarms.

2. Input Channel Accuracy Verification:

• RTD/TC: Use a temperature calibration furnace and standard PRT/thermocouple, or simulate resistance/microvolt signals at the terminal block using a process calibrator. Check on the HMI if the displayed temperature error is within the allowable tolerance.

• mA Input: Inject precise 4, 12, 20mA current signals at the CTBA terminal block and check the displayed value on the HMI.

3. Output Channel Verification:

• Force or logically generate an output value (e.g., 50%) on the HMI.

• Connect a precision ammeter in series at the CTBA output terminal block to measure if the output current is 50% of the corresponding range (e.g., 12mA for a 4-20mA range).

4. Diagnostic Function Testing:

• Disconnect wiring for one RTD or TC and confirm the corresponding "Sensor Open" diagnostic alarm appears on the HMI.

• Input an out-of-range mA signal (e.g., 22mA) and confirm an over-range alarm is generated.

VI. Maintenance, Diagnostics, and Typical Fault Analysis

Routine and Preventive Maintenance:

• Regularly review trends of all parameters monitored by the TCCA via the HMI to observe any abnormal drift or jumps, which may be early signs of sensor or wiring aging.

• Monitor the system diagnostic page and promptly address any low-level alarms related to the TCCA.

• Keep the core well-ventilated and free from dust accumulation.

Advanced Diagnostic Tools:

• DIAGC (Diagnostic Counters): Provides detailed operational status, raw count values, alarm status, etc., for the TCCA board. This is the primary tool for assessing board health.

• TIMN (Terminal Interface Monitor): By connecting to the RS232 port on the <R5> core's QTBA/CTBA, it allows direct reading of the I/O Engine's底层 data for deep analysis of communication or data issues.

Typical Troubleshooting:

1. Single or Multiple Channel Data Fixed (Zero, Full Scale, or a Fixed Value):

• Possible Causes: Field sensor failure, signal wire open/short, loose terminal on termination board (CTBA/TBCA/TBQA), hardware failure of the corresponding TCCA board channel, software configuration error (e.g., wrong signal type selected).

• Troubleshooting Steps: First, measure the raw signal from the field (resistance, voltage, current) at the corresponding terminal block. Check software configuration. Use DIAGC to view the raw AD count for that channel to determine if it's a front-end or board issue.

2. Measurement Value Jumps or Excessive Noise:

• Possible Causes: Field signal subjected to electromagnetic interference (e.g., running in the same tray as power cables), unstable sensor itself, poor grounding, high power supply ripple.

• Troubleshooting Steps: Check if field wiring complies with specifications (shield grounded at one end, separated from power cables). Check if grounding jumpers on the TCCA and termination boards (e.g., BJ1-BJ15 on CTBA) are set correctly. Observe signal waveform with an oscilloscope at the terminal block.

3. Analog Output Current Unstable or Not Reaching Setpoint:

• Possible Causes: Load impedance too high (exceeds 500Ω), poor output line connection, TCCA board output drive circuit failure, the software output command source itself is fluctuating.

• Troubleshooting Steps: Measure load resistance. Disconnect the field wire at the CTBA terminal block and measure no-load output current. Check if the output command's software signal source is stable.

4. TCCA Board Complete Communication Failure (Shows Fault in DIAGC):

• Possible Causes: 3PL data bus cable fault, STCA board failure, TCCA board hardware failure (processor, memory), power abnormality.

• Troubleshooting Steps: Check 3PL cable connection. Test by swapping slots (if allowed). Check power voltages from TCPS to TCCA.

Safety Warning:
Before performing any wiring, measurement, or jumper operation, lockout/tagout safety procedures must be followed. Especially when measuring shaft voltage/current loops, be aware these signals may contain high-voltage components. When replacing a TCCA board, record the onboard EPROM version and ensure the new board version is compatible or perform the corresponding software upgrade.
