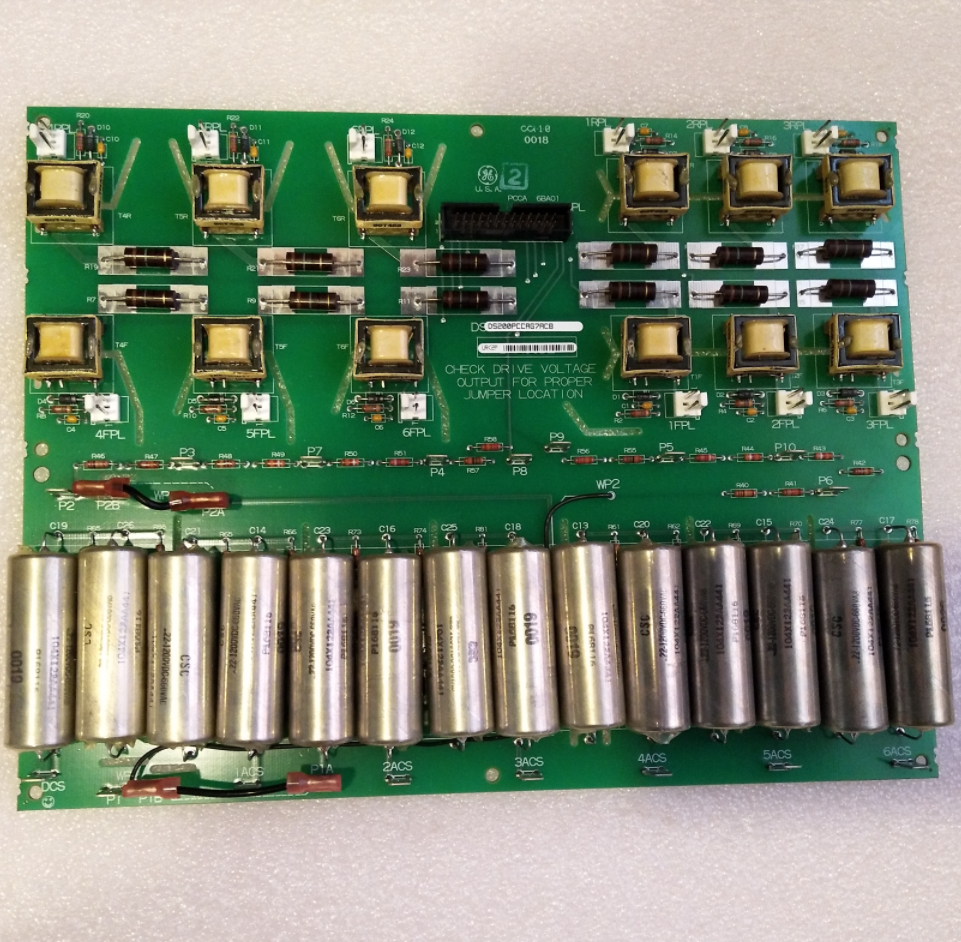

GE DS200PCCAG7A Power Connect Card

The DS200PCCAG7A Power Connect Card (PCCA) is a critical interface board designed and manufactured by General Electric (GE) Industrial Control Systems, USA. As a vital component of the GE Drive System 200 Series, this card serves as a bridge within DC variable speed drive systems, primarily responsible for signal connection and power interfacing between the drive control circuitry and the Silicon Controlled Rectifier (SCR) power bridge. Its core functions include providing gate drive pulses to the SCR bridge via pulse transformers and integrating or associating snubber circuits to suppress voltage spikes within the circuit, ensuring the stable and reliable operation of power semiconductor devices and the entire system.

II. Functions and Roles

1. Core Interface Function: The PCCA card is a specialized interface board between the drive controller and the external SCR power module. It receives pulse control signals from upstream control boards (such as the DCFB or SDCI power supply board, depending on system configuration). After isolation and power amplification, it outputs precise "Forward" and "Reverse" gate pulses through multiple connectors to directly drive the corresponding thyristor elements within the SCR bridge, thereby controlling the motor's torque, speed, and direction.

2. Voltage Feedback Sampling: The board design incorporates an armature voltage feedback sampling circuit. Through specific terminal connections (e.g., P1A/P1B, P2A/P2B) and configurable jumpers (WP3, WP4) on the board, precise measurement of the DC bus voltage can be achieved. This feedback signal is sent back to the control system for closed-loop regulation and protection.

3. Snubber Protection Circuits: Depending on the board group and power rating, the PCCA card integrates AC and DC snubber circuits. These circuits, composed of resistor-capacitor networks, effectively absorb transient overvoltages (voltage spikes) caused by line inductance and switching actions. This protects the SCR gates from damage and reduces Electromagnetic Interference (EMI), enhancing system immunity and reliability. For the DS200PCCAG7A (belonging to Group G7), the design includes both AC and DC snubber circuits.

4. Voltage Range Selection: Through two key configurable jumpers, JP1 and JP2, users can flexibly set the internal voltage scaling ratio and feedback attenuation network of the card according to the actual applied DC armature voltage level. This allows the same PCCA card series to adapt to different DC bus voltages ranging from 240V to 630V (for G7 group), increasing the product's versatility and adaptability.

III. Technical Specifications and Group Information

The DS200PCCAG7A belongs to Group G7 of the PCCA cards. GE classifies PCCA cards into ten groups (G1 through G10) based on system voltage, frame size, and power conversion type (regenerative/non-regenerative). The specific application characteristics of the DS200PCCAG7A are as follows:

• Power Conversion Type: Regenerative. This means the drive system paired with this card can operate in four quadrants. It not only transmits electrical energy from the grid to the motor (motoring state) but can also feed energy generated by motor regeneration during braking back to the grid (generating state). This is suitable for applications requiring rapid braking or frequent forward/reverse operations with high dynamic performance.

• Applicable Voltage Range: DC armature voltage range is 240 – 630 V DC. By correctly setting the JP1 and JP2 jumpers, it can precisely match the system operating voltage.

• Snubber Circuit Configuration: Includes both AC and DC snubber circuits. Suitable for low-to-medium horsepower controllers, it comprehensively suppresses voltage spikes on both AC and DC buses.

• Applicable Frames: Suitable for drive systems with C and G type frames.

• Associated Power Supply Board: Typically used with the SDCI type power supply board.

• AC Input Voltage: Suitable for systems with AC line voltage ≤600 V RMS.

• Fuse and Reactor Configuration: Utilizes Line side configured fuses and line reactors.

• Bus Transformer: Can use a common system bus transformer or a separate one.

IV. Detailed Hardware Configuration

The DS200PCCAG7A board itself does not contain LEDs, fuses, test points, or switches. Its core configurable hardware elements are jumpers and various connectors.

1. Configurable Jumpers (JP & WP)

• Jumper IN: Indicates that the board's snubber capacitors and the voltage feedback channel are connected to the same point on the power bridge. This is the default configuration for most cases.

• Jumper OUT: Indicates that the snubber capacitors and the voltage feedback channel are separated and connected to different points on the power bridge. This may be required for certain special system layouts or to optimize performance/suppress specific interference.

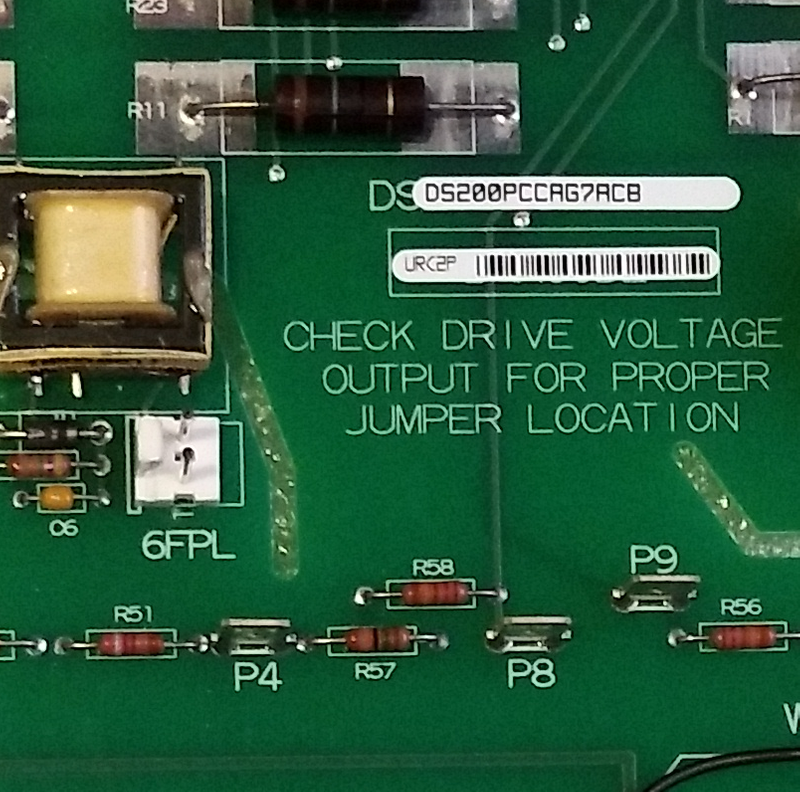

• JP1 and JP2 (Voltage Range Selection Jumpers): These two jumpers must be used in conjunction. They are used to set the measurement range for the DC armature voltage. Based on the system's actual DC voltage, users must consult Table 2 in the manual and connect the JP1 and JP2 wire jumpers between the designated stab terminals (P3 through P10) on the board. For example, for a 500V DC system, JP1 P7-P8 and JP2 P9-P10 need to be connected. Correct setting is crucial for ensuring accurate voltage feedback signals.

• WP3 and WP4 (Snubber Circuit & Feedback Channel Connection Jumpers): These are wire jumpers connected between terminals P2A-P2B and P1A-P1B, respectively.

2. Board Connectors

• Gate Pulse Output Connectors (1FPL-6FPL, 1RPL-6RPL): A total of 12 plug connectors are used to send gate drive pulses to the 6 bridge arms of the SCR bridge (6 forward, 6 reverse). Each connector has 2 pins (red, white wires), providing differential pulse signals to enhance noise immunity.

• Control Signal Connector (5PL): A 26-pin connector serving as the communication bridge between the PCCA card and the power supply board (e.g., SDCI). It transmits gate pulse trigger signals (A1F-A6F, A1R-A6R) and +24V operating power (P24) from the power supply board, and returns DC voltage test attenuation signals (DCP, DCN).

3. Terminals

• P1, P2: Connect to the positive and negative DC bus, respectively.

• P1A/P1B, P2A/P2B: DC bus voltage feedback sampling points, used in conjunction with WP3/WP4 jumpers.

• P3 – P10: Connection points for voltage feedback scaling resistors, used for JP1/JP2 jumper settings.

• DCS: Connection to the DC snubber circuit.

• 1ACS – 6ACS: Connections to AC snubber circuits (applicable for G7 group).

• The board provides a series of stab terminals for power, feedback, and snubber circuit connections. Main terminals include:

V. Application Fields and Advantages

The DS200PCCAG7A PCCA card is primarily used in DC motor drive systems requiring high performance and reversible operation. Typical application fields include:

• Heavy Machinery: Mine hoists, port cranes, main and auxiliary drives for large rolling mills.

• Industrial Manufacturing: Large planing machines, boring mills, reversible hot/cold rolling mills, coilers, tension control equipment.

• Test Equipment: High-power dynamometer test stands, vehicle dynamometers.

• Marine Propulsion: DC drive systems for some auxiliary propulsion or deck machinery.

Core Product Advantages:

• High Reliability: Utilizes mature pulse transformer isolation technology with strong common-mode noise rejection; integrated snubber circuits effectively protect power devices.

• Flexible Configuration: Adaptable to a wide range of DC voltages through jumper settings, meeting the needs of different application scenarios.

• Strong Compatibility: As a standard component of the GE DS200 series, it offers excellent system integration and compatibility with control boards, power supply boards, and power bridges from the same series.

• Professional Design and Manufacturing: Adheres to GE's stringent industrial standards, ensuring long-term stable operation in harsh industrial environments.

• Comprehensive Technical Support: GE provides global technical documentation, spare parts, and service network support.

VI. Installation, Replacement, and Maintenance Guidelines

Important Safety Warning: Potentially lethal voltages are present on the PCCA card when powered! Any installation or maintenance must be performed by adequately trained personnel familiar with the equipment and instructions. Before any operation, turn off all power to the drive, wait sufficient time for capacitors to discharge, and use instruments to verify the absence of power before touching the board or circuits.

Summary of Standard Procedure for Replacing the DS200PCCAG7A Board:

1. Safe Power-Off and Verification: Completely turn off all input power to the drive system. Wait several minutes to ensure filter capacitors are fully discharged, and verify relevant circuits are de-energized.

2. Open Cabinet Door to Access Boards: Open the equipment cabinet door. The drive control card located on the front board carrier is visible. The PCCA card is mounted on the back of this carrier (the power supply board is on the front).

3. Remove Board Carriers: Pull back the lock tabs on both sides of the board rack. First, lift and tilt forward the front carrier (with the drive control card). Then, lift and tilt forward the second carrier (with the power supply board and PCCA card) to access the PCCA card.

4. Disconnect All Cables: Carefully disconnect all cables connected to the PCCA card. For ribbon cables, grasp both sides of the cable connector mating with the board connector and gently pull it free. For cables with pull tabs, carefully pull the tab.

5. Remove the Old Board: Push back on the six plastic snaps (holders) securing the PCCA card to release it from the carrier.

6. Inspect and Configure the New Board: This is a critical step – Before installing the new board, you must check and ensure that all jumper settings (JP1, JP2, WP3, WP4) on the new board (DS200PCCAG7A) are in the exact same positions as on the old board. If hardware differences or re-adjustment are needed due to board revision updates, configuration must be performed strictly according to Table 2 (Adjustable Hardware) and Table 3 (Terminal Connections) in the manual.

7. Install the New Board: Place the new board into the carrier in the same orientation. Ensure all six plastic snaps click back into place, securing the board firmly.

8. Reconnect All Cables: Reconnect all cables to the new board as labeled, ensuring connectors are fully seated at both ends.

9. Restore Carriers: First, swing the second carrier (with the new PCCA card and power supply board) back up into position. Then, swing the front carrier back into position. Finally, slide the lock tabs on the side of the board rack back into the locked position and close the cabinet door.

Note: Due to product upgrades, boards of different revisions may not contain identical hardware, but GE ensures system compatibility of its replacement boards. Carefully check revision information during replacement.
