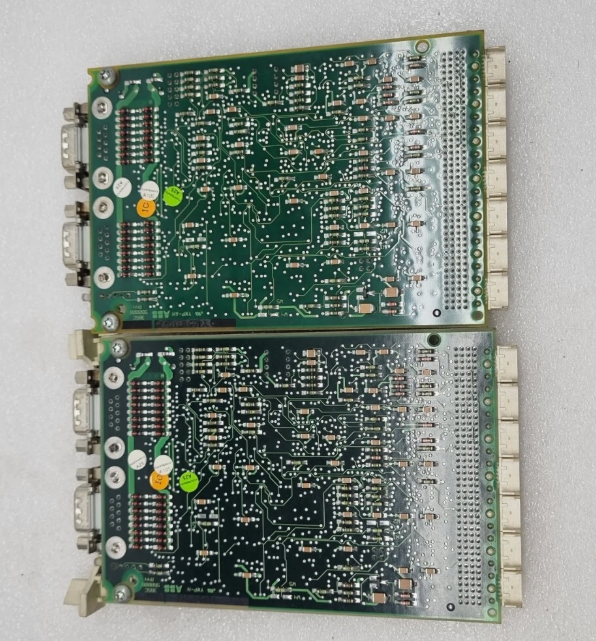

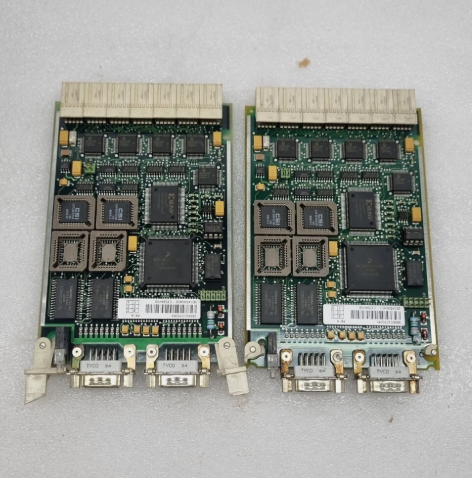

The CI534V02 is a critical communication option module within the ABB Advant Controller 450 control system. It belongs to the MultiVendor Interface (MVI) series and is specifically designed to implement MODBUS protocol communication. This module enables the Advant Controller 450 to perform efficient and reliable data exchange with third-party devices, control systems, or intelligent instruments. It is a key component for achieving industrial automation system integration and interoperability.
Within the Advant OCS (Open Control System) architecture, the CI534V02 operates as a communication submodule installed in a carrier module (such as SC510 or SC520) within the controller subrack. It communicates with the main processor module (PM511) via the system's internal bus (Futurebus+) and establishes physical connections with external devices through its front-end standard serial interface (V.24/RS-232-C). Its core purpose is to break down communication barriers between equipment from different manufacturers, enabling deep integration between the Advant control system and the widely adopted MODBUS protocol network.
2. Features and Capabilities
The CI534V02 module extends powerful and flexible third-party communication capabilities to the Advant Controller 450. Its features are highlighted in the following areas:
1. Protocol Support and Compatibility:
Core Protocol Support: CI534V02 specifically supports the MODBUS protocol. MODBUS is a serial communication protocol extensively used in industrial automation, having become a de facto industry standard. It supports thousands of industrial devices such as PLCs, variable frequency drives, smart transmitters, sensors, and actuators.
Communication Mode: Supports MODBUS RTU (Remote Terminal Unit) mode. This mode uses binary encoding, offers high communication efficiency, and is the most common MODBUS variant used in industrial field applications.
Role Definition: In this communication link, the Advant Controller 450 is typically configured as the MODBUS Master, responsible for initiating queries (requests), while the connected third-party devices act as Slaves, providing responses. This allows the controller to actively poll or control multiple slave devices.
2. Communication Interface and Connectivity:
Physical Interface: The module provides a standard V.24/RS-232-C asynchronous serial communication interface, a mature and universal standard known for simple and reliable connections.
Connection Topology: Supports flexible connection schemes:
Point-to-Point Connection: Direct connection to a single third-party device.
Multi-Drop (Multi-Station) Connection: Using an RS-232 to RS-485 converter, a MODBUS bus network can be established, connecting up to 32 slave devices (theoretical limit, subject to protocol address space and practical drive capability). This enables integration of distributed I/O or device groups.
Transmission Distance: When using the standard RS-232 interface, the communication distance is typically limited to about 15 meters. However, when converted to an RS-485 bus, the communication range can be extended to over 1200 meters, making it highly suitable for connecting distributed devices within a plant.
3. Data Exchange Capabilities:
Data Types: Supports full MODBUS data type exchange, including:
Coils: Read/Write single bits, corresponding to digital outputs/inputs.
Discrete Inputs: Read single bits, corresponding to digital inputs.
Holding Registers: Read/Write 16-bit words, corresponding to analog outputs/inputs or parameter settings.
Input Registers: Read 16-bit words, corresponding to analog inputs.
Data Mapping: Data points from external MODBUS devices (such as coil addresses, register addresses) can be mapped into the Advant Controller 450's internal Data Base. This means data from third-party devices can be read from and written to directly by the controller's application programs (PC programs), just like local S100 I/O signals, achieving seamless data integration.
Bidirectional Communication: Supports bidirectional data transfer. The Advant Controller 450 can both read the status and measured values from external devices and send control commands and setpoints to them.
4. System Integration and Configuration:
Software Integration: This functionality requires support from corresponding software program modules. Within the Advant Controller 450, parameters for the MODBUS network—such as slave address, baud rate, data bits, stop bits, parity, and data mapping—are defined using Data Base elements and specific configuration commands.
Engineering Tool Support: Users can perform graphical configuration using an Advant Station 100 Series Engineering Station or Advant Station 500 Series Engineering Station, simplifying the setup of communication links and data point mapping.
Diagnostics and Maintenance: Communication status is integrated into the controller's robust diagnostic system. The connection status and communication errors of the MODBUS link can be monitored via the engineering station or system status displays, facilitating rapid troubleshooting.
5. Application Flexibility:
Complementary to Other Communication Methods: The MODBUS interface provided by CI534V02 complements the controller's native high-end buses like Advant Fieldbus 100, PROFIBUS-DP, and MasterBus 300. It is particularly suitable for integrating legacy devices or cost-effective third-party sensors/actuators that only support the MODBUS protocol.
Cost-Effectiveness: Leveraging widespread and low-cost MODBUS devices helps reduce the overall construction and expansion costs of the automation system.
3. Working Principle
The working principle of the CI534V02 module is based on a master-slave query-response mechanism and is deeply integrated into the software-hardware architecture of the Advant Controller 450.
1. System Architecture and Data Flow:
Hardware Level: The CI534V02 functions as an intelligent communication board inserted into a carrier module slot in the controller subrack. It possesses its own processor and firmware, dedicated to handling the MODBUS protocol stack (including data encapsulation, de-encapsulation, CRC checking, etc.). It exchanges data with the main CPU (PM511) via the backplane bus (Futurebus+) and connects to external physical lines through its front-end interface.
Software Level: Within the Advant Controller 450's system software, a corresponding communication driver manages the CI534V02 module. This driver operates under the scheduling of the operating system, receiving read/write requests from application programs (PC programs) or automatically initiating data exchange based on preset scan cycles.
2. Communication Process:
a. Request Initiation: Based on scan cycles configured in the controller's Data Base or triggered by specific elements in the PC program (e.g., communication-related function blocks), the system software generates a data exchange request.
b. Protocol Processing: This request is passed to the CI534V02 driver. The driver converts the request into a message conforming to the MODBUS RTU format, including slave address, function code (e.g., Read Holding Registers 0x03), starting address, data length, and CRC check code.
c. Physical Transmission: The CI534V02 module's processor transmits the message via its serial interface (V.24). If connected to an RS-485 network, an external converter is required.
d. Slave Response: The target slave device receives the message, performs address verification and CRC check. If correct, it executes the corresponding operation (e.g., reading register values) and formulates a response message back to the master.
e. Response Processing: The CI534V02 module receives the response message, performs checks and parsing, and then extracts the valid data.
f. Data Update: The parsed data is sent back to the main system via the backplane bus and updates the corresponding Data Base elements within the controller.
g. Application Access: The controller's PC program can access data from external devices by reading these Data Base elements, or trigger requests to send control commands to external devices by writing to the Data Base.
3. Data Set Mechanism:
For batch data requiring periodic exchange, the Advant Controller 450 typically uses the "Data Set" concept for optimization. Users can define a Data Set during the engineering phase, containing a group of pre-mapped data items (e.g., multiple consecutive registers) that need to be exchanged with a specific MODBUS slave. The system automatically manages the reading and writing of the entire set at the configured cycle, rather than making individual requests for each data point, significantly improving communication efficiency and determinism.
4. Error Handling and Redundancy:
The module incorporates comprehensive communication error detection mechanisms (timeout, CRC error, illegal response, etc.). Upon error detection, corresponding status information or event messages are generated in the controller's diagnostic system.
Although the documentation mentions that MVI supports redundancy by duplicating communication boards, modems, and cables, for CI534V02 MODBUS applications, redundancy typically depends on specific project requirements. This may involve configuring backup communication links or selecting third-party devices that support redundant communication.
4. Typical Application Scenarios
The CI534V02 module is suitable for numerous industrial fields requiring integration of ABB Advant control systems with third-party equipment:
Building Automation (BAS): Integrating third-party brand chillers, air handling units (AHUs), lighting controllers, power meters, and other MODBUS devices.
Water and Wastewater Treatment: Connecting various intelligent water quality analyzers, flow meters, gate controllers, pump station control systems, etc.
Power Monitoring: Communicating with multiple brands of intelligent power meters (monitoring voltage, current, power, power quality) to build energy management systems.
Manufacturing Production Lines: Integrating controllers for non-ABB brand specialized machine tools, manipulators, heating furnaces, packaging machines, etc.
Plant Retrofitting and Upgrades: In existing plant renovation projects, preserving and integrating a large number of existing field devices and PLCs that support MODBUS, thereby protecting prior investments.
Interconnection with SCADA Systems: Serving as a channel for data exchange between the Advant controller and upper-level Supervisory Control and Data Acquisition (SCADA) systems that use the MODBUS protocol.
