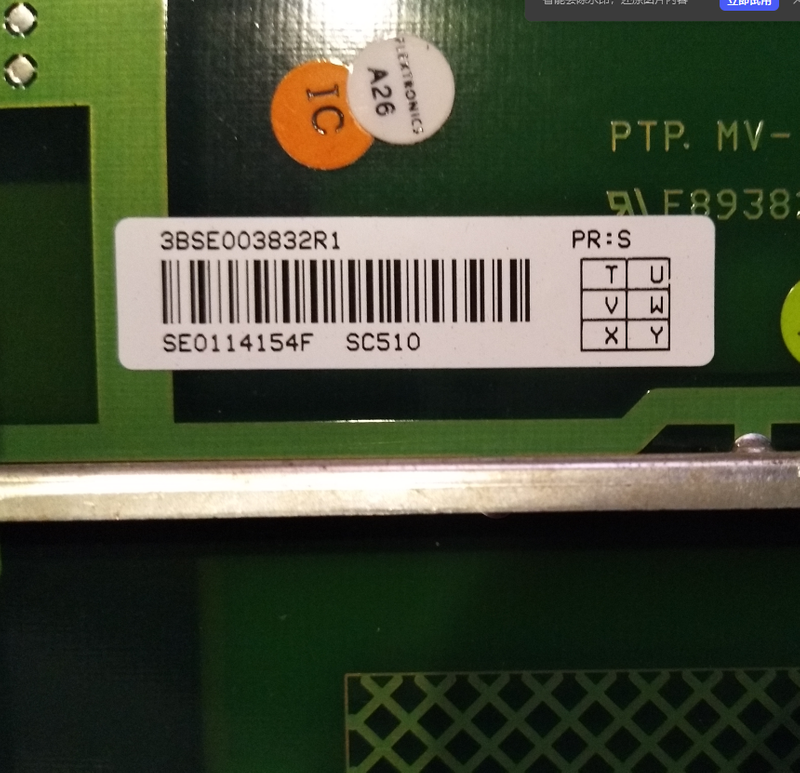

The SC510 (Product ID: 3BSE003832R1) is a core communication interface component designed by ABB for its Advant OCS (Open Control System) series, particularly for the large-scale Advant Controller 450. Its official designation is "Submodule Carrier without CPU." Within the modular architecture of the Advant control system, the SC510 plays a crucial role—it is a standardized hardware platform capable of hosting various communication submodules. It serves as the physical and logical hub for data exchange between the controller and external networks, field devices, operator stations, and other control systems.
The SC510 itself lacks independent data processing capability; its functionality relies on the specific communication submodules (e.g., CI531, CI522A, CI541V1) inserted into it. This design embodies high flexibility and scalability, allowing users to select and configure different communication protocols and interfaces based on actual application needs, thereby constructing customized control system communication solutions. The product adheres to strict industrial standards, complies with the EU RoHS Directive (2011/65/EU), and is classified under WEEE Category 5 (Small Equipment).
2. Product Functions and Features
As the communication backbone of the Advant Controller 450, the SC510, by hosting different submodules, enables a wide range of powerful communication functions. Its main functions and features are manifested in the following aspects:
1. Modularity and Flexibility
The core value of the SC510 lies in its modular design. An SC510 carrier typically provides multiple slots, allowing the simultaneous installation of several different types of communication submodules. This design enables users to integrate multiple communication interfaces within a compact physical space. For example, a single controller can be configured with a MasterBus 300 network for connecting upper-level operator stations, an Advant Fieldbus 100 for connecting remote I/O (like S800 I/O), and a PROFIBUS-DP or standard serial interface for connecting third-party devices. Users avoid the need to purchase independent, potentially structurally diverse hardware for each communication type, greatly simplifying system design, inventory management, and maintenance.
2. Support for a Wide Range of Communication Protocols and Networks
By inserting corresponding submodules, the SC510 can support nearly all standard communication links within the ABB Advant OCS ecosystem, including but not limited to:
Control Network Communication: MasterBus 300 / 300E (Industrial Ethernet), used to connect Advant Station 500 Series Operator Stations, Engineering Stations, and other Advant Controllers, forming a plant-wide monitoring and management network.
Fieldbus Communication:
* Advant Fieldbus 100: A high-speed, deterministic ABB proprietary bus used to connect distributed I/O stations (e.g., S800 I/O), drive units (ACV/DCV 700), and other Advant Controllers, enabling reliable, real-time data exchange between the controller and process I/O. Supports redundant configuration for high availability.
* MasterFieldbus: Used to connect S400 I/O units, MasterPiece 51, etc.
* PROFIBUS-DP: An open, international standard fieldbus for seamless integration of numerous third-party sensors, actuators, and subsystems supporting this protocol.
* LONWORKS: Another open fieldbus technology, particularly suitable for building automation, intelligent device control, etc., also supported within the Advant system, e.g., for integrating INSUM motor control system switchgear.
Point-to-Point and Serial Communication:
* EXCOM: Enables customized data set-based communication with external computers (e.g., PCs) via RS-232-C/V.24 interfaces.
* RCOM: Protocol for remote communication.
* MultiVendor Interface (MVI): Supports various industry-standard or vendor-specific serial protocols like MODBUS, Siemens 3964(R), key for system interoperability.
* Standard Serial Interfaces: Directly connects local operator terminals (e.g., MasterView 320), printers, and other peripherals.
3. System Integration and Data Exchange
The SC510 and its submodules are deeply integrated at the software level of the Advant Controller 450. The system software (e.g., the basic system program module QC07-BAS41) includes support for various communication links. When configuring the controller, application engineers can easily define data transmission and reception through the various communication ports on the SC510 using specific PC elements in AMPL (ABB Master Programming Language) (e.g., DSP-R/DSP-S for Advant Fieldbus 100, PB-R/PB-S for PROFIBUS-DP, LON-R/LON-S for LONWORKS) or data communication functions. This allows information such as process variables, control commands, and alarm events to flow efficiently and reliably between the controller, operator interfaces, and field devices.
4. High Reliability and Maintainability
Hot-Swap Support (dependent on specific submodule and system configuration): Under appropriate system conditions, certain communication submodules may support hot-swapping, greatly facilitating online system maintenance and expansion, reducing downtime.
Diagnostics and Status Indication: The SC510 carrier itself and most submodules are equipped with LED status indicators (e.g., Run "R" lamp, Fault "F" lamp), providing field maintenance personnel with intuitive hardware status information. Furthermore, the controller's system diagnostics can report detailed health status of communication links—including link interruptions, configuration errors, hardware faults—via the engineering station, enabling quick fault localization and resolution.
Redundancy Support (System Level): While the SC510 board itself is not redundant, the Advant Controller 450 system supports processor module redundancy. In a redundant configuration, communication path reliability is part of the overall high-availability design. Certain critical communication links (e.g., Advant Fieldbus 100) themselves also support redundant media configuration.
5. Mechanical and Electrical Characteristics
The SC510 adopts a standard Eurocard format, designed for installation in the controller subrack of the Advant Controller 450. Its dimensions are: Length 486mm, Depth 288mm, Height 22.5mm, Net Weight 0.67kg. Its robust industrial design ensures stable operation in harsh industrial environments with vibration, electromagnetic interference, etc.
It connects to the processor module (PM511) via a high-speed internal connection through the subrack backplane bus, drawing its +5V and +24V DC operating power from the system supply. Power consumption data can be found in technical appendices (e.g., the SC510 itself consumes approximately 0.7W), which is crucial for calculating cabinet heat dissipation and power supply capacity.
3. Working Principle and Technical Theory
The working principle of the SC510 can be clearly divided into the hardware platform layer and the communication function implementation layer.
1. Hardware Platform Layer Principle

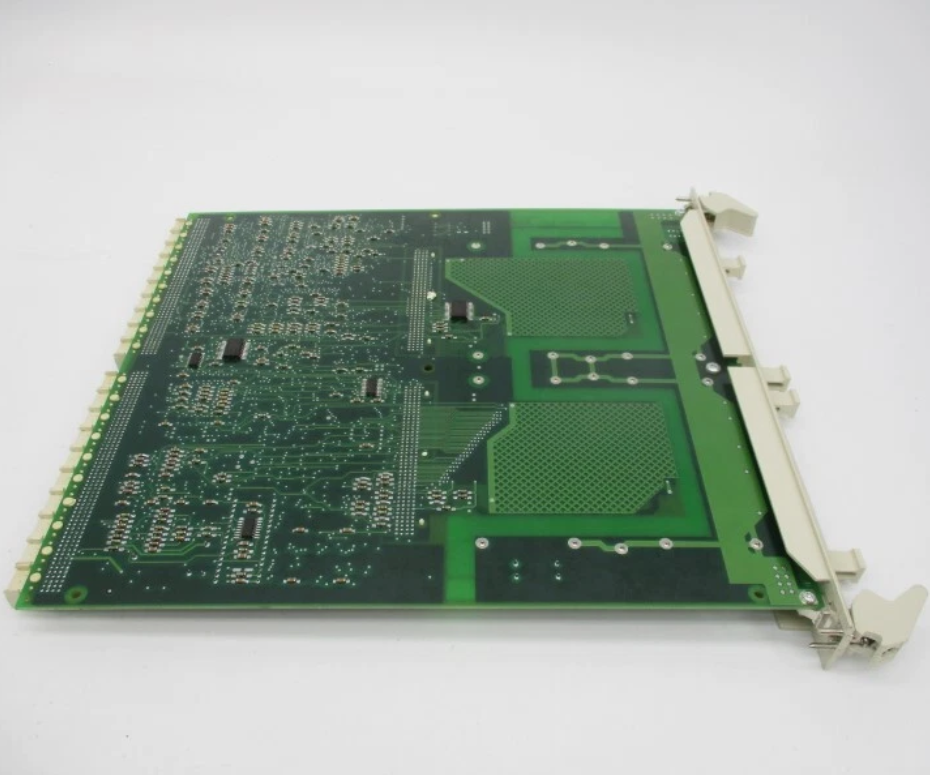

The SC510 is essentially a passive, intelligent "motherboard" or "backplane expander." Its core is a sophisticated printed circuit board (PCB) integrating the following key parts:
Futurebus+ Interface Controller: This is the core connecting the SC510 to the Advant Controller 450 host system. It implements a high-speed parallel bus protocol (Futurebus+), providing a channel for high-volume, low-latency exchange with the main processor module (PM511). All submodules inserted into the SC510 communicate with the controller CPU via this shared high-speed channel.
Submodule Slots and Interface Circuits: Each slot provides a standardized electrical and mechanical interface, including data lines, address lines, control lines, and power lines (+5V, +24V). The interface circuitry is responsible for signal buffering, level conversion, and isolation, ensuring different submodules can operate stably and compatibly.
Local Management and Diagnostic Circuitry: The SC510 contains simple management logic for submodule identification, basic power management, and status collection. It can report the carrier's presence, submodule insertion/removal status, and basic health information to the main CPU.
Workflow: When the system powers up or resets, the processor module (PM511) enumerates all connected submodule carriers (like SC510) via Futurebus+. The CPU then reads the type identifier of each submodule installed on each SC510 (via firmware or hardware coding on the submodule). Based on the recognized submodule types, the system loads the corresponding device drivers (contained within the system software). The driver initializes the submodule, sets its operating parameters (e.g., baud rate, network address), and establishes a communication endpoint for it within the operating system. At this point, the SC510 and its submodules become standard communication resources available to the controller.
2. Communication Function Implementation Layer Principle
Specific communication functions are implemented by the various communication submodules inserted into the SC510. Examples of typical submodules:
CI531 (RS-232-C Interface): This submodule contains a UART (Universal Asynchronous Receiver-Transmitter) chip and RS-232 level converters. When the controller application needs to send data via the serial port, the CPU writes the data to the CI531's transmit buffer via Futurebus+ and the SC510 interface. The CI531's UART automatically converts parallel data into a serial bitstream, and the level converter shifts TTL levels to approximately ±12V RS-232 levels for transmission via the DB9 connector. The receive process is the reverse. All settings for baud rate, data bits, stop bits, and parity are controlled by the CPU via the driver.
CS513 (MasterBus 300 Interface): This is a more complex submodule integrating a network controller (e.g., Ethernet MAC chip) and a physical layer transceiver (PHY). It performs complete OSI model Data Link and Physical layer functions. The controller CPU delivers network messages (e.g., data sets) to be sent to the CS513. The CS513 is responsible for adding frame headers/trailers, calculating CRC checksums, and transmitting them on the Ethernet network using CSMA/CD mechanisms. Upon reception, it filters frames addressed to itself, performs CRC checks, and submits valid data payloads to the CPU. It supports operation in either "executed in main CPU" or "executed in slave CPU" modes; the latter utilizes greater processing power on the submodule to offload network protocol handling, significantly reducing main CPU load.
CI522A (Advant Fieldbus 100 Interface): This is a dedicated interface for a deterministic fieldbus. It likely contains a processor specialized for handling the ABB proprietary AF100 protocol and bus drivers. It handles precise cyclic data exchange and event-triggered communication, ensuring real-time performance for I/O data. The CPU periodically refreshes the process image area (inputs) and output command area (outputs) through it, with the timing and synchronization of communication strictly managed by this submodule.
Data Flow Path: The typical path for an analog input value from an S800 I/O station is: S800 I/O Module -> S800 I/O Station Bus -> Advant Fieldbus 100 Media -> CI522A Submodule -> Local bus of the SC510 Carrier -> Futurebus+ System Backplane -> Process Image Area in the Processor Module (PM511) RAM -> Read and processed by controller application -> Potentially sent via network through CS513 Submodule -> MasterBus 300 -> To Operator Station for display.
3. Position within the System Architecture
Within the modular architecture of the Advant Controller 450, the SC510 resides at the "Communication Unit" layer. It is tightly coupled upwards via the high-speed backplane bus to the "Computing Unit" (Processor Module), and downwards via standardized submodule interfaces to the "Network Access Units" (various communication submodules). This layered, decoupled design principle allows the computing core, communication platform, and network interfaces to evolve and be upgraded independently. For instance, when support for a new network technology is needed, only a new submodule needs to be developed for use in existing SC510 carriers, without requiring replacement of the processor or carrier, protecting user investment and extending system lifecycle.
