The TC520 System Status Collector is a critical monitoring and interface module within the ABB Advant® OCS system, specifically for the Advant® Controller 450 large-scale controller. Functioning as a highly specialized, autonomously operating hardware unit installed in the controller subrack, its primary role is to collect, consolidate, and distribute system-wide status information. The TC520 is a foundational component that contributes to the controller's high reliability, maintainability, and diagnostic capabilities. By continuously monitoring key system operational parameters and external input signals, it provides vital decision-making data for operators, maintenance engineers, and the controller's own redundancy and failover logic.
In complex industrial automation environments, the health of the controller and its associated I/O subsystems, power supplies, communication networks, and auxiliary equipment (such as fans) is directly linked to production process continuity and safety. The TC520 is designed to serve as a centralized, reliable point for status monitoring. It acts as the "nerve center" of the control system, constantly sensing the system's "pulse" and standardizing this information for distribution to upper-level processors and operator stations. This enables multi-layered functionality, from status display and event alarming to automatic triggering of redundancy switchover.
2. Features
The TC520 module integrates a rich set of features, reflecting the stringent requirements for reliability, real-time performance, and flexibility in industrial control equipment. Its main features are as follows:
2.1 Centralized Status Information Collection
The core function of the TC520 is to serve as a centralized signal collection point. It acquires status information through two channels:
Backplane Bus Signals: The module connects directly to the controller subrack's backplane bus, reading predefined critical status signals from the controller core, including:
RUN: Indicates the operational status of the processor module.
LIVE: Indicates the system is in an active operational state.
BAT: Indicates the status of the battery backing up the RAM and clock.
PFail: Indicates a power supply failure.
Front Connector Signals: The module front features a multi-pin connector for connecting discrete status signals from other parts of the system, providing flexible external monitoring expansion capability.
2.2 Flexible General-Purpose Status Inputs
The TC520 front provides four general-purpose digital input channels (divided into Group A and B, each with two signal lines and a common terminal). These inputs accept standard 24V DC level signals (Signal "0": -50V to +2V; Signal "1": +12V to +60V) and are electrically isolated via optocouplers for enhanced noise immunity. The purpose of these inputs can be defined in the controller's data configuration. Common applications include:
Redundant I/O Power Supply Monitoring: Connecting fault signals from two redundant 24V I/O power supplies (A and B) to inputs A1 and A2 respectively, for monitoring the status of power supplies feeding process I/O modules.
User-Defined Monitoring Points: Users can connect any 24V level status signal requiring monitoring (e.g., key equipment ready signals, safety loop status, external alarm contacts) to these inputs (can be defined as functions F1 to F4). This integrates the status of third-party equipment or auxiliary systems into ABB's unified control system monitoring framework.
2.3 Dedicated Auxiliary Equipment Monitoring Input
In addition to general inputs, the TC520 provides a dedicated FANFAIL (Fan Failure) input. This input also accepts a 24V level signal, but its reference is chassis ground. A high-level voltage (+12V to +60V) at this input is interpreted by the TC520 as a fan failure state. This is typically used to monitor the operation of cabinet forced cooling fans, ensuring the controller operates within a suitable temperature range.
2.4 High-Precision External Clock Synchronization Interface
The TC520 incorporates a critical SYNCIN (Synchronization Input) interface for receiving an external "minute pulse" signal to achieve high-precision external synchronization of the entire Advant Controller 450 system's calendar clock. This function is essential for applications requiring strict timestamp consistency across multiple controllers or sites, such as sequence of event recording (SOE), inter-system interlocks, and batch production reporting. The sync signal is optically isolated and distributed by the TC520 via the backplane bus separately to the processor module(s).
2.5 System Run Status Relay Outputs
The TC520 provides two relay output contacts (labeled RUN A and RUN B), controlled by the RUN signal from the two (in redundant configuration) processor modules, respectively. As long as the corresponding processor module is in normal operation (RUN signal active), the corresponding relay contact remains closed. These contacts (maximum rating: 250V AC/DC, 8A resistive load) can be conveniently connected to external indication devices (e.g., alarm lights, buzzers) or used to interlock other safety-related equipment, providing intuitive, hardware-level indication of the main controller's operational status for field operators and maintenance personnel.
2.6 Autonomous Operation and Fail-Safe Design
A notable feature of the TC520 is its fully autonomous mode of operation. It does not rely on commands from the main CPU to perform its monitoring functions; its firmware runs independently upon module power-up. This means that even if the main processor experiences a severe fault or is rebooting, the TC520 can continue to collect and (via its serial link) report input statuses. It reports the status of all defined inputs, regardless of whether the actual wiring for those inputs exists, a design that facilitates fault diagnosis and line checking. Its "fail-safe" philosophy is evident: when an error state is detected (e.g., RUN signal loss, fan failure), it can reliably trigger alarms via system messages and status displays.
2.7 Status Information Distribution
The TC520 processes and integrates all collected status information (including backplane signals and front-end input signals) and then broadcasts it via a transmit-only serial data link. This data link is made available on the controller subrack's backplane bus to all main CPU modules, but CPUs can only receive ("listen to") the information and cannot send commands to the TC520. This design ensures one-way, reliable propagation of status information, avoids communication conflicts, and allows both processor modules in a redundant configuration to obtain an identical view of the system status simultaneously, which is crucial for seamless failover.
3. Technical Specifications
3.1 Electrical Characteristics
Operating Power: +5 V DC (from controller subrack backplane), typical current consumption 5.0 mA, typical power dissipation 0.25 W.
General Inputs (A1, A2, B1, B2):
Logic "0": -50V to +2V
Logic "1": +12V to +60V
Isolation: Optocoupler
Filtering: Hardware (1ms) combined with software (100ms) filtering
Minimum valid pulse width: > 100 ms
Trigger edge: Positive (rising) edge
Fan Failure Input (FN):
Sync Input (SYNCIN):
Logic "1": +12V to +60V (specific pulse requirements refer to system clock technical data)
Isolation: Optocoupler
Filtering: Hardware (1ms) filtering
Minimum valid pulse width: > 10 ms
Trigger edge: Positive edge
Relay Outputs (RA, RB):
Contact form: Normally open (closed during normal operation)
Maximum load: 250 V AC/DC, 8 A (resistive load)
Contact opening time: max. 8 ms
3.2 Mechanical and Indicators
Module Size: 6 SU (Subrack Units), 6 mp ("half-height" size).
Weight: Approx. 0.23 kg.

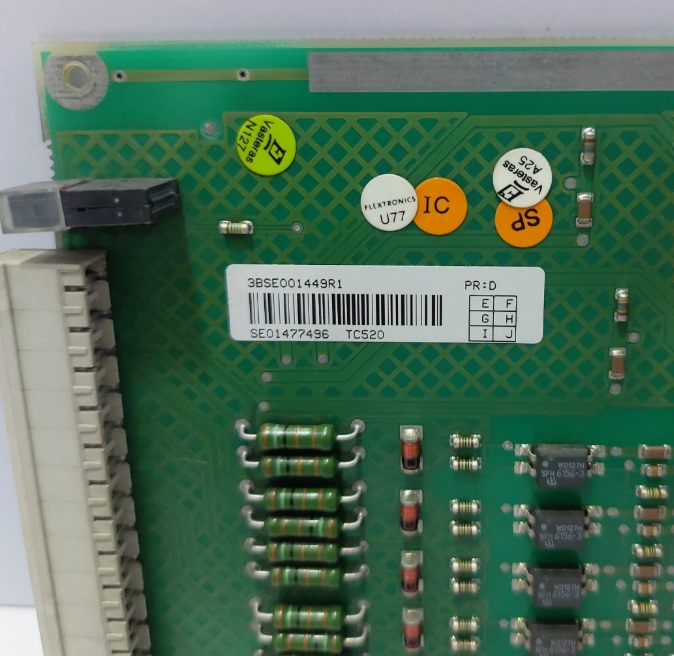

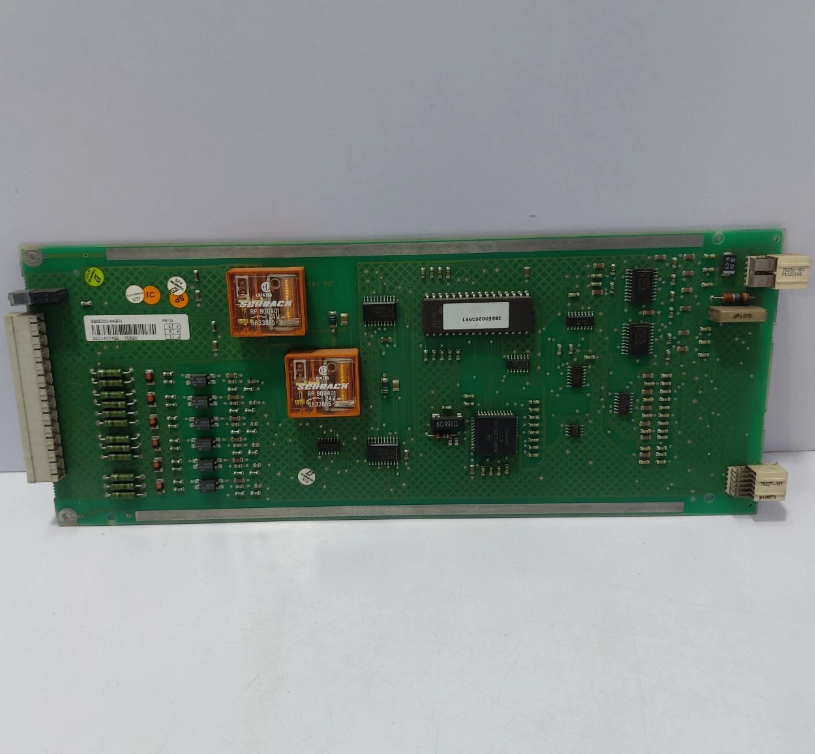

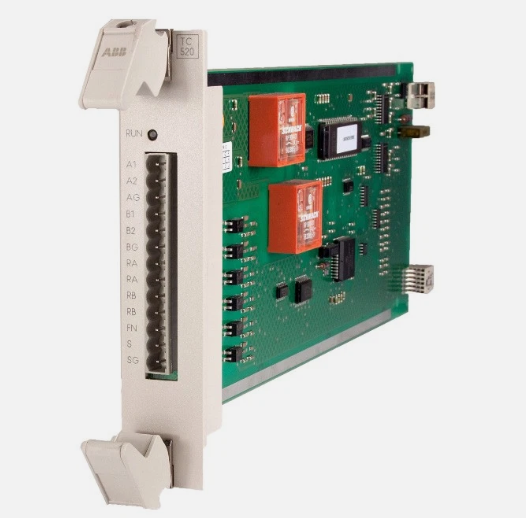

Status Indicator: The module front has a green RUN LED indicating normal operation of the TC520 module itself.
3.3 Configuration
The functional meaning of the TC520's inputs (especially the front-end general-purpose inputs A1, A2, B1, B2) must be defined through the Data Base Configuration of the Advant Controller 450. Using an engineering station (e.g., Advant Station 100 Series), this is set using the corresponding data elements (e.g., for power supply modules and TC520). For instance, it can be specified whether input A1 is used to monitor an "I/O 24V A" power error or as an input for a user-defined function "F1". This software-defined flexibility greatly enhances the module's applicability.
4. Working Principle
The working principle of the TC520 can be summarized as three continuous and automated stages: "Collection - Processing - Distribution".
Stage 1: Signal Acquisition and Pre-processing
Upon power-up, the module's internal microprocessor and firmware initiate operation. It simultaneously acquires signals from two sources:
Hardware Level Detection: The various input channels (A1/A2/B1/B2/FN/SYNCIN) on the front connector convert external 24V voltage signals into internal logic levels via optocoupler isolation circuits and level detection circuits. To suppress signal chatter caused by field noise, all inputs (except SYNCIN) employ a dual-filtering mechanism of hardware RC filtering (~1ms time constant) combined with software digital filtering (~100ms debounce). This ensures only stable, valid state changes are recorded. The SYNCIN input, due to its timing accuracy requirements, uses only hardware filtering.
Backplane Bus Monitoring: Through its backplane interface chip, the TC520 continuously monitors specific addresses or broadcast messages on the controller's backplane bus, extracting key system status bits like RUN, LIVE, BAT, PFail.
Stage 2: Internal Logic Processing and Status Integration
The acquired raw level signals and bus data are fed into the TC520's internal logic processing unit. Here:
The software filter debounces the general inputs and the FANFAIL input.
Based on the pre-defined "mapping" established in the controller's data configuration, the physical front-end input channels (e.g., A1) are interpreted as specific logical functions (e.g., "I/O 24V A Fault" or "User Alarm F1").
The current status (normal/fault) of all inputs (including defined and undefined) is integrated into an internal status register or data structure. For the relay outputs, the control logic is straightforward: when a valid "RUN" signal from the corresponding processor module is received via the backplane, the respective relay coil is energized immediately; loss of the RUN signal releases the relay.
Stage 3: Serial Broadcast and Sync Signal Distribution
The processed, comprehensive status information is packaged into a specific data frame format. The TC520, via its integrated serial communication controller, periodically (or on change) broadcasts the data frame onto a dedicated transmit-only serial link on the backplane bus. This link is designed as a broadcast channel that all main CPUs can "listen" to. In this way, the main CPUs obtain a low-latency, panoramic view of the entire system's health (including power supplies, fans, external monitoring points) without needing to poll.
Simultaneously, the external minute pulse signal received at the SYNCIN input, after isolation and conditioning, is distributed by the TC520 via another dedicated path on the backplane bus directly to the processor module's clock synchronization circuit. This is used to calibrate its internal high-precision calendar clock, ensuring temporal consistency across systems.
Autonomy and Reliability Assurance
The entire workflow is controlled entirely by the TC520's own hardware and firmware, independent of main CPU instructions. Its power is drawn from the reliable backplane 5V supply. Even if the main CPU faults or reboots, as long as the subrack has power, the TC520 can continue to perform its monitoring duties. This design fundamentally avoids the risk of status monitoring failure due to upper-level system software faults, significantly enhancing the reliability and safety of the entire control system's monitoring layer.
5. Application Scenarios and Importance
Within the application of Advant Controller 450, the TC520 plays an indispensable role:
System Health Dashboard: On central operator stations like Advant Station 500 Series or MasterView 800/1, status information originating from the TC520 is used to generate intuitive System Status Display screens. Operators can see the run/fault status of various subsystems (controller, power supplies, fans, communications) at a glance, achieving centralized monitoring.
Heart Monitor for Redundant Systems: In high-availability systems configured with redundant processor modules, redundant power supplies, or redundant I/O bus extensions, the real-time, consistent monitoring data provided by the TC520 is key for automatic fault detection and switchover decisions. For example, monitoring redundant I/O power supplies can trigger early warnings, preventing I/O failure due to a single supply fault.
Starting Point for Maintenance and Diagnostics: Maintenance engineers can quickly pinpoint the root cause of a fault based on the status reported by the TC520 (combined with system messages and codes on the operator station), e.g., whether a specific power unit has failed, a fan has stopped, or an external device has triggered an alarm. The front-end general-purpose input feature allows users to integrate important third-party equipment status into ABB's diagnostic system, simplifying overall system maintenance.
Hardware Interlocking and Safety Indication: The RUN relay contacts provide a hard-wired output synchronized with the controller's run status. This can be used to drive audible/visual alarm towers outside the control room or to interlock other non-safety-critical equipment that needs to be linked to the controller status, adding an extra layer of safety assurance and field indication.
Node for Plant-Wide Clock Synchronization: In wide-area monitoring (SCADA) systems or large process industries requiring time synchronization across multiple controllers and sites, connecting a unified GPS clock or master clock signal via the TC520's SYNCIN interface ensures all event records, production reports, and historical data have a unified, precise time base.
