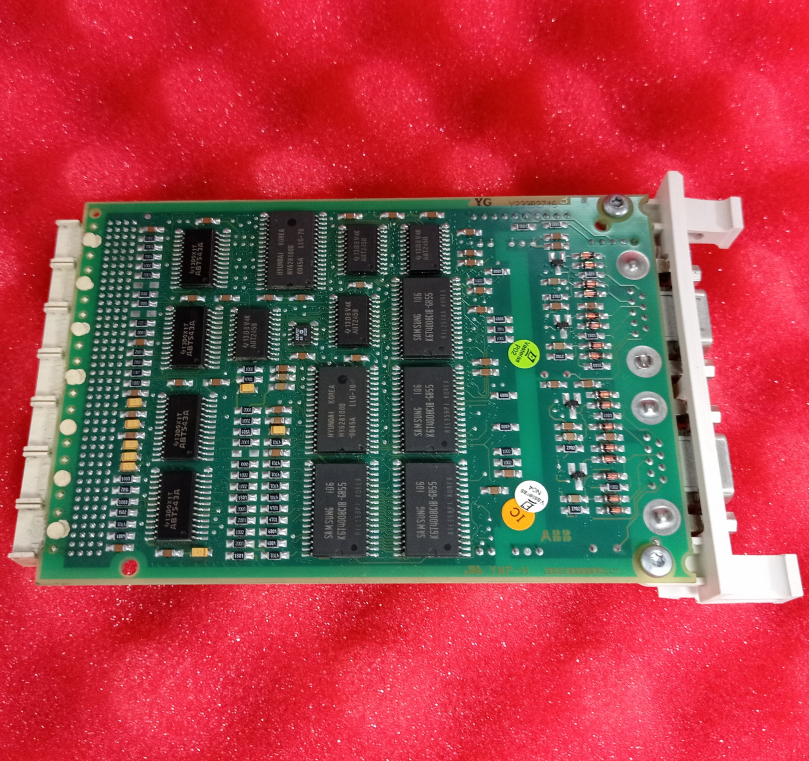

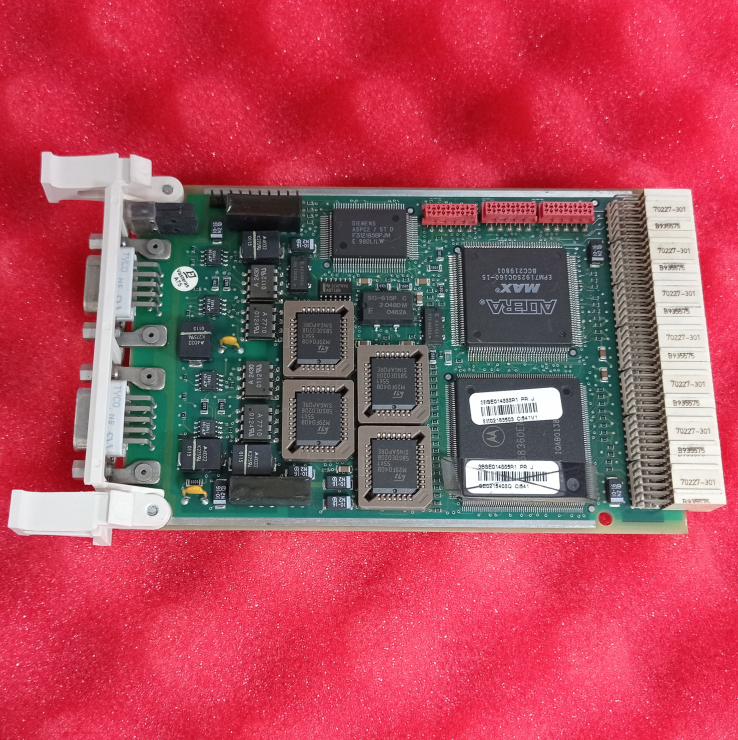

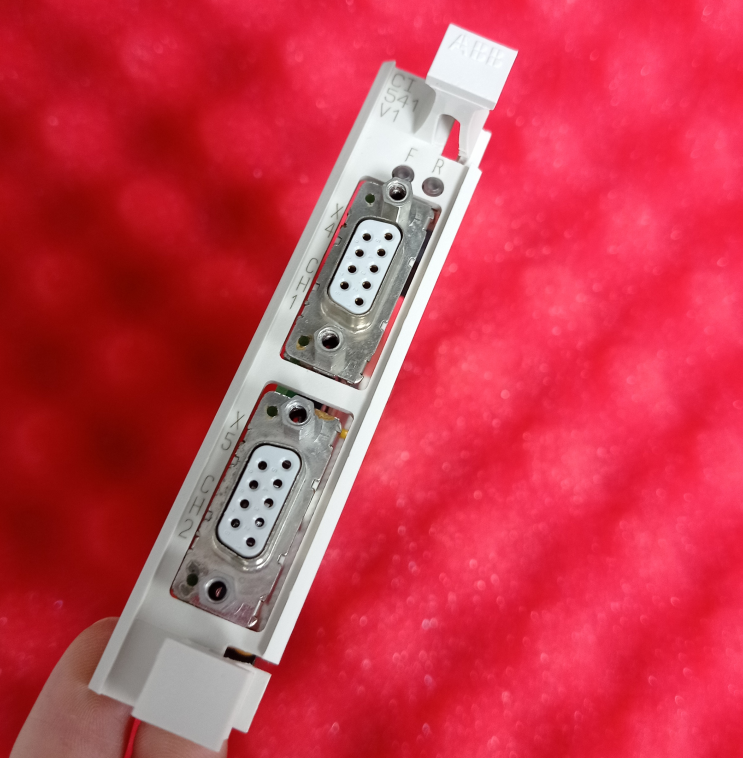

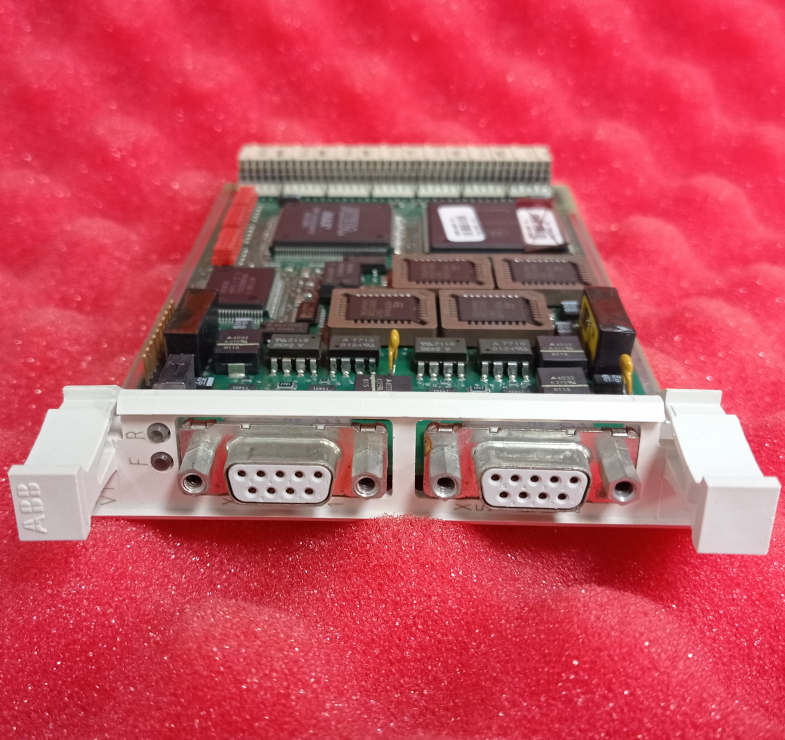

The CI541V1 is a high-performance PROFIBUS-DP communication interface submodule within ABB's Advant Controller 400 series industrial control system. Acting as a critical bridge between the control system and field devices, it enables high-speed and reliable data exchange between the Advant Controller 410/450 and field devices compliant with the PROFIBUS-DP protocol (such as sensors, actuators, drives, and I/O stations). It is integrated into the controller's hardware architecture and is configured, monitored, and managed via a dedicated database element (CI541), serving as a core component for building distributed, open industrial automation networks.
The CI541V1 module supports the PROFIBUS-DP protocol (compliant with EN 50170), allowing the Advant Controller 400 series to function as a PROFIBUS-DP Master, managing and coordinating multiple slave devices on the bus. Its design fully considers the demanding requirements of industrial environments, featuring robust diagnostic capabilities, flexible configuration options, and reliable fault-handling mechanisms to ensure the continuity and stability of process control.
2. Core Functions in Detail
1. PROFIBUS-DP Master Communication Function
The CI541V1 module equips the Advant Controller 400 series with full PROFIBUS-DP master capability. It is responsible for initializing the network, managing cyclic data exchange with slaves, and handling aperiodic services such as parameter configuration and diagnostics. Master functions include:
Bus Access Control: Manages token passing and coordinates bus access among multiple masters (if configured in a multi-master system).
Slave Management & Data Exchange: Periodically exchanges input/output data with each configured slave, ensuring real-time updating of process data.
Slave Diagnostics: Reads slave diagnostic information to promptly detect device faults or communication issues.
Parameterization & Configuration: Sends necessary parameters and configuration data to slaves during startup to ensure their correct operation.
2. High-Speed, Configurable Network Communication
The module supports all nine baud rates defined by the PROFIBUS-DP standard: 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, up to 12 Mbps. Users can flexibly select the optimal rate based on network scale, line conditions, and real-time requirements, balancing long-distance reliability with high data throughput. Support for high baud rates meets the needs of fast control loops and high-speed I/O applications.
3. Comprehensive Diagnostics and Status Monitoring
The CI541V1 provides multi-level, granular diagnostic information to help users quickly locate and resolve issues:
Module-Level Diagnostics: The database element's ERR (Error) and WARNING flags indicate severe/non-severe faults in the module itself or its communication.
Detailed Diagnostic Codes (DIAG): Provides specific fault cause codes, for example:
MNA: Module missing or inaccessible.
FBE: Fieldbus cable error.
CE: Configuration error.
ME: Module device error.
PSV: Module passive (not enabled).
Communication Status Monitoring: Monitors the connection status and data exchange quality with each PROFIBUS-DP slave.
4. Flexible Network Configuration and Management
Through the CI541 database element, users can perform detailed management of the entire PROFIBUS-DP network:
Unique Network Identifier: The BUSNO terminal (0-255) assigns a system-wide unique bus number to each PROFIBUS-DP network for reference by other database elements, enabling clear network topology management.
Controller Station Number Setting: The STNNO terminal (0-125) defines the controller's address on this PROFIBUS-DP network.
Advanced Bus Parameter Tuning: Allows experienced users to adjust underlying communication parameters to optimize network performance, such as:
SLOTTIME: Maximum time the master waits for a slave response.
GAPFACTR: Gap factor for token rotation maintenance cycles.
HSA: Highest Station Address configured on the bus, optimizing token passing.
5. Reliable Fail-Safe and Recovery Mechanisms
The module design emphasizes system robustness:
Output Safe State Control: Configured via the CLEAR terminal. If data exchange with a slave fails, users can choose to set all slave outputs to 0 (safe state) or retain the last valid value.
Watchdog & Timeout Management: Parameters like DCNTRTIM (Data Control Time) strictly supervise master-slave dialogue; communication timeouts automatically trigger fault-handling procedures.
Communication Retry Mechanism: The MAXRETRY setting defines the maximum number of transmission retries to cope with transient network disturbances.
Service & Implementation Control: The IMPL (Implemented) and SERVICE terminals allow users to dynamically enable/disable the module or place it in a spare state during system operation, facilitating online maintenance and debugging.
6. Deep Integration with the Advant System
The CI541V1 is not a standalone device but an integral part of the Advant OCS (Open Control System):
Unified Database Element Management: All its configuration, status, and diagnostic information is accessed and modified through the standard CI541 database element, consistent with the management of other I/O and controller modules, reducing the learning curve.
Seamless Collaboration with Controller Core: The module works closely with the Advant Controller 400's processor module; process data is efficiently transferred via the system's internal bus to the controller's database for use by AMPL programs or operator stations.
Support for System-Level Functions: Includes interfaces reserved for future features, such as network time synchronization via the TIMESYNC terminal.
3. Working Principles and Data Flow
1. Hardware Integration and Addressing
The CI541V1 is installed as a submodule in a designated sub-slot of a Processor Module (e.g., PM511) or a Carrier Module within the Advant Controller 400 series. Its physical location in the system is uniquely determined by a set of address terminals in the database element:
BUS: Bus routing; 0 indicates the local controller rack.
STATION: Station number; 0 indicates the local station.
POSITION / POS_I: Main slot position.
SUBPOS / SPOS_I: Submodule slot (1 or 2).
This precise addressing mechanism ensures the system can accurately identify and manage multiple communication modules.
2. Configuration and Initialization Process
Element Creation & Parameter Setting: Engineers use the AdvaBuild tool on an Advant Station 500 Series Engineering Station to create the CI541 database element and set key parameters: BUSNO, STNNO, BAUDRATE, HSA, and various advanced bus parameters.
Implementation (IMPL): Set the IMPL terminal to 1. During system initialization or online activation, the controller software reads this element's configuration.
Module Driver Loading & Hardware Initialization: The controller downloads firmware parameters to the CI541V1 hardware in the specified slot, initializing its internal processor and communication interface.
PROFIBUS-DP Network Startup: The module begins executing the PROFIBUS-DP master protocol. It first listens to the network to determine the baud rate (if not fixed), then proceeds with token management and slave scanning.
Slave Identification & Data Exchange Establishment: Based on the system configuration (typically defining slaves via other elements like PBSD), the master establishes connections with each slave, performs parameterization and configuration exchange, and subsequently initiates cyclic input/output data exchange.
3. Real-Time Data Exchange Cycle
This is the core operation of the module. During stable operation, the CI541V1 continuously executes a strict periodic cycle:
Output Data Transmission: Output data updated by the controller application or database is transferred via the system's internal bus to the CI541V1's buffer. The module, according to the configured scan cycle and slave list, sequentially packages output data into PROFIBUS-DP telegrams and sends them to the corresponding slaves.
Input Data Acquisition: Simultaneously, the module polls input data from each slave. Received telegrams are unpacked, data is stored in the input buffer, and uploaded via the internal bus to the controller's central database.
Timing Management & Timeout Monitoring: The entire process is strictly controlled by parameters like SLOTTIME and DCNTRTIM. Any slave response timeout is immediately detected, triggering diagnostic events and pre-defined fail-safe actions (e.g., the CLEAR function).
4. Diagnostic and Fault Handling Mechanism
The module runs continuous self-diagnostic and network diagnostic routines:
Hardware Self-Test: Continuously monitors module power, processor status, memory, etc.
Communication Link Monitoring: Checks cable connection, signal quality, communication error counters.
Protocol Compliance Check: Verifies the format and sequence of received telegrams.
Centralized Status Reporting: All diagnostic results are aggregated and updated to the CI541 database element's ERR, WARNING, and DIAG terminals. Operators can visually check this on the Advant Station Operator Station's system status picture (e.g., red fault indication) and take corrective action based on the detailed DIAG code.
5. Interaction with Other Parts of the Control System
With the Controller Database: The CI541V1 is an extension of the controller's global database. All process data exchanged via PROFIBUS-DP (e.g., AOS81x analog output values, DIS81x digital input states) are mapped to specific database elements and terminals. For control programs, accessing them is no different from accessing local I/O.
With the Operator Station: Besides providing status and diagnostic displays, the module supports operator actions like forcing and testing connected devices via the operator station (provided the related signal elements support it).
With Engineering Tools: The entire configuration process is completed within a unified engineering environment, ensuring project data consistency.
4. Technical Features and Advantages
High Performance & High Real-Time Capability: Supports communication rates up to 12 Mbps, meeting the most demanding real-time control application requirements.
Excellent Reliability: Industrial-grade design with comprehensive diagnostic and fail-safe mechanisms ensures long-term stable system operation.
Powerful Flexibility: Wide range of selectable baud rates, tunable communication parameters, and support for various network topologies (linear, tree, star) adapt to different field layouts and application scenarios.
Easy Integration & Maintenance: As a standard component of Advant OCS, it benefits from unified configuration, programming, and diagnostic interfaces, significantly reducing engineering, commissioning, and maintenance costs.
Openness & Scalability: PROFIBUS-DP is an international mainstream fieldbus standard, connecting thousands of devices on the market, protecting user investment and facilitating system expansion.
Online Maintenance Capability: The IMPL and SERVICE functions allow maintenance or replacement of the module or network without affecting the operation of other system parts.
5. Typical Application Scenarios
The CI541V1 PROFIBUS-DP Communication Interface Module is widely used in various industrial sectors requiring distributed control and high-speed field-level communication:
Process Industries: Petrochemical, pharmaceutical, water treatment, etc., for connecting remote I/O stations, flow meters, analyzers, control valves.
Manufacturing Automation: Automotive manufacturing, assembly lines, packaging machinery, for connecting robot controllers, servo drives, sensor networks.
Building Automation: As part of large control systems, integrating HVAC, lighting, and other subsystems.
Energy Management: Substation automation, power plant auxiliary plant control.
