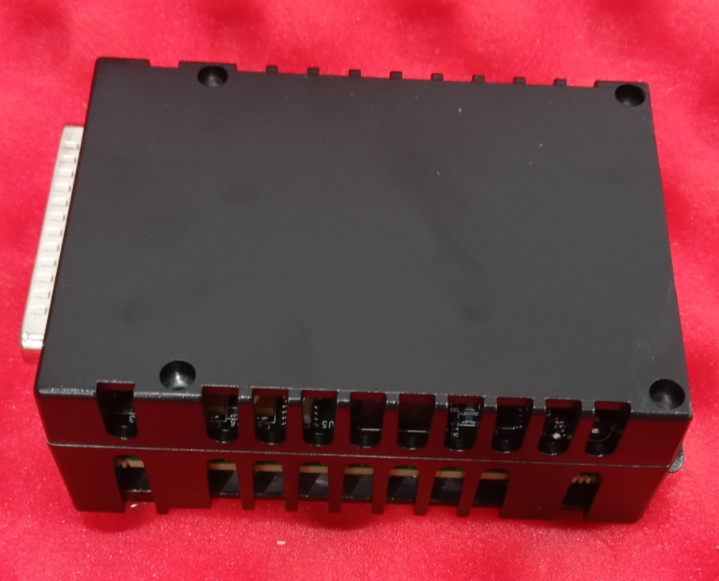

The IS200PDIOH1A is a high-performance Discrete Input/Output (Discrete I/O) module, part of the PDIO series. It is designed for industrial automation and control systems, providing reliable signal interface functionality for the acquisition of discrete signals and output control. The IS200PDIOH1A utilizes advanced processor and acquisition board technology, supports single or dual Ethernet communication, and possesses robust diagnostic and configuration capabilities, making it suitable for various industrial environments.
Key Features
1. Signal Interface Capability

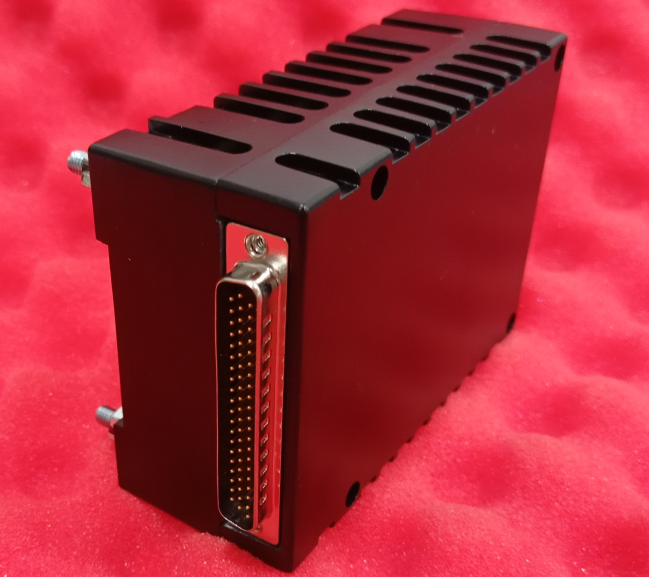

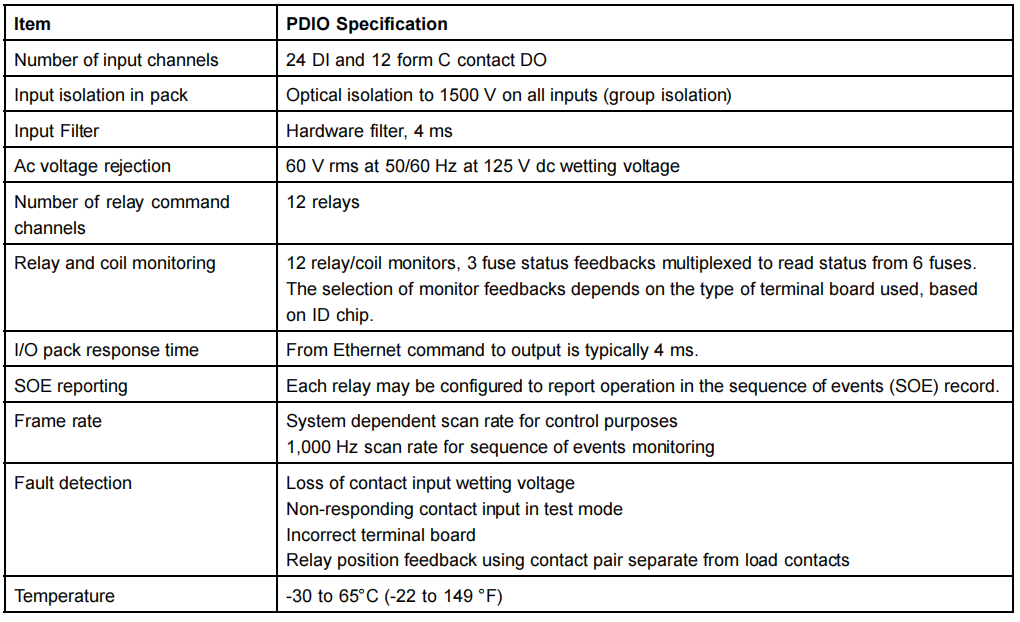

The IS200PDIOH1A provides 24 discrete input channels and 12 relay output channels. The input channels support contact-type signal input, while the output channels support relay control with Form C contact output capability. The module connects directly to the terminal board via a DC-62 pin connector for electrical signal interface conversion.
2. Network Communication
The module is equipped with two RJ-45 Ethernet interfaces (ENET1 and ENET2), supporting single or dual network connections for redundant communication, thereby enhancing system reliability. ENET1 is typically connected to the main controller network (R Controller), while ENET2 can serve as a backup interface.
3. Power Input
The IS200PDIOH1A receives 28 V dc power through a three-pin power connector, supplying power to the module and the connected terminal board. The module features a soft-start capability that effectively manages inrush current during power-up, eliminating the need to disconnect power before plugging or unplugging.
4. Visual Diagnostics

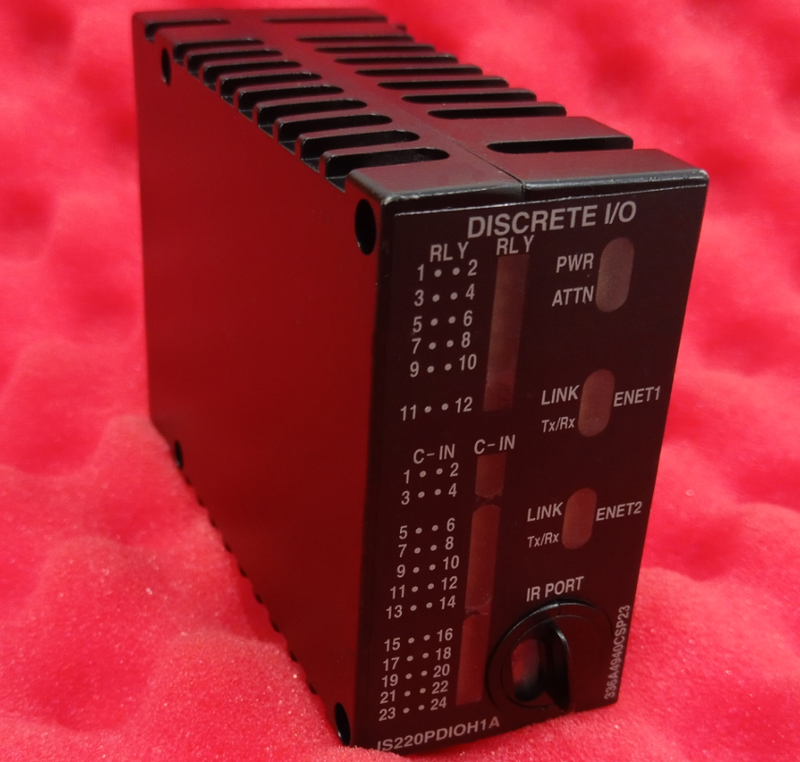

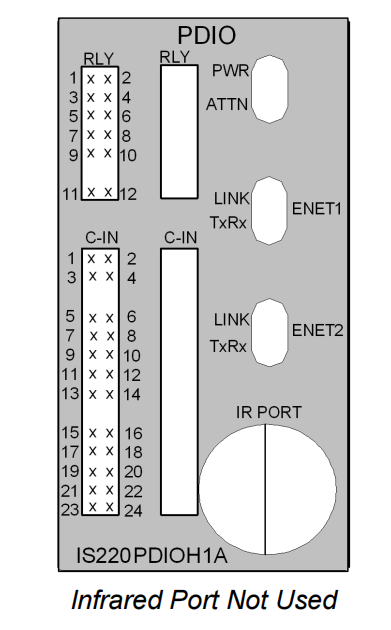

The front of the module features multiple groups of status indicator LEDs for displaying input/output status, network communication status, power status, and system fault information, facilitating quick on-site diagnostics.
5. Compatibility

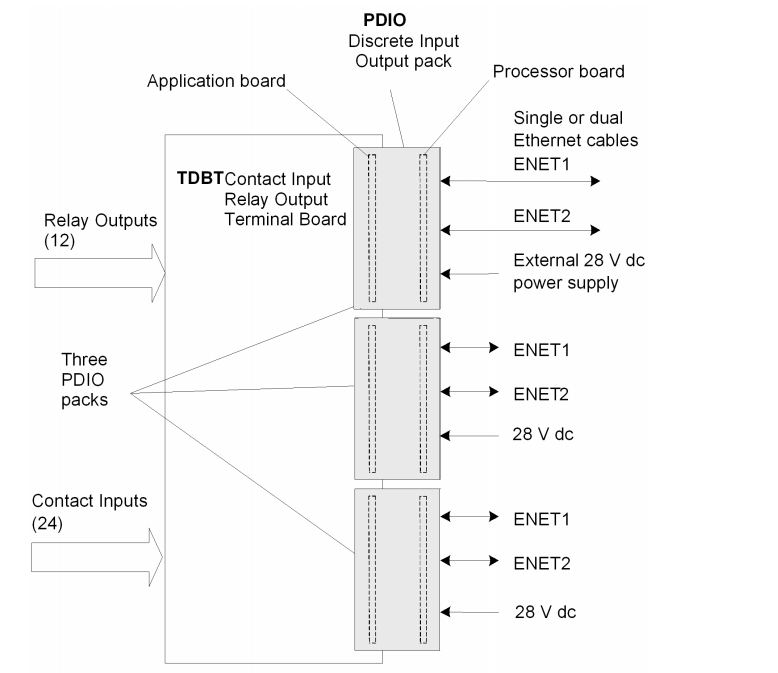

The IS200PDIOH1A incorporates a BPPB processor board and can be used with various terminal boards, including the TDBS series for Simplex applications and the TDBT series for Triple Modular Redundant (TMR) applications. It supports discrete signal processing at multiple voltage levels, including 24 V dc, 48 V dc, and 125 V dc.
6. Configuration and Debugging

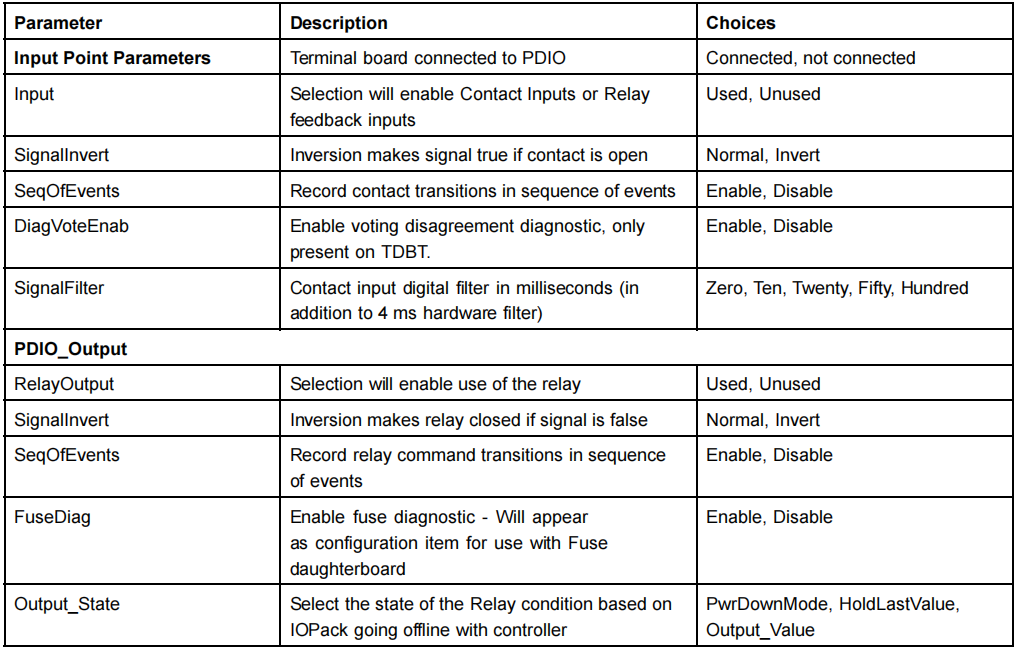

Users can configure the module using GE's ToolboxST software, including setting input/output point parameters, signal filtering, Sequence of Events (SOE) recording, and enabling diagnostic functions. The module supports online configuration downloads and features automatic hardware recognition and firmware upgrade capabilities.
Working Principle
1. Input Signal Processing
The discrete input channels of the IS200PDIOH1A employ a two-stage signal conditioning mechanism. First, the terminal board provides preliminary signal conditioning, including noise suppression and voltage adaptation. Subsequently, the acquisition board inside the module performs secondary processing, including level shifting and comparator threshold judgment.
Each input channel is isolated from the control logic through an opto-isolator, featuring independent filtering and hysteresis functions to prevent false triggering effectively. The input threshold is automatically adjusted based on the wetting voltage provided by the terminal board, typically set to 50% of the nominal voltage, and clamped to 13% in case of abnormal voltage to avoid an indeterminate state.
The module also includes a self-test function for the input channels, conducting a threshold pulse test every four seconds to check the opto-couplers' response and report diagnostic information if anomalies are detected.
2. Output Signal Control
The relay output channels utilize an open-collector transistor drive circuit, with each output featuring current monitoring capability to detect whether the output is correctly loaded. The output enable signal remains disabled until all internal self-tests are completed, ensuring the relays remain de-energized during system power-up and initialization.
The output status is fed back through status LEDs and monitoring signals, allowing users to view in real-time whether the output command matches the actual state.
3. Monitoring and Feedback
The module supports 15 inverting level-shifting monitoring inputs for receiving relay contact feedback and fuse status signals. Through multiplexing control, the module can receive two sets of 15 signals from the terminal board, enabling comprehensive monitoring of the output status.
4. Sequence of Events (SOE) Recording
All input and output channels can be configured to generate SOE records when the signal state changes. Input signals are scanned at a rate of 1000 Hz, and output commands are captured upon receipt via the network, featuring high-precision timestamping suitable for sequence of event analysis systems.
5. Diagnostics and Self-Test
The IS200PDIOH1A performs comprehensive self-test procedures at startup, including checks of RAM, Flash memory, Ethernet ports, and processor board hardware. During operation, it continuously monitors the status of internal power supplies, input wetting voltage, relay feedback status, etc., and reports abnormal information through ToolboxST software. (Note: The original Chinese text "abnormal information" was included. In the English context, this should be replaced with "exception information" or "error information". The final translation will use the appropriate term.)
Application Scenarios
The IS200PDIOH1A is widely used in industrial control, power automation, machinery control, process control, and other fields, particularly suitable for the following scenarios:
Control systems requiring highly reliable discrete signal interfaces;
High-availability systems supporting redundant networks and TMR architecture;
Applications requiring Sequence of Events (SOE) recording for fault analysis;
Field applications requiring real-time visual diagnostics of input/output status.
