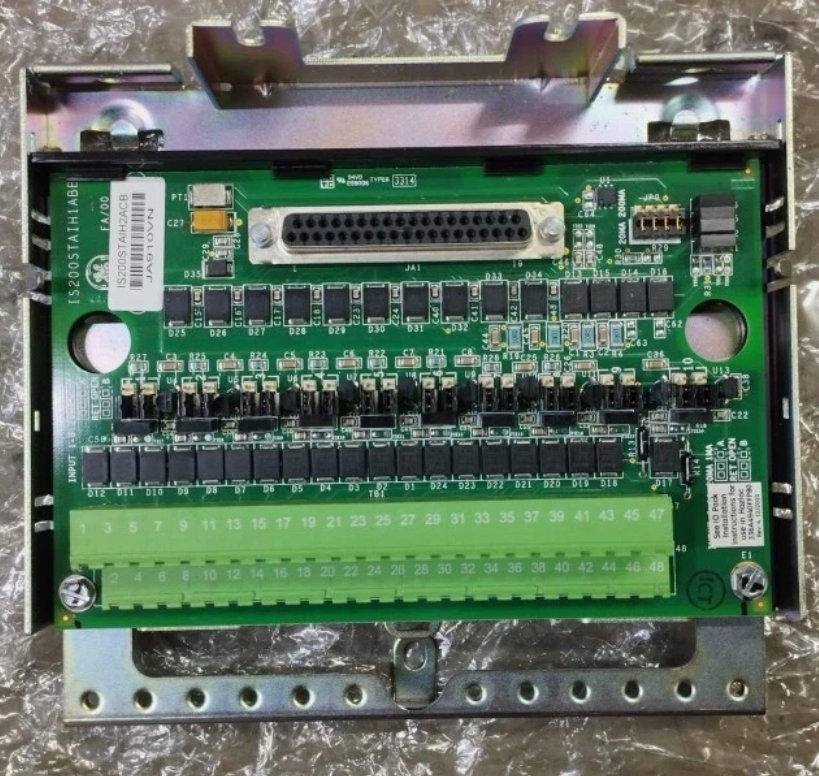

GE IS200STAIH2A Simplex Analog Input Terminal Board

The IS200STAIH2A is a high-performance, high-density analog input/output terminal board specifically designed for industrial automation and process control systems. It is a core I/O module within the GE Mark VIe control system family and a key member of the STAI (Simplex Analog Input) series. It plays a critical role in signal acquisition and control across sectors such as power generation, oil & gas, chemicals, water treatment, and smart manufacturing.

In modern industrial control systems, the accurate acquisition and reliable output of analog signals (e.g., temperature, pressure, flow, level) are fundamental to ensuring stable operation. The IS200STAIH2A meets this need by integrating 10 analog input and 2 analog output channels, supporting multiple signal types and wiring schemes. Its modular, pluggable design significantly enhances system flexibility and maintainability.

The board not only exemplifies high integration and reliability in its hardware design but also offers excellent compatibility at the software and system integration level. It seamlessly interfaces with Mark VIe and Mark VIeS control systems, enabling efficient and precise full-link signal transmission from field sensors to the controller.

2. Core Features and Design Philosophy

2.1 High-Density Integration & Compact Structure

Control cabinet space is often at a premium in industrial settings. The IS200STAIH2A utilizes advanced Surface Mount Technology (SMT) to integrate complex analog signal conditioning circuits, isolation/protection components, and communication interfaces onto a compact Printed Circuit Board (PCB) measuring just 159 mm × 102 mm. This space-saving design not only reduces footprint but also minimizes signal crosstalk and enhances overall electromagnetic compatibility through optimized layout.

The board employs pluggable Euro-style terminal blocks, providing 48 connection points for all signal I/O and power interfaces. This design eliminates the inconvenience of traditional soldered connections, allowing for rapid replacement or maintenance of terminal blocks without powering down the system, thereby minimizing downtime and improving production continuity.

2.2 Flexible I/O Configuration Capability

A core strength of the IS200STAIH2A lies in its exceptional signal adaptability and configuration flexibility:

• Analog Input Versatility:

• Channels 1–8: Configurable as ±5 V DC, ±10 V DC, or 4–20 mA input, covering the vast majority of standard industrial sensor and transmitter outputs.

• Channels 9–10: Optimized for current signals, supporting 4–20 mA or ±1 mA input, suitable for high-precision or special-range measurement requirements.

• Supports multiple transmitter wiring topologies: including 2-wire (loop-powered), 3-wire, 4-wire, and externally powered modes. Users can select the appropriate scheme based on field sensor type without needing additional signal conditioners.

• Adjustable Analog Output Range:

• Output 1: Configurable via jumper JP0 as standard 4–20 mA output, or as 0–200 mA output for high-current applications (e.g., certain actuators, high-power valve positioners). The 0-200 mA function is active only when used with the Mark VIe PAICH2 controller.

• Output 2: Provides one 0–20 mA analog output for indication, recording, or auxiliary control.

• Each output channel features short-circuit protection and overload detection, ensuring safety and reliability.

2.3 Superior Electrical Performance & Signal Integrity

• High-Accuracy Conversion: The board utilizes high-performance Analog-to-Digital (ADC) and Digital-to-Analog (DAC) converters, achieving an input accuracy of ±0.1% of Full Scale over the entire operating temperature range, guaranteeing measurement data fidelity and reliability.

• Strong Drive & Load Capability: Provides 24 V DC power output, with each source rated at 21 mA, capable of directly powering field 2-wire transmitters and simplifying system wiring. Output channels offer robust load capability: the 4-20 mA output can drive loads up to 800 Ω, while the 0-200 mA output (PAICH2) can drive 50 Ω loads, accommodating various actuator types.

• Noise Suppression & Isolation: On-board filtering circuits and opto-isolation technology effectively suppress common-mode noise and ground loop interference, ensuring signal quality over long transmission distances. A maximum permissible 15 Ω two-wire cable resistance supports cable lengths up to 300 meters, meeting the wiring needs of large-scale facilities.

• Common (PCOM) Management: Provides a centralized signal return point (PCOM) with a maximum common-mode voltage tolerance of 7.0 V DC. Proper grounding and shield connection further ensure system stability in harsh electrical environments.

2.4 Intelligent Diagnostics & Maintainability Design

• On-Board Identification Chip: Each board contains a unique ID chip storing product serial number, model, hardware revision, and connected connector location (JR, JS, JT) information. The I/O Pack automatically reads and verifies this information upon system power-up or during operation. If a board type mismatch, version discrepancy, or incorrect slot position is detected, the system immediately generates a "Hardware Incompatibility" fault alarm, preventing system anomalies due to misconfiguration.

• Real-Time Output Monitoring & Alarm: The board monitors the voltage drop across a series sampling resistor in the output loop to calculate and feed back the output current in real time. If any output channel current becomes abnormal (e.g., open circuit, short circuit, out-of-range), diagnostic information is immediately uploaded to the controller, triggering an alarm or interlock for predictive maintenance.

• Visual Status Indication: Integrated with the control system's HMI interface, users can clearly view real-time data, health status, configuration parameters, and alarm history for each channel, providing engineers with an intuitive operational view.




3. Installation, Wiring & Configuration Guide

3.1 Mechanical Installation

The IS200STAIH2A offers two primary mounting methods to suit different cabinet layouts:

• DIN-Rail Mounting (Recommended): First, mount the board with its plastic insulator onto a dedicated metal carrier. Then, snap the carrier onto a standard 35 mm DIN rail and lock it in place. This method facilitates dense module arrangement and future adjustments.

• Direct Cabinet Mounting: Use the four mounting holes to bolt the board (with its metal mounting bracket) directly to the cabinet backplate or crossbeam. Suitable for high-vibration environments or where higher mounting strength is required.

3.2 Electrical Wiring

• Recommended Cable: Use #18 AWG shielded twisted-pair wire for enhanced noise immunity. The I/O cable shield should be connected to the dedicated shield grounding terminal provided on the board.

• Terminal Assignment: Refer to the wiring diagram in the product manual for detailed terminal definitions (e.g., Input 1 (20mA), Input 1 (Return), +24V, PCOM, etc.). Pay attention to correct power polarity and signal/return pair correspondence.

• Transmitter Wiring Examples:

• 2-Wire: Connect the transmitter positive to the corresponding channel's "+24V" terminal and the negative to the "20mA" input terminal. Set the jumper for current input mode (JPxA shorted) with return connected to PCOM (JPxB shorted).

• 4-Wire (Externally Powered): Connect signal +/- to "20mA" and "Return" respectively. Power is supplied externally. Jumper configuration must open the internal power path.

3.3 Jumper Configuration Details

Jumpers, located in the central area of the board, are key to configuring its functionality:

• JP1A–JP8A: Determine whether channels 1-8 are voltage input (open) or current input (shorted).

• JP1B–JP8B: Determine whether the return lines for the above channels are connected to PCOM (shorted) or left open.

• JP9A/JP10A: Select the input range for channels 9 and 10 as 1 mA (shorted) or 20 mA (open).

• JP9B/JP10B: Determine whether channel 9 and 10 return lines connect to PCOM.

• JP0: Critical jumper configuring Output 1 range: Shorted for 20 mA mode; Open (PAICH2 only) for 0-200 mA mode.

Note: Any jumper changes must be made with power disconnected. After configuration, photographing or documenting the settings is recommended for future reference.

4. System Integration & Operational Principle

4.1 Communication with Controller

The IS200STAIH2A connects to an upper-level I/O Pack via a 37-pin high-density connector with latching fasteners (DC-37). The I/O Pack acts as an intermediary unit, managing multiple terminal boards and exchanging real-time data with the Mark VIe or Mark VIeS controller via a high-speed backplane bus. This layered architecture ensures data throughput efficiency while facilitating module expansion and replacement.

4.2 Signal Flow & Processing

1. Input Side: Analog signals from field sensors enter the designated channel → routed via jumpers to voltage or current conditioning circuitry → filtered and isolated → converted to digital values by a high-accuracy ADC → digital values uploaded via the I/O Pack to the controller for logic processing.

2. Output Side: The controller calculates control outputs and sends digital commands to the I/O Pack → transmitted via bus to the STAI board → converted to analog voltage/current signals by a DAC → amplified and isolated by the output driver circuit → sent to field actuators.

3. Power & Excitation: The board integrates efficient DC/DC conversion and regulation circuitry to provide stable, clean 24 V DC power for itself and connected transmitters.

4.3 Diagnostic Cycle

The system periodically executes the following diagnostic tasks:

• Reads the board ID information and compares it against the configuration in the engineering database.

• Samples raw data from all input channels, checking for validity (e.g., over-range, broken wire).

• Reads the voltage drop across the output loop sampling resistor, calculates the actual output current, and verifies consistency with the setpoint.

• Any anomaly is flagged, logged, and can trigger alarms, event recording, or safety shutdowns based on pre-defined severity levels.




5. Typical Applications & Industry Solutions

5.1 Thermal & Gas-Fired Power Plants

• Application Points: Monitoring key parameters like boiler drum level, main steam pressure/temperature, flue gas oxygen content, bearing vibration, generator winding temperature.

• Value Proposition: High accuracy ensures precise efficiency calculation and performance evaluation; strong noise immunity handles complex plant EM environments; diagnostic functions aid predictive maintenance, avoiding unplanned outages.

5.2 Petrochemical & Natural Gas Processing

• Application Points: Reactor temperature/pressure, pipeline flow, tank level, compressor status, analog inputs for Safety Instrumented Systems (SIS).

• Value Proposition: Supports multiple transmitter types, compatible with existing instrumentation; optional safety-certified models (STAIS2A) meet SIL2/SIL3 requirements; modular design enables quick maintenance in hazardous areas.

5.3 Water & Wastewater Treatment

• Application Points: pH, turbidity, residual chlorine, pump station pressure, basin level, valve position control.

• Value Proposition: Stable 4-20 mA signal reception/output perfectly matches process instrumentation; long cable drive capability meets needs of dispersed plant measurement points; good resistance to moisture/corrosion (dependent on cabinet environment).

5.4 Discrete Manufacturing & Test Benches

• Application Points: Pressure, torque, displacement sensor signal acquisition on production lines; programmable output for precision power supplies in test equipment; temperature/humidity control for environmental chambers.

• Value Proposition: ±5 V/±10 V voltage inputs connect directly to various sensors and instruments; 0-200 mA high-current output drives heavy loads; fast sampling response meets dynamic testing requirements.




6. Selection Advice, Maintenance & Important Notes

6.1 Model Selection Guide

6.2 Installation & Maintenance Notes

• ESD Protection: Always wear an anti-static wristband before handling the board, and place it on an anti-static bag or conductive foam.

• Power Sequencing: Ensure system main power is on and the controller/I/O Pack is initialized before connecting/disconnecting field signal wires.

• Grounding Practice: Signal shields must be grounded at a single point, typically at the cabinet's ground busbar, to avoid ground loops.

• Regular Inspection: During planned shutdowns, check for loose terminals, oxidized jumpers, and ensure connectors are securely latched.

• Firmware & Configuration Backup: After successful system commissioning, always back up the complete I/O module configuration using engineering tools.

6.3 Troubleshooting Guide

• No Signal on Channel: Verify jumper configuration; measure for voltage/current at channel input; check sensor power supply.

• Excessive Data Fluctuation: Check shield connection integrity; investigate nearby strong interference sources (e.g., VFDs, high-power wireless devices); consider enabling software filtering.

• System Reports "Hardware Incompatibility": Confirm board model matches controller model; verify board is in the correct slot; try reseating the board and its connectors.
