The 216VC62A is the core processing unit of the ABB REG 216 numerical generator protection and REC 216 control systems, rightly considered the "brain" of the entire RE. 216 system. It is far more than a simple processor; it is a highly integrated, powerful comprehensive computing and control platform. This unit undertakes the critical tasks of executing all protection algorithms, performing logic function operations, system management and coordination, and communicating with the external world (e.g., monitoring systems). Its design aims to provide extremely high computing power, reliability, flexibility, and scalability for the protection of complex electrical equipment.
As the central processing unit of the system, the 216VC62a is responsible for running all built-in protection and logic function software libraries, storing all user configurations and settings, and managing data exchange between the internal units of the system. Whether used to protect small generators or large transformers and high-voltage feeders, the 216VC62a can be precisely adapted to various application requirements through its powerful hardware and flexible software configuration, making it the decisive component for achieving precise, fast, and reliable protection.
2. Core Functions
The functions of the 216VC62A are comprehensive and powerful, summarized into the following core areas:
1. Protection Function Execution and Calculation
Software Module Library: A complete software module library of protection and logic functions is solidified within the unit. This includes dozens of functions, from basic overcurrent, overvoltage, undervoltage, overfrequency, underfrequency protection, to complex differential protection (e.g., generator differential, transformer differential), stator earth fault protection (e.g., 3rd harmonic, injection type), loss of excitation protection, reverse power protection, etc.
Computing Capacity: Each 216VC62A unit provides 425% computing capacity. This percentage represents the abundance of its processing power, allowing users to activate a large number of protection functions and perform complex logic combinations in a single system. A standard rack can accommodate up to two 216VC62A units, achieving a total computing capacity of up to 850% to meet the most demanding applications.
Real-Time Processing: The unit continuously acquires system measurements (currents, voltages) digitized by the 216EA61 analog input unit via the B448C bus, and compares this real-time data with the settings defined by the user for each activated protection function. Once the operating conditions are met, it immediately generates the corresponding signal or trip command.
2. System Configuration and Data Management
3. System Communication and Interfaces
Internal Bus Master: The 216VC62A is one of the main communication masters on the B448C parallel bus, responsible for initializing and managing data exchange with other electronic units (216EA61, 216AB61, 216DB61, etc.).
External Communication Gateway: This unit is the gateway for the RE. 216 system to connect to the outside world, supporting multiple communication protocols for seamless integration into substation monitoring or automation systems:
SPA Bus: Interface always available, ABB's traditional communication protocol.
LON Bus: Supported via PCMCIA card.
MCB Interbay Bus: Used for Substation Monitoring Systems (SMS).
MVB Process Bus: Supported via PCMCIA card, used for more advanced automation systems.
User Interface: The RS-232 interface on the front panel is used to connect a Portable User Interface, which is the primary means for system configuration, setting modification, status monitoring, and data reading.
4. System Monitoring and Diagnostics
Master Diagnostics Controller: The 216VC62A runs the system's core diagnostic routine, continuously monitoring its own health and the status of all other units connected via the bus.
System Status Management: It evaluates fault signals from all devices and sets the overall protection system status accordingly ("No Error", "Urgent Error", "Fatal Error"), blocking protection functions if necessary (e.g., upon detecting a fatal error) to ensure system safety.
Event Logging: All system starts, errors, status changes, etc., are recorded in the event list for maintenance personnel analysis.
5. Clock and Data Retention
Clock Synchronization: The unit's internal clock can be synchronized via the object bus interface with the Substation Monitoring System, or connected to a radio clock, ensuring time accuracy for all system event records.
Data Retention: Equipped with a gold capacitor that provides backup power to the memory during a brief system auxiliary power interruption, ensuring that the event list and disturbance recorder data are not lost.
3. Working Principle
The operation of the 216VC62A is a complex, continuously running, multi-tasking process that interacts closely with the hardware. Its operational flow can be broken down into the following key stages:
1. System Startup and Initialization
When the system auxiliary power is switched on or after a reset via the RESET socket, the 216VC62A begins its startup sequence. It first performs a hardware self-test, checking if the processor, memory, and bus interface are normal. Subsequently, the diagnostic program starts, querying the configuration and status of all other electronic units in the system via the B448C bus to ensure the actual hardware layout matches the predefined configuration in the software. If the configuration is correct and there are no hardware faults, the system status is set to "No Error", and the main protection program starts running. This process generates a "Cold System Start" or "Warm System Start" event record.
2. Data Acquisition and Processing Cycle
During normal operation, the system enters a continuous processing loop:
Data Acquisition: The 216VC62A periodically acquires digitized sample values for all measurement channels (e.g., three-phase currents, voltages) from the 216EA61 Analog Input Unit via the B448C bus. Simultaneously, it also reads the status of all external binary signals from the 216DB61 and 216EB61 Binary Input Units.
Data Processing and Calculation: The acquired raw data is fed into the corresponding activated protection function modules for calculation. For example, the differential protection module calculates the vector sum (differential current) of currents from different sides and compares it with the setting value; the overcurrent module calculates the RMS current value and evaluates it against definite time or inverse time characteristic curves.
Logic Operations: At the same time, complex logic functions configured by the user via software are also executed in parallel. These logic functions can combine the outputs of multiple protection elements and binary input signals using "AND", "OR", "NOT", etc., to generate final control or signal outputs.
3. Protection Decision and Command Output
When the calculation result of a protection function meets its operating condition:
Signal Generation: The function generates a trip command or signal indication.
Command Assignment: According to the pre-configured software mapping, this command is automatically routed to the designated output channel. For example, the differential protection trip command is sent to the CHO01 channel of a 216DB61 unit; while an overcurrent signal is sent to the CHO10 channel of a 216AB61 unit.
Bus Publication: The 216VC62A publishes these output commands as data packets via the B448C bus to the respective output units (216AB61 for signals, 216DB61 for tripping).
4. Communication and External Interaction
Cyclic Data Handling: While processing protection logic, the communication interfaces of the 216VC62A are also constantly working. It responds to requests from the portable user interface (e.g., reading measurements, modifying settings), or performs periodic data exchange with the superior monitoring system, uploading measurements, status, event information, and receiving control commands or setting modifications from remote.
Disturbance Data Management: When a disturbance record is triggered, the unit manages the storage of the recording data. Maintenance personnel can later read this data via the user interface or communication interface for detailed fault analysis.
5. Continuous Self-Monitoring and Fault Response
Watchdog: The unit contains a watchdog timer. The main program must periodically (at least every 50 ms) reset it. If the program runs abnormally ("runs away") and fails to reset the watchdog in time, the timer timeout will force a processor reset, causing a "Warm System Start" and recording a "Software Error" or "Watchdog Time-out" event.
Memory Testing: The diagnostic program cyclically tests its own RAM, EPROM, and EEPROM to ensure data integrity.
Status Aggregation: It continuously receives the device status register information sent via the bus from all other units. Upon detecting any unit reporting a fault, it immediately assesses the impact of this fault on the overall system safety, updates the system status (e.g., to "Urgent Error"), and triggers corresponding remote alarm signals via the SML and CK bus lines (e.g., causing 216AB61's CHO01 and CHO02 to reset).
4. Hardware Architecture

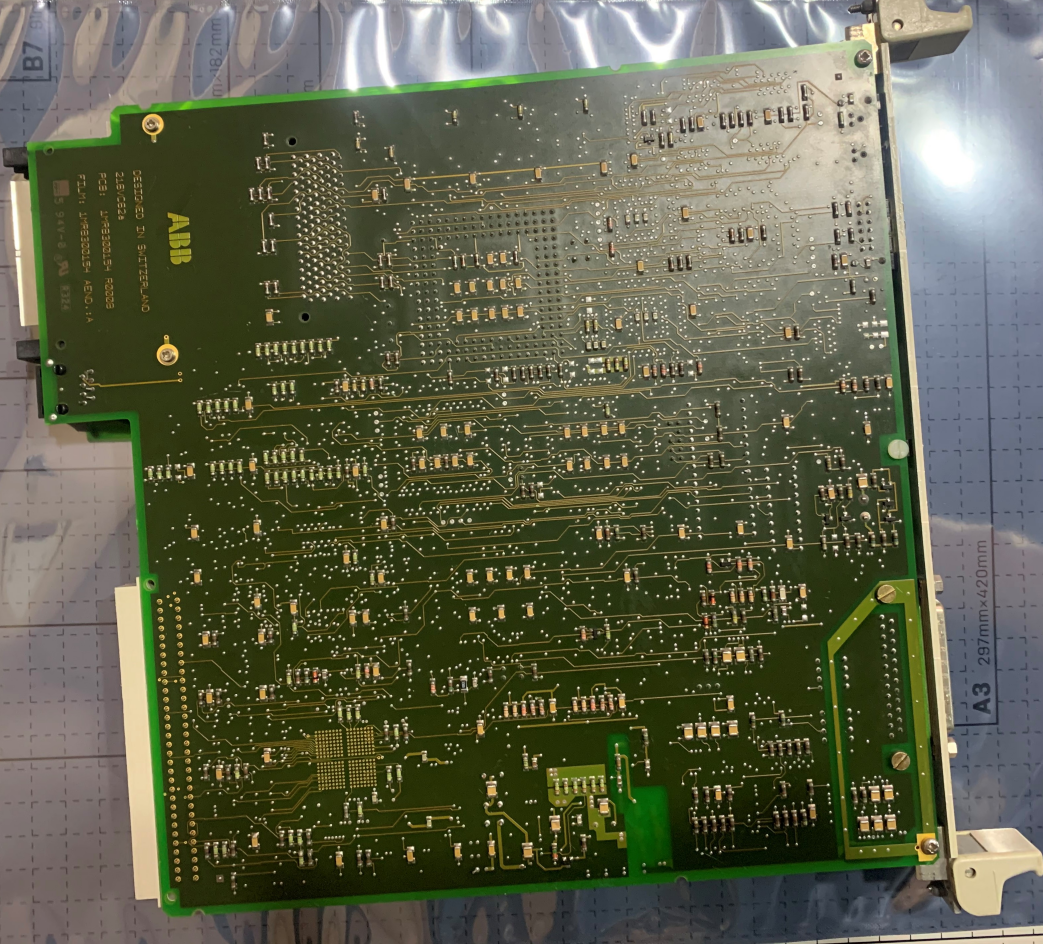

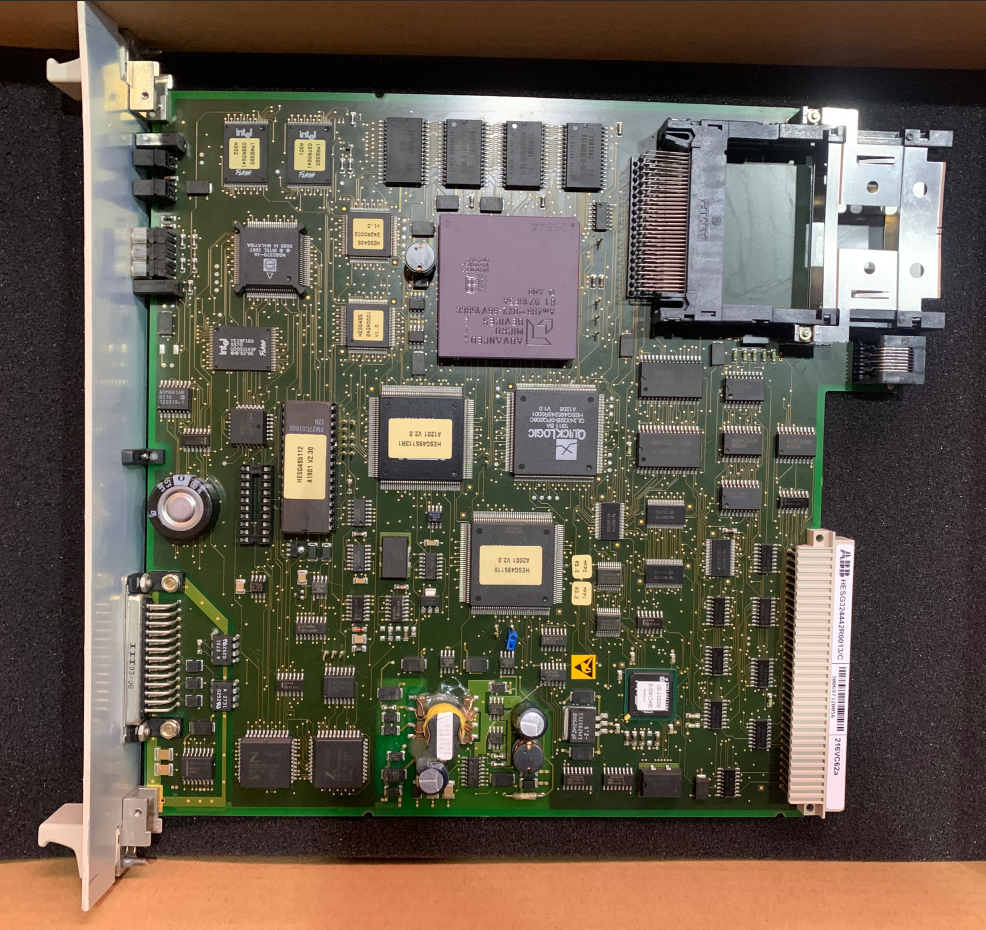

The powerful functionality of the 216VC62A stems from its advanced hardware design:
Central Processing Unit (CPU): Utilizes an Intel 80486 DX-2, 50MHz processor, providing sufficient computational power for running complex protection algorithms and real-time tasks.
Memory Hierarchy:
Program Memory: 4 MByte Flash EPROM, used for permanent storage of the protection and logic function software library.
Main Memory: 2 MByte RAM, serving as the runtime memory for programs.
Data Memory: 2 MByte Flash EEPROM, used for storing user configurations, settings, events, and disturbance recorder data. This memory is maintained by the gold capacitor during power loss.
Bus Interface Memory: 64 kByte DPM/RAM, used for fast data exchange with the B448C bus.
Communication Interfaces:
Front Panel RS-232 Interface: For connecting the portable user interface.
SPA Bus Interface: Fixed RS-232 interface.
PCMCIA Slot: For expanding LON Bus or MVB Bus protocols.
Power Supply: Powered by the 24V DC auxiliary supply provided via the B448C bus.

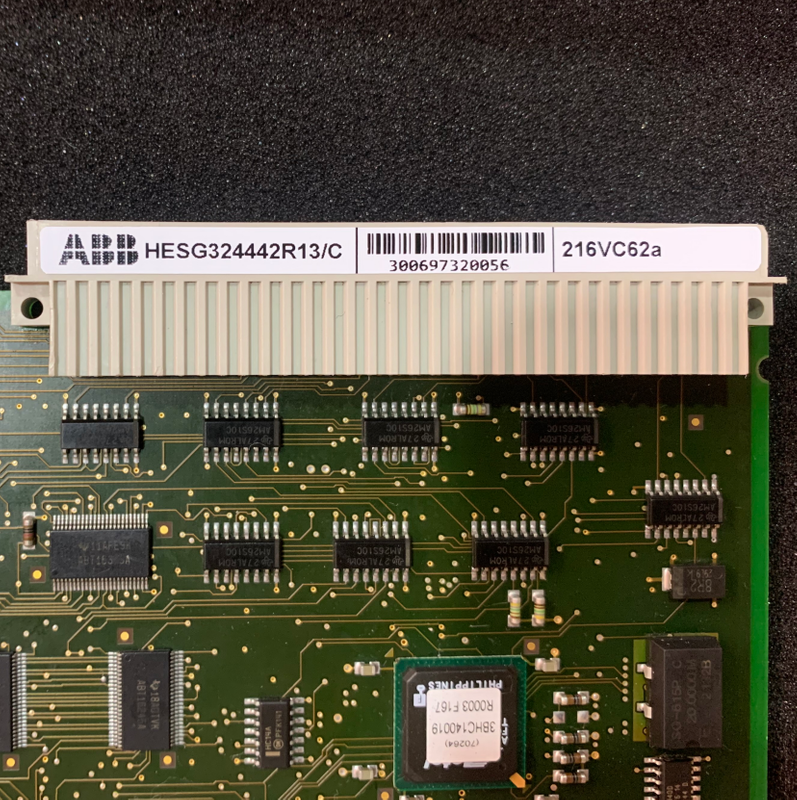

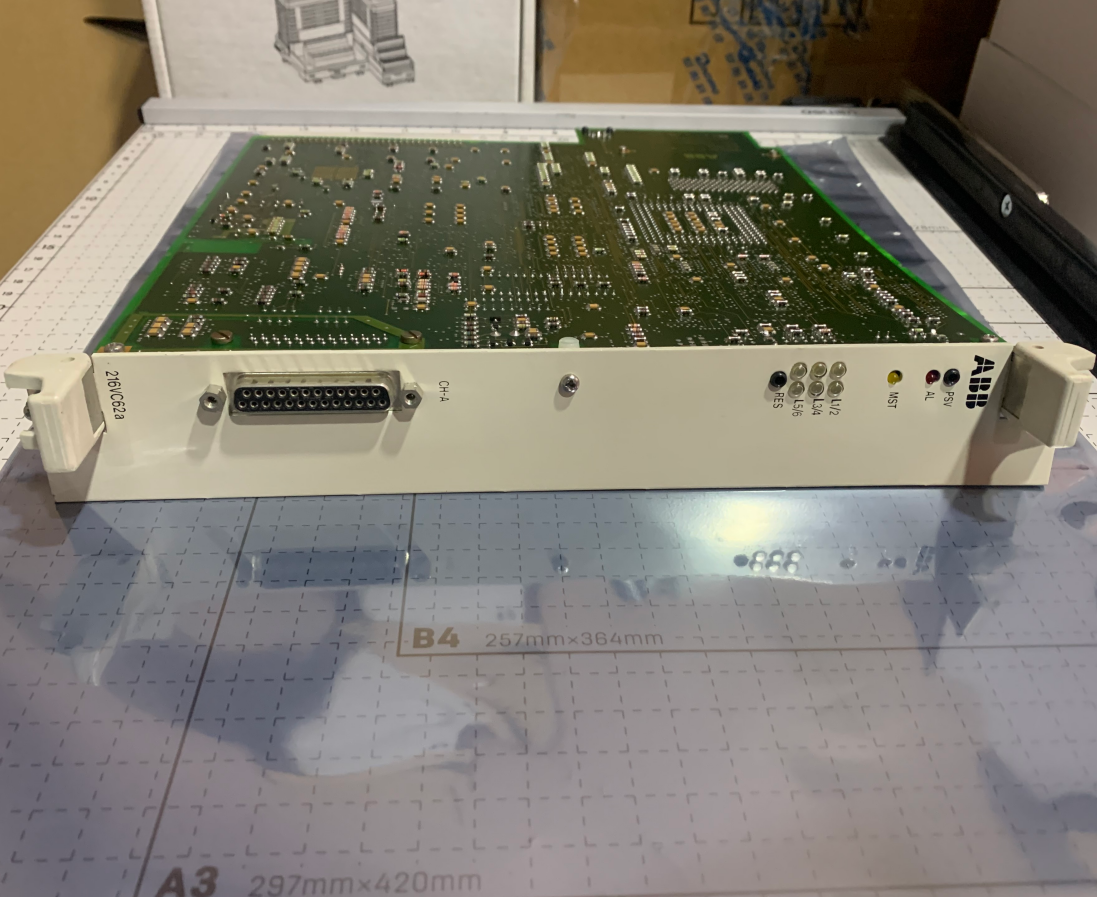

5. Front Panel Indication and Operation
Indicators:
Red AL LED: Indicates an internal unit fault/alarm.
Yellow MST LED: Flashes or lights when the unit accesses the B448C bus in a master role.
Yellow L1, L2 LEDs: Indicate the System Status (L1/L2: Off/Off=No Error; On/Off=Urgent Error; On/On=Fatal Error).
Yellow L3, L4 LEDs: Indicate Communication Status with the user interface (L3=Transmit, L4=Receive).
Yellow L5 LED: Flashes upon receipt of a LON Bus wink telegram.
Yellow L6 LED: Lights during write operations to the Flash EEPROM.
Operation Sockets:
PSV: Inserting the shorting pin blocks the unit's functions, placing it in passive mode.
RESET: Inserting the shorting pin restarts the program, reinitializing all units, but the event list is not lost.
6. Application and Importance
