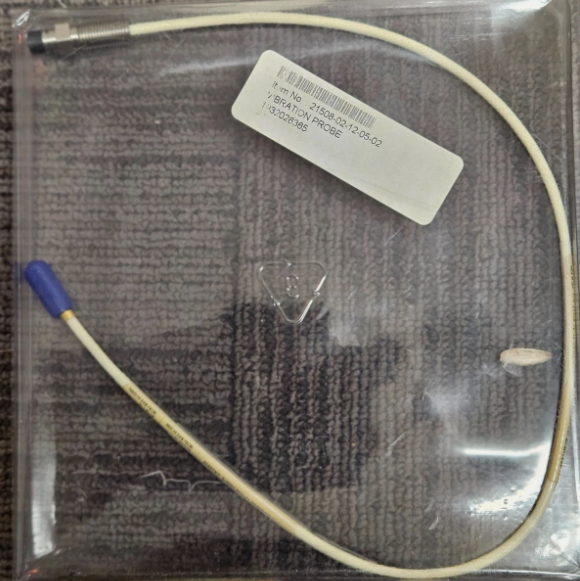

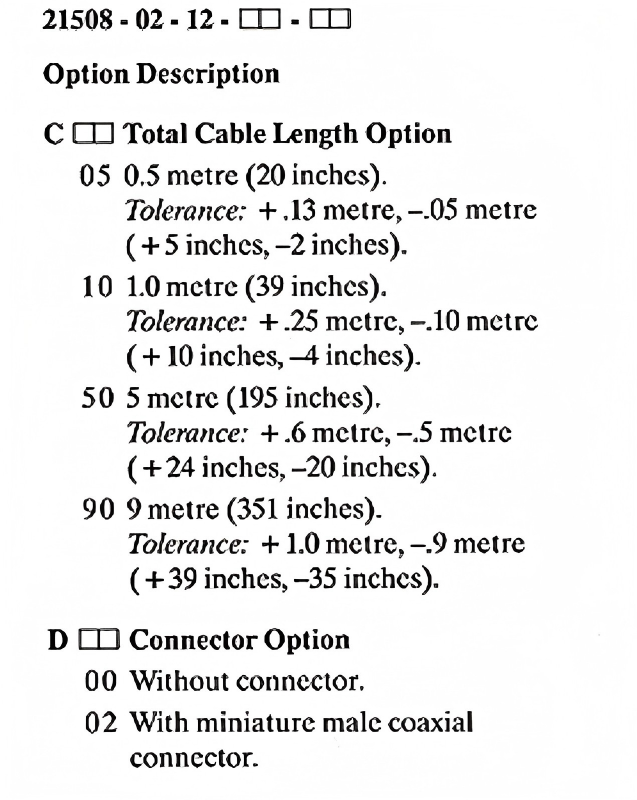

The 21508-02-12-05-02 represents a sophisticated and critical component within the renowned Bently Nevada 7200 Series of Proximity Transducer Systems. Specifically configured as an 8mm diameter reverse mount probe assembly, this model is engineered to deliver exceptional accuracy and reliability in noncontact measurement applications. Its primary function is to precisely determine the static and dynamic distances between the probe tip and a conductive target surface, translating minute physical gaps into highly reliable, linear voltage signals. This capability forms the cornerstone for advanced machinery condition monitoring, enabling the detection of incipient faults, performance degradation, and operational anomalies before they lead to costly downtime or catastrophic failures.
Designed for seamless integration into complex industrial environments, the system comprises three key elements: the probe with its permanently attached, high-integrity coaxial cable; optional extension cables for reach flexibility; and the dedicated Proximitor® signal conditioner/demodulator. This integrated system is fully compatible with Bently Nevada's flagship 3300 and 9000 Monitoring Systems, ensuring a cohesive data acquisition and analysis framework. Compliance with industry standards such as API 670 underscores its suitability for critical machinery in sectors where safety and reliability are paramount, including power generation, oil and gas, petrochemicals, and heavy manufacturing.
The reverse mount design of the 21508 probe is a distinct feature, addressing a common spatial challenge in machinery design. Unlike standard forward-mount probes, this configuration allows for installation where access is only available from "behind" the measurement point or within confined internal cavities. This design ingenuity extends the applicability of proximity measurement to a wider array of machine geometries and monitoring points, facilitating comprehensive asset health coverage.
2. Core Technology and Operating Principle
2.1 The Eddy Current Sensing Foundation
At the heart of the 21508-02-12-05-02's operation lies the well-established yet highly effective eddy current principle. The system functions as a tuned, radio-frequency oscillator circuit. The Proximitor® generates and sustains a constant-frequency, low-power RF signal (typically around 2 MHz). This signal is transmitted down the coaxial cable to the probe coil, located precisely at the probe tip. The coil emits an electromagnetic field that extends towards the target material.
When this alternating magnetic field penetrates a conductive surface, such as a steel shaft, it induces circular electrical currents known as "eddy currents" within a thin skin of the material. The density and distribution of these eddy currents are exquisitely sensitive to the distance (gap) between the probe tip and the target. As the gap decreases, more energy is coupled into the target, resulting in greater eddy current generation. These currents, in accordance with Lenz's Law, generate their own opposing magnetic field, which interacts with the probe's field.
This interaction effectively loads the probe coil, altering its effective impedance. The Proximitor® continuously and precisely measures this change in impedance. It then conditions, demodulates, and linearly converts this electrical parameter into a proportional DC voltage output. The relationship is highly linear over the specified 80-mil (2 mm) range, providing a stable and accurate analog representation of the physical gap. This fundamental physics allows the system to measure not just static position (like thrust bearing position) but also dynamic motion (like vibration) with a bandwidth from DC to 10 kHz.
2.2 Reverse Mount Mechanical Architecture

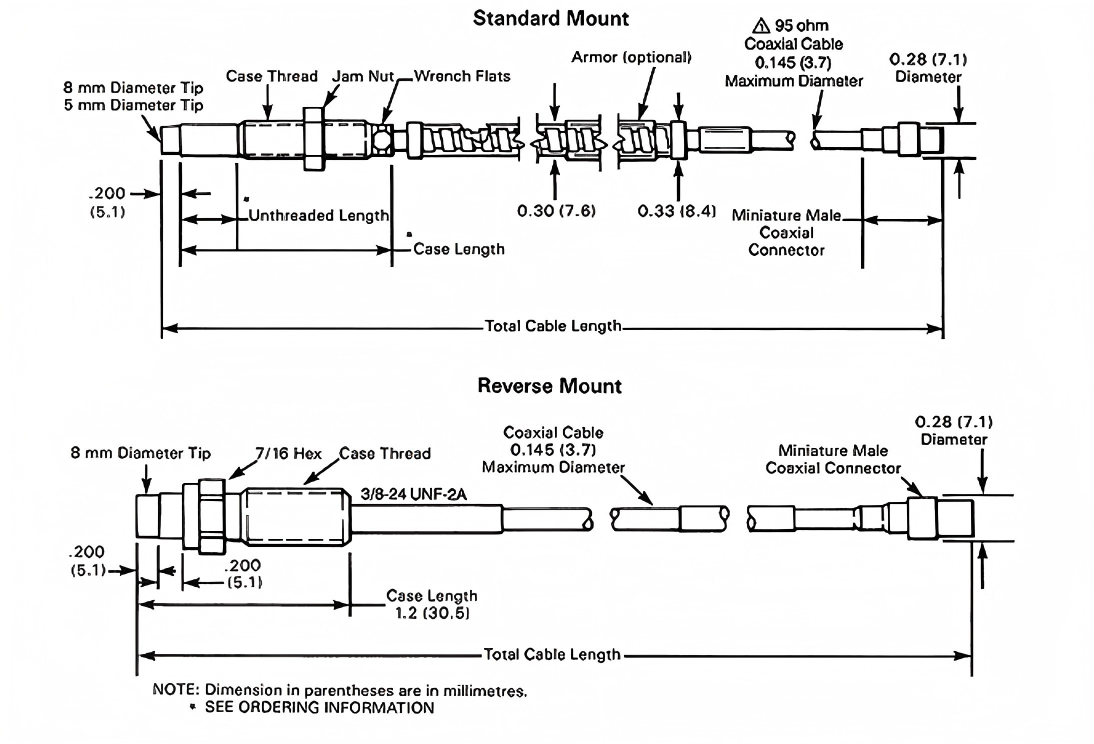

The "reverse mount" designation refers to the physical construction of the probe body. In a standard probe, the electrical connector is located at the end opposite the sensing tip. In the 21508 reverse mount design, the sensing tip and the connector are on the same end of the probe case. The coaxial cable exits the probe body perpendicularly, very close to the tip. This architecture is crucial when the probe must be inserted into a blind hole or a housing, with the target surface located outward from the installation point. It eliminates the need for longitudinal space behind the probe for cable routing, making it indispensable for compact machinery designs, internal bearing cap measurements, or other spatially constrained installations.
2.3 Cable Loc™: Engineering for Reliability
A significant enhancement in the 8mm probe design is the incorporation of Bently Nevada's patented Cable Loc™ feature. The junction where the flexible coaxial cable meets the rigid probe body is a common point of mechanical failure due to stress concentration from vibration, bending, and installation handling. The Cable Loc™ system employs a proprietary molding and strain relief process that creates an exceptionally robust, monolithic connection. This design drastically increases the assembly's resistance to pull-out forces and flexural fatigue, directly translating to enhanced field durability, longer service life, and reduced maintenance interventions. This feature is a direct response to the demanding physical environments encountered in industrial settings.
3. Comprehensive Application Scenarios
The 21508-02-12-05-02 transducer is a versatile tool for predictive maintenance and performance monitoring engineers. Its primary applications are deeply embedded in the protection and management of high-value rotating assets:
Radial Vibration Monitoring: This is the most prevalent application. One or two probes installed perpendicular to a shaft (XY configuration) measure dynamic motion to assess overall machine health. Vibration amplitude and waveform analysis can reveal conditions such as imbalance, misalignment, rolling element bearing defects, journal bearing instability (oil whirl/whip), rubbing, and looseness. The 10 kHz bandwidth is sufficient to capture most mechanical fault frequencies.
Axial Thrust Position Monitoring: A probe mounted facing a shaft's thrust collar or other axial feature provides a direct, continuous measurement of rotor axial position. This is critical for monitoring the health of thrust bearings in turbines, compressors, and pumps. It can detect excessive wear, load shifts, and potential failure conditions, allowing for planned intervention before a catastrophic rotor float occurs.
Shaft Radial Position (Slow-Roll) Measurement: By examining the DC component of the proximity probe's signal, engineers can determine the average position of the shaft within its bearing clearance. This is essential during startup and shutdown to plot "slow-roll" or "centerline" plots, which indicate the static alignment and bearing attitude. Deviations from the expected plot can reveal foundation issues, thermal misalignment, or bearing wear.
Phase Reference for Balancing and Analysis: When used in conjunction with a once-per-revolution tachometer (Keyphasor®) signal, the vibration waveform from a proximity probe provides an accurate phase angle measurement. This is indispensable for field balancing of rotors, as it identifies the angular location of heavy spots. Phase analysis is also a powerful diagnostic tool for differentiating between various fault types.
Eccentricity (Bow) Measurement: At very slow roll speeds, the proximity probe can map the mechanical and electrical runout of a shaft. This helps quantify shaft bow, which can cause vibration at running speed and potentially lead to internal rubs. Accurate bow measurement is crucial after maintenance events or if a rotor is suspected of being damaged.
The reverse mount capability of the 21508 probe makes it particularly valuable for applications inside bearing housings, gearboxes, or compressor casings where traditional probe mounting from the exterior is impossible.
4. Installation, Commissioning, and Best Practices
Proper installation is critical to achieving the performance specifications and long-term reliability promised by the transducer system.
Target Material and Preparation: The system is calibrated for use with AISI 4140 steel or equivalent. Different materials (e.g., stainless steel, aluminum) will affect the electrical conductivity and permeability, altering the scale factor and effective range. Target surfaces must be clean, smooth, and free from coatings, pits, or scratches that could cause electrical runout—non-conductive variations that the probe interprets as mechanical motion.
Mounting and Alignment: The probe must be mounted securely using the appropriate jam nut. The probe tip must be oriented perpendicular to the target surface to within a few degrees. Axial misalignment introduces significant measurement error. The initial gap should be set within the linear range (typically near the midpoint, ~40 mils or 1.0 mm) as specified by the machinery builder or monitoring system guidelines.
Cable Handling and Routing: While the Cable Loc™ feature provides robust strain relief, care should still be taken during installation. Avoid sharp bends in the coaxial cable (maintain a minimum bend radius). Secure both the integral probe cable and any extension cables using cushioned clamps at regular intervals to prevent fatigue from vibration. Keep signal cables separated from high-power AC cables to minimize inductive noise pickup.
Grounding and Shielding: Ensure the Proximitor is properly grounded according to Bently Nevada instructions. The cable shield is designed to be grounded at the Proximitor end only, creating a "single-point ground" to prevent ground loop currents that can induce noise in the low-level sensor signal.
System Verification and Calibration: After installation, a system verification should be performed. This involves checking the electrical "gap voltage" and observing the dynamic vibration signal during machine run-up and run-down. For utmost accuracy, a "bump test" or in-situ calibration can be performed using precision gap-setting fixtures, though this is often done for critical machinery or during initial commissioning.
5. Industry Certifications and Compliance for Hazardous Areas
Recognizing that much of the critical machinery it monitors operates in potentially explosive atmospheres, Bently Nevada has had the 7200 Series transducers evaluated by leading global certification agencies. The relevant probes and associated Proximitors carry approvals from:
CSA (Canadian Standards Association): For use in North America.
BASEEFA (British Approvals Service for Electrical Equipment in Flammable Atmospheres): Now part of SIRA, for use in European and IECEx scheme regions.
FM (Factory Mutual): For use in North America and other regions recognizing FM standards.
These certifications designate the equipment as suitable for installation in specific Class and Zone/Division hazardous locations, as defined by standards like NEC, CEC, and ATEX. This allows the transducer system to be used safely in areas where flammable gases, vapors, or dusts may be present, such as on offshore platforms, in refineries, or at chemical plants. The exact classification (e.g., Class I, Division 2, Group IIA T4) is detailed in supplementary documentation like Data Sheet L1035, which must be consulted for specific installation planning in hazardous areas.
