GE IS420UCSBS1A UCSA Standalone Controller Module

The IS420UCSBS1A is a Safety Controller within the Mark VIeS series, specifically engineered for industrial functional safety loops requiring SIL 2 and SIL 3 (Safety Integrity Level) capabilities. Designed as a standalone, robust computing unit, this controller is central to critical safety applications in industries such as power generation, oil & gas, and chemical processing, where operational reliability and risk mitigation are paramount.

Certified in accordance with the IEC 61508 standard, the IS420UCSBS1A, along with its dedicated Safety I/O modules, provides a certified platform for implementing Safety Instrumented Systems (SIS), effectively reducing risk in critical safety functions.

2. System Architecture & Hardware Design

2.1 Standalone Modular Design
The IS420UCSBS1A features a self-contained, modular architecture. Unlike traditional controllers where I/O is housed on a backplane, it communicates with distributed I/O packs exclusively via a private, special-purpose Ethernet network called IONet. This design eliminates any single point of failure for application input. If a controller is powered down for maintenance or repair, the system architecture guarantees that no single input is lost, ensuring continuous operation of the safety loop.

2.2 Processor and Memory

• Microprocessor: Utilizes a 600 MHz Intel EP80579 processor, delivering the deterministic performance required for real-time safety control.

• Memory:

• 256 MB DDR2 SDRAM with Error-Correcting Code (ECC) for enhanced data integrity.

• 2 Gigabytes of NAND Flash for storing the operating system, firmware, and application code.

• Flash-backed SRAM for non-volatile program variables.

2.3 Fanless Design and Power Supply

• Cooling: The IS420UCSBS1A is a fanless module, relying on passive cooling through integrated heat fins. This eliminates a common point of failure, improves reliability, and reduces maintenance.

• Power Input: Accepts a 28 V DC input.

• Internal Power Conversion: The incoming 28 V DC is converted to a regulated internal 5 V DC supply, from which all other internal power planes are derived.

• Power Consumption: Peak power draw is 26.7 W, with a nominal operational consumption of 15.6 W.

2.4 Environmental Ruggedness

• Operating Temperature: Rated for -30°C to 65°C (-22°F to 149°F), making it suitable for deployment in harsh industrial environments.

3. Communication & Networking Capabilities

3.1 The IONet Network
The controller connects to I/O modules through three independent IONet ports.

• Network Type: A private Ethernet network dedicated solely to Mark* control devices.

• Protocol: Uses TCP/IP for reliable communication between controllers and I/O modules.

• Redundancy: IONet redundancy is equal to controller redundancy. In redundant systems, multiple independent IONet paths ensure communication integrity.

3.2 Primary and Secondary Ethernet Interfaces

• ENET1 (Primary):

• Typically configured as a UDH (Unit Data Highway) connection.

• Used for communications with HMIs, historians, and other controllers.

• Supports protocols like EGD (Ethernet Global Data), Modbus, and OPC-UA.

• ENET2 (Secondary):

• Note: Not supported for the Mark VIeS Safety controller. On non-safety controllers, it is typically used for CDH peer-to-peer connections.

3.3 Precision Clock Synchronization
The system uses the IEEE 1588 precision time protocol (PTP) across the R, S, and T IONets to synchronize the clocks of all I/O packs and controllers to within ±100 microseconds, ensuring time-coherent data acquisition and control execution.

4. Software System & Programming

4.1 Operating System
The IS420UCSBS1A runs on QNX Neutrino, a proven, real-time operating system (RTOS) designed for high-speed, high-reliability industrial applications. Its deterministic behavior is crucial for meeting the response-time demands of safety functions.

4.2 Programming Languages
The controller supports multiple programming paradigms to suit different engineering preferences:

• Control Block Language: For complex analog and discrete control loops using function blocks.

• Relay Ladder Diagram (RLD): For implementing Boolean logic in a familiar ladder format.

• Supported Data Types: A comprehensive set including Boolean, 16/32-bit signed/unsigned integers, and 32/64-bit floating-point numbers.

4.3 Online Modifications
Minor modifications to the control software can be made online without requiring a controller restart, enhancing system availability and simplifying troubleshooting.

4.4 Safety Software Branding
A critical feature for functional safety, Branding is a mandatory process required whenever the application code in a Mark VIeS Safety controller is changed and downloaded. This process cryptographically "brands" the new code, ensuring its authenticity and integrity. Any unauthorized change triggers a brand mismatch, alerting operators to a potential safety integrity issue. This is a foundational requirement for maintaining SIL 2/3 certification.

5. Safety Features & Certifications

5.1 Functional Safety Level
The IS420UCSBS1A controller and its associated Safety I/O modules are specifically designed and certified for use in SIL 2 and SIL 3 safety loops as defined by IEC 61508.

5.2 Hardware and Software Certification
The specific control hardware and software comprising the Mark VIeS system have received IEC 61508 certification from a third-party assessor, providing independent validation of their suitability for safety-critical applications.

5.3 Redundancy and Fault Tolerance
The controller is designed to operate in dual or Triple Modular Redundant (TMR) configurations. In these setups, it synchronizes with peer controllers, exchanging:

• Internal state values for voting and initialization.

• Status and synchronization information.
  This architecture ensures that a single controller failure does not lead to a dangerous failure of the safety function.

6. Installation & Maintenance

6.1 Physical Installation

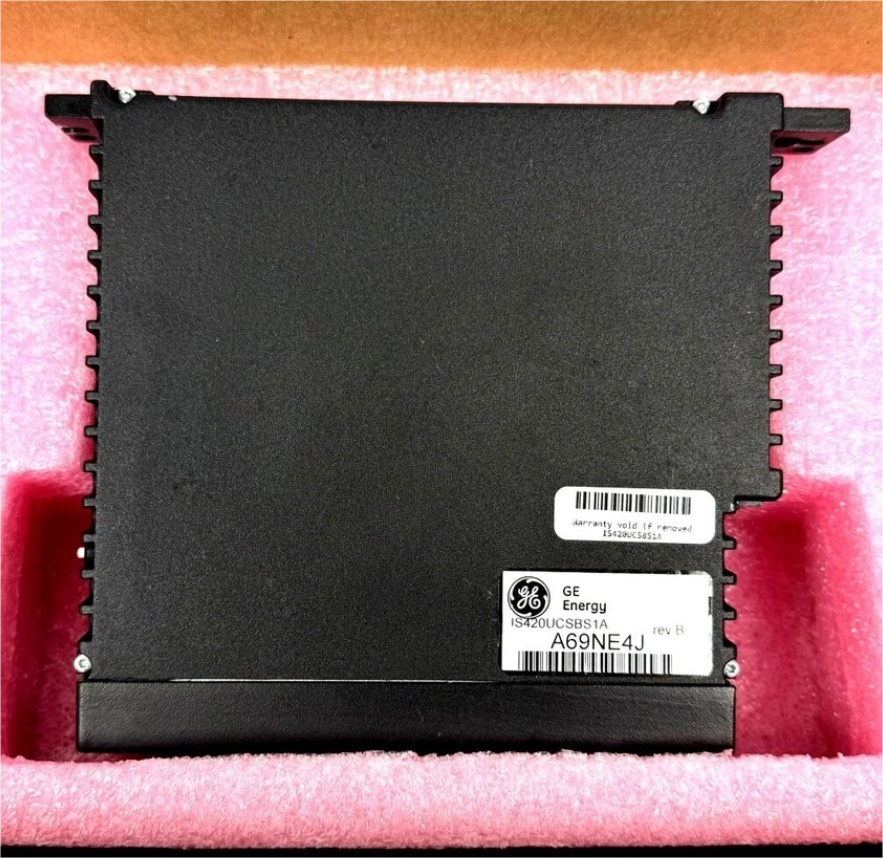

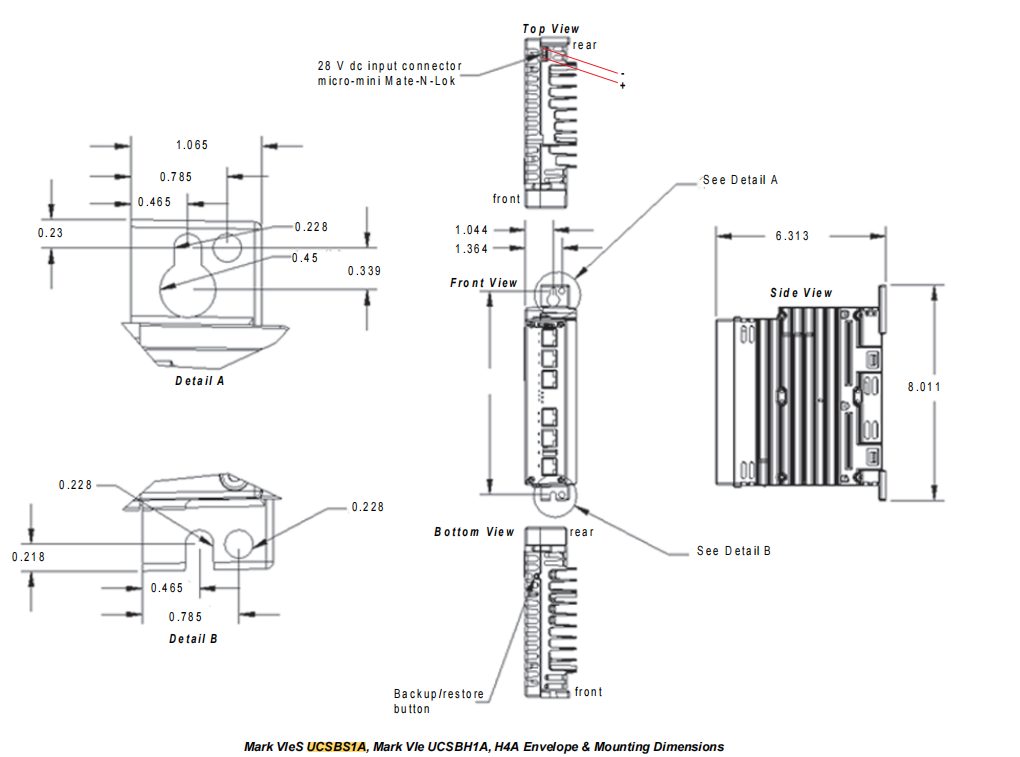

The controller is a single module that mounts directly to panel sheet metal using a keyhole mounting design. It must be installed with vertical airflow through the cooling fins to ensure proper thermal management.

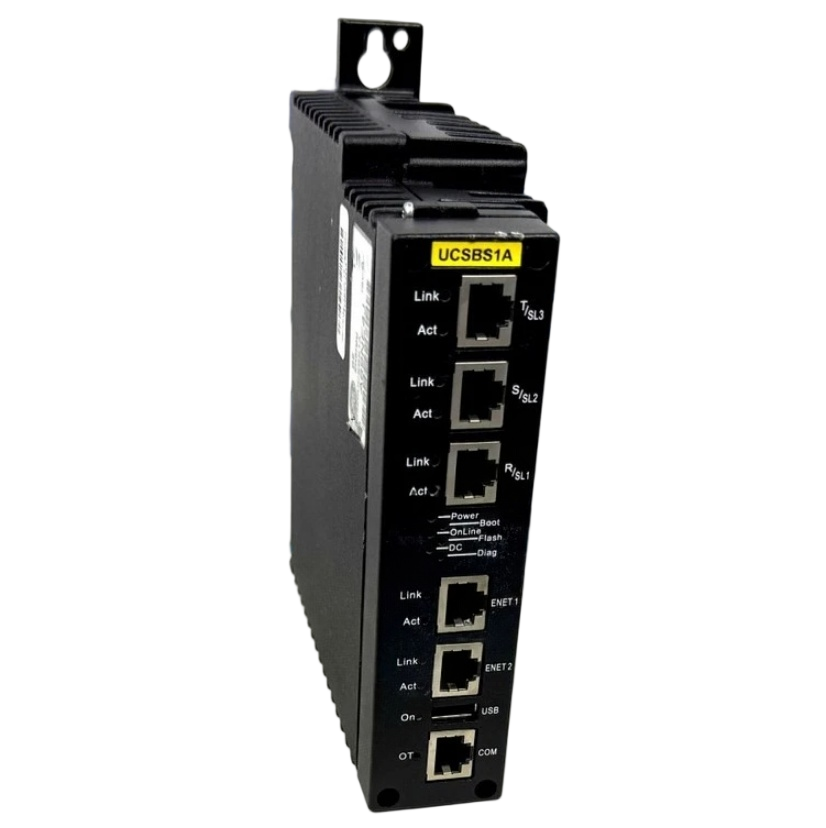

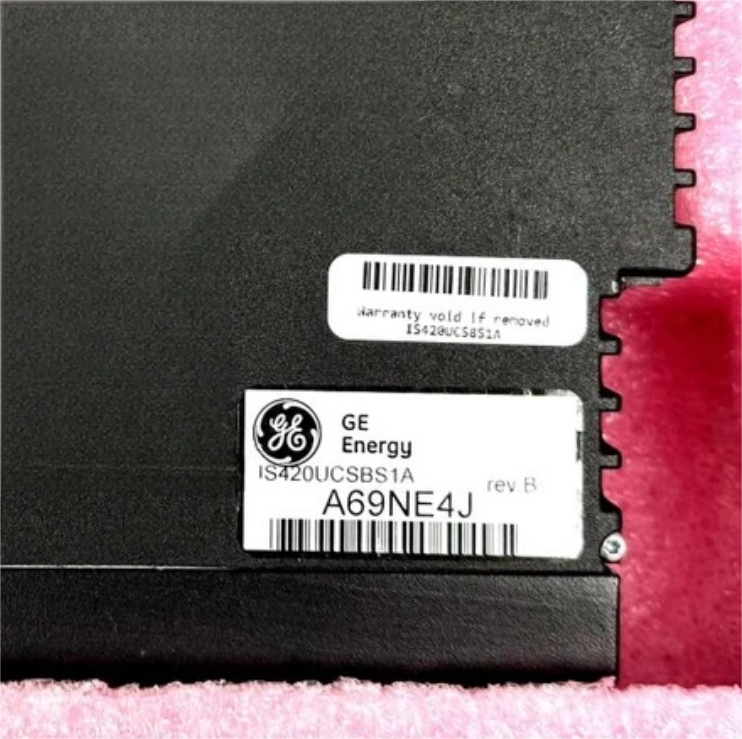

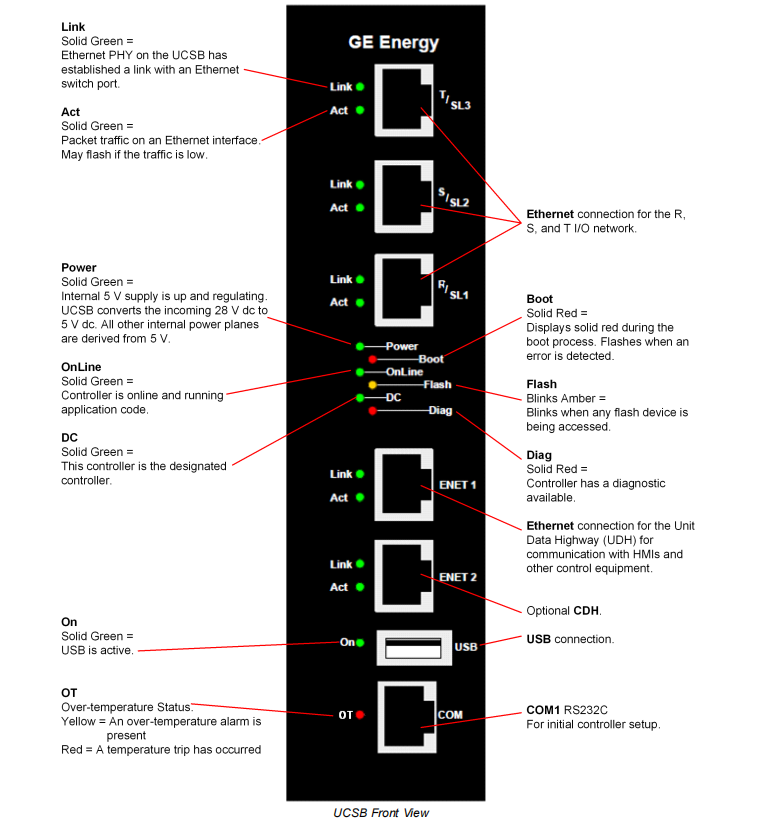

6.2 Status Indicators (LEDs)
The front panel provides a comprehensive set of LEDs for immediate status assessment:

• Link: Solid green indicates an established IONet Ethernet link.

• Act: Solid or flashing green indicates IONet packet traffic.

• Power: Solid green indicates the internal 5V supply is operational.

• OnLine: Solid green indicates the controller is online and executing application code.

• DC: Solid green indicates this controller is the designated controller in a redundant set.

• OT (Over-Temperature): Yellow indicates an alarm condition; Red indicates a trip has occurred.

7. Backup, Restore & Replacement

7.1 Backup and Restore Procedure
A dedicated push-button on the controller allows for backup and restore of the controller's configuration and firmware to a USB drive.

• USB Drive Requirement: Must be USB 2.0-compliant, non-encrypted, with a minimum capacity of 4 GB, formatted as FAT32.

• Process: The backup/restore status is indicated by the USB On LED. A solid light during the process indicates activity, and it turns off upon successful completion. Flashing indicates a failure.

7.2 Controller Replacement
A structured procedure is defined for replacing a faulty controller, emphasizing safety and data integrity:

1. Backup: If possible, back up the failing controller's NAND flash.

2. Power Down: Disconnect the specific power plug (JCR, JCS, or JCT) on the associated JPDC.

3. Disconnect Cables: Remove IONet and VLAN cables.

4. Physical Removal: Loosen screws and remove the controller using the keyhole mounting.

5. Installation: Reverse the process to install the new controller.

6. Restore & Configure: Restore the backup to the new controller or configure its IP address using the ToolboxST engineering tool via the COM1 port.
