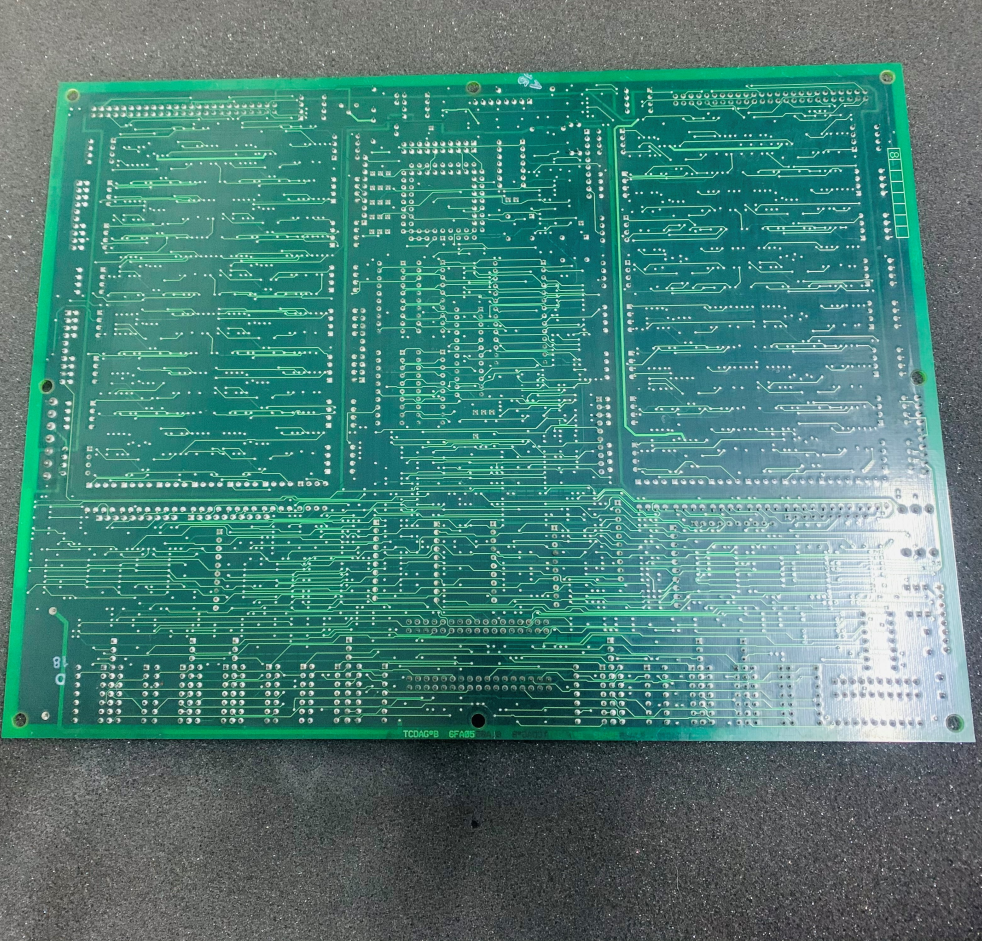

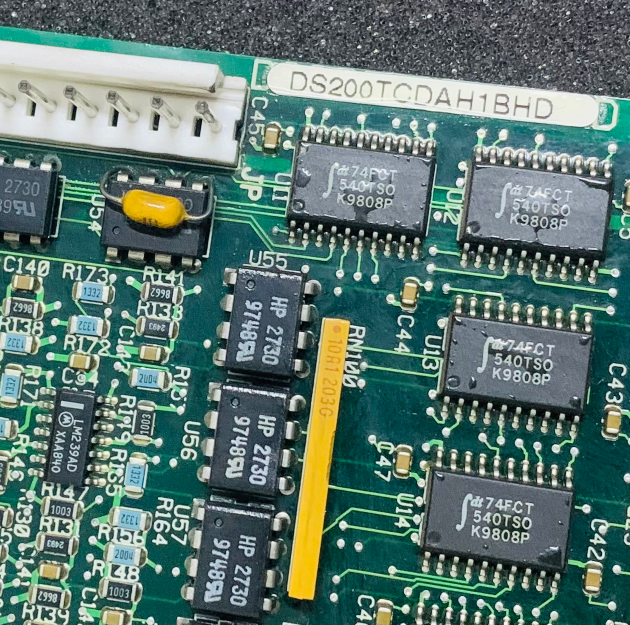

The DS200TCDAH1B Digital Input/Output Board is the core and hub for discrete digital signal processing within GE's SPEEDTRONIC Mark V LM Turbine Control System. As the only intelligent processing board located in Slot 1 (Location 1) of the Digital I/O cores (<Q11>, <Q51>, and the optional <Q21>), the TCDA assumes the critical responsibility for the centralized processing, communication, and management of all discrete signals. It directly connects to field contact inputs (dry contacts) and drives downstream contact/relay outputs, serving as the key equipment for the safe, reliable, and precise conversion between the external world of switches and the controller's internal high-speed digital logic world.
In the Mark V LM system's application for high-reliability, high-availability gas turbine control and protection, discrete signals (such as valve limits, breaker statuses, manual emergency stops, protective contacts) are numerous and crucial. The DS200TCDAH1B is specifically designed to handle these signals efficiently and safely. It is not merely a passive signal conduit but an active node with local processing capability, millisecond-level event timestamping (SOE) recording, and intelligent diagnostic functions. Its performance determines the system's response speed to field status changes, the accuracy of event recording, and the reliability of failsafe logic, making it a key component of the unit's safety "nervous system."
II. Detailed Technical Specifications and Architecture
The DS200TCDAH1B is a functionally concentrated digital signal processing board, with an architecture that reflects high integration and reliability:
1. Core Processing Functions:
Signal Processing Capacity:
Digital Inputs: A single TCDA board supports processing a total of 92 contact input signals (a typical system configuration is 96; the manual specifies the TCDA processes signals from the DTBA and DTBB boards) from the DTBA and DTBB termination modules.
Digital Outputs: A single TCDA board, via the JO1 and JO2 connectors, drives the two TCRA relay boards in Slots 4 and 5, controlling up to 60 relay outputs (30 max per TCRA). In the <Q11> core, the TCRA in Slot 4 has only 4 relays, directly controlled by the TCQE board, which is an exception.
Local Intelligent Processing: The onboard microprocessor is responsible for status scanning, debouncing, and change detection for all input signals and generates precise timestamps for them. Simultaneously, it receives output commands from the I/O Engine and forwards them to the corresponding TCRA relay drive circuits.
2. Communication Interfaces:
IONET (I/O Network) Interface: This is the lifeline of the TCDA. Via the JX1 or JX2 connector, the TCDA connects to a serial communication "daisy-chain" network.
In the <Q11> core, the IONET chain is: <R1>TCQC ←→ <P1>TCEA(X) ←→ <P1>TCEA(Y) ←→ <P1>TCEA(Z) ←→ <Q11>TCDA.
In the <Q51> core, the chain is: <R5>CTBA ←→ <Q51>TCDA.
Via this network, the TCDA uploads packaged input status data (including timestamps) to the I/O Engine (<R1> or <R5>) and receives output command packets from the I/O Engine.
Power and Signal Connectors:
JP: Receives operating power from the TCPS power board of its associated I/O core (<R1>, <R2>, or <R5>).
JQ: Connects to the JQR socket of the DTBA termination board to read the status of the first 46 contact inputs.
JR: Connects to the JRR socket of the DTBB termination board to read the status of the last 46 contact inputs.
JO1: Outputs control signals to the TCRA relay board in Slot 4 (in <Q11>, this connector is used for special control from TCQE and is not connected to the TCDA).
JO2: Outputs control signals to the TCRA relay board in Slot 5.
3. Hardware Configuration Jumpers:
The hardware jumpers on the TCDA board represent its flexibility and configurability and are crucial:
J1 and J8: Used for factory testing; users typically do not need to adjust these.
J2 and J3: Used to configure the IONET termination resistors. When the TCDA board is at the end of the IONET "daisy chain," termination resistors (typically 120 ohms) must be enabled via these jumpers to match the network impedance, eliminate signal reflection, and ensure communication stability.
J4, J5, J6: Used to set the IONET hardware address of the TCDA board. This is key for identifying different devices on the chain. Each TCDA must have a unique address to ensure accurate addressing by the I/O Engine. Address settings must match the software configuration.
J7: Stall Timer Enable jumper. Used to enable or disable the timer function related to compressor stall detection (if used in the application).
III. Integration and Workflow within the Mark V LM System
The DS200TCDAH1B occupies an absolutely central position within the Digital I/O core, with connection relationships defining a clear signal path:
Power and Grounding: Operating power is received via the JP connector from the local cabinet's TCPS board. Proper grounding is achieved via the system backplane.
Field Input Signal Path:
Field contact (e.g., pressure switch, temperature switch, pushbutton) status (open/closed) → Connected to DTBA/DTBB terminal block → Via JQ/JR connectors and harness → Fed into the TCDA board.
Opto-isolator circuits on the TCDA board convert the field 125V DC (or 24V DC) wet voltage signal to internal logic levels, which are then scanned in real-time by the processor.
Intelligent Processing and Communication:
Upon detecting any input status change (rising or falling edge), the TCDA processor immediately assigns it an internal timestamp with 1-millisecond accuracy.
The processor packages all input statuses and timestamp data and transmits them serially via IONET (JX1/JX2) to upstream devices (TCEA in the protection core or CTBA in <R5>), ultimately reaching the I/O Engine (STCA/UCPB).
The I/O Engine sends the data via COREBUS to the Control Engine <R> for use in CSP logic decisions, HMI display, and SOE logging.
Output Command Execution Path:
Result of Control Engine <R> CSP logic (e.g., "Start Lube Oil Pump") → Via COREBUS → I/O Engine → Via IONET → TCDA board.
The TCDA board parses the command packet and, via the JO1/JO2 connectors, drives the coil of a specific relay on the corresponding TCRA relay board.
The relay contact actuates, thereby controlling the field device (e.g., energizing the pump motor contactor coil).
IV. Core Functions, Features, and Technical Advantages
Millisecond-Level High-Precision Sequence of Events (SOE) Recording:
This is one of the TCDA's most outstanding features. Its onboard processor can timestamp every single contact input status change (from "0" to "1" or "1" to "0") with a resolution as high as 1 millisecond.
When a unit trips or experiences a complex fault, the SOE record can clearly show the exact sequence of dozens or even hundreds of interlinked events (e.g., "Main Fuel Valve Closed," "Flame Lost," "Lube Oil Pressure Low Trip"). This is invaluable for engineers to quickly pinpoint the root cause and analyze the correctness of the protection system's action logic. SOE data can be viewed, analyzed, and archived via the HMI.
Powerful Failsafe Configuration Capability:
In the software configuration tool (I/O Configurator), an "Inversion Mask" can be set for each contact input. For example, a normally closed (NC) "Lube Oil Pressure Low" switch is closed (input "1") when normal and opens (input "0") when pressure is low. It can be configured as "inverted," so that in the software logic, the normal state is treated as "0" (no alarm) and the fault state as "1" (alarm/trip), aligning better with logical thinking.
More importantly: When IONET communication is lost between the TCDA board and the I/O Engine, the TCDA or I/O Engine can, based on the preset "Inversion Mask," force all inputs to a predefined safe state (typically "1," representing danger or trip condition). This "fail-to-safe" design is a core principle of the highest safety integrity level systems.
High-Reliability Electrical Isolation:
All 92 contact input channels are opto-isolated on the TCDA board. There is no direct electrical connection between the field side (wet contacts) and the control system side (logic circuits). This effectively prevents field-side voltage surges, ground faults, induced voltages, and other interferences from entering the sensitive controller core, greatly enhancing the system's noise immunity and long-term operational stability.
Flexible Field Configurability:
Setting the IONET address via J4-J6 jumpers allows multiple devices (e.g., the three TCEAs in the <P1> core and the TCDA in <Q11>) to be connected on the same IONET chain and distinguished by address.
Configuring termination resistors via J2/J3 jumpers standardizes network installation and expansion, ensuring reliable long-distance communication.
Comprehensive Online Diagnostics:
The TCDA board and I/O Engine continuously monitor IONET communication status, processor health, memory checksums, etc.
Capable of detecting input loop anomalies (though primary open-wire detection relies on external circuit design).
Any internal fault or communication anomaly triggers a clear Diagnostic Alarm on the HMI, guiding maintenance personnel to quickly locate board-level or channel-level issues.
V. Application Configuration, Commissioning, and Engineering Practice
System Planning and Address Assignment:
During system design, a unique IONET hardware address must be planned for each device (TCEA-X/Y/Z, TCDA) on each IONET chain and set via the J4-J6 jumpers. Address conflicts will cause communication failure.
Determine the TCDA's position on the chain (end or middle) and set the J2/J3 termination resistor jumpers accordingly. The device at the end must have termination resistors enabled.
Installation and Hardware Configuration:
Insert the TCDA board into Slot 1 of the digital core and secure it.
Connect the JP power cable, JQ/JR input signal cables (to DTBA/DTBB), JO1/JO2 output control cables (to TCRA), and the JX1/JX2 IONET communication cable. Pay attention to connector orientation and locking.
Set all hardware jumpers (J2-J7) according to the design drawings, and verify with a multimeter or visual inspection. This is a critical step in hardware commissioning.
Software Configuration and Download:
In the TCI software's I/O Configuration Editor, assign meaningful software signal names (e.g., LUBE_OIL_PRESS_SW, START_MOTOR_CMD) to all 92 inputs and 60 outputs corresponding to the TCDA board.
Select whether "Inversion" is needed for each contact input channel.
Enable "Change Detect" for input channels requiring SOE recording.
The configured IONET address must exactly match the hardware jumper settings.
Download the generated IOCFG.AP1 file to the Control Engine and reboot the corresponding I/O core (i.e., power cycle the <R1> or <R5> core where the TCDA resides) for the configuration to take effect. The TCDA will be reconfigured during the I/O Engine startup.
Power-Up Commissioning and Functional Verification:
Communication Verification: In the HMI's DIAGC screen, check if the status of the I/O core containing this TCDA board is normal and if IONET communication is established.
Input Point Testing:
Simulate field contact open/close using a jumper wire at the DTBA/DTBB terminal block.
Observe in the HMI's corresponding display screen or forcing table whether the signal status changes correctly and immediately.
Verify the "Inversion" function: For a normally closed contact configured as inverted, shorting it (simulating normal) should display "0," and opening it (simulating fault) should display "1".
SOE Function Verification:
Quickly operate several input contacts.
Check the HMI's SOE log or alarm event list to confirm events are recorded with consecutive, precise timestamps.
Output Point Testing:
Force a relay command (e.g., close) on the HMI.
Listen for the corresponding TCRA relay's audible "click" upon energization, or measure for contact closure at the terminal block.
Note: Forced output testing must be performed ensuring field equipment safety, preferably with the output terminal block wires to the field device disconnected.
VI. Maintenance, Diagnostics, and Troubleshooting
Routine Monitoring:
Regularly check the system diagnostic pages via the HMI for any alarms related to the TCDA or digital I/O core.
Pay attention to signals with abnormally frequent state changes in the SOE log, which may indicate field device chatter or loose wiring.
Advanced Diagnostic Tools:
DIAGC (Diagnostic Counters): Provides detailed status of the TCDA board, including IONET communication error counts, processor status, etc.
TIMN (Terminal Interface Monitor): By connecting to the IO core's COM1 port (via STCA/QTBA), allows direct access to the I/O Engine for more detailed TCDA operational data and raw counts, used for deep troubleshooting.
Typical Faults and Troubleshooting:
All Input/Output Points Fail or Show "Bad Value":
Primary suspicion is IONET communication interruption. Check if the JX1/JX2 communication cable is loose or damaged; check if upstream devices on the IONET chain (e.g., TCEA or CTBA) are working; confirm IONET address jumpers (J4-J6) are set correctly and uniquely; confirm termination resistor jumpers (J2/J3) are set correctly.
Check the TCDA board's JP power connection and if power is normal.
Single or Group of Input Points Show Incorrect Status:
Check if the corresponding DTBA/DTBB terminal block wiring is secure.
Check if the JQ or JR signal cable connection is good.
Check the "Inversion" configuration for that point in the software.
Use a multimeter to measure the interrogation voltage and open/closed status at the TCDA board's input terminals (or DTBA/DTBB terminals).
Output Relay Does Not Actuate:
Confirm on the HMI that the output command is active.
Check the JO1/JO2 control cable connection.
Check if the corresponding TCRA relay board is powered and if the relay coil is damaged.
Check the drive circuit from the TCDA board to the TCRA board.
SOE Timestamps Inaccurate or Missing:
Safety Warning:
When performing insertion/removal, jumper setting, or measurement on the TCDA board, safety procedures must be followed, and the relevant cabinet and core must be power-isolated (Lockout/Tagout). The contact input circuits carry 125V DC or 24V DC voltage; precautions against electric shock are necessary during operation.
