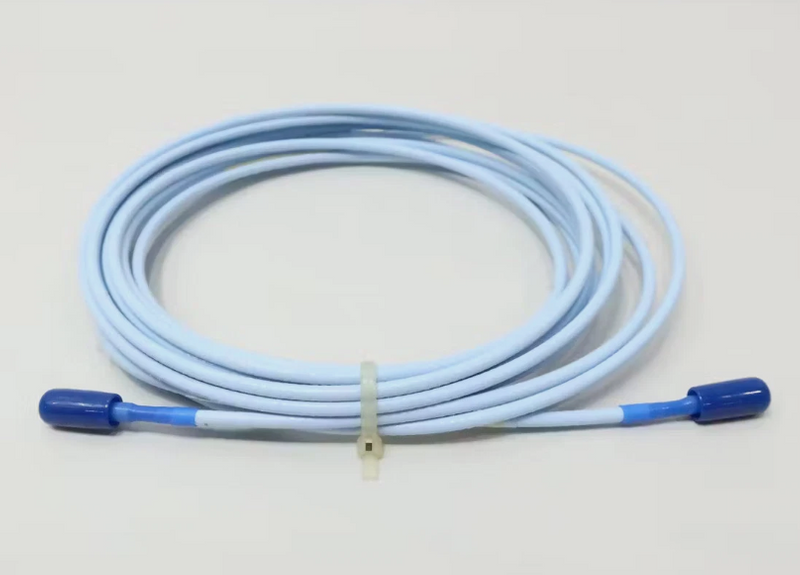

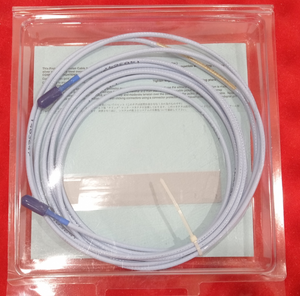

330130 is an extension cable under the 3300 XL 8mm Proximity Transducer System. This extension cable embodies Bently Nevada's state-of-the-art design, offering perfect compatibility with corresponding components of the 3300 XL 5mm, 8mm, and 11mm systems, along with convenient installation.
The 330130 extension cable features corrosion-resistant, gold-plated ClickLoc connectors. These connectors require only finger-tightening (they will "click" when properly tightened), and the specially engineered locking mechanism prevents the connectors from loosening. No special tools are required for installation or removal of these connectors.

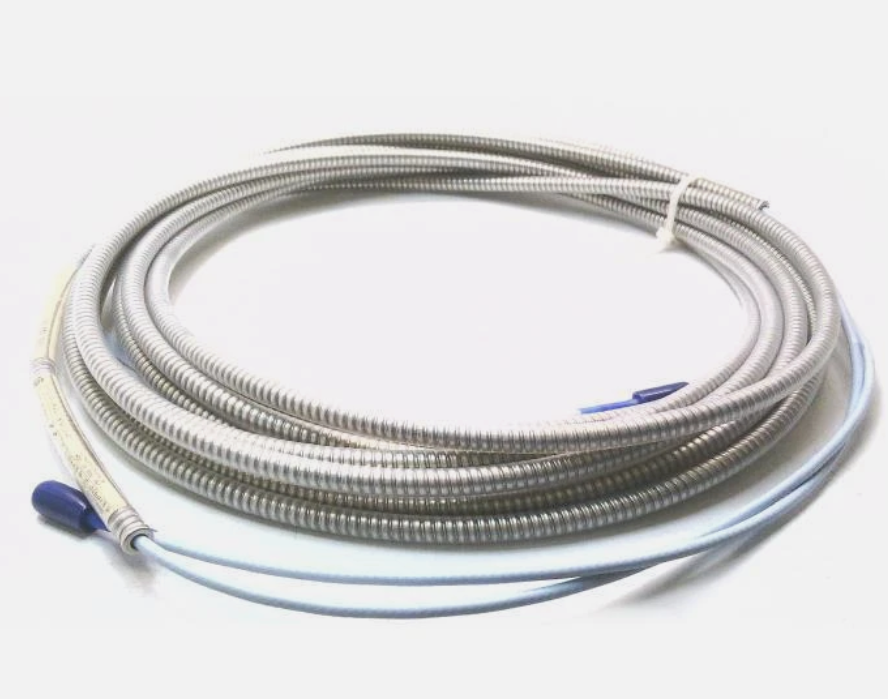

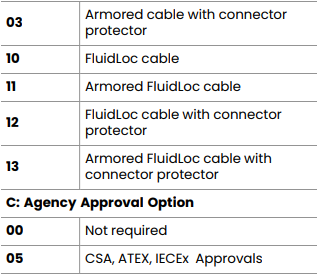

The 330130 extension cable can be ordered with standard cable, armored cable, or FluidLoc cable options. The FluidLoc cable option prevents oil and other liquids from migrating along the inside of the cable out of the machine.
When ordering 330130 extension cables, connector protectors can also be supplied separately for field installations (such as when an application requires running the cable through restrictive conduit). We recommend using connector protectors for all installations to provide enhanced environmental protection.

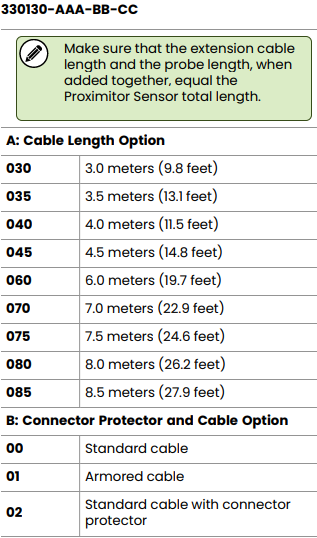

Although the 330130 is available in various lengths, customers must ensure that the sum of the extension cable length and the probe length equals the total system length required by the Proximitor sensor.
Frequently Asked Questions:
1. Can I freely choose any length for the 330130 extension cable?
Answer: Customers can only select from the available length options we provide, and must ensure compliance with the corresponding requirements of the Proximitor sensor.
2. Can FluidLoc and armor options be combined?
Answer: Customers can select both FluidLoc and armor options together.
3. What should I do when environmental temperatures exceed the standard 3300 XL series specifications?
Answer: We provide Extended Temperature Range (ETR) Extension Cables, model number 330190, for such applications. For more information, please contact our service personnel directly.
