VE4005S2B2 (KJ3221X1‑BA1 + KJ4001X1‑CB1) Emerson DeltaV M-Series

  • Emerson

  • VE4005S2B2

  • In Stock

  • T/T

  • Xiamen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The VE4005S2B2 is a fully integrated, factory‑matched I/O interface assembly within the Emerson DeltaV™ M‑series Traditional I/O subsystem. This assembly comprises two essential components: the KJ3221X1‑BA1 Series‑2 Analog Output (AO) Card with HART and the KJ4001X1‑CB1 Fused I/O Terminal Block. Designed for simplex (non‑redundant) installations, the VE4005S2B2 provides eight individually isolated 4–20 mA analog output channels with HART pass‑through capability, delivering precise control signals to final control elements such as valves, positioners, and actuators in process automation environments.

The VE4005S2B2 is engineered to meet the demanding requirements of modern process control, combining high accuracy, robust isolation, and advanced diagnostic features in a compact, plug‑and‑play form factor. It is fully compatible with DeltaV M‑series controllers (MQ, MX, PK) and horizontal or VerticalPlus carriers, and it supports online addition and replacement under power (hot‑swap) when installed with an approved FM‑rated power supply, as detailed in the Class I Division 2 installation guidelines. The fused terminal block provides integral overcurrent protection per channel, simplifying field wiring and reducing external component count, thereby lowering capital and installation costs.

This product introduction delivers a comprehensive overview of the VE4005S2B2, covering its intended applications, key benefits, detailed technical specifications in tabular format, certification information, ordering data, and essential installation and safety considerations. All information is derived from the official DeltaV M‑series Traditional I/O Product Data Sheet and the FM/ATEX hazardous location installation instructions (document 12P1293).

Product Overview and System Context

The VE4005S2B2 is a member of the DeltaV M‑series Traditional I/O family, which is renowned for its modularity, field‑mountable design, and ease of maintenance. Traditional I/O subsystems are deployed near the field devices, significantly reducing wiring runs and eliminating the need for extensive marshalling panels. The VE4005S2B2 specifically addresses analog output requirements, converting digital control signals from the DeltaV controller into high‑precision 4–20 mA current signals that drive field actuators. The integrated HART (Highway Addressable Remote Transducer) protocol support enables bidirectional digital communication over the same two‑wire loop, allowing users to access device diagnostics, calibration data, and secondary variables via Emerson’s AMS Device Manager without additional wiring.

The VE4005S2B2 is designed for simplex operation, meaning a single card per I/O interface. For critical applications requiring redundancy, a redundant version is available using the same KJ3221X1‑BA1 card mounted on a two‑wide redundant terminal block (model VE4035S2B1 or similar), but the VE4005S2B2 itself is the fused simplex assembly. The fused terminal block (KJ4001X1‑CB1) incorporates a 2.0 A replaceable fuse per channel (field‑side), protecting both the card and the field device from overcurrent conditions. This integral fuse eliminates the need for external fuse holders, saving panel space and installation labor.

Key Benefits and Functional Advantages

Capital Cost Reduction – The VE4005S2B2 leverages full system modularity. Users can purchase I/O interfaces in groups of 8 channels as needed, scaling the system incrementally. The fused terminal block reduces external components, and the ability to mount the interface in field junction boxes minimizes control room footprint and long multi‑core cable runs.

Installation Time and Expense Savings – The plug‑and‑play design allows the terminal block to be pre‑wired in the shop before the I/O card is installed. The card simply plugs into the I/O interface carrier, and the terminal block mates directly without additional wiring. The keying system (unique key positions for each card type) ensures that only the correct AO card can be inserted into the fused terminal block, eliminating installation errors and saving commissioning time.

Enhanced Productivity – The VE4005S2B2 supports online addition and replacement. With system power energized (under specific conditions), the card can be removed or inserted without interrupting the process, provided that field power is de‑energised and only one card is handled at a time. DeltaV Explorer automatically recognises new hardware and assigns basic configuration.

Process Availability – Although the VE4005S2B2 is a simplex assembly, its design incorporates high isolation (1500 V DC factory tested) and robust diagnostic LEDs (power, error, and channel status) to facilitate rapid fault identification. The HART pass‑through enables predictive maintenance, reducing unplanned downtime.

Hazardous Location Suitability – The VE4005S2B2 carries FM, CSA, ATEX, and IEC‑Ex certifications for Class I, Division 2 (Groups A, B, C, D) and Zone 2 hazardous areas. The field circuit classification for the KJ3221X1‑BA1 card is Non‑Incendive (energy‑limited) with defined safety parameters (Voc, Isc, Ca, La), allowing connection to field devices in classified locations without the need for intrinsic safety barriers in many cases, provided the connected apparatus meets the specified limits.

Application and Usage Notes

The VE4005S2B2 is typically deployed in continuous process control loops where precise current output is required to position control valves, variable speed drives, or other modulating actuators. The integrated HART modem enables digital communication without affecting the analog signal, allowing asset management, remote calibration, and diagnostic data collection via AMS Device Manager. The card supports HART pass‑through for all eight channels, with a typical scan time of 600–800 ms per enabled channel, ensuring timely updates of process variables.

The fused terminal block provides a 2.0 A fuse per channel. This fuse is field‑replaceable and is designed to protect against wiring faults or actuator short circuits. The fuse type is a slow‑blow or time‑delay type (refer to fuse kit specifications). The terminal block accepts standard field wiring (recommended wire size 0.5 to 2.5 mm² / 20–14 AWG) and includes clearly marked polarity and channel numbering.

When planning installation, note that the VE4005S2B2 requires a matching carrier slot with the correct keying. The card’s key positions (marked on the side of the card) are factory‑set to match the terminal block. The fused terminal block is specifically keyed for the AO card; attempting to insert a different card type (e.g., AI or DI) is mechanically prevented.

For system expansions, the VE4005S2B2 can be installed under power (hot‑swap) provided the safety conditions are met. This feature minimises process downtime during maintenance or capacity upgrades. After insertion, the DeltaV system automatically detects the new card and assigns a basic configuration, which can then be customised in the control strategy.

Maintenance and Troubleshooting

  • LED Indicators: The card has a green power LED and a red error LED. Individual channel status LEDs indicate output activity or fault conditions (e.g., open circuit, short circuit, or overcurrent). Refer to the DeltaV diagnostics for detailed error codes.

  • Fuse Replacement: If a channel fuse blows, replace it only with the approved fuse from kit KJ4010X1‑BC1 (part 55P0587X012). Ensure field power is removed before fuse replacement.

  • Card Replacement: For a faulty card, with system power energised (and field power de‑energised), remove the old card and insert the new one. The keying ensures correct insertion. After replacement, the system automatically re‑commissions the card.

  • Periodic Inspection: In harsh chemical environments, inspect the terminal block plastic and fuse holders for degradation. If any cracking or discoloration is observed, replace the terminal block.

Detailed Technical Specifications

The following tables present the comprehensive technical data for the VE4005S2B2 assembly. All values are derived from the official Emerson product documentation and are applicable over the full operating temperature range unless otherwise noted.

Table 1: General Specifications for VE4005S2B2 (Assembly Level)

Parameter

Specification

Product Designation

VE4005S2B2 – Fused I/O Termination Block with 8‑Channel AO HART Card (Simplex)

I/O Card Model

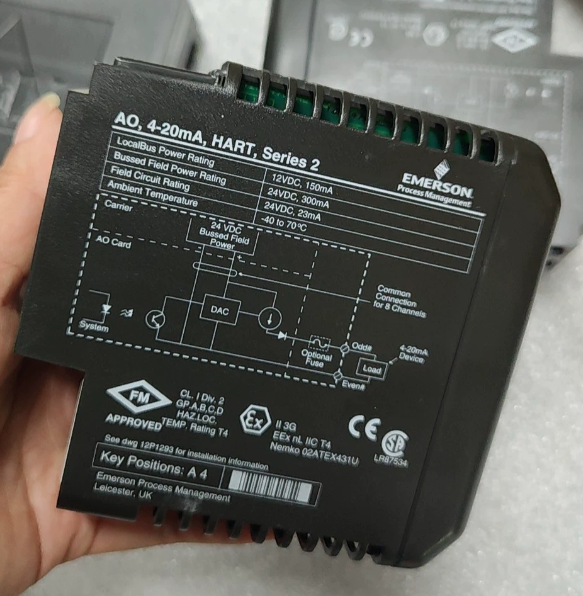

KJ3221X1‑BA1 (Series‑2 Analog Output with HART)

Terminal Block Model

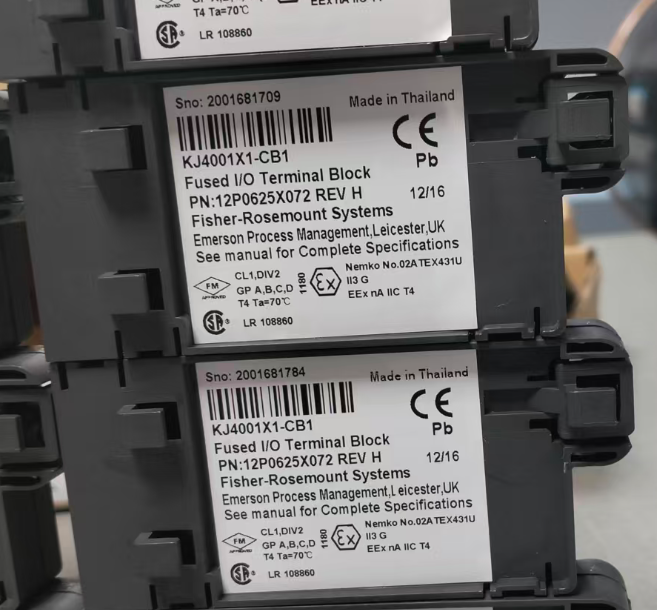

KJ4001X1‑CB1 (Fused I/O Terminal Block)

Number of Channels

8 (individually isolated)

Signal Type

Analog Output, 4–20 mA (with HART digital communication)

Full Signal Range

1 to 23 mA (overrange capability)

Accuracy Over Temperature

±0.25 % of span (including drift over –40 to 70 °C)

Resolution

12‑bit D/A converter (provides fine step resolution)

Output Compliance

20 mA at 21.6 V DC supply into 700 Ω load (maximum load resistance)

Calibration

Factory calibrated; calibration data stored on card – no field calibration required

Local Bus Current (12 V DC nominal)

Simplex: 100 mA typical, 150 mA maximum

Field Circuit Power

300 mA maximum at 24 V DC (+10 %), supplied from bussed field power

Isolation

Each channel optically isolated from the system; factory tested to 1500 V DC (system‑to‑field)

Optional Fuse

2.0 A per channel (field side), replaceable (part of KJ4001X1‑CB1)

HART Communication Support

HART pass‑through for AMS Device Manager; variable and status reporting for control functions

HART Scan Time

600 – 800 ms (typical) per enabled channel

Operating Temperature

–40 to 70 °C (–40 to 158 °F) – see note on lifetime at high temperature

Storage Temperature

–40 to 85 °C (–40 to 185 °F)

Relative Humidity

5 to 95 % non‑condensing

Airborne Contaminants

ISA‑S71.04‑1985 Class G3 with conformal coating

Protection Rating

IP 20

Shock

10 g, ½‑sine wave for 11 ms

Vibration

1 mm peak‑to‑peak from 5 to 16 Hz; 0.5 g from 16 to 150 Hz

Dimensions (per card)

Height 10.7 cm (4.2 in), Width 4.1 cm (1.6 in), Depth 10.5 cm (4.1 in)

Terminal Block Type

Fused, screw‑type termination for field wiring; accepts 2‑wire devices

Table 2: Electrical Characteristics – Analog Output (Per Channel)

Parameter

Value

Nominal Output Range

4 to 20 mA (linear)

Usable Range

1 to 23 mA (overrange detection available)

Output Compliance Voltage

21.6 V DC minimum at 20 mA (with 24 V DC supply and 700 Ω load)

Maximum Load Resistance

700 Ω @ 21.6 V supply; reduces with lower supply

Accuracy (includes linearity, hysteresis, repeatability)

±0.25 % of span over entire temperature range

Repeatability

±0.05 % of span

Resolution

12‑bit (approx. 0.025 % of full range)

Temperature Drift

Included in accuracy specification

Response Time

Not specified – typical for process control; HART updates at scan time

Output Ripple

< 10 mV peak‑to‑peak (typical)

Short‑Circuit Protection

Protected via per‑channel fuse (2.0 A) and internal current limiting

Open‑Circuit Detection

Supported via HART diagnostics and hardware alerts

Table 3: Isolation and Dielectric Strength

Parameter

Specification

Isolation Type

Opto‑coupler isolation between each channel and the system logic

Isolation Test Voltage

1500 V DC (factory tested) between field circuits and system side

Channel‑to‑Channel Isolation

Not isolated from each other (common field return) – each channel is isolated only from the system

Common Mode Voltage

±0.7 V DC maximum between channels (if referenced) – but isolation is system‑to‑field only

Table 4: Field Circuit Classification for Hazardous Locations (Non‑Incendive Parameters)

The KJ3221X1‑BA1 card within the VE4005S2B2 is classified as Non‑Incendive for Class I, Division 2, Groups A, B, C, D (and Zone 2). The following limits must be observed when connecting field devices.

Parameter

Value

Description

Voc

28.7 V

Maximum open‑circuit voltage that can be delivered to the hazardous area per channel

Isc

33 mA

Maximum short‑circuit current per channel

Ca (Capacitance)

17 µF

Maximum allowable external capacitance (including cable and device) that can be connected

La (Inductance)

11 mH

Maximum allowable external inductance (including cable and device) that can be connected

Vmax (device)

Must be ≥ Voc

Connected apparatus must have Vmax ≥ 28.7 V

Imax (device)

Must be ≥ Isc

Connected apparatus must have Imax ≥ 33 mA

Ci (device)

≤ Ca

Connected apparatus unprotected capacitance ≤ 17 µF

Li (device)

≤ La

Connected apparatus unprotected inductance ≤ 11 mH

Important: The field circuit is non‑incendive only when the connected device satisfies the above parameters and is FM‑approved for non‑incendive wiring. Non‑incendive circuits must not be interconnected with non‑arcing circuits. Refer to installation document 12P1293 for detailed wiring practices.

Table 5: Power Supply Requirements

Supply Type

Parameter

Value

System Power (Local Bus)

Voltage

12 V DC nominal (from carrier)

Current (Simplex)

100 mA typical, 150 mA maximum per card

Field Power (Bussed)

Voltage

24 V DC (+10 %, i.e., 26.4 V max)

Current (per card)

300 mA maximum (total for all 8 channels)

Fuse

2.0 A per channel (field side) – replaceable

Power Supply Certification

Must be FM Approved for Class I Div 2 with Voc ≤ 12.6 V and Lo ≤ 23 µH for hot‑swap capability

Table 6: Indicators and Diagnostics

Feature

Description

Power LED

Green – indicates system power is present on the card

Internal Error LED

Red – indicates a hardware fault or communication error

Channel Status LEDs

Eight individual LEDs (one per channel) – provide quick visual indication of output status (on/off, fault)

Hardware Alerts

Automatic reporting of integrity errors (primary and secondary in redundant versions, but for simplex, reports channel faults)

Diagnostic Explorer

Health and status of each channel available through DeltaV Diagnostics Explorer

HART Status

Device variable and status reported to the controller for control and maintenance

Table 7: Environmental and Mechanical Specifications (Common to all M‑series I/O)

Parameter

Value

Operating Temperature Range

–40 °C to +70 °C (–40 °F to +158 °F) *

Storage Temperature

–40 °C to +85 °C (–40 °F to +185 °F)

Relative Humidity

5 % to 95 % (non‑condensing)

Corrosion Protection

Conformal coating meets ISA‑S71.04‑1985 Class G3

Ingress Protection

IP 20 (suitable for enclosed installation)

Shock Resistance

10 g, ½‑sine, 11 ms

Vibration Resistance

1 mm peak‑to‑peak (5–16 Hz); 0.5 g (16–150 Hz)

Dimensions (per card)

H 107 mm (4.2 in) × W 41 mm (1.6 in) × D 105 mm (4.1 in)

Weight

Approx. 0.3 kg (0.66 lb) per card; terminal block adds approx. 0.2 kg

*Note: Continuous operation at the upper temperature limit may reduce expected lifetime. Refer to Emerson white paper "Effects of Heat and Airflow Inside an Enclosure" for derating guidance.

Table 8: Compatibility and System Requirements

Item

Requirement

Supported Controllers

MQ, MX, PK controllers (M‑series) – also compatible with S‑series controllers on same DeltaV Area Control Network from v11.3.1 onward

Carrier Compatibility

M‑series horizontal or VerticalPlus carriers (8‑wide or 4‑wide) – not physically compatible with S‑series carriers

Software Version

For VE4005S2B2 (with KJ3221X1‑BA1), requires DeltaV v10.3.1 or later (note: earlier versions may use different model number KJ3221X1‑BA2, but VE4005S2B2 is supported from v10.3.1)

Terminal Block Keying

Unique key position – the KJ3221X1‑BA1 card has a specific key code that matches the fused terminal block, preventing insertion of wrong card types

Redundancy Support

VE4005S2B2 is simplex only. For redundancy, use redundant terminal block (e.g., VE4035S2B1) with two cards.

Mass Termination

For high‑density wiring, a 16‑pin Mass Termination Block (VE4005S2B3) is available, but VE4005S2B2 is the fused screw‑terminal version.

Table 9: Ordering Information (Extract for VE4005S2B2)

Description

Model Number

Fused Analog Output I/O Interface, 8‑channel, 4–20 mA HART (Simplex) – includes KJ3221X1‑BA1 card and KJ4001X1‑CB1 fused terminal block

VE4005S2B2

Alternative standard (non‑fused) terminal block

VE4005S2B1

Redundant standard terminal block

VE4035S2B1

16‑pin Mass Termination Block (simplex)

VE4005S2B3

Note: The VE4005S2B2 model number is listed with a double asterisk in the PDS, indicating support from DeltaV v10.3.1 and later. For earlier versions, a different part number (KJ3222X1‑BA2 or equivalent) may be required.

Table 10: Certifications and Hazardous Area Approvals

The VE4005S2B2 assembly (both card and terminal block) carries the following certifications, as per the individual components. The KJ3221X1‑BA1 card is certified; the terminal block is passive but must be used in the approved configuration.

Certification Body

Standard / Marking

Classification

FM (US)

Class I, Division 2, Groups A, B, C, D, T4

Suitable for use in hazardous locations as non‑incendive field circuits

cFM (Canada)

Class I, Division 2, Groups A, B, C, D, T4

Same as above

ATEX

II 3G Ex ec IIC T4 Gc (or Ex nA nC IIC T4 Gc)

Zone 2, suitable for non‑incendive operation

IEC‑Ex

II 3G Ex ec IIC T4 Gc

Zone 2, non‑incendive

CE

EN61326‑1 (EMC)

Electromagnetic compatibility for industrial environments

Marine

IACS E10, ABS, DNV

Suitable for marine applications (see specific certificates)

Important Installation Warnings (from document 12P1293):

  • Power must be de‑energised before disconnecting carriers, extender cables, or terminators.

  • Bussed field power must be de‑energised before removing or inserting the card.

  • Only one card may be removed or inserted at a time with system power energised, and only when the system power supply meets the FM‑approved parameters (Voc ≤ 12.6 V, Lo ≤ 23 µH).

  • Non‑incendive and non‑arcing circuits must not be interconnected.

  • Replaceable fuses (type KJ4010X1‑BC1, individual 55P0587X012) must be periodically inspected for degradation of the polyamide 6 housing material if exposed to certain chemicals.

  • For installations in hazardous areas, refer to the Class I Division 2 Installation Instructions (12P1293) and Zone 2 instructions (12P2046).
