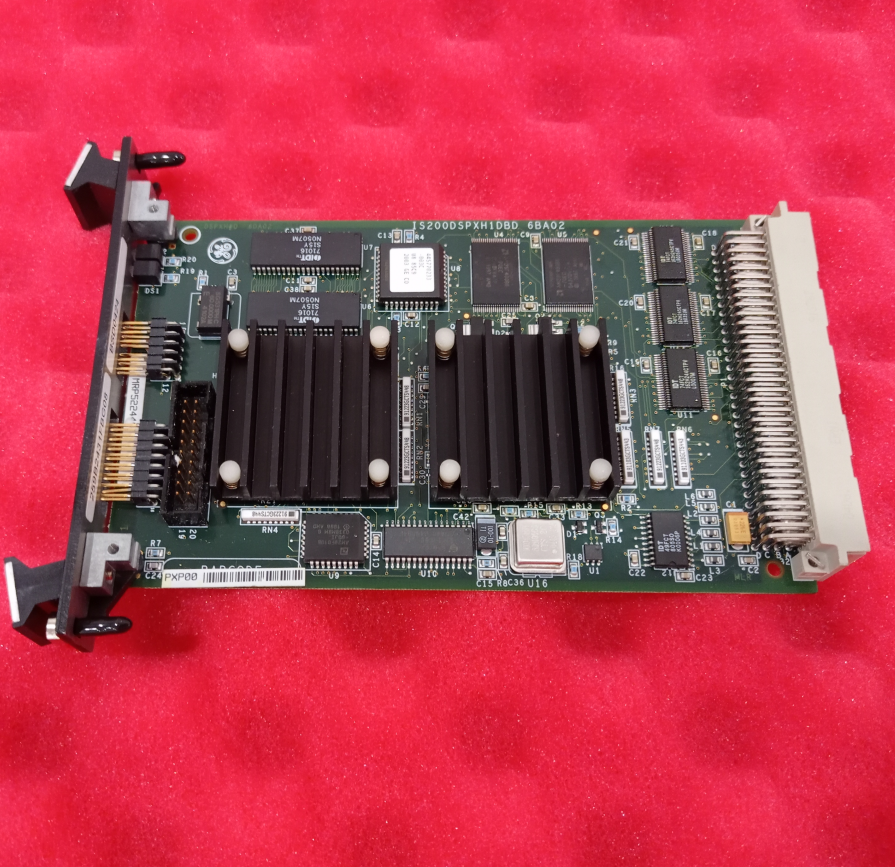

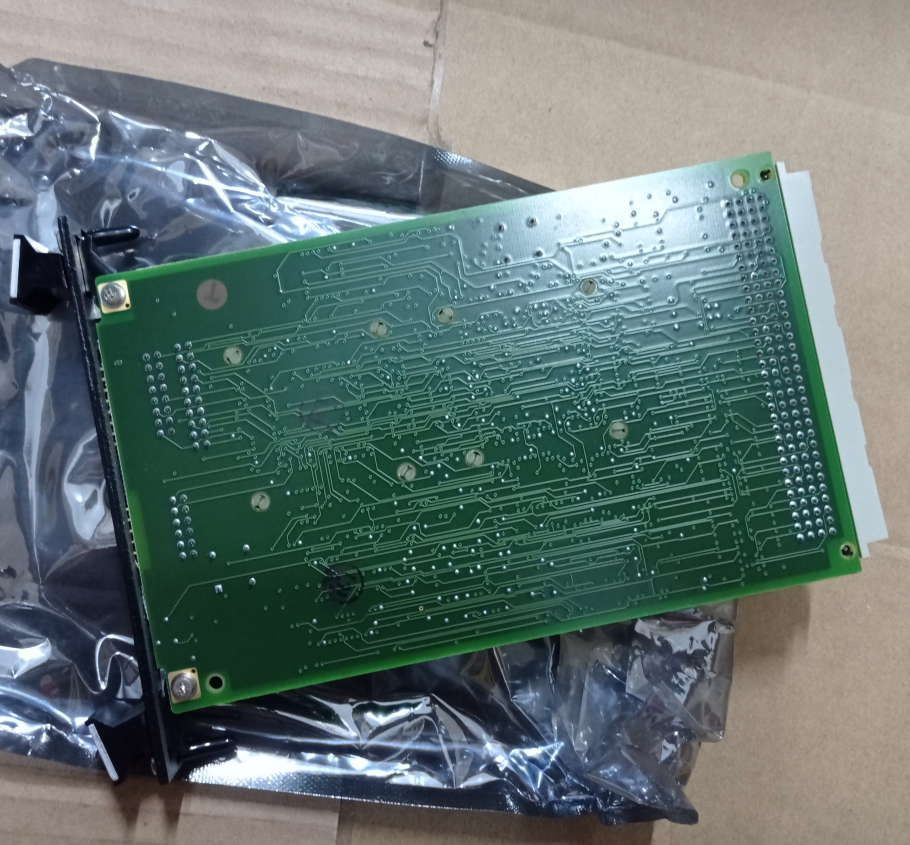

The IS200DSPXH1D Digital Signal Processor Board (hereafter referred to as the DSPX Board) is a critical control component designed by GE Industrial Systems for its flagship EX2100™ Excitation Control System. Serving as the "brain" of the excitation controller, the DSPX Board undertakes core tasks such as real-time signal processing, closed-loop regulation, logic control, and protection. It forms the hardware cornerstone for ensuring stable generator terminal voltage, precise reactive power control, and the safe and reliable operation of the entire generating unit.
Within the EX2100, a fully static excitation system, the DSPX Board works in tandem with the Application Control Layer Module (ACLA Board) in the same rack to constitute a high-performance digital controller. The DSPX Board focuses more on inner-loop control, rapid response, and low-level hardware interfacing, directly responsible for generating thyristor (SCR) firing pulses to achieve precise and fast regulation of the generator field current. Based on advanced microprocessor and digital signal processing technology, it digitizes and software-implements traditional analog control functions, thereby achieving higher control accuracy, flexibility, and reliability.
Whether applied to new steam turbines, gas turbines, hydroelectric generators, or retrofit projects for existing equipment, the IS200DSPXH1D Board is an indispensable core component for realizing modern, high-performance excitation control.
2. Hardware Specifications and Physical Characteristics
The IS200DSPXH1D Board is designed in strict compliance with the VME bus standard, ensuring high reliability and maintainability in industrial control environments.
Form Factor and Structure: The board employs a standardized modular design with single-slot, 3U height, making it compact and easy to install, plug/unplug, and maintain within the EX2100 control rack. Its dimensions are compatible with standard VME cards, allowing seamless integration into the EX2100 controller module.
Installation Location: Within the EX2100 Control Module rack, the DSPX Board is typically located next to its corresponding ACLA Board. The control rack is divided into three independently powered sections for controllers M1, M2, and C (present only in redundant systems). In a Simplex control system, there is only one controller (typically M1), containing one set of DSPX and ACLA boards. In a Dual/Redundant control system, controllers M1 and M2 each contain a set of DSPX and ACLA boards, while the C controller (used for monitoring and selection) typically contains only DSPX, EISB, and EMIO boards, and no ACLA board.

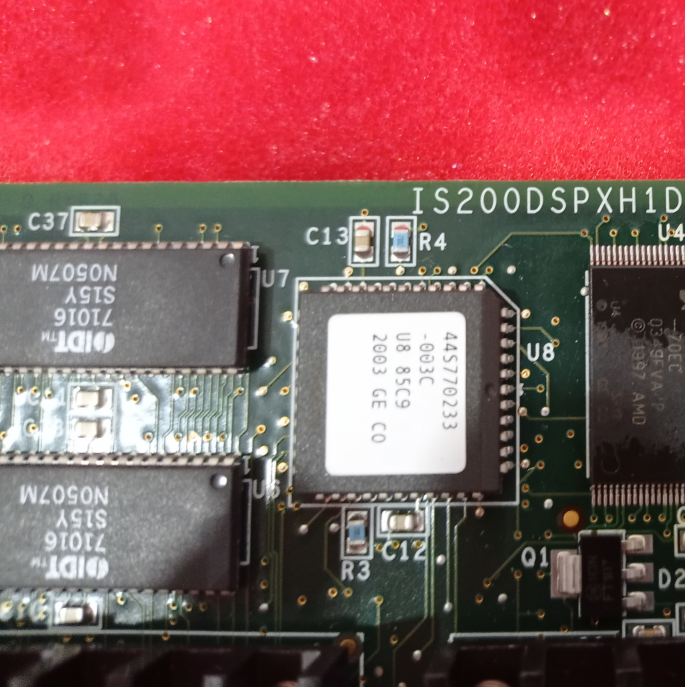

On-board Resources: The board features a high-performance Digital Signal Processor (DSP) and microprocessor, providing powerful real-time computing capabilities. It also integrates dedicated Flash Memory for storing firmware and application programs, and Random Access Memory (RAM) for runtime variable storage and data processing. This architecture ensures stable code storage and high-speed execution.

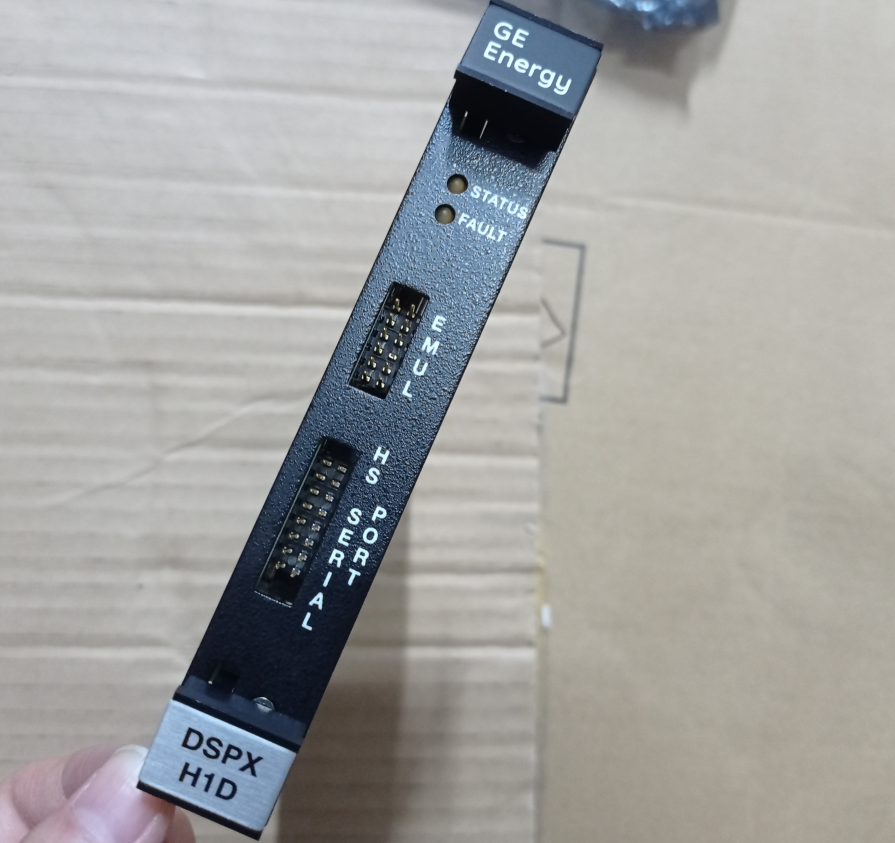

Interfaces and Connectivity: Through dedicated connectors on the EX2100 Exciter Backplane (EBKP), the DSPX Board exchanges high-speed data and commands with other key boards in the system. Its front panel may include status LEDs indicating board operation, communication, and fault status.
3. Core Functions and Features
The functionality of the IS200DSPXH1D Board is optimized for excitation control, covering the complete control chain from signal acquisition to power output. Its main functions include:
Excitation Bridge Firing Pulse Generation and Control:
This is one of the DSPX Board's most critical functions. Based on the control variable calculated by the Automatic Voltage Regulator (AVR) or Manual Regulator (FVR/FCR), it generates six precise SCR firing (gate) pulse signals in real-time.
These low-level logic pulses are sent via the backplane to the Exciter Selector Board (ESEL), which then distributes and transmits them to the Exciter Gate Pulse Amplifier Boards (EGPA) located in the Power Conversion Cabinet, ultimately driving the six thyristors in the Power Conversion Module (PCM). This enables phase control of the DC voltage and current output from the three-phase full-wave rectifier bridge.
Inner-Loop Regulator Computation:
Field Voltage Regulator (FVR): This is the standard manual regulation mode. The DSPX Board runs the FVR algorithm, using generator field winding voltage as feedback. Through Proportional-Integral (P.I.) regulation, it maintains the field voltage at the setpoint. Even in Automatic mode (AVR), the AVR output is passed directly to the FVR output.
Field Current Regulator (FCR): This is a special application manual regulation mode used for applications requiring constant field current or special forcing requirements. It performs P.I. regulation using generator field current as feedback. The DSPX Board selects the smaller of the FVR and FCR outputs as the final bridge firing command, serving as an internal limiting protection.
System Start/Stop and Sequential Control Logic:
The DSPX Board manages the excitation system's start, stop, and operational sequences. This includes receiving start/stop commands from the keypad, remote HMI, or the Data Highway.
It controls the Field Flashing process: during initial generator start-up, it controls contactors 53A and 53B to connect the station DC supply to the field winding, building the initial magnetic field until generator voltage is established and the AVR can take over control.
Protection and Fault Logic Processing:
The DSPX Board continuously monitors system status and executes complex alarm and trip logic. It processes signals from various monitoring points (e.g., overcurrent, overvoltage, overtemperature, loss of excitation, PT/CT failure) and generates corresponding alarm messages or triggers protective trips (e.g., activating the 86G lockout relay).
Fault information is logged in a history log and can be viewed and reset via the local keypad or the Control System Toolbox software.
Generator Electrical Quantity Measurement and Calculation:
Generator voltage magnitude (Vmag) and frequency (Freq_Hz)
Generator current magnitude (Imag)
Active power (Watts) and Reactive power/Volt-Amperes (Vars)
Integral of accelerating power (approximating rotor speed change) for the Power System Stabilizer (PSS)
System frequency and Voltage/Hz ratio (V/Hz), used to prevent generator overfluxing.
Receives isolated and conditioned generator terminal voltage (PT) and current (CT) signals from the Exciter PT/CT Board (EPCT).
Through built-in software algorithms, it calculates a series of key system variables in real-time, including but not limited to:
Communication and Data Exchange:
Communicates at high speed with the Exciter ISBus Board (EISB) via the backplane. The EISB serves as the interface for the DSPX Board to external fiber-optic signals (e.g., DC voltage/current feedback from EDCF boards, ground detection signals from EGDM).
Through the EISB, the DSPX Board also manages RS-232C serial communication with the local Diagnostic Interface (Keypad) and the Control System Toolbox, supporting parameter configuration, real-time data monitoring, and fault diagnosis.
4. Application in the System and Collaborative Operation
The IS200DSPXH1D Board does not operate in isolation; its powerful functionality is realized through tight collaboration with other hardware and software within the EX2100 system.
Division of Labor and Collaboration with the ACLA Board: Forms a typical "outer-inner loop" control structure.
DSPX (Inner Loop / Fast Loop): Responsible for fast, precise low-level control, such as FVR/FCR regulation, firing pulse generation, real-time protection, and fast signal processing. Interfaces directly with power hardware.
ACLA (Outer Loop / Slow Loop): Runs higher-level, more complex control algorithms, such as Automatic Voltage Regulation (AVR), Power System Stabilizer (PSS), Under Excitation Limiter (UEL), VAR/Power Factor regulation, etc. Communicates via Ethernet (Unit Data Highway) with the turbine control (Mark VI), plant DCS, or HMI to receive setpoint adjustment commands.
The two exchange data in real-time via the high-speed backplane bus. The ACLA provides control targets (e.g., AVR output) to the DSPX, which is responsible for fast tracking and execution.
Role in Redundant Control Systems:
In redundant (Triple Modular Redundant, TMR) configurations designed for high availability, the system includes three controllers: M1, M2, and C.
DSPX Boards in M1 and M2: Act as primary/backup controllers, running identical control algorithms in parallel. However, only the one selected by controller C as the "active master" has its ESEL board's firing pulses enabled to be sent to the EGPA.
DSPX Board in Controller C: Although not responsible for generating firing pulses, it also receives all feedback signals and runs monitoring software. Its core task is to continuously compare the control outputs and status of M1 and M2. Upon detecting a fault or performance out-of-bounds in the active master, controller C commands a bumpless transfer, smoothly handing control over to the backup controller, significantly enhancing system reliability (MTBF can reach 175,000 hours).
Software Configuration and Maintenance:
The application code (composed of control function blocks) executed by the DSPX Board is configured, compiled, and downloaded using GE's proprietary Control System Toolbox software.
Engineers can use the Toolbox via Ethernet or a direct serial connection to monitor real-time data of all function blocks within the DSPX Board online, modify parameters, and perform simulation tests. This is crucial for system commissioning, optimization, and troubleshooting.
5. Technical Advantages and Value
High-Performance Digital Signal Processing: The dedicated DSP architecture ensures the real-time performance required for complex control algorithms and fast signal processing, capable of meeting the millisecond-level response demands of power system dynamics.
Excellent Control Accuracy and Stability: Digital P.I. regulators avoid the drift and aging issues of analog circuits, with stable parameters and high regulation accuracy (automatic voltage regulation accuracy can reach ±0.25%).
High Flexibility and Configurability: Software-based control logic allows the same hardware platform (DSPX Board) to be adapted through different configurations to suit various excitation applications, from simple to complex, and from thermal to hydro power, simplifying spare parts management and upgrade projects.
Powerful Diagnostics and Maintainability: Rich status monitoring, fault logging, and transparent access via the keypad/Toolbox significantly reduce Mean Time To Repair (MTTR) and enhance equipment maintainability.
Supports High-Reliability Architectures: Its design natively supports redundant configurations, making it a core component for building mission-critical "never-fail" power generation control systems, meeting the stringent availability requirements of modern power plants.
Compliance with International Standards: The design and manufacture of the EX2100 system and its components (including the DSPX Board) adhere to numerous international electrical and safety standards, including the IEEE 421.x series for excitation systems, UL, CSA, IEC, etc., ensuring global compliance and interoperability.
