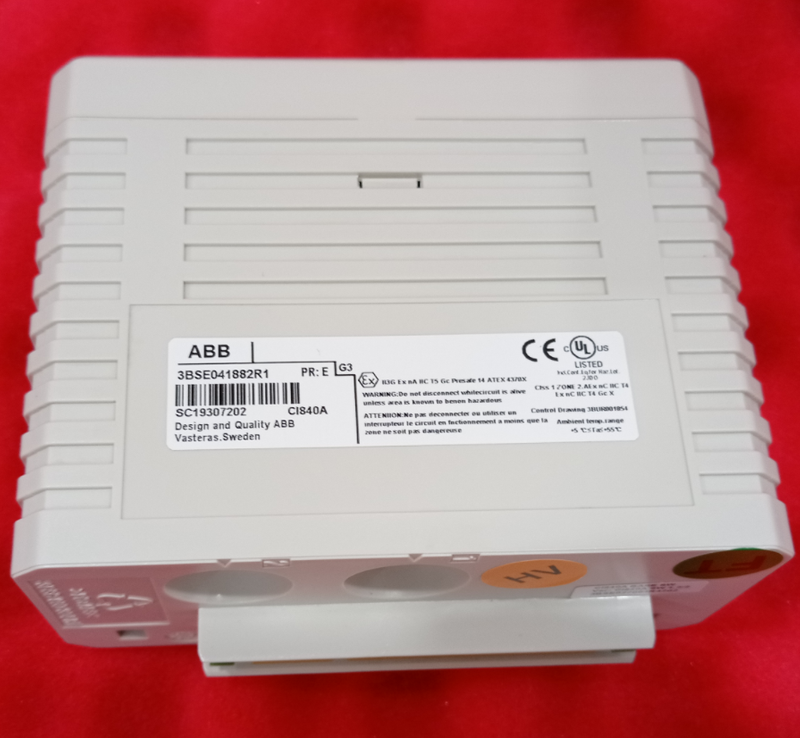

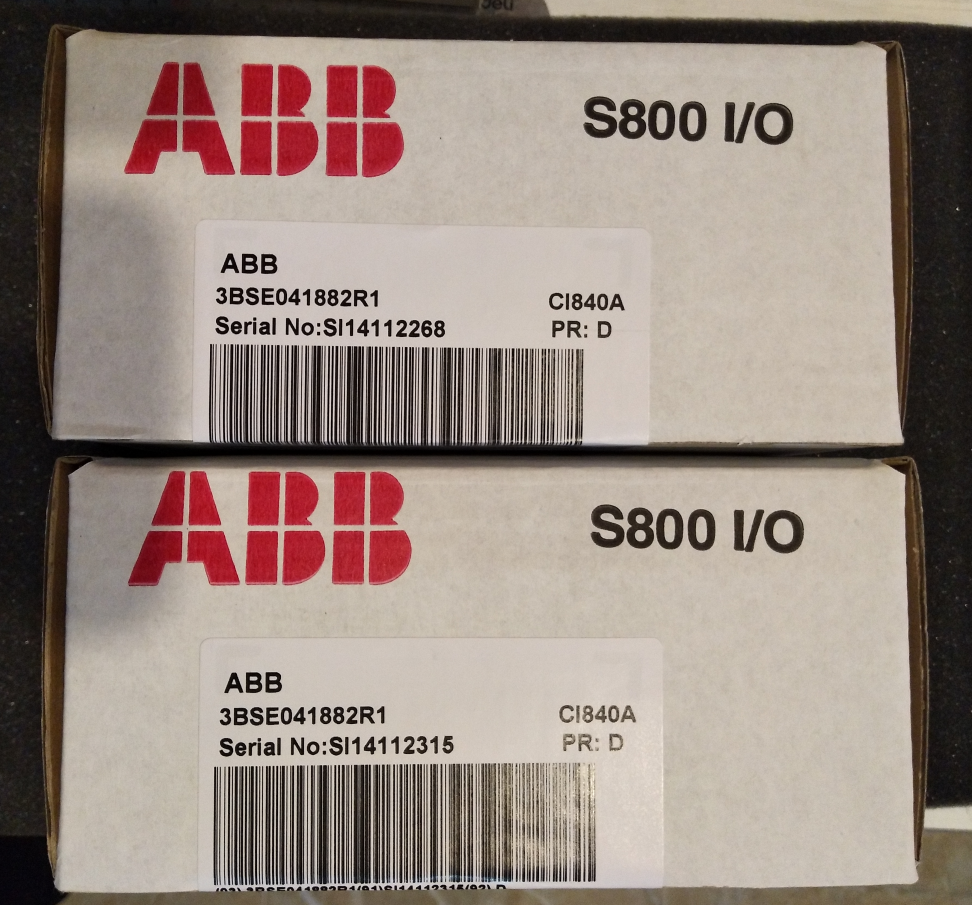

ABB CI840A 3BSE041882R1 Fieldbus Communication Interface Module

The CI840A is a high-performance communication interface module whose core mission is to establish a reliable and efficient data bridge between the PROFIBUS-DPV1 fieldbus network and S800 I/O modules. It is not merely a simple protocol converter but an intelligent node equipped with signal processing, smart diagnostics, and advanced management capabilities. Designed specifically for redundant application scenarios, it supports both module and line redundancy. Combined with Hot Swap and Hot Configuration In Run (HCIR) features, it enables system maintenance and expansion without requiring a shutdown, significantly enhancing the overall control system's availability and maintainability.

2. Technical Features and Core Advantages

The CI840A integrates numerous advanced technologies designed to meet the stringent requirements of modern industrial automation for communication interfaces:

1. High-Availability Architecture Designed for Redundancy:

• Module Redundancy: Supports configuration in pairs for primary/standby redundancy. If the primary module fails, the standby module can take over seamlessly, ensuring uninterrupted I/O communication.

• Line Redundancy: Supports redundant PROFIBUS bus lines, preventing communication failure due to a single cable break or interference.

• This dual-redundancy mechanism provides the highest level of availability assurance for critical process control.

2. Advanced Communication and Processing Capabilities:

• PROFIBUS DP-V1 Protocol: Fully compliant with the widely used industry-standard PROFIBUS DP-V1, ensuring seamless integration with numerous mainstream controllers, PLCs, and SCADA systems. Operating as a Slave device, it efficiently responds to master station data polling.

• Integrated Signal Processing and Supervision: The module features built-in powerful processing capabilities for preliminary processing of raw signals from I/O modules. It also collects rich status and diagnostic information from both the I/O modules and itself (e.g., module health, communication quality, channel alarms), greatly simplifying the burden on the upper-level controller and enhancing system observability.

• ModuleBus Management: Acts as the ModuleBus master for the S800 I/O station, managing up to 24 I/O devices (distributed across 1 base cluster and up to 7 extended I/O clusters) and supplying them with power.

3. Enhanced Maintenance and Configuration Flexibility:

• Hot Swap: Allows for the safe installation or replacement of the CI840A module or its underlying I/O modules while the system is powered on and the process is running, greatly facilitating maintenance work.

• Hot Configuration In Run (HCIR): Supports modifying and downloading configuration changes to the I/O station without stopping the process. This is crucial for plants requiring rapid production adjustments or online expansion, enabling tasks like adding, removing, or replacing I/O modules on-the-fly.

• Outputs Set as Predetermined (OSP) Handling: In the event of communication loss with the controller, output modules can be controlled according to pre-configured safe states (e.g., hold last value, switch to 0, switch to a predefined safe value), preventing process runaway and enhancing system safety.

4. Support for Smart Instrument Integration:

• HART Pass-Through: For smart transmitters supporting the HART protocol, the CI840A provides a HART signal pass-through channel. This allows the control system to access HART digital signals for device configuration, advanced diagnostics, and information reading over the same pair of wires used for the standard 4-20mA analog signal, eliminating the need for extra cabling.

5. Robust Electrical and Mechanical Characteristics:

• Isolated Power Supply: Provides an isolated power supply to connected S800 I/O modules, effectively suppressing ground loop interference and improving signal measurement accuracy and system stability.

• Input Power Fused: Features fused input power protection for enhanced system safety.

• Compact and Rugged Design: Employs a modular, compact design that meets industrial environment protection ratings (IP20) and vibration resistance requirements.

3. Application and Configuration within the S800 I/O System

The CI840A is the core component for building an S800 I/O station. A complete I/O station consists of the following parts:

1. Fieldbus Communication Interface (FCI): The CI840A module (single or redundant pair), serving as the "brain" of the station.

2. Module Termination Unit (MTU): The base unit for mounting the FCI, providing power, ModuleBus connections, and fixation. Selected based on I/O redundancy needs:

• TU847: Used for non-redundant I/O module configurations, providing a single ModuleBus connection.

• TU846: Used for redundant I/O module configurations, providing dual ModuleBus connections, ensuring two independent communication paths for redundant I/O module pairs.

3. I/O Modules: Modules that perform specific analog/digital input/output functions, mounted on their respective MTUs.

4. ModuleBus Network: The internal high-speed bus connecting the FCI to all I/O modules, divided into the Electrical ModuleBus (within the cabinet, max. length 2.5 meters) and the Optical ModuleBus (extended via fiber optic modules like TB842, used for remote clusters).

System Architecture Hierarchy:

• Base Cluster: Consists of the FCI (CI840A) and the I/O modules directly connected to it via the Electrical ModuleBus. A base cluster can accommodate up to 12 non-redundant I/O modules or 6 pairs of redundant I/O modules.

• I/O Cluster: When the required I/O points exceed the base cluster capacity, or distributed installation is needed, the ModuleBus can be converted to fiber optics via a TB842 Optical ModuleBus Port. Each fiber branch connects to a TB820V2 or TB840A ModuleBus Modem, forming a remote I/O cluster. A single CI840A can manage up to 7 such remote I/O clusters.

• I/O Station: One FCI (or redundant pair) and all I/O modules managed by it (including the base cluster and I/O clusters) constitute a complete I/O Station, with a total maximum capacity of 24 I/O modules.

Redundancy Configuration Schemes:
The CI840A supports flexible redundancy configurations to suit different levels of availability requirements:

• FCI Redundancy Only: A pair of CI840As mounted on TU846/TU847, sharing the same ModuleBus. If the primary FCI fails, the standby FCI takes over communication.

• Full Redundancy (FCI & I/O Modules): A pair of CI840As mounted on TU846, connected to I/O modules configured in redundancy (appearing in pairs, each pair mounted on redundant MTUs like TU842/TU843). This configuration provides a complete redundant path from the controller communication link down to the final I/O channel, achieving the highest level of availability.

4. Installation and Maintenance Considerations

The design of the CI840A and the S800 I/O system fully considers the convenience of engineering implementation and ease of later maintenance.

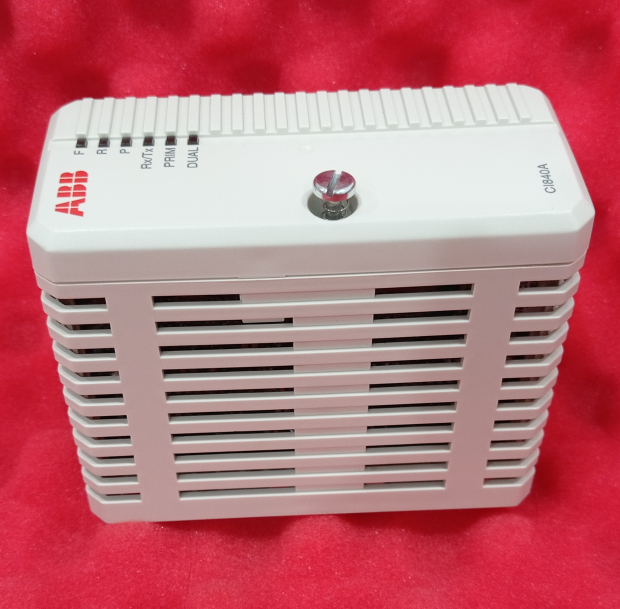

• Installation: The module uses standard DIN rail mounting and can be mounted horizontally or vertically (note the stricter ambient temperature limit for vertical mounting). A mechanical locking mechanism ensures a secure connection. Clear LED status indicators (Run, Fault, Communication Status, etc.) facilitate quick diagnostics. Power and bus connections use pluggable terminals for easy wiring.

• Grounding and Shielding: To ensure Electromagnetic Compatibility (EMC) and signal integrity, it is essential to follow the manual's detailed guidelines for cabinet grounding and signal cable shield termination.

• Maintenance:

• Utilizing the Hot Swap feature, a faulty CI840A or I/O module can be replaced while the system is operational, significantly reducing unplanned downtime.

• Rich diagnostic information can be uploaded to the control system via PROFIBUS, helping maintenance personnel quickly pinpoint the root cause of issues, from the module level down to the channel level.

• The system supports online module identification and configuration restoration, allowing automatic or manual configuration download after module replacement, simplifying spare parts management.

5. Compliance and Certifications

The CI840A module adheres to major industrial standards and safety regulations in global markets and has obtained numerous authoritative certifications. This ensures compliance and safety for users deploying the product worldwide. These include the EU's CE marking (covering EMC and Low Voltage Directives), EN/UL 61010 series standards for electrical safety in industrial environments, ATEX and cULus certifications for hazardous areas, and marine certifications from major classification societies (ABS, BV, DNV-GL, LR). This makes it suitable for a wide range of applications in process plants, offshore platforms, ships, and other harsh industrial environments.
