Chapter 1: Strategic Positioning and Technical Differentiation
1.1 Future-Oriented Fiber Optic Communication Solution

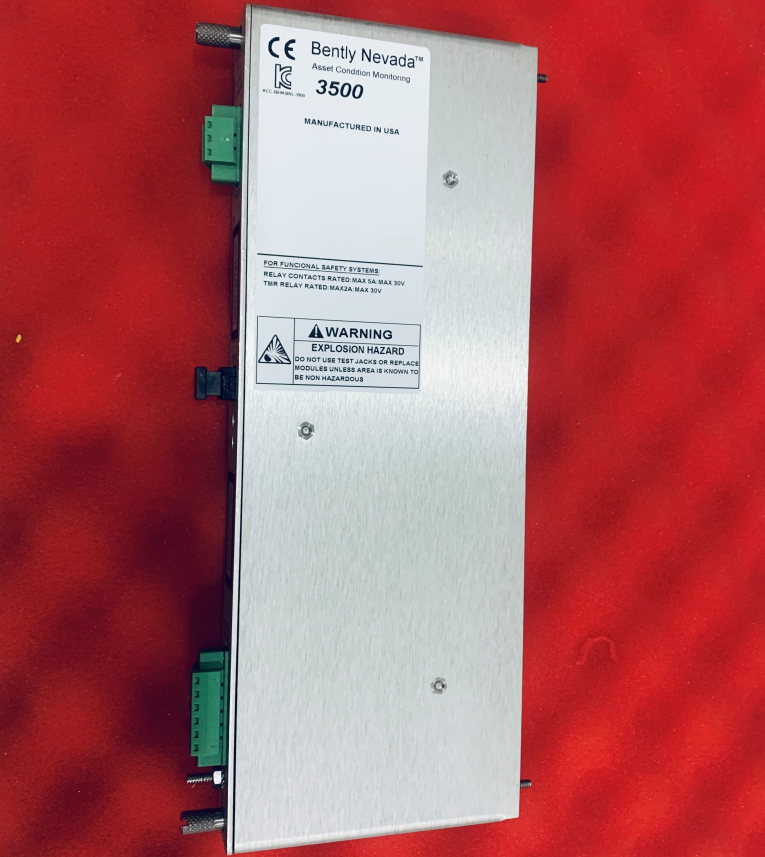

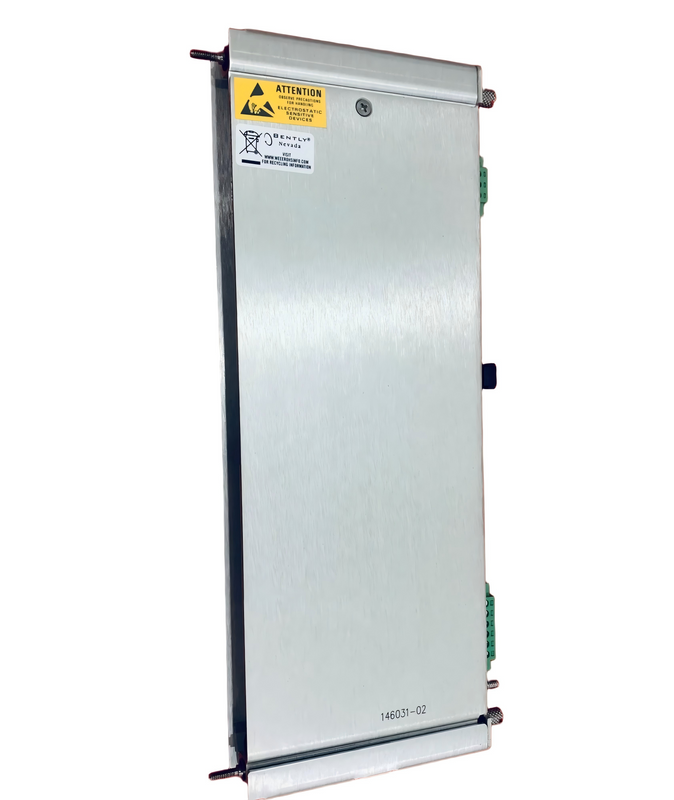

The 146031-02 is an industrial-grade Fiber Optic Ethernet I/O module based on the 100Base-FX standard, specifically designed for the Bently Nevada 3500/22M Transient Data Interface system. It represents the highest standard in data communication technology for demanding and complex industrial environments. Compared to traditional copper-based Ethernet solutions, the 146031-02 fundamentally addresses key challenges such as long-distance transmission, electromagnetic interference, and electrical isolation by using light signals as the transmission medium, providing unparalleled data integrity and security for condition monitoring data of critical machinery.
1.2 Core Industrial Pain Points Addressed
In modern plants, the distance between monitoring systems and the control room can be vast, and the path is often filled with high-voltage variable frequency drives, large motors, and switching equipment that generate intense electromagnetic interference. The 146031-02 module was born to solve these pain points definitively:
Long-Distance Transmission: Supports transmission over multimode fiber up to 2000 meters (6560 feet), easily covering large plant areas, offshore platforms, and other expansive sites.
Absolute Immunity to EMI: Fiber optics, made of glass or plastic, are natural insulators and are completely unaffected by any form of electromagnetic interference, ensuring pure, distortion-free data transmission in high-noise environments.
Perfect Electrical Isolation: The fiber optic connection physically breaks the electrical path between the TDI module and network equipment, effectively eliminating ground loop problems caused by potential differences and protecting sensitive electronic equipment from surge damage.
1.3 High-End Application Scenario Positioning
Therefore, the 146031-02 module is the ideal choice for the following high-end applications:
Long-Distance Distributed Monitoring Networks: Such as data links between individual wind turbine nacelles and the central control room in a wind farm.
Environments with Extreme EMI: Such as monitoring points near arc furnaces, in control rooms for large variable frequency drive systems, or within high-voltage substations.
Occasions with Stringent Safety and Reliability Requirements: Such as monitoring critical units in hazardous areas of the petrochemical industry or on offshore drilling platforms.
Networks Requiring High Data Security: As fiber optics do not radiate signals and are difficult to tap, they are also suitable for scenarios with special data confidentiality requirements.
Chapter 2: In-Depth Analysis of Core Fiber Optic Technology
2.1 Advanced Optical Interface and Components
The core of the 146031-02 module lies in its advanced optical interface design.
Connector Type: Uses a compact MT-RJ duplex fiber optic connector. Compared to traditional SC or ST connectors, the MT-RJ is smaller in size and easier to plug and unplug, making it very suitable for the high-density installation environment of the 3500 rack.
Operating Mode and Fiber Type: The module is designed for use with multimode fiber, operating at wavelengths of 850nm or 1300nm. It supports full-duplex communication, meaning data can be sent and received simultaneously, providing higher communication efficiency, which is crucial for transmitting the large amounts of transient waveform data generated by the 3500 system.
Communication Standard and Performance: Strictly complies with the IEEE 802.3u standard, providing a stable 100Mbps communication bandwidth. This bandwidth is sufficient to handle the load of real-time uploads of multi-channel dynamic waveform data.
2.2 Status Monitoring and System Integration Functions
Despite the different transmission medium, the 146031-02 provides system integration and status monitoring functions that are equal to, and often more reliable than, the copper version.
Comprehensive Status Indicator LEDs: The OK, TX/RX, TM, and CONFIG OK LEDs on the front panel provide consistent system status information as the 146031-01 module. Additionally, fiber optic modules often use the TX/RX LED status to indirectly reflect the signal quality of the optical link.
Critical System Health Relay: Also equipped with a "Normally Energized" OK Relay, with contact ratings identical to the copper version (5A @ 24Vdc/120Vac), used to report the overall health of the rack to higher-level safety systems. Users can similarly opt for a gold-plated contact version for switching very low-level dry contact signals, ensuring contact reliability.
Unified System Control Interface: The dry contact system control inputs and signal common grounding terminal on the module's rear are functionally and operationally identical to the 146031-01, ensuring consistency in system configuration and maintenance.
Chapter 3: Engineering Design, Installation Considerations, and Lifecycle Management
3.1 Mechanical and Physical Characteristics
The 146031-02 module shares identical physical dimensions and weight with the 146031-01, measuring 241.3mm × 24.4mm × 99.1mm and weighing 0.20kg. This standardized design ensures its versatility and replaceability within the 3500 rack (where functionality allows).
3.2 Environmental Ruggedness and Certifications
The module inherits the high reliability characteristic of Bently Nevada products, with operating and storage temperature ranges and humidity ratings identical to the copper version, ensuring stable performance in extreme industrial environments. In terms of certifications, in addition to all the general certifications held by the 146031-01, its fiber optic communication nature gives it an advantage in applications requiring hazardous area approvals, as it inherently provides intrinsically safe isolation.
3.3 Professional Installation and Cabling Practices
Installing a fiber optic network requires more specialized knowledge and tools than copper cabling.
Installation Process: The mechanical installation steps for the module are identical to the 146031-01. The key difference lies in cable connection.
Fiber Optic Cabling Essentials:
Fiber Selection: Must use 50/125μm or 62.5/125μm multimode fiber optic patch cables compatible with the module, with MT-RJ female connectors on both ends.
Cleanliness is Paramount: Before connecting the fiber, the end face of the MT-RJ connector must be carefully cleaned using dedicated fiber optic cleaning tools. Dust is the enemy of fiber optic communication.
Bend Radius Control: During cabling, the minimum bend radius for the fiber must be strictly observed to avoid excessive bending causing signal attenuation or even fiber breakage.
Connection and Inspection: Insert the cleaned patch cable smoothly into the module's MT-RJ port until a slight click is heard, indicating it is locked. Check the optical link loss via network management software or an optical power meter to ensure it is within the allowable range.
3.4 Operation, Maintenance, Diagnostics, and Spare Parts Strategy
The focus of maintaining a fiber optic network is on preventive and condition-based maintenance.
Diagnostic Methods: Beyond observing LED indicators, deeper diagnostics rely on the optical power monitoring functions of the network management system, and periodic use of an Optical Time Domain Reflectometer to check the health of the fiber link and locate potential breakpoints or high-loss points.
Spare Parts Recommendation: In addition to the module itself, it is advisable to stock spare MT-RJ multimode fiber optic patch cables of appropriate lengths, fiber optic cleaning kits, and several dust caps for fiber connectors on-site to handle unexpected failures.
Chapter 4: Technical Comparison Summary and Selection Advice
4.1 Summary Comparison with Copper Solution
Choosing the 146031-02 over the 146031-01 is essentially choosing a higher-level, more targeted communication solution. It holds overwhelming advantages in transmission distance, noise immunity, and electrical safety. However, it is also necessary to consider that its initial investment cost is typically higher, and it requires more specialized technical skills from installation and maintenance personnel.
