Chapter 1: Comprehensive Product Overview and Technical Positioning
1.1 Core Product Definition

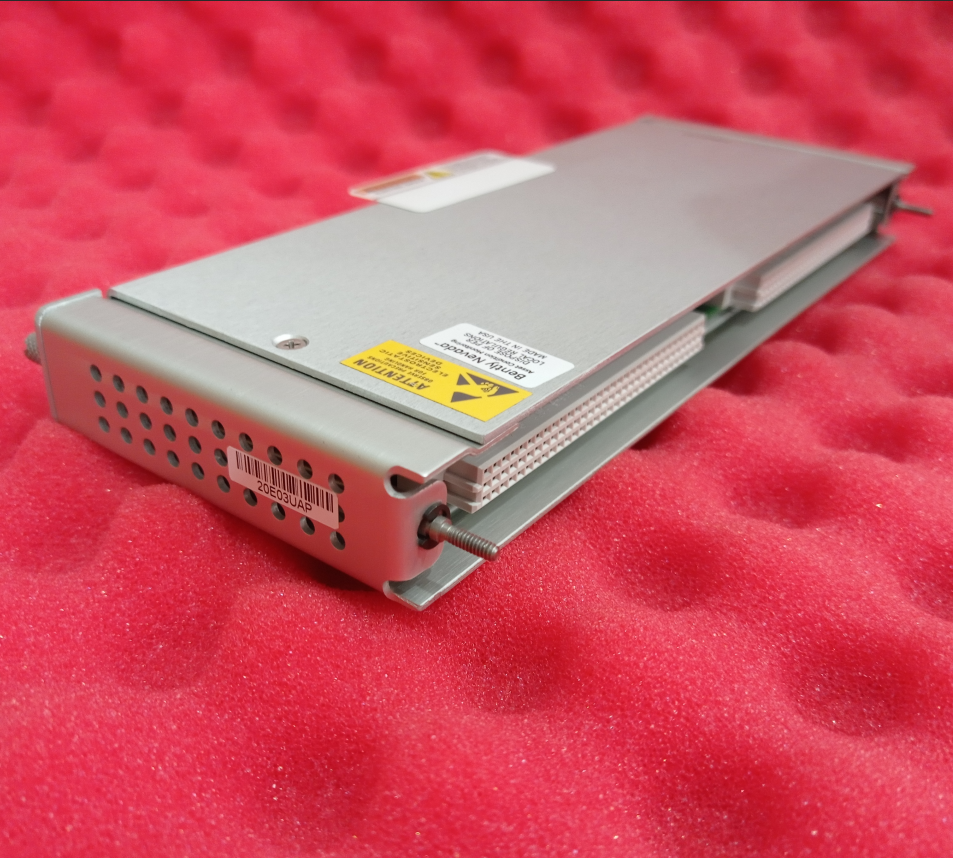

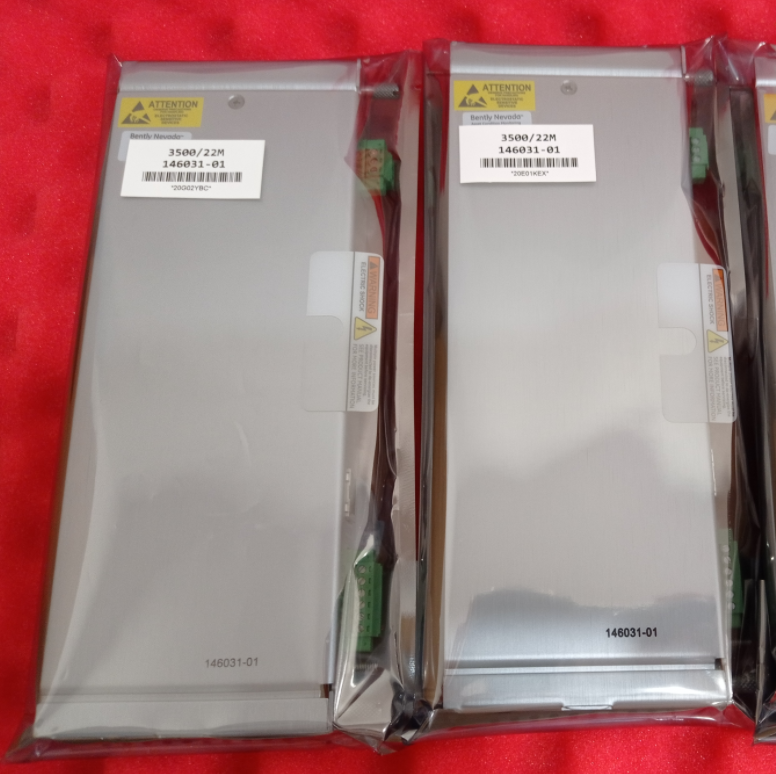

The 146031-01 is a high-performance, industrial-grade Ethernet I/O rear card module specifically designed for the Bently Nevada 3500/22M Transient Data Interface Module. It strictly adheres to the 10Base-T and 100Base-TX Ethernet communication standards, utilizing a rugged RJ-45 interface and shielded twisted pair cable as the transmission medium. It plays a critical role in industrial automation and control systems, acting as a vital data communication bridge and system status monitor. This module is the core physical interface for achieving stable and efficient data exchange between the 3500 rack and upper-level monitoring systems (such as System 1™).
1.2 System Integration and Role
Within the 3500 monitoring system, the 146031-01 module does not operate in isolation; it works in tandem with the 3500/22M main module located in slot 1 of the rack, together forming a complete communication processing unit. Its core function is to package various types of monitoring data (including static values, alarm data, and waveform data) collected by the main module and transmit it to the plant network via standard TCP/IP protocols. Simultaneously, it securely and accurately delivers configuration commands and control signals from the host computer to the various monitoring modules within the rack. This design ensures the reliability and real-time performance of the data link in complex industrial environments, providing a solid foundation for machinery protection and condition monitoring.
1.3 Target Application Fields
This module is widely used in various industrial scenarios requiring high reliability and real-time data exchange, particularly in environments with moderate transmission distances and network infrastructure primarily based on copper cabling. Typical applications include:
Power Energy Industry: Online monitoring and protection systems for critical rotating machinery such as steam turbines, generators, and pump sets in thermal power plants, hydroelectric power stations, and nuclear power plants.
Oil and Gas and Chemical Industry: Vibration, temperature, and displacement monitoring for equipment like oilfield water injection pumps, pipeline compressors, and reactor agitators, supporting predictive maintenance.
Metallurgy and Manufacturing: Health status management for equipment like large fans, rolling mills, and machine tools, using real-time data to prevent unplanned downtime.
Chapter 2: Detailed Technical Specifications and In-Depth Functional Analysis
2.1 Communication Interface Capabilities
The communication capability of the 146031-01 module is its core value.
Interface Standards and Compatibility: The module strictly complies with the IEEE 802.3 protocol and is compatible with both 10Mbps (10Base-T) and 100Mbps (100Base-TX) network speeds. Its built-in auto-negotiation mechanism automatically detects and matches the speed and duplex mode (half/full duplex) of the network switch or controller, greatly simplifying installation and commissioning processes and avoiding errors from manual configuration.
Protocol Stack Support: At the application layer, the module seamlessly supports Bently Nevada's proprietary BN Host Protocol and BN TDI Protocol. These protocols are deeply optimized to efficiently transmit the massive amounts of dynamic data (such as waveforms, spectra) characteristic of the 3500 system, ensuring seamless compatibility and deep integration with System 1™ condition monitoring software and 3500 System Configuration software.
Physical Connection and Cabling: It uses an industrial-grade RJ-45 connector. The use of shielded Category 5 or higher Ethernet cable is recommended to enhance immunity to electromagnetic interference. The module supports a maximum cable length of 100 meters (328 feet), a distance that meets the wiring requirements for most plant control cabinets to central control rooms or local data acquisition stations.
2.2 Status Indication and Diagnostic Functions
The module provides comprehensive and intuitive status indications, serving as a powerful tool for rapid fault diagnosis and system maintenance.
2.3 System Control and Interfaces
The rear of the module provides terminals for system-level control and grounding.
Dry Contact System Control Inputs: Provides a set of passive dry contact inputs, including:
Trip Multiply: Used to temporarily modify protection logic under specific process conditions (e.g., machine start-up/shutdown) to enhance system safety.
Alarm Inhibit: Used to temporarily suppress all alarm outputs during maintenance or commissioning to prevent false alarms.
Rack Reset: Used to clear all latched alarm states within the rack.
The current requirement for these inputs is extremely low (<1mA), meaning they are compatible with almost any PLC output point or relay contact.
Signal Common Grounding Terminal: The module is equipped with a 2-pin connector for connecting the rack's internal signal common to a single, high-quality instrument ground point. This design is a key measure to ensure the measurement accuracy and noise immunity of the entire monitoring system, effectively avoiding measurement noise and errors caused by ground loops.
Chapter 3: Physical Characteristics, Environmental Suitability, and Compliance
3.1 Mechanical Structure Design

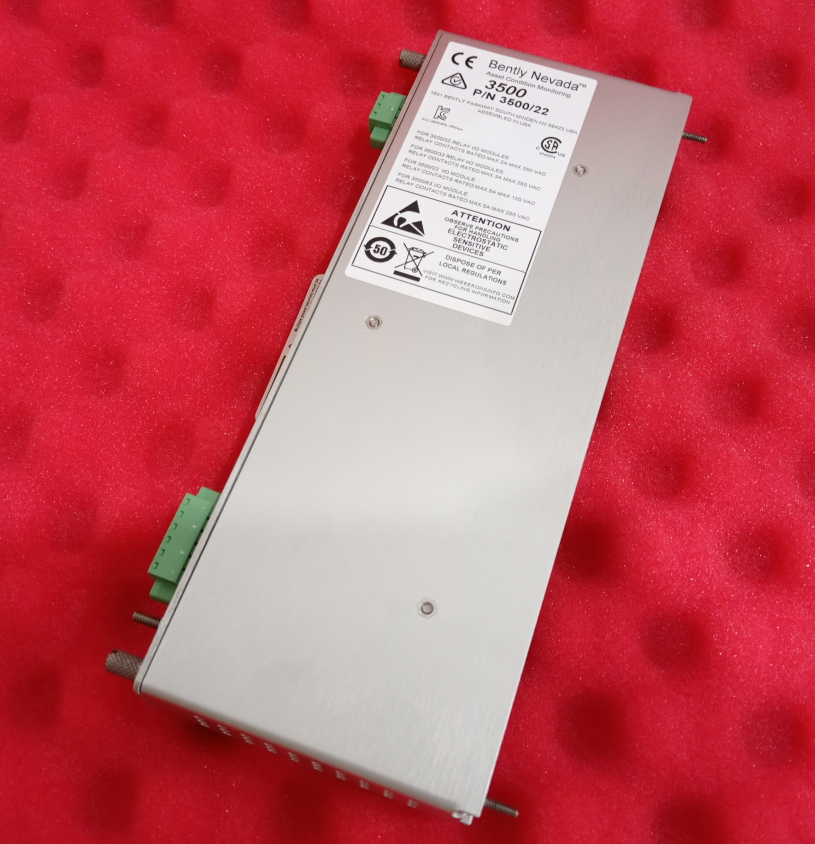

The 146031-01 module adopts a standard full-height, single-slot rear card design, with dimensions of 241.3mm (H) × 24.4mm (W) × 99.1mm (D). This compact design allows for dense installation in the rear I/O slots of the 3500 rack, saving control cabinet space. The module itself weighs only 0.20 kg, is structurally robust, and can withstand vibration and shock in industrial environments.
3.2 Rugged Environmental Suitability
This module is designed for harsh industrial environments, with an operating temperature range as wide as -30°C to +65°C, ensuring stable operation even in extremely cold or hot workshops. Its storage temperature range is even broader, from -40°C to +85°C, ensuring the module's safety during transportation and storage. The module supports continuous operation in environments with up to 95% relative humidity (non-condensing), suitable for locations with a degree of dampness.
3.3 Comprehensive Compliance and Certifications
The 146031-01 module has passed several important global industry and safety certifications, providing access to various markets and application fields:
Electromagnetic Compatibility (EMC): Complies with the EU EMC Directive 2014/30/EU and meets EN 61000-6-2 (Immunity for Industrial Environments) and EN 61000-6-4 (Emissions for Industrial Environments) standards, ensuring it neither interferes with other equipment nor is susceptible to interference in complex electromagnetic environments.
Electrical Safety: Complies with the EU Low Voltage Directive 2014/35/EU, following the EN 61010-1 standard, safeguarding operator and equipment safety.
Environmental Requirements: Complies with the RoHS Directive 2011/65/EU, restricting the use of hazardous substances in the product, reflecting environmental responsibility.
Industry-Specific Certifications: Also meets relevant rules of DNV GL and ABS (American Bureau of Shipping) for marine and offshore applications, making it suitable for maritime and offshore projects.
Chapter 4: Installation, Configuration, and Operational Guidance
4.1 Detailed Installation Procedure
Installing the 146031-01 module is a critical step and must follow the correct procedure:
Safety Preparation: Ensure the 3500 rack is powered down.
Slot Confirmation: Verify that the slot reserved for the TDI I/O module at the rear of the rack is free.
Module Insertion: Gently slide the 146031-01 module into the slot along the guides, ensuring the connector is fully engaged.
Cable Connection: Use a shielded Cat5e or higher-grade Ethernet cable. Connect one end to the module's RJ-45 port and the other end to the plant LAN or a designated industrial computer. A 360-degree termination of the cable shield is recommended for optimal noise immunity.
System Grounding: Use appropriately sized wires to connect the module's "Signal Common" terminal to the cabinet's instrument ground bar.
Power-On Check: Restore power to the rack and observe the module's front panel LED indicators. Under normal conditions, the OK LED and CONFIG OK LED should be steadily illuminated.
4.2 Key Network Configuration Points
At the software level, the module needs to be configured using the 3500 System Configuration software:
Rack Address Setting: Set a unique address (1-127) for the entire rack using the mechanical DIP switches on the front of the TDI main module so it can be correctly identified on the network.
IP Address Assignment: Typically assigned automatically via a factory DHCP server, or set a static IP address according to the network plan.
Communication Test: Verify IP connectivity with the TDI module using the Ping command or communication status page in the System 1™ software or configuration software.
4.3 Operation, Maintenance, and Troubleshooting
In daily operation, the LED indicators are the primary diagnostic tool. For example, if the OK LED is off, check if the module is fully inserted and if the rack configuration has loaded successfully. If the TX/RX LED does not flash for an extended period, check the network connection, IP configuration, and the status of communication services between the host software and the TDI. Regularly inspecting the physical integrity of network cables is also an effective way to prevent failures.
