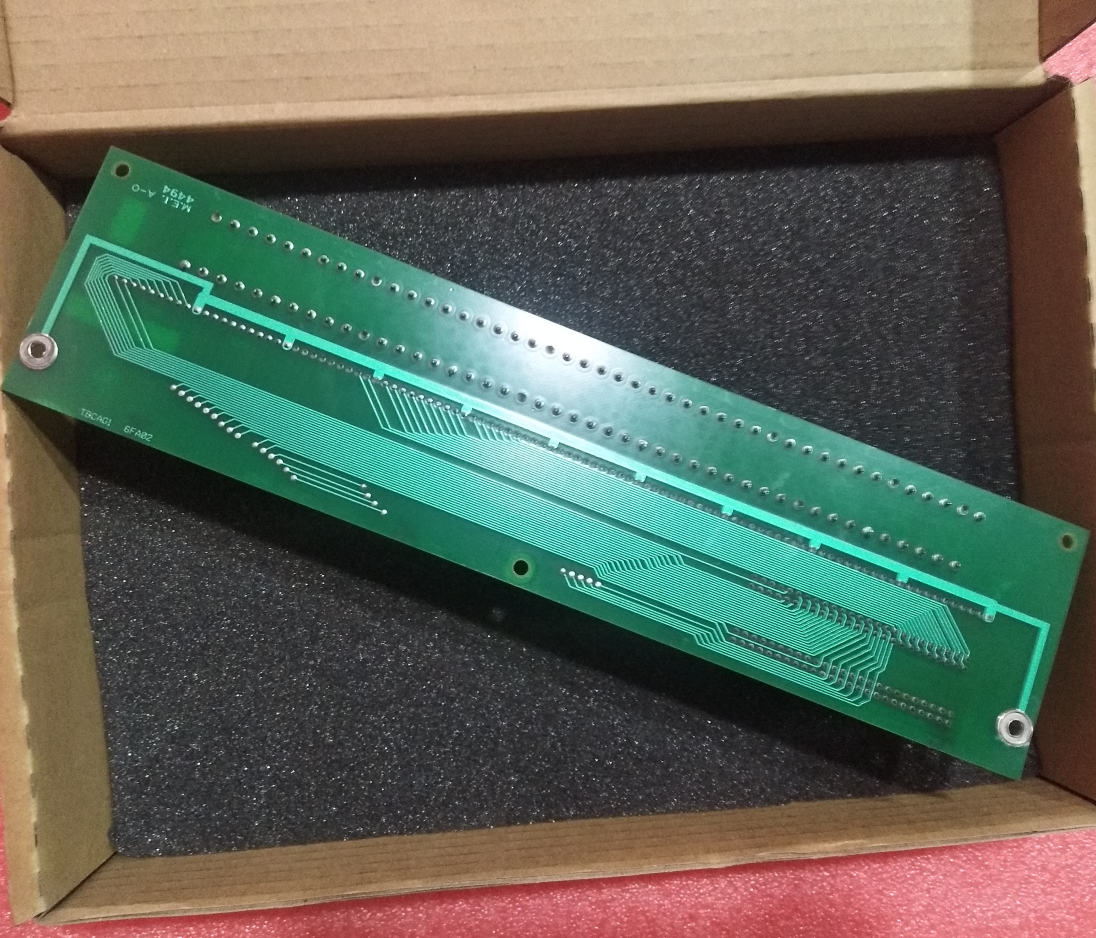

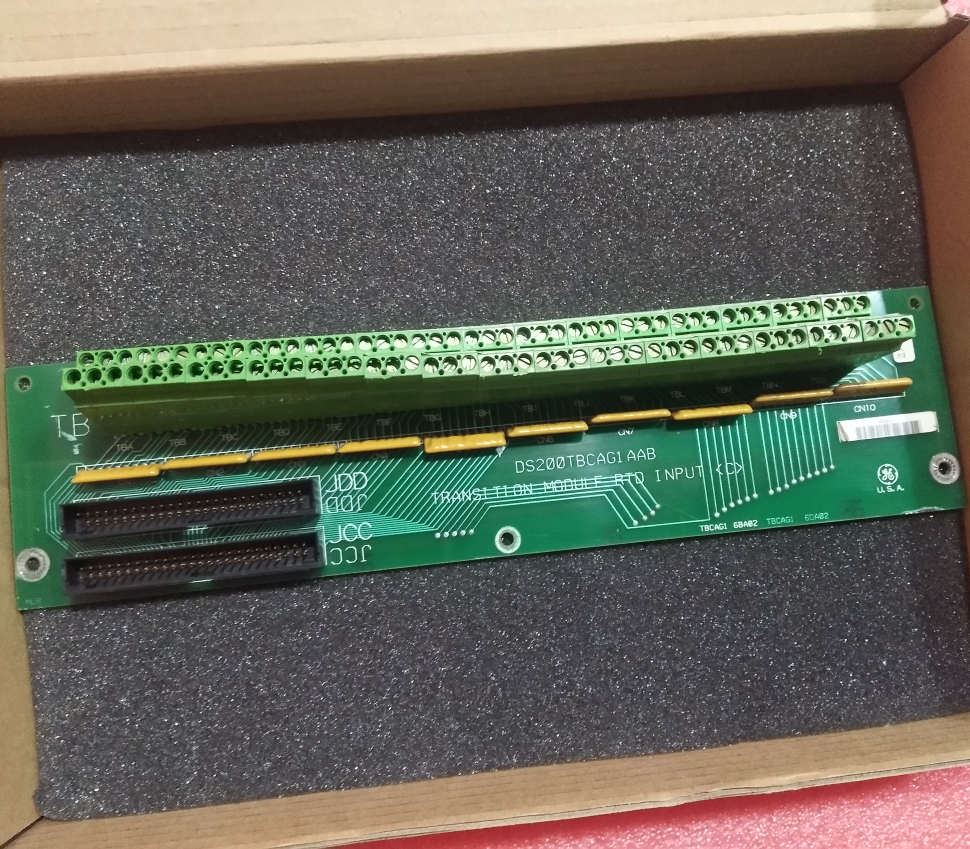

The DS200TBCAG1A (Termination Module RTD Inputs) is a core terminal module within General Electric's (GE) SPEEDTRONIC Mark V LM Turbine Control System, specifically designed for interfacing with Resistance Temperature Detector (RTD) signals. As a critical endpoint interface in the Mark V LM's analog input/output (I/O) architecture, the DS200TBCAG1A module acts as the "sensory nerve ending" for temperature perception in the gas turbine's condition monitoring and protection system. Its primary responsibility is to faithfully introduce the physical signals from RTD temperature sensors—strategically located across key components of the gas turbine and its auxiliary systems (such as bearings, gearboxes, lube oil, cooling water, and inlet/exhaust ducts)—into the controller's data processing core. It provides the most fundamental and reliable data source for temperature protection, efficiency optimization, and predictive maintenance of the unit.
Within the Mark V LM controller's core architecture, analog signal processing tasks are primarily handled by analog I/O cores such as <R1>, <R2>, <R3>, and <R5>. The DS200TBCAG1A module is specifically deployed in Slot 9 of the <R5> core, belonging to this core's general-purpose analog I/O processing chain. Unlike high-dynamic temperature signals (like thermocouples) used for control and immediate protection, the RTD signals connected to the DS200TBCAG1A are typically used for monitoring system states that require high precision but change relatively slowly. Their stability and accuracy are paramount for assessing long-term equipment health and triggering preventive alarms.
The module's design upholds the GE Industrial Systems tradition of high reliability, high-density wiring, and signal integrity, making it a vital hardware cornerstone for ensuring precise temperature monitoring of turbine units in demanding industrial environments.
2. Product Model & System Positioning
Model: DS200TBCAG1A
Full Name: RTD Input Termination Module
Parent System: SPEEDTRONIC Mark V LM Turbine Control System
Core Function: Provides high-reliability field wiring terminals for up to 30 channels of RTD temperature sensors and transmits the signals to the analog I/O board for processing.
Installation Location: Inside the Mark V LM controller, in the <R5> Analog I/O Core, Slot 9.
3. Technical Specifications & Design Features
3.1 Physical & Electrical Connection Characteristics
Signal Channel Capacity:
The module provides 30 independent RTD input channels.
These 30 channels are managed in two groups via high-density connectors:
This grouping facilitates cable management and fault isolation.

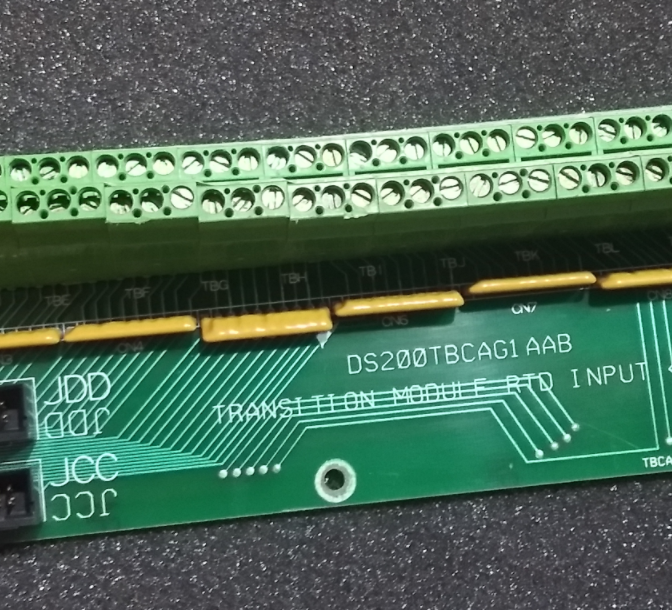

Terminal Blocks:
Utilizes industrial-grade screw-clamp terminals to ensure secure and reliable field wire connections.
Supports typical 2-wire, 3-wire, or 4-wire RTD connection schemes, implemented through field wiring. The module itself is a passive terminal board.
Features a compact terminal block design enabling high-density signal access within limited space.
Signal Transmission Path:
The DS200TBCAG1A is a purely passive terminal conversion and connection module.
Its core function is to reliably route field wires from RTD sensors to the DS200TCCA General Purpose Analog I/O Board in the <R5> core via the two pluggable JCC and JDD connectors.
The module itself contains no active signal conditioning, amplification, or conversion circuitry.
3.2 Core Design Features
Signal Integrity Priority:
As the entry point for small analog signals (millivolt-level voltage changes corresponding to resistance changes), the module's layout and connector selection are designed to minimize contact resistance and introduced noise. This ensures the signal path loss and interference from the sensor to the TCCA board is minimized.
No Hardware Jumper Design:
A key characteristic: The DS200TBCAG1A module has NO user-configurable hardware jumpers.
All configurations—including RTD type selection (e.g., PT100, PT200, Cu10), linearization, open-circuit detection, and excitation current provision—are performed by the downstream TCCA board and its associated I/O configuration software. This simplifies hardware maintenance, centralizes all configuration flexibility at the software level, and reduces the risk of field misconfiguration.
High-Reliability Connection:
Connectors feature a reliable plug-and-socket design, ensuring a secure connection to the TCCA board.
The screw-clamp terminal method is suitable for industrial vibration environments, preventing wire loosening.
Environmental Compatibility:
4. Integration within the Control System & Signal Flow
The DS200TBCAG1A is the starting point of the Mark V LM temperature monitoring signal chain. Its signal flow clearly reflects the system's layered processing philosophy:
Field Sensing Layer: RTD sensors distributed across the gas turbine sense temperature changes, which alter their resistance.
Signal Access Layer (DS200TBCAG1A):
Sensor wires are directly connected to the terminal blocks of the DS200TBCAG1A module.
Internal wiring within the module routes each RTD signal (typically including excitation and sense lines) to corresponding pins on the JCC or JDD connectors.
Signal Conditioning & Digitization Layer (TCCA Board):
The JCC and JDD connectors transmit all 30 RTD signals simultaneously to the DS200TBCAG1A General Purpose Analog I/O Board in Slot 2 of the <R5> core.
The TCCA board provides a precision constant-current source excitation for each RTD.
It measures the voltage drop across each RTD and converts it to a digital value via a high-precision Analog-to-Digital Converter (ADC).
The processor on the TCCA board, using I/O configuration data downloaded from the Control Engine (including RTD type, nominal resistance, linearization tables), calculates and converts the raw digital value into an engineering temperature value (°C or °F).
Data Processing & Transmission Layer:
The processed temperature data is sent from the TCCA board via the 3PL data bus to the STCA Communication Board within the same core.
The I/O Engine (UCPB daughterboard with a 486DX processor) on the STCA board packages the data.
System Integration & Control Layer:
Monitoring Display: Real-time display of temperature points on the HMI.
Alarm Logic: Triggering alarms or trips when temperatures exceed preset thresholds.
Performance Calculation: Contributing to efficiency, heat rate, etc., calculations.
Data Logging: For trend analysis and historical data review.
Temperature data packets are sent via the COREBUS (internal ARCNET network) to the Control Engine <R>.
Within the Control Engine, temperature data is stored in the Control Signal Database (CSDB).
The Control Sequence Program (CSP) and the Operator Interface (HMI) can access this data for:
Signal Chain Summary: RTD Sensor → DS200TBCAG1A Terminal Board → (JCC/JDD) → TCCA Analog I/O Board → (3PL) → STCA Communication Board → (COREBUS) → Control Engine <R> → CSDB → CSP/HMI.
5. Application Scenarios & Importance
In a gas turbine power plant, the temperature points interfaced by the DS200TBCAG1A module serve as the "thermometers" for the unit's health status. Its typical application scenarios include:
Bearing Temperature Monitoring:
Main Bearings, Thrust Bearings: Temperature monitoring is the primary protection against bearing seizure and ensures safe rotor operation. Exceeding temperature limits triggers alarms or trips.
Gearbox Bearings (for split-shaft units): Monitors the operating condition of high-speed gearboxes.
Lubrication Oil & Cooling Water Systems:
Lube Oil Inlet/Outlet Temperature: Evaluates cooler efficiency and oil condition.
Hydraulic Oil Temperature: Ensures proper operation of control system actuators.
Jacket Water Temperature, Intercooler/Aftercooler Water Temperature: Key parameters for performance optimization in units with intercooling or aftercooling.
Compressor & Turbine Section Monitoring:
Compressor Inlet Temperature, Interstage Temperatures: Used for performance calculation and anti-surge control.
Turbine Wheelspace Temperature (indirectly related monitoring): Monitoring of associated cooling air temperatures.
Generator System (for power generation units):
Auxiliary Systems:
Significance:
Safety Protection: Directly participates in over-temperature trip protection logic, serving as one of the final hardware defenses against catastrophic equipment damage.
Efficiency Optimization: Accurate temperature data is fundamental for optimizing gas turbine combustion, controlling exhaust temperature spread, and improving overall efficiency.
Predictive Maintenance: Long-term trend analysis can warn of issues like bearing wear, cooler fouling, or hot gas path component degradation, enabling a shift from "schedule-based" to "condition-based" maintenance.
Reliability Assurance: The high-reliability, zero-configuration design of the terminal module itself ensures the availability of the temperature monitoring channels, reducing false or missed alarms due to interface problems.
6. Installation, Wiring & Maintenance Guidelines
6.1 Installation
The DS200TBCAG1A, as a standard terminal board, is fixed into Slot 9 of the <R5> core.
Ensure all controller power is OFF before installation and observe electrostatic discharge (ESD) precautions.
Ensure the JCC and JDD connectors are vertically aligned with their corresponding sockets on the TCCA board and fully seated. Engage locking mechanisms if present.
6.2 Field Wiring (Critical Step)
This is central to the module's function. Wiring must be accurate and reliable.
Identify Channels: Clearly understand the RTD channel number (1-30) and polarity (e.g., excitation+, excitation-, sense) corresponding to each terminal screw.
Select Wiring Scheme: Decide on 2-wire, 3-wire, or 4-wire connection based on the sensor and accuracy requirements. The 3-wire scheme is strongly recommended to cancel lead resistance effects.
Wiring Operation:
Use appropriate crimping tools or screwdrivers to securely fasten field RTD sensor wires to the corresponding terminals per the drawings.
Ensure the wire metal is fully inserted and the screw is tight, but avoid over-tightening which can damage the wire or terminal.
Wires for the same RTD should ideally use twisted-pair or shielded cable, with the shield grounded at a single point on the controller end (typically to the CCOM bus) to reduce electromagnetic interference.
Cable Management: Neatly bundle and secure cables in the core's cable channels to avoid stress on the connectors.
6.3 Software Configuration
On the Mark V LM Operator Interface (HMI), use the I/O Configuration Editor.
For each RTD input channel corresponding to the DS200TBCA (mapped to hardware points on the TCCA board), set the correct parameters:
RTD Type: Select from the list (e.g., PT100 DIN).
Range & Units: Define engineering units.
Alarm & Trip Values: Set threshold levels.
After configuration, download the IOCFG.AP1 file to transfer the configuration data to the Control Engine and the <R5> I/O Engine.
6.4 Maintenance & Troubleshooting
Routine Maintenance:
Fault Diagnosis:
Directly troubleshoot for an open circuit in the sensor loop, including the RTD itself, wires, and TBCA terminal connections.
Step 1: In the HMI's DIAGC diagnostic screens, find the "raw count" or "millivolt value" for the corresponding channel. Compare it roughly with a known-good channel or the actual temperature measured with a handheld meter to determine if it's a sensor or channel issue.
Step 2: If the channel is suspect, first check the wiring connections on the DS200TBCAG1A for looseness or detachment. This is the most common fault point.
Step 3: With power off, use a multimeter to measure the RTD resistance directly at the TBCA terminals to check the sensor and wires.
Step 4: If all the above is normal, the issue may lie with the TCCA board, interconnect harness, or software configuration. Troubleshoot by swapping the connectors on the TCCA board (e.g., swap JCC and JDD) with a known-good channel in the same core to see if the fault follows, helping to isolate the faulty board.
Abnormal Temperature Reading (e.g., max/min value or erratic):
System Reports RTD Open-Circuit Alarm:
No Hardware Jumpers: Remember, there is no need nor should you attempt to find or adjust jumpers on the DS200TBCAG1A module itself. All configuration is done in software.
