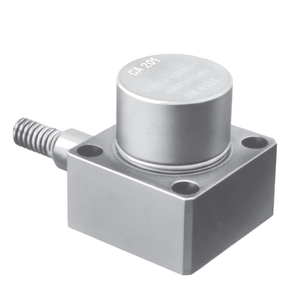

The CA202 Piezoelectric Accelerometer is a high-performance industrial-grade vibration sensor from the VM product line. Designed specifically for harsh industrial environments, it integrates high sensitivity, wide frequency response, exceptional environmental tolerance, and multiple international explosion-proof certifications. Its core utilizes a symmetrical shear-mode polycrystalline piezoelectric sensing element, housed within a fully welded austenitic stainless steel casing and equipped with an integral armored cable, forming a highly reliable, sealed, and leak-proof measurement unit.
The CA202 is primarily used for continuous online vibration monitoring and fault diagnosis of rotating machinery (such as turbines, compressors, pumps, fans, etc.), serving as a critical front-end sensing device for industrial predictive maintenance and asset health management systems. The product is available in standard versions and "Ex"-certified versions suitable for use in potentially explosive atmospheres, meeting the specific safety requirements of high-risk industries including oil & gas, chemicals, power generation, and mining.
The operational principle of the CA202 piezoelectric accelerometer is based on the direct piezoelectric effect of piezoelectric materials. Its core sensing element is a specially polarized polycrystalline piezoelectric ceramic, assembled in a symmetrical shear-mode configuration. When the sensor is subjected to external mechanical vibration, an internal seismic mass applies a shear force to the piezoelectric crystal. This mechanical stress causes a displacement of charge centers within the piezoelectric material, generating a proportional electrical charge on the crystal's electrode surfaces relative to the applied force (and thus the acceleration).
This charge signal is high-impedance. The CA202 transmits this charge signal via its internally insulated design and low-noise integral cable to an external charge converter (or charge amplifier, such as the IPC70x series). The primary function of the charge converter is to transform the high-impedance charge signal into a low-impedance voltage signal, amplifying and normalizing it for easy reading and analysis by subsequent data acquisition systems, PLCs, or vibration monitors.
The "shear" design offers significant advantages: it decouples the piezoelectric element from base strain and thermal disturbances. Consequently, the CA202 is highly insensitive to environmental interference such as base bending, thermal transients, and acoustic noise, enabling it to output exceptionally "clean" vibration acceleration signals. Combined with its fully sealed welded construction, this principle ensures long-term measurement stability and accuracy in demanding industrial environments.
The CA202 is widely used in industrial sectors with stringent requirements for equipment reliability and safety, include:
Energy & Power Generation: Vibration protection and monitoring for gas turbines, steam turbines, hydro turbines, generators, large pumps, and fan sets.
Oil & Gas: Reciprocating and centrifugal compressors, transfer pumps, gas turbine-driven equipment on offshore platforms and onshore plants, suitable for Zone 0, 1, 2 hazardous areas.
Chemical & Petrochemical: Vibration monitoring for various reactors, agitators, large compressors, and pumps, resistant to corrosive atmospheres.
Mining & Metallurgy: Condition monitoring of mine ventilation fans, crushers, grinding mills, and rolling mills in dusty, high-vibration environments.
Marine & Offshore: Monitoring of main propulsion turbines, gearboxes, and generator sets in high-temperature, high-humidity, salt-spray conditions.
General Industrial Manufacturing: Providing predictive maintenance solutions for large, critical rotating machinery to prevent unplanned downtime.
Exceptional Long-Term Stability: The symmetrical shear-mode design effectively isolates the effects of thermal transients and base strain, ensuring minimal output signal drift and long maintenance intervals.
Superior Environmental Tolerance: Fully sealed stainless steel welded construction (sensor and cable welded as one unit), providing IP68-level protection against water, steam, oil, corrosive chemicals, and 100% humidity.
Wide Operating Temperature Range: Sensor body operational range from -55°C to +260°C, meeting the demands of most high-temperature industrial applications.
Comprehensive Safety Certifications: Available in explosion-proof models certified by ATEX, IECEx, UKEX, cCSAus, KGS, EASC, supporting safe use in the highest classification of hazardous areas (Gas Zone 0).
Excellent Signal Quality: High sensitivity (100 pC/g), wide frequency response (0.5-6000 Hz), and low transverse sensitivity (≤3%), enabling precise capture of complex vibration signatures from low to high frequencies.
Robust and Reliable Mechanical Construction: Heavy-duty stainless steel housing, capable of withstanding shocks up to 1000g, suitable for high-vibration scenarios.
Convenient Installation & Integration: Integral cable design eliminates connector failure points; standardized charge output is compatible with various brands of signal conditioners.
The CA202 Piezoelectric Accelerometer is a high-performance industrial-grade vibration sensor from the VM product line. Designed specifically for harsh industrial environments, it integrates high sensitivity, wide frequency response, exceptional environmental tolerance, and multiple international explosion-proof certifications. Its core utilizes a symmetrical shear-mode polycrystalline piezoelectric sensing element, housed within a fully welded austenitic stainless steel casing and equipped with an integral armored cable, forming a highly reliable, sealed, and leak-proof measurement unit.
The CA202 is primarily used for continuous online vibration monitoring and fault diagnosis of rotating machinery (such as turbines, compressors, pumps, fans, etc.), serving as a critical front-end sensing device for industrial predictive maintenance and asset health management systems. The product is available in standard versions and "Ex"-certified versions suitable for use in potentially explosive atmospheres, meeting the specific safety requirements of high-risk industries including oil & gas, chemicals, power generation, and mining.
The operational principle of the CA202 piezoelectric accelerometer is based on the direct piezoelectric effect of piezoelectric materials. Its core sensing element is a specially polarized polycrystalline piezoelectric ceramic, assembled in a symmetrical shear-mode configuration. When the sensor is subjected to external mechanical vibration, an internal seismic mass applies a shear force to the piezoelectric crystal. This mechanical stress causes a displacement of charge centers within the piezoelectric material, generating a proportional electrical charge on the crystal's electrode surfaces relative to the applied force (and thus the acceleration).
This charge signal is high-impedance. The CA202 transmits this charge signal via its internally insulated design and low-noise integral cable to an external charge converter (or charge amplifier, such as the IPC70x series). The primary function of the charge converter is to transform the high-impedance charge signal into a low-impedance voltage signal, amplifying and normalizing it for easy reading and analysis by subsequent data acquisition systems, PLCs, or vibration monitors.
The "shear" design offers significant advantages: it decouples the piezoelectric element from base strain and thermal disturbances. Consequently, the CA202 is highly insensitive to environmental interference such as base bending, thermal transients, and acoustic noise, enabling it to output exceptionally "clean" vibration acceleration signals. Combined with its fully sealed welded construction, this principle ensures long-term measurement stability and accuracy in demanding industrial environments.
The CA202 is widely used in industrial sectors with stringent requirements for equipment reliability and safety, include:
Energy & Power Generation: Vibration protection and monitoring for gas turbines, steam turbines, hydro turbines, generators, large pumps, and fan sets.
Oil & Gas: Reciprocating and centrifugal compressors, transfer pumps, gas turbine-driven equipment on offshore platforms and onshore plants, suitable for Zone 0, 1, 2 hazardous areas.
Chemical & Petrochemical: Vibration monitoring for various reactors, agitators, large compressors, and pumps, resistant to corrosive atmospheres.
Mining & Metallurgy: Condition monitoring of mine ventilation fans, crushers, grinding mills, and rolling mills in dusty, high-vibration environments.
Marine & Offshore: Monitoring of main propulsion turbines, gearboxes, and generator sets in high-temperature, high-humidity, salt-spray conditions.
General Industrial Manufacturing: Providing predictive maintenance solutions for large, critical rotating machinery to prevent unplanned downtime.
Exceptional Long-Term Stability: The symmetrical shear-mode design effectively isolates the effects of thermal transients and base strain, ensuring minimal output signal drift and long maintenance intervals.
Superior Environmental Tolerance: Fully sealed stainless steel welded construction (sensor and cable welded as one unit), providing IP68-level protection against water, steam, oil, corrosive chemicals, and 100% humidity.
Wide Operating Temperature Range: Sensor body operational range from -55°C to +260°C, meeting the demands of most high-temperature industrial applications.
Comprehensive Safety Certifications: Available in explosion-proof models certified by ATEX, IECEx, UKEX, cCSAus, KGS, EASC, supporting safe use in the highest classification of hazardous areas (Gas Zone 0).
Excellent Signal Quality: High sensitivity (100 pC/g), wide frequency response (0.5-6000 Hz), and low transverse sensitivity (≤3%), enabling precise capture of complex vibration signatures from low to high frequencies.
Robust and Reliable Mechanical Construction: Heavy-duty stainless steel housing, capable of withstanding shocks up to 1000g, suitable for high-vibration scenarios.
Convenient Installation & Integration: Integral cable design eliminates connector failure points; standardized charge output is compatible with various brands of signal conditioners.
| Category | Parameter | Specification | Conditions / Notes |
|---|---|---|---|
| Electrical Characteristics | Sensitivity | 100 pC/g ±5% | 120 Hz, 5 g, 23°C |
| Dynamic Measurement Range | 0.01 to 400 g (peak) | ||
| Overload Capacity | ≤ 500 g (peak) | ||
| Linearity | 0.01-20 g: ±1% 20-400 g: ±2% | ||
| Transverse Sensitivity | ≤ 3% | ||
| Insulation Resistance | ≥ 1 x 10⁹ Ω | ||
| Sensor Capacitance | Pin to Pin: 5000 pF Pin to Case: 10 pF | Nominal | |
| Cable Capacitance | Per meter, Pin to Pin: 105 pF/m Per meter, Pin to Case: 210 pF/m | Nominal | |
| Frequency Characteristics | Frequency Response | 0.5 Hz to 6000 Hz (±5%) | Low cutoff depends on conditioner |
| Resonant Frequency | > 22 kHz | Nominal | |
| Deviation at 8 kHz | +10% | Typical | |
| Environmental Characteristics | Operating Temp. - Sensor - Integral Cable | -55°C to +260°C -55°C to +200°C | Continuous Operation |
| Short-Term Survival Temp. - Sensor - Integral Cable | -70°C to +280°C -62°C to +250°C | ||
| Temperature Coefficient | -55°C to +23°C: 0.25%/°C +23°C to +260°C: 0.1%/°C | Referenced to 23°C | |
| Protection & Sealing | Austenitic stainless steel fully welded housing & protection hose | Resistant to 100% humidity, water, steam, oil, salt spray, dust, fungus, sand | |
| Base Strain Sensitivity | 0.15 x 10⁻³ g/µε | At 250 µε peak-to-peak | |
| Max. Shock | 1000 g (peak) | Half sine, 1 ms | |
| Mechanical Characteristics | Housing Material | Austenitic Stainless Steel (1.4441) | |
| Protection Hose Material | Heat-Resistant Stainless Steel (1.4541) | ||
| Weight | Sensor: ~250 g Cable: ~135 g/m | ||
| Mounting Screws | 4 x M6 x 35 | Hex Socket | |
| Mounting Washers | 4 x M4 Spring Lock Washers | ||
| Recommended Mounting Torque | 15 N·m | ||
| Signal & Connection | Output Type | Charge Output | |
| Pin System | 2-pin, insulated from case | ||
| Required Conditioner | Charge Converter (e.g., IPC70x) | ||
| Cable Configuration | Integral low-noise cable with stainless steel braided protection hose | Length options | |
| Certifications & Compliance | EU Compliance | CE Marking, EU Declaration of Conformity | |
| Eurasian Customs Union | EAC Marking, Declaration of Conformity | ||
| Electromagnetic Compatibility (EMC) | EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 | ||
| Electrical Safety | EN 61010-1:2010 | ||
| Environmental | RoHS Directive (2011/65/EU) Compliant | ||
| Explosion-Proof Certs. (Ex Versions) | ATEX, IECEx, UKEX, cCSAus, KGS, EASC | Refer to page 3 certificate list | |
| Physical Data | Calibration | Factory Dynamic Calibration (5 g peak, 120 Hz) | Typically no field recalibration needed |
| Dimensions | Refer to mechanical drawings on datasheet page 5 | ||
| Ordering Information | Standard Models | 144-202-000-2xx (xx denotes cable length code) | Cable Lengths: 3, 6, 11, 20 meters |
| Explosion-Proof Models | 144-202-000-1xx (xx denotes cable length code) | Cable Lengths: 3, 6, 11, 20 meters |
| Category | Parameter | Specification | Conditions / Notes |
|---|---|---|---|
| Electrical Characteristics | Sensitivity | 100 pC/g ±5% | 120 Hz, 5 g, 23°C |
| Dynamic Measurement Range | 0.01 to 400 g (peak) | ||
| Overload Capacity | ≤ 500 g (peak) | ||
| Linearity | 0.01-20 g: ±1% 20-400 g: ±2% | ||
| Transverse Sensitivity | ≤ 3% | ||
| Insulation Resistance | ≥ 1 x 10⁹ Ω | ||
| Sensor Capacitance | Pin to Pin: 5000 pF Pin to Case: 10 pF | Nominal | |
| Cable Capacitance | Per meter, Pin to Pin: 105 pF/m Per meter, Pin to Case: 210 pF/m | Nominal | |
| Frequency Characteristics | Frequency Response | 0.5 Hz to 6000 Hz (±5%) | Low cutoff depends on conditioner |
| Resonant Frequency | > 22 kHz | Nominal | |
| Deviation at 8 kHz | +10% | Typical | |
| Environmental Characteristics | Operating Temp. - Sensor - Integral Cable | -55°C to +260°C -55°C to +200°C | Continuous Operation |
| Short-Term Survival Temp. - Sensor - Integral Cable | -70°C to +280°C -62°C to +250°C | ||
| Temperature Coefficient | -55°C to +23°C: 0.25%/°C +23°C to +260°C: 0.1%/°C | Referenced to 23°C | |
| Protection & Sealing | Austenitic stainless steel fully welded housing & protection hose | Resistant to 100% humidity, water, steam, oil, salt spray, dust, fungus, sand | |
| Base Strain Sensitivity | 0.15 x 10⁻³ g/µε | At 250 µε peak-to-peak | |
| Max. Shock | 1000 g (peak) | Half sine, 1 ms | |
| Mechanical Characteristics | Housing Material | Austenitic Stainless Steel (1.4441) | |
| Protection Hose Material | Heat-Resistant Stainless Steel (1.4541) | ||
| Weight | Sensor: ~250 g Cable: ~135 g/m | ||
| Mounting Screws | 4 x M6 x 35 | Hex Socket | |
| Mounting Washers | 4 x M4 Spring Lock Washers | ||
| Recommended Mounting Torque | 15 N·m | ||
| Signal & Connection | Output Type | Charge Output | |
| Pin System | 2-pin, insulated from case | ||
| Required Conditioner | Charge Converter (e.g., IPC70x) | ||
| Cable Configuration | Integral low-noise cable with stainless steel braided protection hose | Length options | |
| Certifications & Compliance | EU Compliance | CE Marking, EU Declaration of Conformity | |
| Eurasian Customs Union | EAC Marking, Declaration of Conformity | ||
| Electromagnetic Compatibility (EMC) | EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 | ||
| Electrical Safety | EN 61010-1:2010 | ||
| Environmental | RoHS Directive (2011/65/EU) Compliant | ||
| Explosion-Proof Certs. (Ex Versions) | ATEX, IECEx, UKEX, cCSAus, KGS, EASC | Refer to page 3 certificate list | |
| Physical Data | Calibration | Factory Dynamic Calibration (5 g peak, 120 Hz) | Typically no field recalibration needed |
| Dimensions | Refer to mechanical drawings on datasheet page 5 | ||
| Ordering Information | Standard Models | 144-202-000-2xx (xx denotes cable length code) | Cable Lengths: 3, 6, 11, 20 meters |
| Explosion-Proof Models | 144-202-000-1xx (xx denotes cable length code) | Cable Lengths: 3, 6, 11, 20 meters |
To ensure optimal performance, measurement accuracy, and service life of the CA202 accelerometer, the installation process must strictly adhere to specifications. The following guidelines synthesize core requirements from the datasheet and general installation manual.
Explosion-Proof Safety: Before installing an Ex version in a hazardous area, it is imperative to consult and comply with all "Special Conditions for Safe Use" listed in the "Schedule" section of the corresponding "EC Type Examination Certificate" (indicated by an "X" or "U" suffix on the certificate number).
Mounting Location:
Primary Rule: Mount as close as possible to the bearing housing or vibration source, ensuring the mounting point is on a highly rigid mechanical structure.
Prohibited: Do not mount on machine casings, thin panels, or non-rigid structures prone to local resonance, as this will severely distort measurement signals.
Installation Responsibility: Installers must follow general safety procedures and specific guidelines provided by the equipment manufacturer.
The quality of the mounting surface directly determines measurement accuracy.
Selection & Cleaning: Choose a flat, clean mounting area.
Machining Requirements:
Flatness: The mounting surface must be machined to a flatness of 0.01 mm.
Surface Finish: Achieve a finish grade of N7.
Perpendicularity: The mounting surface must be perpendicular to the desired vibration measurement direction (sensitive axis).
Marking & Drilling:
Mark the positions for the 4 mounting holes according to the CA202 base pattern.
Drill holes approximately 20 mm deep using a Ø4.8 mm drill bit.
Tapping:
Tap M6 threads in the holes to a minimum effective depth of 14 mm.
Remove all metal chips from the holes.
Prepare Components: Have ready 4 pieces of M6 x 35 hexagon socket head cap screws and 4 pieces of M6 single-coil spring lock washers.
Apply Threadlocker: Evenly apply LOCTITE 241 (or equivalent) threadlocking adhesive to the screw threads. This step is crucial to prevent loosening under vibration and allows for future disassembly.
Mount the Sensor: Place the spring washers on the screws, position the CA202 accelerometer over the mounting holes.
Tightening:
Using a torque wrench, gradually tighten the 4 screws in a diagonal sequence.
The final tightening torque must be strictly controlled at 15 N·m. Insufficient torque may cause loosening; excessive torque may damage the sensor base or threads.
Note: The CA202 is internally insulated; no additional insulating washer is required under the sensor base.
Incorrect cable handling is a common cause of noise introduction and failure.
Bending Radius: During routing, the minimum bending radius of the cable (including protective hose) must not be less than 50 mm. Avoid sharp bends.
Fixing Interval: Secure the cable along its route using suitable tube clips (for ~Ø8 mm cable) at recommended intervals of 100 to 200 mm.
Avoid Interference: The cable route should be kept away from high-voltage cables, high-current lines, or high-frequency emission sources. Maintain a minimum parallel separation of at least 30 cm.
Fixing Method: Drill and tap holes on the support surface, use screws and washers to secure the clips. Apply LOCTITE 241 to the screws.
Importance: Regularly fixing the cable effectively suppresses low-frequency noise caused by the "triboelectric effect," generated by slow friction between the cable sheath and shield.
Signal Conditioning: The CA202 is a charge output type and must be connected to a dedicated charge converter (e.g., Meggitt IPC70x series) to convert the charge signal into a standard voltage signal.
Wiring: Follow the charge converter manual instructions to correctly connect the two cores of the CA202 integral cable to the converter's high-impedance input. The shield is typically terminated at the converter end.
Grounding & Isolation:
To ensure signal purity, it is recommended to use an Electrical Isolation Unit (e.g., as shown in the manual) in the signal chain to break ground loops.
The entire measurement chain should follow a "single-point grounding" principle, typically grounded at the signal processing system end.
Protection: The transmission cable from the charge converter to the control room should use shielded twisted pair and can be placed inside metallic flexible conduit (e.g., KS 106) or cable trays for additional mechanical protection.
For surfaces where direct mounting is not possible, the MA133 Mounting Adapter Kit (Part Number: 809-133-000-011) from Meggitt can be used. This kit includes a base with a mica-glass thermal isolation pad, suitable for applications requiring thermal isolation or where surfaces are uneven.
To ensure optimal performance, measurement accuracy, and service life of the CA202 accelerometer, the installation process must strictly adhere to specifications. The following guidelines synthesize core requirements from the datasheet and general installation manual.
Explosion-Proof Safety: Before installing an Ex version in a hazardous area, it is imperative to consult and comply with all "Special Conditions for Safe Use" listed in the "Schedule" section of the corresponding "EC Type Examination Certificate" (indicated by an "X" or "U" suffix on the certificate number).
Mounting Location:
Primary Rule: Mount as close as possible to the bearing housing or vibration source, ensuring the mounting point is on a highly rigid mechanical structure.
Prohibited: Do not mount on machine casings, thin panels, or non-rigid structures prone to local resonance, as this will severely distort measurement signals.
Installation Responsibility: Installers must follow general safety procedures and specific guidelines provided by the equipment manufacturer.
The quality of the mounting surface directly determines measurement accuracy.
Selection & Cleaning: Choose a flat, clean mounting area.
Machining Requirements:
Flatness: The mounting surface must be machined to a flatness of 0.01 mm.
Surface Finish: Achieve a finish grade of N7.
Perpendicularity: The mounting surface must be perpendicular to the desired vibration measurement direction (sensitive axis).
Marking & Drilling:
Mark the positions for the 4 mounting holes according to the CA202 base pattern.
Drill holes approximately 20 mm deep using a Ø4.8 mm drill bit.
Tapping:
Tap M6 threads in the holes to a minimum effective depth of 14 mm.
Remove all metal chips from the holes.
Prepare Components: Have ready 4 pieces of M6 x 35 hexagon socket head cap screws and 4 pieces of M6 single-coil spring lock washers.
Apply Threadlocker: Evenly apply LOCTITE 241 (or equivalent) threadlocking adhesive to the screw threads. This step is crucial to prevent loosening under vibration and allows for future disassembly.
Mount the Sensor: Place the spring washers on the screws, position the CA202 accelerometer over the mounting holes.
Tightening:
Using a torque wrench, gradually tighten the 4 screws in a diagonal sequence.
The final tightening torque must be strictly controlled at 15 N·m. Insufficient torque may cause loosening; excessive torque may damage the sensor base or threads.
Note: The CA202 is internally insulated; no additional insulating washer is required under the sensor base.
Incorrect cable handling is a common cause of noise introduction and failure.
Bending Radius: During routing, the minimum bending radius of the cable (including protective hose) must not be less than 50 mm. Avoid sharp bends.
Fixing Interval: Secure the cable along its route using suitable tube clips (for ~Ø8 mm cable) at recommended intervals of 100 to 200 mm.
Avoid Interference: The cable route should be kept away from high-voltage cables, high-current lines, or high-frequency emission sources. Maintain a minimum parallel separation of at least 30 cm.
Fixing Method: Drill and tap holes on the support surface, use screws and washers to secure the clips. Apply LOCTITE 241 to the screws.
Importance: Regularly fixing the cable effectively suppresses low-frequency noise caused by the "triboelectric effect," generated by slow friction between the cable sheath and shield.
Signal Conditioning: The CA202 is a charge output type and must be connected to a dedicated charge converter (e.g., Meggitt IPC70x series) to convert the charge signal into a standard voltage signal.
Wiring: Follow the charge converter manual instructions to correctly connect the two cores of the CA202 integral cable to the converter's high-impedance input. The shield is typically terminated at the converter end.
Grounding & Isolation:
To ensure signal purity, it is recommended to use an Electrical Isolation Unit (e.g., as shown in the manual) in the signal chain to break ground loops.
The entire measurement chain should follow a "single-point grounding" principle, typically grounded at the signal processing system end.
Protection: The transmission cable from the charge converter to the control room should use shielded twisted pair and can be placed inside metallic flexible conduit (e.g., KS 106) or cable trays for additional mechanical protection.
For surfaces where direct mounting is not possible, the MA133 Mounting Adapter Kit (Part Number: 809-133-000-011) from Meggitt can be used. This kit includes a base with a mica-glass thermal isolation pad, suitable for applications requiring thermal isolation or where surfaces are uneven.
