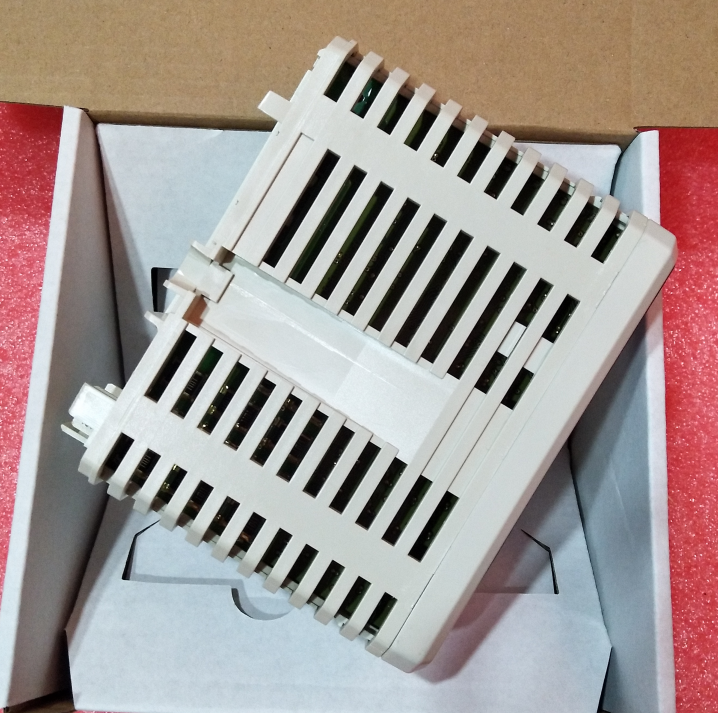

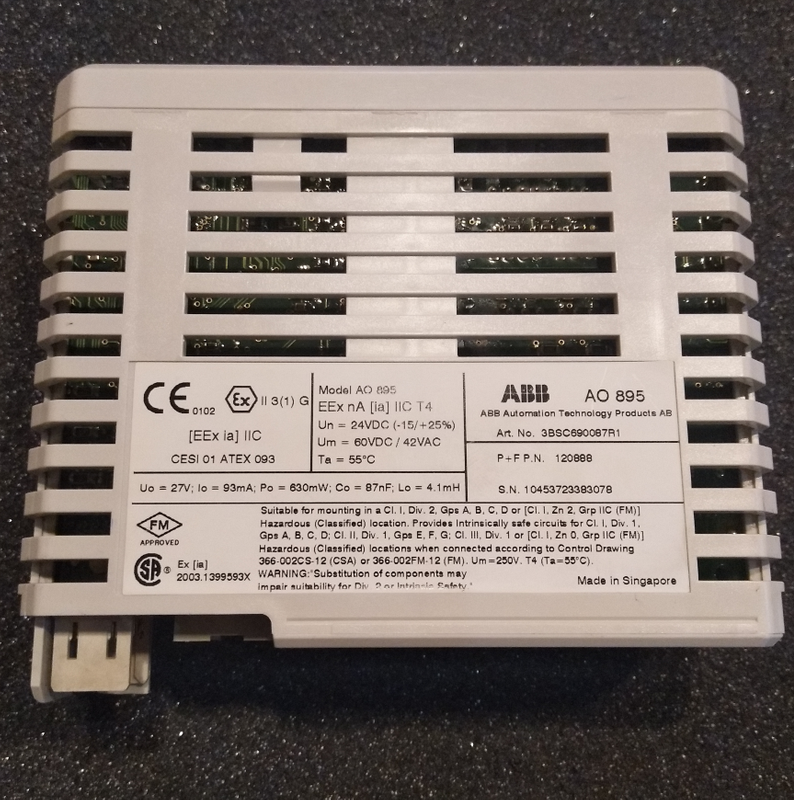

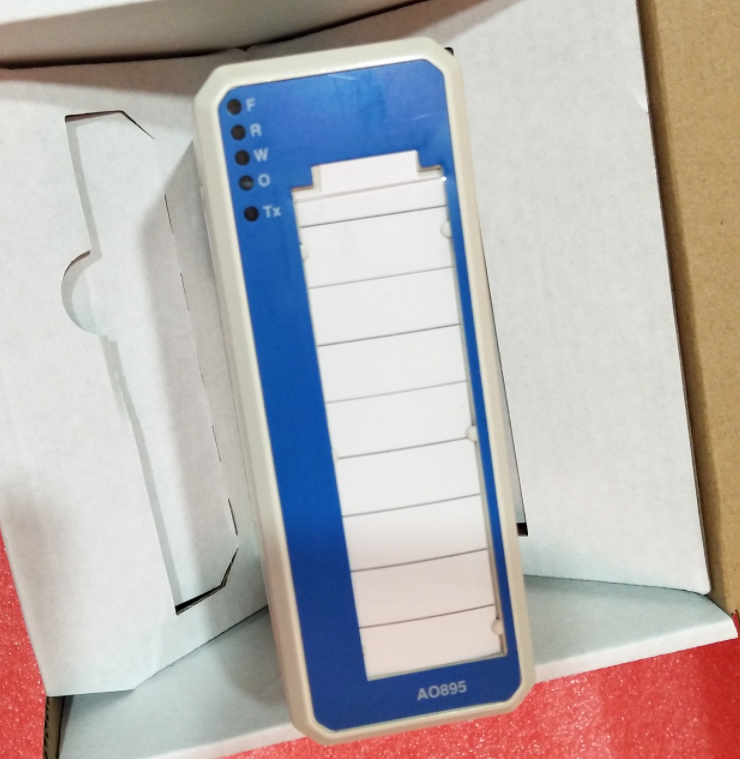

The AO895 is a high-performance, highly reliable HART (Highway Addressable Remote Transducer) protocol analog output module developed by ABB, designed for industrial automation control systems, particularly for controller platforms like ABB's AC 800M. This module serves as a critical bridge connecting the control system to field intelligent instruments. It not only provides high-precision analog current output (typically 4-20mA) to drive final control elements (such as valve positioners, variable frequency drives, etc.) but also incorporates full HART protocol communication functionality, enabling bidirectional digital communication with field smart devices. This allows users to perform traditional analog control while remotely accessing, configuring, diagnosing, and calibrating HART-compliant field instruments, significantly enhancing the intelligence level and maintenance efficiency of process control.
The AO895 module is a key member of ABB's extensive I/O product family, sharing consistent dynamic data interfaces and diagnostic architecture with modules like AO801, A0810, A0815, A0845, and A0890, facilitating system integration and engineering maintenance. It is typically installed in ABB's Mechanical Termination Units (MTU), such as the TU890, TU891, and TU891Z, forming compact, modular field I/O stations.
This product introduction will provide an in-depth analysis of the technical features, core functionalities, detailed specifications, and application value of the AO895 module across various industrial sectors.
2. Core Features & Functionalities
High-Precision Analog Output Integrated with HART Communication
The core of the AO895 module is the seamless integration of high-precision analog current output channels with HART digital communication channels. Each module provides 8 independent analog output channels. Each channel can simultaneously output precise analog current signals and superimpose HART digital signals over the same pair of wires. This dual "analog + digital" capability enables intelligent upgrades of field instruments without modifying existing wiring.
Comprehensive Diagnostics and Status Monitoring
The module provides multi-level diagnostic information to help users quickly pinpoint issues:
Device Status: Such as device malfunction, configuration changed, cold start, analog output saturated, primary variable out of limits, etc.
Communication Status: Displays real-time communication errors like parity error, framing error, check sum error, RX buffer overflow, etc.
Command Response: Shows response codes after HART command execution, such as invalid selection, device busy, write-protect mode, command not implemented, etc.
Channel Scan Status: Visually shows the status of instruments on each channel as "Scan enabled", "Searching", "Disappeared", "Appeared", or "Mismatched", facilitating tracking of device connection dynamics.
Module-Level Diagnostics: Monitors the module's own hardware status, such as ROM fault, EEPROM fault, channel hardware fault, etc.
HART Device-Level Diagnostics: Through the integrated diagnostic interface, users can view the status of HART instruments connected to each channel in real-time. This includes:
Intelligent Device Scanning and Management
The AO895 features powerful device scanning functionality. When scanning is enabled, the module automatically and periodically polls the HART devices on its channels (using HART commands 1 and 0) and dynamically updates its internal device list. This function can:
Auto-Discover Devices: Automatically identify newly connected HART instruments.
Monitor Device Online Status: Continuously monitor whether a device is lost or reconnected.
Identify Device Replacement: Marks a channel as "Mismatched" when the device model or address on that channel changes, alerting the user to check the configuration.
Using the "Perform master reset" service function forces the module to rescan all channels and update the device list, which is useful for device replacement or system initialization.
Flexible Configuration and Parameterization
Users can finely configure each channel using supporting tools (like Control Builder Professional or the module's DTM):
Channel Enable/Disable: Individual channels can be deactivated if not in use.
Signal Range and Output Safe State (OSP): The output range can be set, and the output behavior during communication failure or safe state can be configured (e.g., hold last value, switch to a preset safe value).
HART Communication Parameters: The number of communication retries can be configured. Retry strategies for "busy response" and "other error" responses can be set separately (0-10 times) to enhance communication reliability in noisy industrial environments.
Comprehensive Service and Maintenance Functions
The module provides a series of service commands for advanced maintenance and troubleshooting:
Device Self-Test: Performs a checksum verification of the HART non-volatile parameters within the module.
Read Additional Device Status / Read Gateway Parameters: Obtains detailed operational statistics, such as the number of scanned instruments, delayed response status, etc.
Flush Completed Delayed Response: Clears backlogged HART responses in the buffer when communication is blocked.
View Device Identification Information: Reads Manufacturer ID, Device Type Code, Software/Hardware Revision, Long Address (Extended Address), etc., facilitating device identification and asset management.
Robust Environmental Suitability and Safety Certifications
The AO895 is designed to meet stringent industrial standards, featuring high-level electrical isolation, strong interference immunity, wide-range environmental tolerance, and multiple international certifications, ensuring stable operation in harsh industrial conditions.
3. Application Fields
The AO895 module, with its high-precision output and powerful HART device management capabilities, is widely used in industrial scenarios requiring precise control and intelligent device integration:
Process Industries: Oil & Gas, Chemical, Petrochemical, Pharmaceutical. Used to control control valves, drive HART smart instruments like pH meters, flow meters, pressure transmitters, enabling process optimization and predictive maintenance.
Power Industry: In power plants, for controlling feedwater valves, damper actuators, and remotely monitoring the health status of related instruments.
Water & Wastewater Treatment: Controlling dosing pumps, regulating gates, and remotely reading data and diagnostics from water quality analyzers (e.g., HART-based dissolved oxygen, turbidity meters).
Metallurgy & Mining: In processes like sintering, ironmaking, and mineral processing, for controlling fan dampers, pump speeds, and integrating numerous HART-based temperature and pressure sensors.
Building Materials Industry: In cement plants, glass factories, for controlling key equipment like kiln air flow and raw material proportioning valves.
Environmental Monitoring & Safety Systems: Integrated into Safety Instrumented Systems (SIS) or environmental monitoring networks, providing control signals to critical safety devices and obtaining their self-diagnostic status to enhance system safety.
4. Installation & Configuration Guide (Overview)
Installation: Insert the AO895 module into the designated compatible MTU (TU890/891/891Z), ensuring the keying code (AF) matches. Correctly connect the external 24V supply and field instrument wiring.
Engineering Configuration: In ABB's Control Builder Professional engineering software, add the corresponding I/O module object and perform hardware configuration. For applications connected to AC 800M controllers, detailed module configuration (e.g., channel parameters, HART parameters) is primarily done within Control Builder.
Device Commissioning:
Access the module's detailed diagnostic, configuration, and service interfaces via its DTM (Device Type Manager) or compatible tools.
Use the "Perform master reset" function within the "Service" menu to scan and identify all connected HART devices.
In the "Configuration" menu, set the signal range, OSP (Output Safe State) value, etc., for each channel as required.
In the "Parameterization" menu, adjust the communication retry counts based on the field electromagnetic environment.
Enable "Scan status" to continuously monitor device online status.
Operation Monitoring: During daily operation, closely monitor the module status, channel status, and the status bytes/communication errors of each HART device through the diagnostic interface to promptly identify and address potential issues.
