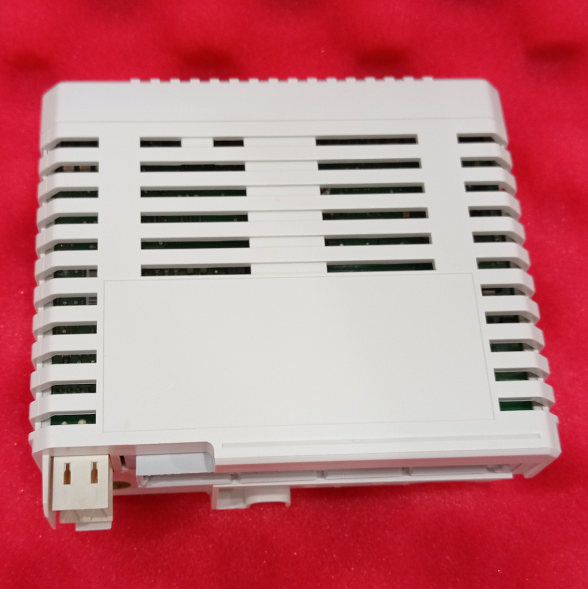

ABB AI815 3BSE052604R1 Analog Input Module

The AI815 Analog Input Module is a high-performance, highly reliable industrial-grade I/O module within the ABB Ability™ System 800xA® S800 Series. As a critical signal acquisition unit in industrial automation control systems, the AI815 is specifically designed to receive standard current or voltage signals from various analog sensors and transmitters in the field. It converts these signals into high-precision digital data for processing, monitoring, and control by the upper-level control system.

Adhering to the compact design and modular philosophy of the ABB S800 Series hardware, this module boasts excellent electrical characteristics, powerful diagnostic functions, and flexible configuration capabilities. It is suitable for demanding industrial environments across process industries, manufacturing, energy, marine, and more. The AI815 supports HART protocol digital communication pass-through, enabling bidirectional digital communication with HART-compatible intelligent field instruments simultaneously with analog signal acquisition. This facilitates device configuration, diagnostics, and asset management.

II. Key Features and Benefits

1. High Density and Flexibility: A single module provides 8 independent analog input channels, optimizing cabinet space utilization. All channels can be uniformly configured for either current input (0...20 mA or 4...20 mA) or voltage input (0...5 V or 1...5 V), meeting diverse signal acquisition needs.

2. High Accuracy and Stability: Utilizes 12-bit resolution for analog-to-digital conversion, ensuring measurement precision. Maximum basic error does not exceed 0.1%, and temperature drift is as low as 50 ppm/°C max, guaranteeing long-term measurement stability across a wide temperature range.

3. Integrated Power Supply and HART Support: The module incorporates a current-limited transmitter power supply, capable of directly powering connected 2-wire or 3-wire transmitters, simplifying wiring and external power requirements. This supply is HART-signal compatible, supporting pass-through digital communication without additional hardware for smart instrument management.

4. Robust Electrical Isolation and Protection: All 8 channels are electrically isolated from system ground as one group (group-to-ground isolation), effectively suppressing common-mode interference and enhancing system noise immunity and safety. The input circuitry can withstand at least ±11 V DC overvoltage or undervoltage, offering strong surge resistance.

5. Comprehensive Diagnostics: The module features extensive self-diagnostics and channel monitoring. Front-panel LEDs - F (Fault - red), R (Run - green), W (Warning - yellow) - allow for quick status identification. Diagnostics cover internal module errors (e.g., reference voltage, checksum, memory errors) and external channel errors (e.g., low external supply, transmitter power fault), significantly improving system maintainability and availability.

6. Broad Compatibility and Certifications: Compatible with various Module Termination Units (MTUs) in the S800 Series, including compact types (TU810, TU812, TU814, TU818) and extended types (TU830, TU833, TU835, TU838), offering flexible mounting and wiring solutions. The product holds multiple international certifications including CE, cULus (Class I Div 2 / Zone 2), ATEX Zone 2, and marine approvals (BV, DNV, LR), complying with stringent safety, EMC, and environmental standards for global industrial applications.

III. Application Areas

The AI815 Analog Input Module, with its high accuracy, reliability, and flexibility, is widely used in applications requiring the acquisition of analog process variables:

• Process Industries: Monitoring of pressure, temperature, flow, level, and other process variables in Oil & Gas, Chemical, Pharmaceutical, and Water/Wastewater treatment.

• Power & Energy: Acquisition of various thermal parameters (e.g., temperature, pressure, vibration) in power plants (thermal, hydro, nuclear).

• Manufacturing: Production line monitoring and equipment condition monitoring in Automotive, Food & Beverage, Pulp & Paper, etc.

• Marine & Offshore: Ship engine room automation systems, monitoring parameters for main engines, auxiliary engines, boilers, etc.

• Infrastructure: Environmental parameter monitoring in Building Automation, Data Center cooling systems.

IV. Installation and Configuration Guidelines

The AI815 must be used with designated S800 Module Termination Units (MTUs), which provide mechanical mounting, electrical connection, and field wiring terminals for the module.

1. MTU Selection: Choose an MTU based on field wiring needs and functionality.

• TU810/TU814 (Compact): Provide basic terminal blocks; require external terminal blocks for distributing 24V power to field devices.

• TU812 (Compact): Provides a D-Sub 25-pin connector, suitable for pre-wired cable applications.

• TU818 (Compact): Specifically designed for 2-wire transmitters, eliminating the need for external marshalling.

• TU830/TU833 (Extended): Support direct connection of 3-wire transmitters without additional terminals.

• TU835/TU838 (Extended): Provide fused (max. 3A) transmitter supply output per channel for a higher level of protection.

2. Wiring Considerations:

• Uniform Signal Type: It is crucial to note that all 8 channels on the same AI815 module must be set to either all current input or all voltage input; mixing is not allowed.

• Shielding and Grounding: When using HART communication, shielded cables must be used for current signal connections. The cable shield must be properly grounded at the MTU side to ensure communication quality and suppress EMI.

• Shunt Mode Setting: When configuring the module in the control system software, the "Shunt Mode" must be set correctly according to the input signal type: select "Internal Shunt" for current input and "External Shunt" for voltage input.

• Power Requirements: If connected HART transmitters require more startup current than the module's internal supply can provide, an external HART-compatible power supply must be used for the transmitters.

3. Diagnostics and Maintenance: The module's LED status lights and diagnostic information in the control system are the primary tools for quick troubleshooting. Regularly checking system logs and monitoring module warnings and errors enables preventive maintenance and timely resolution of potential issues.

V. Technical Advantages and Value Summary

The ABB AI815 Analog Input Module is more than just a signal converter; it is a foundational component for building stable, intelligent, and easily maintainable industrial automation systems.

• Enhances System Accuracy and Reliability: High accuracy and low drift ensure the fidelity of process measurements, providing a trustworthy data foundation for advanced control algorithms and optimization. Robust isolation and protection design guarantee stable operation in harsh industrial environments.

• Reduces Installation and Maintenance Costs: Integrated power supply and flexible MTU options simplify cabinet design and wiring, reducing the number of external components. Comprehensive diagnostics significantly shorten fault-finding time, lowering the Mean Time To Repair (MTTR).

• Enables Digital Transformation: Native support for HART pass-through allows users to connect intelligent instruments and access rich device diagnostics and parameter information without changing existing wiring or hardware architecture, paving the way for predictive maintenance and asset optimization.

• Secures Long-Term Investment: Compliance with numerous stringent global industry certification standards ensures the product can be used in projects worldwide with different requirements. The long-term compatibility of the ABB System 800xA platform and its strong global service network protect the user's long-term investment.
