The ABB DO890 is a high-reliability, Intrinsically Safe (IS) digital output module, specifically designed for the ABB Ability™ System 800xA® distributed control system. This module is primarily used to provide safe and reliable control signals to field actuated devices in demanding industrial environments, particularly in hazardous areas where explosive atmospheres may be present. Its core design philosophy enables the direct connection and driving of field devices located in hazardous areas without the need for additional external safety barriers or protective devices. This greatly simplifies system design, reduces installation and maintenance costs, and enhances overall system safety.
The DO890 module integrates advanced intrinsically safe protection circuits into each output channel, complying with relevant international explosion-protection standards (such as IECEx, ATEX, etc.). This ensures that the electrical energy output under normal operation or specified fault conditions is insufficient to ignite a specific explosive atmosphere. This makes it an ideal choice for Safety Instrumented Systems (SIS) and process control systems in industries involving flammable and explosive substances, such as oil and gas, chemicals, pharmaceuticals, and offshore platforms.
As part of the S800 I/O series, the DO890 inherits the excellent characteristics of high density, modularity, and full isolation of this series. It communicates with the superior controller (e.g., AC 800M) via the ModuleBus and integrates seamlessly into the 800xA system architecture, enabling efficient data exchange and unified engineering configuration and management.
2. Core Design and Key Features
1. Intrinsic Safety Design
Built-in Protection: Each output channel integrates certified intrinsically safe protection components (such as current-limiting and voltage-limiting circuits), eliminating the need for expensive and space-consuming external safety barriers between the control cabinet and field devices.
Direct Connection to Hazardous Area: Allows field devices located in hazardous areas (Zone 0/1 or Zone 1/21, depending on certification), such as solenoid valves, alarm sounders, and indicator lamps, to be directly connected via simple two-wire cables to the DO890 module installed in the safe area.
Wide Applicability: Supports both Ex (explosion-protected) and non-Ex applications by pairing with different terminal units (TU890 for Ex applications, TU891 for non-Ex applications) to meet the needs of different scenarios.
2. Robust Output Drive Capability
Output Specification: Each channel provides a nominal output of 11 V DC, 40 mA, optimized for driving low-power field devices.
Load Compatibility: Typical load is 300 ohms, capable of reliably driving Ex-certified solenoid valves, alarm sounders, and indicator lamps. Its "Solenoid Driver" signal type indicates that its output characteristics are particularly suitable for driving inductive loads.
3. Comprehensive Channel Diagnostics and Protection
Open and Short Circuit Detection: Each channel can be independently configured for open circuit (wire break) and short circuit (wire-to-wire or wire-to-ground) detection. Upon detecting a fault, the module immediately reports it to the system and displays it on the channel status indicator on the module's front panel, enabling quick localization and maintenance.

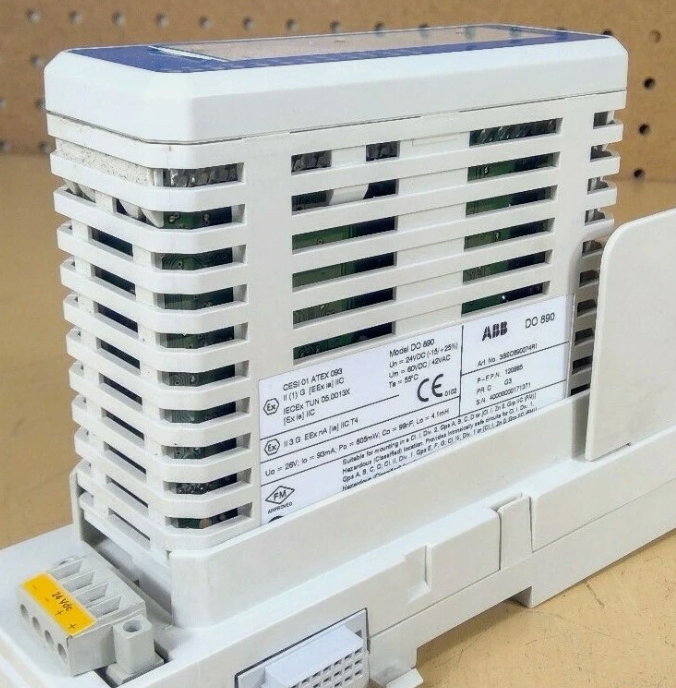

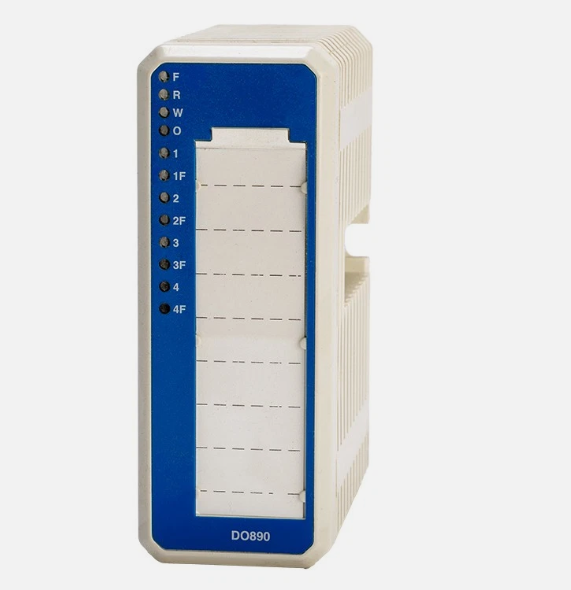

Channel Status Indication: Each channel is equipped with an independent LED indicator, providing real-time display of output status (on/off) and fault status (normal/error), offering intuitive local diagnostics.
4. Excellent Electrical Isolation Performance
Full Channel Isolation: All four output channels are fully electrically isolated (Galvanic Isolation) from each other. This means a fault on any one channel (e.g., overvoltage, short circuit) will not affect the normal operation of other channels, significantly improving system reliability and availability.
System-Level Isolation: All channels are also electrically isolated from the ModuleBus communication bus and the module's power supply. This design effectively prevents ground loop interference, currents caused by potential differences, and transient overvoltages that may be introduced from the field side from impacting the core network of the control system, ensuring stable operation.
5. Flexible Power Supply and Connection
Power Supply: The operating power for the module's output stages is converted from the 24 V DC supply provided on the module's power supply terminals.
Simplified Wiring: When used with the TU890/TU891 Compact MTU (Micro Terminal Unit), it enables two-wire connection to field devices without additional intermediate terminals, reducing connection points and potential failure sources, and saving installation space and time.
6. Seamless System Integration
800xA Integration: As an integral part of System 800xA, the DO890 can be configured uniformly via Control Builder Professional for hardware configuration and parameter setting.
DTM Support: Supports Device Type Manager (DTM), allowing for advanced configuration, diagnostics, and maintenance operations in engineering tools supporting FDT/FRAME technology (such as 800xA's Device Management), enabling intelligent device management.
3. Application Scenarios
Leveraging its intrinsic safety characteristics and reliable driving capability, the DO890 module is widely used for controlling devices in hazardous areas in the following industrial scenarios:
Process Valve Control: Driving Ex-certified pneumatic or hydraulic solenoid valves used for isolation or regulation in chemical, oil, and gas pipelines.
Safety & Alarm Systems: Activating explosion-proof alarm sounders within hazardous areas to provide audible and visual warnings in emergencies.
Status Indication: Illuminating explosion-proof indicator lamps to remotely display equipment status (e.g., running, stopped, fault).
Fire & Gas / Emergency Shutdown (ESD): Acting as part of a Safety Instrumented System to trigger actions of safety-related equipment.
General Load Control: Can also be used as a general-purpose low-power DC load switch in non-hazardous areas or when using the TU891.
Its 4-channel design provides good flexibility for controlling multiple small devices or as part of a redundant configuration.
4. Installation, Configuration, and Diagnostics
Installation
The DO890 module is installed on a standard rack in an S800 I/O station. Field cables are connected via the front connector or, preferably, the TU890/TU891 Compact MTU. Using TU890/TU891 eliminates the need for additional terminal blocks, enabling compact and reliable connections, especially suitable for high-density installations.
Configuration
Module configuration is primarily done through the ABB Control Builder Professional engineering software:
Module Parameters: Set global parameters, such as the Power supervision mode, to monitor the health of the 24V supply.
Channel Parameters: Independently configure each channel:
Activate/Deactivate: Unused channels can be deactivated.
OSP Control & Value: May be used to set output safety values (e.g., forcing output to a predetermined state on fault; refer to the latest manual for specific functionality).
Channel Supervision: Enable or configure open/short circuit detection.
When connected to an AC 800M controller, all configuration is done via Control Builder; if managed as a standalone device through other means, its DTM can be used for configuration within an FDT frame application.
Diagnostics and Maintenance
Real-time Diagnostics: The module continuously performs internal diagnostics and channel load diagnostics (open/short circuit).
Status Feedback: Channel status (OK/Error) is reported in real-time to the control system via the Channel Status Byte, allowing operators to monitor it on the Human-Machine Interface (HMI).
Local Indication: The LED per channel on the module's front panel provides the most direct means for local fault localization.
DTM Diagnostics: The DTM provides access to more detailed device information, historical fault records, and health status, facilitating preventive maintenance and fault analysis.
5. Summary of Advantages
Highest Safety: Built-in intrinsic safety protection is the gold standard for connecting to hazardous area devices, fundamentally enhancing plant safety levels.
Cost-Effective: Eliminates external safety barriers, significantly reducing hardware costs, cabinet space requirements, and installation wiring effort.
High Reliability: Full channel isolation design effectively prevents fault propagation. Powerful diagnostic functions ensure quick fault detection and handling, maximizing system availability.
Excellent System Integration: As a native component of the 800xA ecosystem, it enables seamless lifecycle management from engineering, configuration, and commissioning to operation and maintenance.
Application Flexibility: Suitable for both Ex and non-Ex areas, compatible with various field devices. The four-channel design meets diverse control needs.
Easy Maintenance: Clear local indication, remote diagnostic capability, and DTM tool support make daily maintenance and troubleshooting faster and more efficient.
