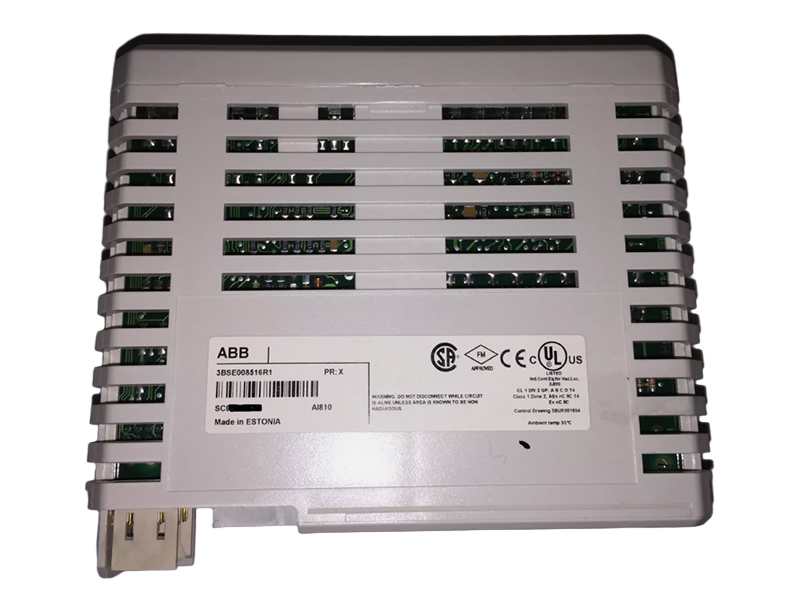

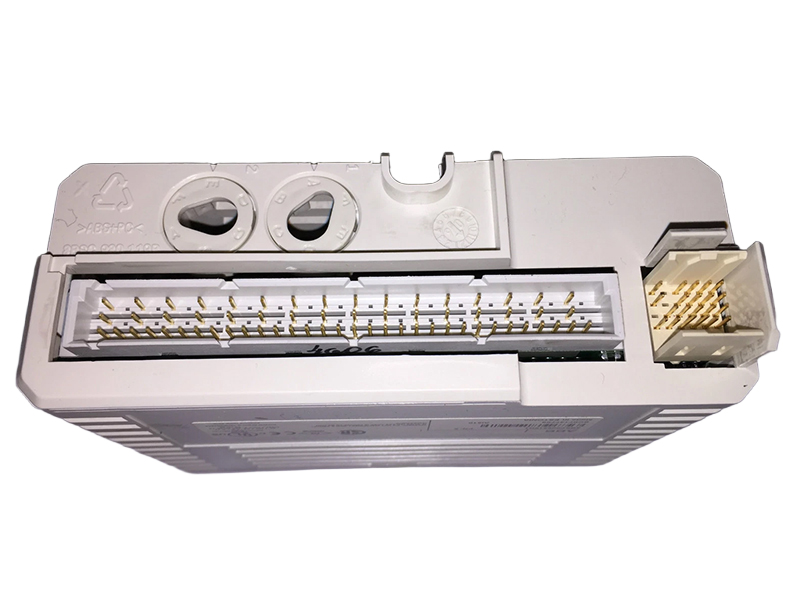

Article number | 3BSE008516R1 |
Type | Analog Input |
Signal specification | 0..20mA, 4..20mA, 0..10V, 2..10V |
Number of channels | 8 |
Signal type | Unipolar single ended |
Resolution | 12 bit |
Width | 45 mm (1.77”) |
Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
Height | 119 mm (4.7”) |
Weight | 0.2 kg (0.44 lbs.) |
Input impedance | 290 kΩ (voltage input)
230 - 275 kΩ (current input) |
Isolation | Groupwise isolated from ground |
Under/over range | -5% / +15% |
Error | Max. 0.1% |
Temperature drift | Voltage: Typ. 70 ppm/°C Max. 100 ppm/°C; Current: Typ. 50 ppm/°C Max. 80 ppm/°C |
Input filter (rise time 0-90%) | 140 ms |
Update cycle time | 8 ms |
Current limiting | Transmitter power can be current limited by the MTU |
Maximum field cable length | 600 meters (656 yards) |
Max input voltage (non destructive) |
|
NMRR, 50Hz, 60Hz | > 40 dB |
Rated insulation voltage | 50 V |
Dielectric test voltage | 500 V a.c. |
Power dissipation | 1.5 W |
Current consumption +5 V Modulebus | 70 mA |
Current consumption +24 V Modulebus | 40 mA |
Current consumption +24 V external | 0 |

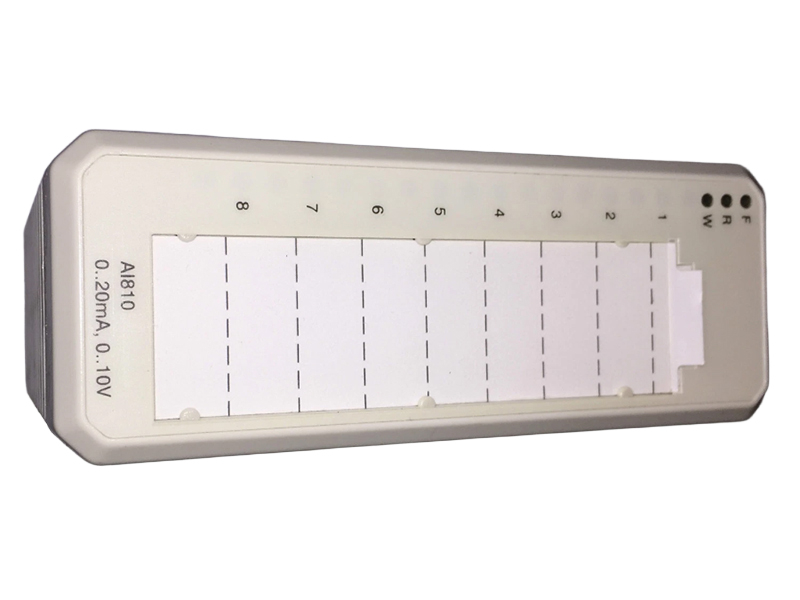

Front LED’s | F(ault), R(un), W(arning) |
Supervision | Internal power supply |
Status indication of supervision | Module Error, Module Warning, Channel error |
CE mark | Yes |
Electrical safety | EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
Marine certification | ABS, BV, DNV, LR |
Temperature, Operating | 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
Pollution degree | Degree 2, IEC 60664-1 |
Corrosion protection | ISA-S71.04: G3 |
Relative humidity | 5 to 95 %, non-condensing |
Max ambient temperature | 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
Protection class | IP20 according to IEC 60529 |
Mechanical operating conditions | IEC/EN 61131-2 |
EMC | EN 61000-6-4, EN 61000-6-2 |
Overvoltage categories | IEC/EN 60664-1, EN 50178 |
Equipment class | Class I according to IEC 61140; (earth protected) |
RoHS compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
WEEE compliance | DIRECTIVE/2012/19/EU |
Use with MTU | TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU850 |
Keying code | AE |
