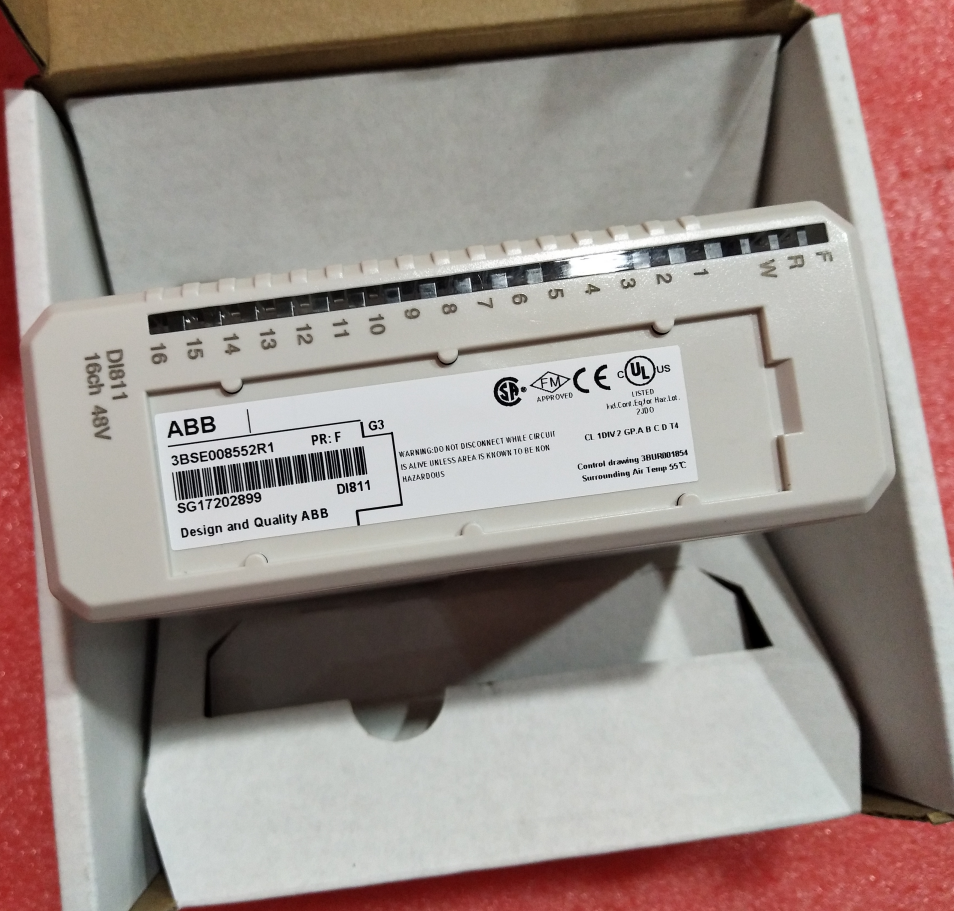

The DI811 is a high-performance digital input module belonging to the S800 I/O series within the ABB Ability™ System 800xA® and Symphony Plus control system platforms. It is specifically designed for reliable and robust switching signal acquisition in industrial automation environments. The module's core function is to receive 48V direct current (DC) digital signals from field devices (such as status signals from limit switches, pushbuttons, relay contacts, etc.) and convert them into digital data recognizable and processable by the control system.
The DI811 employs a Current Sinking type input circuit, a common and reliable connection method in industrial control. The module provides 16 independent input channels, intelligently divided into two completely electrically isolated groups of 8 channels each, with one process voltage supervision input per group. This grouped isolation design significantly enhances system stability and safety by effectively suppressing ground loop currents and common-mode interference, preventing a fault in one group from affecting the other. It is particularly suitable for complex or distributed field wiring environments.
The module features a compact design and can be installed on various Module Termination Units (MTUs), offering flexible connection options to meet different field wiring needs (e.g., terminal block connections, D-Sub connectors, etc.). With its wide operating voltage range, built-in Electromagnetic Compatibility (EMC) protection, configurable digital filters, and comprehensive diagnostics, the DI811 is an ideal choice for demanding applications in discrete manufacturing, process industries, energy, and infrastructure.
II. Key Features and Benefits
High Density and High Reliability Input: Integrates 16 channels of 48V DC digital input, optimizing cabinet space utilization while ensuring long-term stable operation through high-quality components and isolation design.
Enhanced System Safety: Channels are divided into two isolated groups of 8 each. This design effectively contains faults and prevents interference propagation, improving the robustness of the entire I/O system.
Comprehensive Voltage Supervision: Each group includes a dedicated process voltage supervision input. It immediately detects loss or abnormality of the 48V power supply feeding the sensors in that group, generates a channel error signal, and reports it via the ModuleBus to the control system for rapid fault location and early warning, reducing downtime.
Powerful Noise Immunity:
Configurable Digital Filters: Each channel can independently select digital filter times of 2ms, 4ms, 8ms, or 16ms, effectively filtering out noise spikes on field wiring (pulses shorter than the filter time are suppressed), ensuring signal accuracy.
Built-in EMC Protection: Each input channel integrates EMC protection components to withstand surges, burst pulses, and other electromagnetic interference from field lines, complying with stringent industrial EMC standards.
Long-Distance Transmission Support: Supports a maximum field cable length of 600 meters, suitable for applications with widely dispersed equipment.
Intuitive Status Diagnostics:
Per-Channel LED Indication: Each input channel has an independent LED indicator, displaying the channel's logic state ("0" or "1") in real-time for quick on-site troubleshooting.
Module-Level LED Indication: The module front provides status LEDs for Fault (F), Run (R), and Warning (W), offering an immediate overview of the module's health.
Comprehensive Diagnostic Information: Beyond voltage supervision errors, all diagnostic statuses (Module Error, Module Warning, Channel Error) can be read via the ModuleBus, facilitating centralized and remote monitoring.
Flexible Mounting and Connection: Compatible with up to 8 different Module Termination Units (MTUs), including Compact and Extended types. Supports various connection methods like screw terminals, D-Sub connectors, and fused power output terminals. Enables direct connection to two-wire or three-wire sensors without additional marshaling, simplifying engineering, installation, and maintenance.
Wide-Range Power Supply Adaptation: The input signal voltage range covers 30V to 60V (logic "1"), with a nominal operating voltage of 48V DC. It operates reliably within a wide supply range of 36V to 60V DC, showing good adaptability to power fluctuations.
Low Power Consumption Design: Typical power dissipation is only 2.7W (calculated with 70% of channels active at 48V), helping to reduce the overall cabinet thermal load and improve system energy efficiency.
Extensive Industry Certifications: The product holds various international certifications including CE, cULus (for Class I Div 2 / Zone 2 hazardous locations), ATEX Zone 2, ABS, BV, DNV, LR, meeting the entry requirements for major global markets regarding electrical safety, hazardous environments, and marine applications.
III. Design Features in Detail
1. Internal Architecture and Isolation:
Each input channel of the DI811 forms a complete signal conditioning chain. The signal enters from the field terminal and passes sequentially through current limiting components (protecting internal circuitry), EMC protection components (filtering high-frequency interference), an opto-coupler (providing critical electrical isolation between the input side and the control system side), before being sent to the internal logic for processing. Group Isolation is a highlight of the DI811, physically and electrically dividing the 16 channels into two independent "islands." Each "island" has its own reference ground, with high-grade isolation barriers between them and between them and the system backplane (ModuleBus). This design completely severs interference paths that could be introduced via common ground lines, which is crucial for plants with long cable runs or complex grounding systems.
2. Process Voltage Supervision:
Within each 8-channel group, besides the 8 signal input points, a dedicated voltage supervision input is designed. This input continuously monitors whether the 48V power supply (typically labeled L1+, L2+) feeding all sensors/devices in this group is normal. Upon detecting loss or drop below a threshold of this group's supply voltage, the module logic immediately flags all channels in that group with an "error" status and reports a "group power fault" event via the ModuleBus to the controller. This enables operations and maintenance personnel to quickly distinguish between a single sensor fault and a power supply issue for the entire loop, greatly improving troubleshooting efficiency.
3. Status Indication and Diagnostic Communication:
Diagnostic information is presented at two levels:

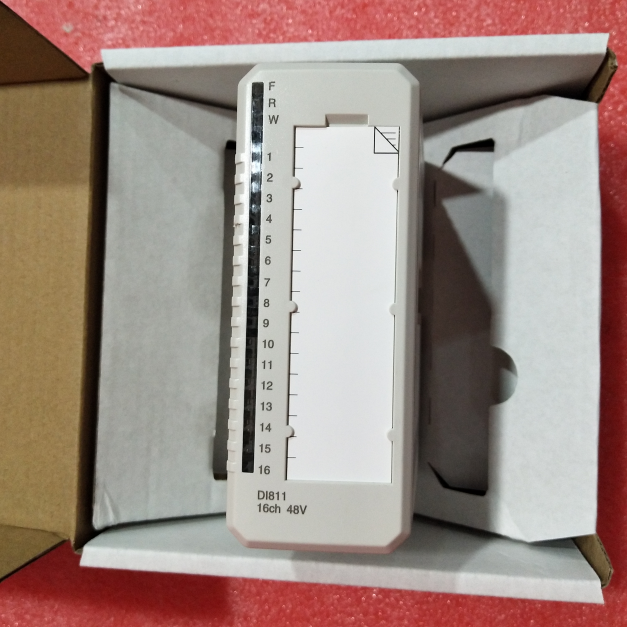

Local Hard Indication: The 16 densely packed green LEDs on the front panel provide the most direct reflection of channel status. The three-color F/R/W LEDs above offer a summary health status: steady green "Run" indicates normal operation; flashing yellow "Warning" may indicate non-critical warnings (e.g., filter configuration change); steady or flashing red "Fault" signifies a serious error (e.g., module initialization failure, group power loss).
Remote Soft Diagnostics: All detailed diagnostic information, including specific faulty channel numbers, voltage supervision status, module internal temperature (if available), etc., is transmitted in real-time via the high-speed ModuleBus to the上级 controller or system software (e.g., 800xA). It can be displayed visually on engineering or operator station HMIs, supporting historical data logging and alarm management.
4. Configurable Digital Filters:
Industrial field environments are complex, and cables may pick up transient interference pulses. The DI811's software-configurable filter acts as a "debounce" timer for each channel. Users can select filter times of 2ms, 4ms, 8ms, or 16ms in the configuration software based on actual field conditions (e.g., button bounce time, relay contact chatter, ambient noise level). Only stable signal changes lasting more than three times the selected filter time (e.g., >12ms for a 4ms filter) will be recognized as valid input state changes. This effectively avoids false triggering due to instantaneous interference, enhancing system reliability.
5. Flexible MTU Adaptability:
The DI811 module itself does not connect directly to field cables; it plugs into various Module Termination Units (MTUs). The MTU provides the physical wiring terminals. The DI811 is compatible with a wide range of MTU types:
TU810/TU814 (Compact): Provide standard screw terminals, cost-effective, but require external terminals for power distribution.
TU812 (Compact): Provides a D-Sub 25-pin (male) connector, suitable for standardized connections with pre-made cables and connectors, facilitating quick plugging/unplugging and maintenance.
TU818 (Compact): Designed specifically to simplify connection to two-wire sensors, reducing external marshaling.
TU830/TU833 (Extended): Support direct connection of three-wire sensors (Power+, Signal, Power-), requiring no external terminals, offering high integration.
TU838 (Extended): Builds on extended connectivity by additionally providing one fuse (max. 3A) per two channels for protected power output to field actuators (e.g., small solenoids), offering stronger functionality.
TU850 (Extended): Provides one disconnectable PTC fused sensor/transmitter power outlet terminal per channel, offering self-resetting overcurrent protection and a high level of safety.
Users can select the most suitable MTU based on specific project factors like sensor type, wiring practices, and the need for integrated power protection, achieving a high degree of engineering flexibility.
IV. Environmental Suitability and Certifications
The DI811 is designed and tested in strict accordance with industrial product standards. It features a wide operating temperature range, can operate stably in high-humidity, non-condensing environments, and possesses G3-level resistance to corrosive gases, making it suitable for most industrial plants. Its IP20 protection rating indicates protection against finger contact with hazardous parts, but it is primarily intended for installation inside protective enclosures, guarding against direct ingress of solid objects and dripping water.
Regarding safety certifications, the DI811 not only meets basic CE directive requirements but also holds UL and ATEX certifications for Class I Division 2 / Zone 2 hazardous locations. This means it can be installed in areas where flammable gases or dust may be present but are unlikely to form an explosive atmosphere under normal operating conditions (e.g., specific areas in petrochemical, pharmaceutical, grain processing plants), significantly expanding its application scope. Concurrently, certifications from major marine classification societies (ABS, BV, DNV, LR) enable its use on offshore platforms and vessels.
V. Application Areas
Thanks to its ruggedness, reliability, and flexibility, the DI811 is widely used in:
Process Industries: Signal acquisition for valve status, pump start/stop, level switches, pressure switches in chemicals, oil & gas, pharmaceuticals, water treatment.
Discrete Manufacturing: Monitoring of safety door switches, position sensors, pushbuttons, and selector switches in automotive manufacturing, semiconductor production lines, packaging machinery.
Energy & Power Distribution: Monitoring of auxiliary contacts for circuit breakers and disconnectors in power plants and substations.
Infrastructure: Equipment status feedback in building automation and metro signaling systems.
Marine: Various alarm and status monitoring points in ship engine room automation systems.
