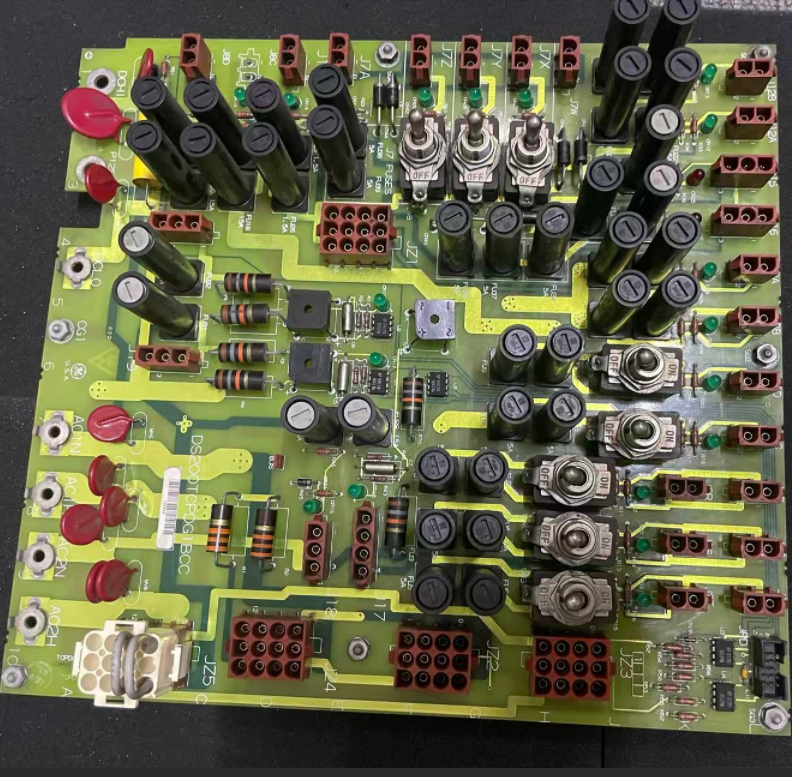

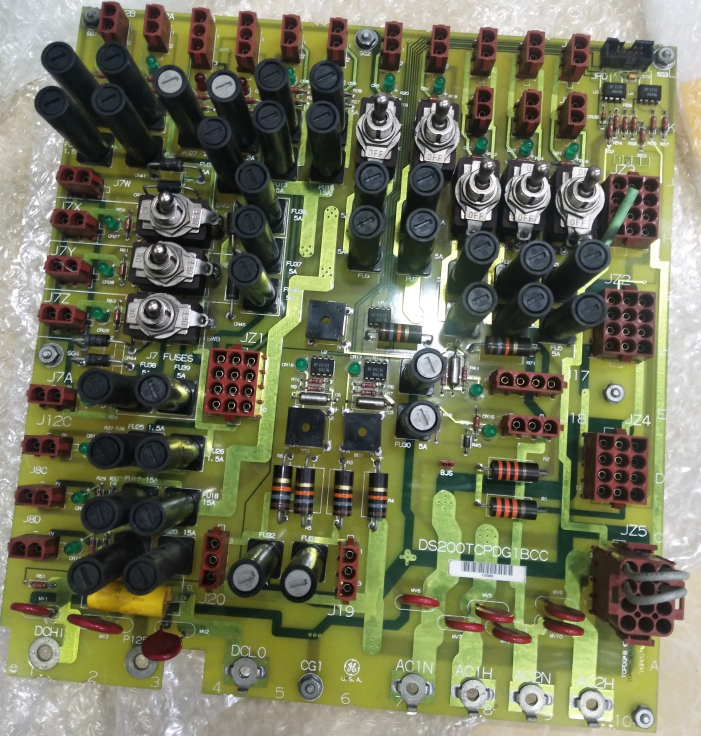

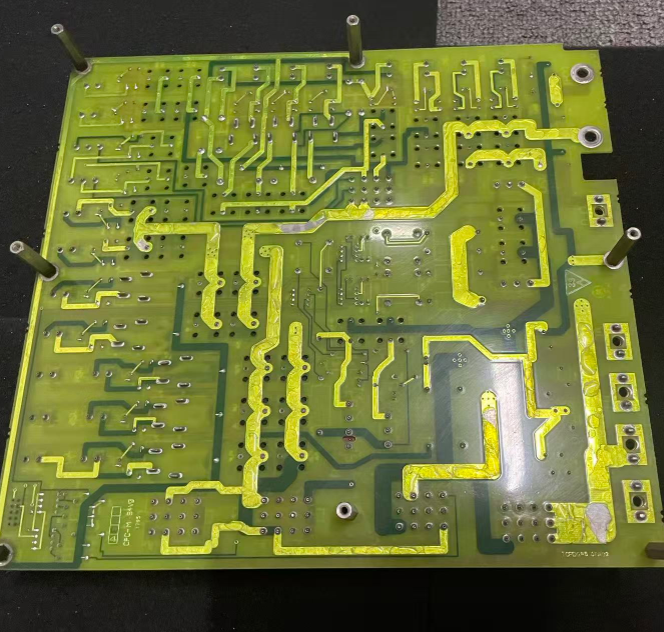

The DS200TCPDG1B (Power Distribution Core) is a vital primary power distribution and management center within GE's Speedtronic™ Mark V turbine control system. It does not perform fine voltage conversion directly but acts as the control panel's "power gateway" and "main switchboard." It is responsible for receiving raw AC and DC power from the plant, performing necessary primary processing, distribution, and protection, and then delivering it safely and reliably to various processor cores (e.g., <R>, <S>, <T>, <C>, <P>) and functional cards within the panel. The design of the TCPD core adheres to industrial-grade principles of high reliability, safety, and maintainability. It is the prerequisite for ensuring the entire Mark V control system receives a clean and stable energy supply, and its performance is directly related to the operational safety of the entire control system.
II. Key Functions
As a comprehensive power distribution unit, the DS200TCPDG1B core integrates the following key functions:
1. Reception and Isolation of Multiple Input Power Sources
The DS200TCPDG1B is the primary interface for external power entering the Mark V control panel. It is designed to receive various types of input power to accommodate different plant configurations:
High-Voltage DC Power Input: Typically 125V DC, this is the main operating power for the Mark V control system, powering control logic, processors, and most internal circuits. Input is via dedicated screw terminals (e.g., ST-DCHI and ST-DCLOW).

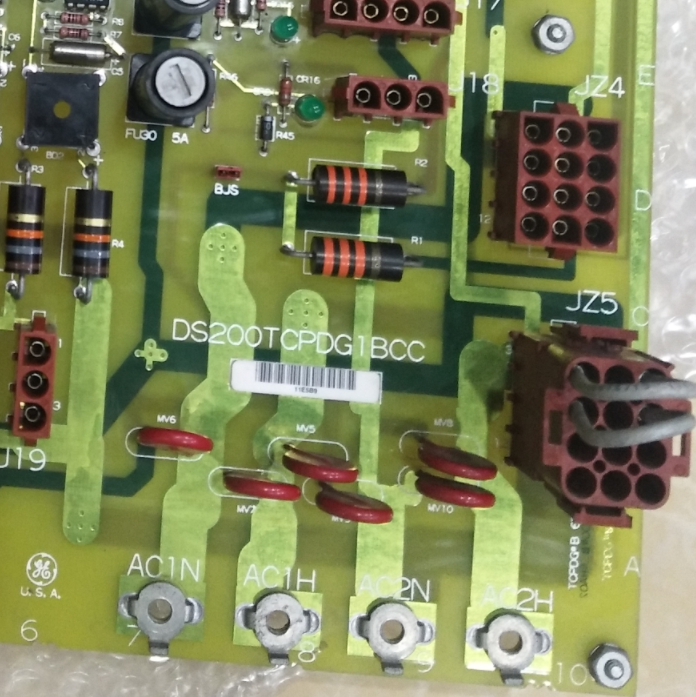

AC Power Input: Typically equipped with two independent AC inputs, e.g., 120VAC or 240VAC. These AC sources may be used to drive fans within the control panel, auxiliary relays, or as isolated power for certain specific I/O modules. They are connected via their respective screw terminals (e.g., ST-AC1H/ST-AC1N and ST-AC2H/ST-AC2N), providing electrical isolation between AC and DC circuits, as well as between circuits for different purposes.
2. Power Distribution and Routing
After receiving external power, the DS200TCPDG1B core accurately distributes this power to various sub-cores through its internal busbars, cables, and connectors:
DC Power Distribution: Distributes the 125V DC high-voltage DC power via the backplane or internal wiring to each core that requires it, such as the TCPS (Power Supply Card) within the <R>, <S>, <T>, <C>, <P>, etc., cores. The TCPS card in each core then converts this high-voltage DC to the required low-voltage DC (e.g., ±5V, ±15V, ±24V).
AC Power Distribution: Routes the input AC power to devices within the panel that require AC power, such as AC fan power supplies, dedicated AC power outlets, etc.
3. System-Level Electrical Protection
The DS200TCPDG1B is the first protective barrier in the control panel's power path, and its protective functions are crucial:
Main Circuit Fuse Protection: The main input circuits for both DC and AC are equipped with high-breaking-capacity user-supplied fuses. These fuses protect against severe short-circuit faults originating outside the panel or internal busbar shorts, preventing fault currents from damaging the entire distribution system. They are key components for system safety.
Core-Level Power Control: In newer Mark V panels, the DS200TCPDG1B core may be equipped with independent circuit breakers or switches for each sub-core (e.g., <R>, <S>, <T>, <C>). This allows maintenance personnel to individually energize or de-energize each core, greatly facilitating online maintenance and troubleshooting without cutting power to the entire control system.
Overvoltage and Surge Protection: While the manual does not specify detailed Surge Protective Devices (SPDs), such industrial designs typically integrate basic overvoltage absorption devices to suppress surges and voltage spikes introduced from the power lines, protecting subsequent expensive electronic equipment.
4. Grounding and Reference Potential Management
The DS200TCPDG1B core plays a central role in the control system's grounding architecture:
Establishing a Common Ground Point: It provides a centralized connection point for the DC common (e.g., CCOM) and AC neutrals (e.g., AC1N, AC2N) within the panel.
Panel Grounding Connection: A main ground lug is designed at the bottom of the panel, which must be reliably connected to the plant's ground grid using a cable of sufficient cross-sectional area. The TCPD internally ensures that all safety grounds and signal reference grounds ultimately converge here.
Ground Integrity Check: The manual specifically emphasizes that before initial energization, a grounding check must be performed. The braided conductor and capacitor connecting the CCOM bus to the panel ground must be temporarily disconnected, and the resistance between them must be measured with an ohmmeter to confirm the existence of one and only one ground point, avoiding ground loops that can introduce noise or cause equipment malfunctions.
5. Status Indication and Power Monitoring
The DS200TCPDG1B core provides intuitive power status feedback:
Voltage Indication: The core may be equipped with voltmeters or test points (though not explicitly listed in the DS200TCPDG1B section, this is common design) to monitor whether the input voltages are normal.
Power Indicators: The core's front panel is typically equipped with LED indicators, visually showing the presence and status of DC and AC input power.
Fuse Status Indication: Some designs may include blown fuse indicators for quick identification of failed fuses.
III. Working Principle
The working principle of the DS200TCPDG1B core can be understood as a highly reliable "Power Routing and Guardian System." Its operational flow is as follows:
1. Power Input and Primary Filtering
External cables are connected to the screw terminal blocks on the back or front of the DS200TCPDG1B. After power enters, it first passes through an input filter network. This network typically consists of inductors (chokes) and capacitors, serving to:
Suppress Electromagnetic Interference (EMI): Prevent conducted electromagnetic interference from the grid or external environment from entering the control system.
Reduce Noise Emission: Prevent switching noise generated internally by the control system from feeding back into the external power lines.
2. Power Path and Distribution Logic
The filtered "clean" power is directed to the main busbars. DC and AC power are physically isolated, having their own independent busbars.
DC Distribution Path: The 125V DC busbar distributes power to the TCPS card in each sub-core via internal wiring or through backplane connectors. The TCPS card, as a secondary converter, draws its energy from here. The distribution path is series-connected with main fuses for overcurrent protection.
AC Distribution Path: The AC busbar directly supplies AC loads like fans and sockets, either directly or via branch fuses/circuit breakers. The manual specifies two independent AC inputs, which provides the possibility of redundant power supply for critical AC loads (e.g., cooling fans); if one fails, the other can take over automatically or manually, enhancing system availability.
3. Implementation of Protection Mechanisms
Protection functions are integrated throughout the entire power path:
Fuse Operating Principle: Fuses operate based on the "It" (Ampere-squared-seconds) principle. When the current flowing through the fuse exceeds its rating and persists for a certain time, the metal fuse element inside melts and vaporizes due to overheating, thereby breaking the circuit. Their operating characteristic is inverse time, meaning the greater the overcurrent, the shorter the fuse clearing time. They are strategically placed at the power entrance to maximize the scope of protection.
Core Switch Control: Core-level switches (if equipped) are typically thermal-magnetic circuit breakers. They not only allow manual circuit opening and closing but can also trip automatically in the event of a severe overload or short circuit within the corresponding core, implementing zonal protection and limiting the impact of a fault to a single core.
4. Construction of the Grounding System
The TCPD is the star point or central point of the panel's grounding system.
Safety Grounding: All accessible parts like the panel metal structure, doors, and card rails are connected to the TCPD's main ground terminal via protective grounding conductors, ensuring personnel safety.
Signal Reference Ground: The control system's common reference potential (CCOM, DCOM, etc.) is connected to earth ground at the TCPD via a single-point connection. This design is crucial; it avoids potential differences between different ground points and prevents the formation of "ground loops," which can introduce common-mode noise that severely interferes with sensitive analog and digital signals. The grounding check step emphasized in the manual is precisely to verify the integrity of this "single-point ground" architecture.
5. Transmission of Status Information
Status indication circuits are relatively independent. Power indicator lights are usually LEDs driven directly via current-limiting resistors connected in parallel across the power lines. More complex monitoring functions (e.g., voltage readings) might require a dedicated monitoring module or be collected by sensors in subsequent cores (e.g., the <C> core) and then uploaded to the operator interface <I> via the data network (e.g., DENET) for display and alarm generation.
IV. System Integration and Application
1. Core Position in the Mark V System
The position of the DS200TCPDG1B core within the system is unique; it is the main entry and dispatch point for all energy. It resides at the very front end of the power chain, with downstream connections to all processor core TCPS cards and other loads. Its reliability determines the overall "physical condition" of the entire control system.
