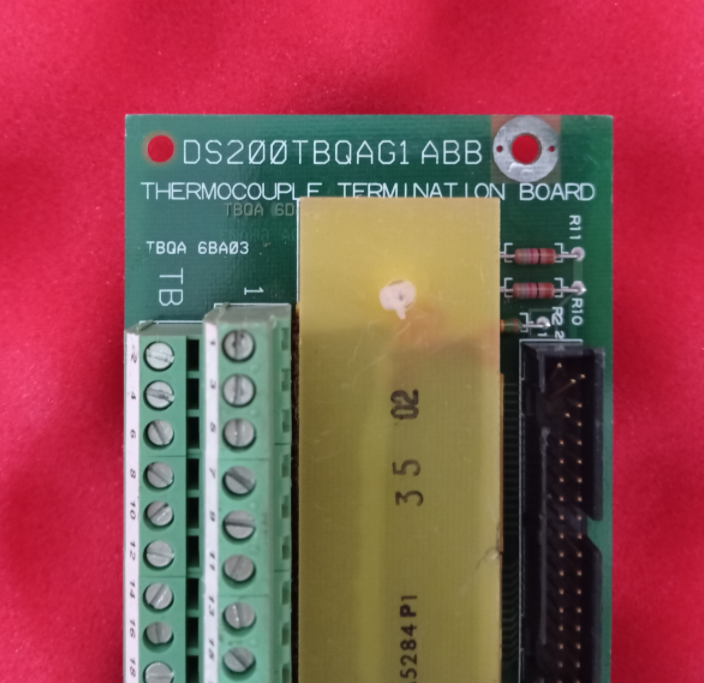

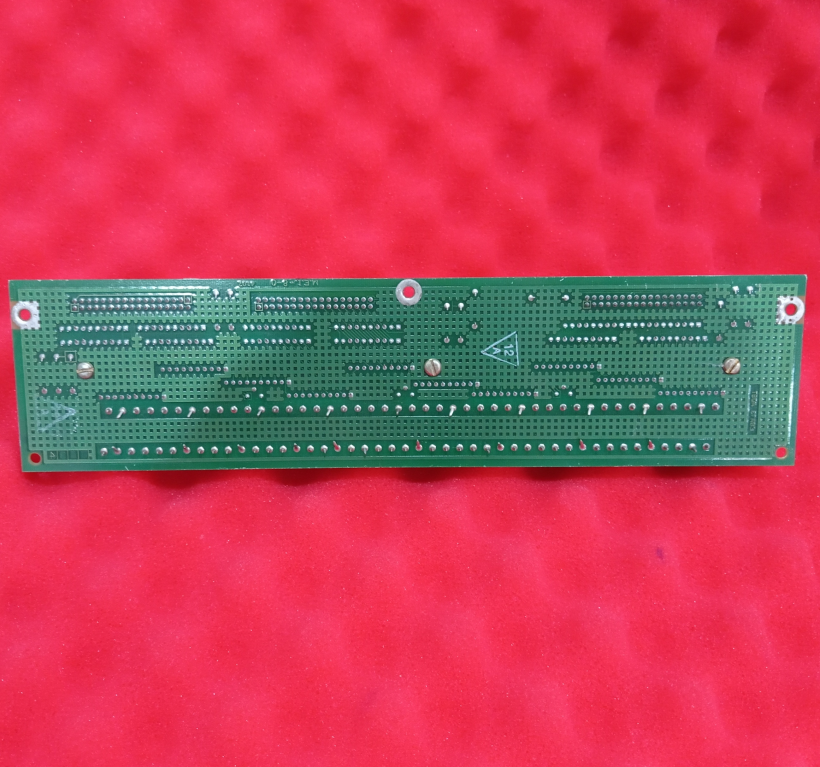

The DS200TBQAG1A Thermocouple Terminal Module is a high-precision front-end interface component specifically designed for thermocouple temperature signal acquisition within the General Electric (GE) Industrial Systems SPEEDTRONIC Mark V LM Gas Turbine Control System. Acting as a dedicated bridge connecting field thermocouple sensors to the analog input boards in the control core, the TBQA module plays the critical roles of a "signal landing zone" and a "cold junction compensator" in the temperature monitoring chain. It is primarily deployed in the <R1> and <R5> cores, serving as the fundamental hardware foundation for the system to obtain and accurately measure critical metal temperatures of the gas turbine (such as turbine wheelspace temperatures, blade path temperatures, bearing temperatures, etc.).
In gas turbine operation, temperature is one of the most critical monitoring and protection parameters, directly impacting unit efficiency, lifespan, and safety. The TBQA module is designed to provide an extremely stable, low-noise connection environment for millivolt-level thermocouple signals. Its precision terminal block design and built-in cold junction compensation circuit ensure signal integrity throughout the entire path from the sensor tip to the control system database, accurately converting tiny differential thermal EMFs into data reflecting the true thermal state. It is an indispensable underlying sensing element for building the unit's temperature protection wall and enabling performance optimization and trend analysis.
II. Product Functions & Features
1. Core Functions
The DS200TBQAG1A module integrates signal termination, cold junction compensation, and routing distribution into a single dedicated thermocouple signal interface:
High-Density Thermocouple Signal Termination:
In the <R1> Core: Provides a centralized terminal board for connecting up to 45 thermocouples. These inputs are intelligently divided into three groups of 15 each, routed via independent connectors to different control cores for processing, achieving load balancing and functional partitioning.
In the <R5> Core: Provides a centralized terminal board for connecting up to 42 thermocouples. Also divided into three groups (typically 14+14+14), all routed to the TCCA board within the <R5> core, primarily for non-control monitoring and data acquisition.

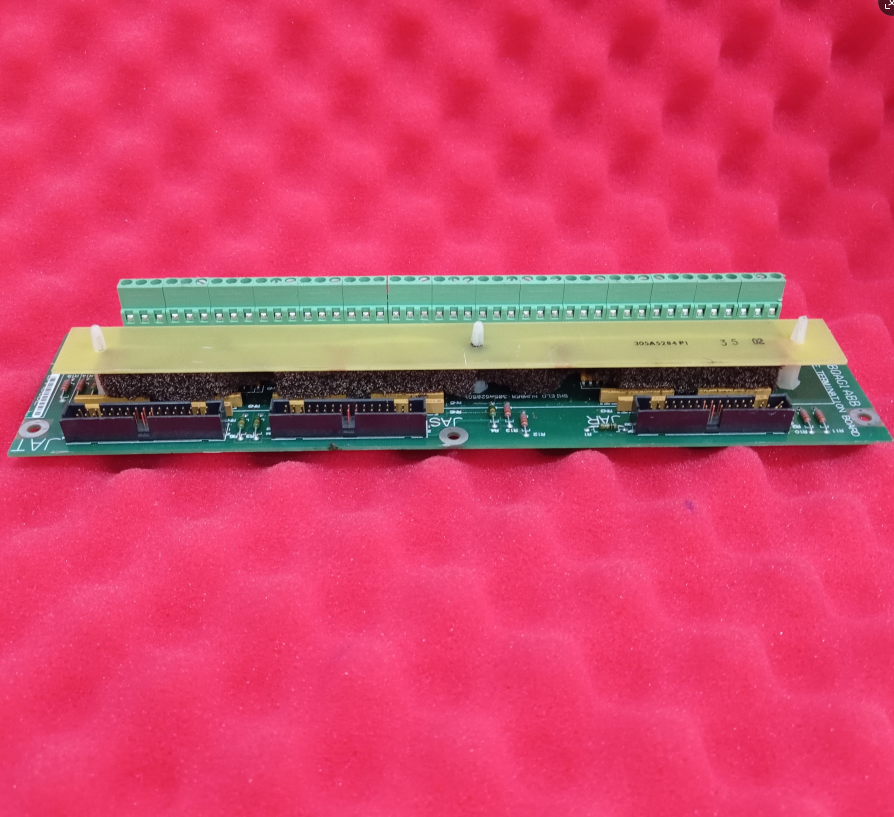

Intelligent Signal Routing & Distribution: This is a highlight of the TBQA architecture design, especially in the <R1> core application.
JAR: Routes thermocouple signals #1-15 to the TCQA board in the <R1> core.
JAS: Routes thermocouple signals #16-30 to the TCQA board in the <R2> core.
JAT: Routes thermocouple signals #31-45 to the TCQA board in the <R3> core.
Serves Multiple Cores: The TBQA board in the <R1> core does not keep all temperature signals for itself. It distributes the 45 thermocouple signals evenly to three analog I/O cores via the JAR, JAS, and JAT connectors:
This design distributes the massive temperature signal processing task across multiple processors, optimizing system computing resource utilization and adhering to redundancy or separation principles in certain applications (e.g., sending temperatures from different cylinders to different cores).
Integrated Cold Junction Compensation: This is the core technology ensuring measurement accuracy. The module incorporates solid-state cold junction compensation devices to measure the ambient temperature at the terminal block (the "cold junction" temperature). This compensation signal (typically a resistance or voltage signal) is sent along with the raw millivolt thermocouple signals via the JAR/JAS/JAT connectors to the downstream TCQA or TCCA boards. These boards use this compensation value, along with the thermocouple type's reference tables, to calculate the true hot junction temperature in °C or °F. Each connector group (corresponding to one thermocouple group) is equipped with an independent cold junction compensation circuit, ensuring precision for each group.
Clean Signal Connection Environment: Utilizes high-quality terminals and isolation design to minimize contact resistance and introduced interference, providing a "clean" connection point for the weak thermocouple signals (typically millivolt level).
2. Design Features
Channel Grouping Optimizes System Architecture: The strategy of grouping numerous thermocouple inputs and distributing them to different processing cores embodies the advanced distributed processing concept of the Mark V LM system. It avoids I/O processing bottlenecks in a single core, enhancing overall system responsiveness and reliability.
High Precision & Stability: Dedicated thermocouple terminal design, high-quality compensation components, and stable PCB layout collectively ensure long-term repeatability and accuracy of temperature measurements, meeting the gas turbine's high-precision requirements for temperature protection and control.
Excellent Noise Immunity: Effectively suppresses common industrial electromagnetic interference (EMI) through shielding, filtering, and proper grounding design, preventing interference from overwhelming the weak thermocouple EMF. The terminal board typically uses isolation design to reduce ground loop effects.
Flexible Sensor Compatibility: Supports various international standard thermocouple types (J, K, E, T, etc.). The specific type is determined by software configuration on the downstream TCQA/TCCA boards; the TBQA itself provides a universal physical interface.
Maintenance-Friendly: Clearly labeled terminal strips, with thermocouples often grouped by physical location or function, facilitate field tracing and wiring verification. The module itself is passive, offering very high reliability.
Dual-Core Differentiated Application: The different configurations in the <R1> and <R5> cores reflect functional division – temperatures associated with the <R1> core are responsible for critical control and protection, while the <R5> core is more for monitoring and performance calculation temperatures.
III. Application Areas
The DS200TBQAG1A module's application is entirely focused on comprehensive, high-precision temperature monitoring of gas turbines, serving as the "temperature sensing network's" main junction box for ensuring unit safety and efficiency:
Turbine Hot Section Protection: Connects thermocouples installed in turbine wheelspaces, turbine casing, blade path areas, etc. These temperatures are the most direct and critical protection basis for preventing turbine overtemperature and avoiding overheating damage to high-temperature alloy components, commonly used to trigger temperature high alarms and high-high trips.
Combustion Monitoring & Emissions Control: Connects thermocouples on combustor liners, transition pieces, etc., for monitoring combustion stability/ uniformity and providing key inputs for control algorithms of advanced combustion systems like Dry Low Emissions (DLE).
Bearing & Lube Oil System Monitoring: Connects thermocouples on main bearings, thrust bearings, etc., to monitor bearing temperature and prevent wipe failures due to poor lubrication or abnormal load. Also used to monitor lube oil cooler outlet temperature.
Inlet/Exhaust System Monitoring: Connects thermocouples at compressor inlet, compressor discharge, and turbine exhaust (exhaust temperature, typically multi-point). These temperatures are used for calculating unit performance (efficiency, heat rate), monitoring compressor surge margin, and controlling Inlet Guide Vanes (IGV).
Auxiliary System Temperature Monitoring: Connects thermocouples on auxiliary systems like fuel gas heaters, gearboxes, generator windings/bearings, ensuring safe operation of the entire generating unit.
IV. Product Advantages
System-Level Architecture Optimization: The unique grouped, cross-core routing design of the <R1> core TBQA is its greatest systemic advantage. It intelligently distributes the load of up to 45 dense temperature signals across three I/O processors, avoiding single-point processing bottlenecks, improving data refresh rates, and enhancing overall system reliability. It is an excellent engineering example for handling large-volume analog inputs.
Core Design Ensuring Measurement Accuracy: Integrated, multi-channel independent cold junction compensation is the cornerstone of precision. By measuring and compensating for ambient temperature changes directly at the terminal block, it fundamentally eliminates measurement errors introduced by wiring cabinet temperature fluctuations, ensuring accurate readings even in small differential temperature measurements.
High Signal Fidelity: As a dedicated thermocouple interface, its material selection, terminal design, and layout are optimized for microvolt/millivolt-level signals, featuring low contact resistance and strong noise immunity, providing a "clean" source signal for downstream high-precision analog-to-digital conversion.
Unmatched Channel Capacity & Flexibility: A single board provides 42 or 45 high-precision temperature channels with high density. Supports multiple thermocouple types via software configuration, eliminating the need for different hardware for different thermocouple types, greatly simplifying design and spare parts management.
Excellent Reliability & Maintainability: Purely passive design (passive terminals plus compensation circuits) offers high inherent reliability. Clearly arranged terminals, typically grouped by engine physical location, greatly facilitate field installation, wire tracing, and troubleshooting (e.g., judging sensor health by measuring millivolt value at the terminal).
Clear Functional Partitioning: The different applications in the <R1> and <R5> cores perfectly embody the separation principle of "control/protection" vs. "monitoring/performance" in control systems. Critical protection temperatures go to control cores, while numerous monitoring temperatures go to the monitoring core, making the system structure clear and functional safety levels well-defined.
V. Installation, Configuration & Maintenance Guide
1. Installation
Install the DS200TBQAG1A module in the designated location within the <R1> or <R5> core per drawings.
Thermocouple Wiring: This is a critical step. Use correct thermocouple extension wire (matching the thermocouple type). Securely tighten the wires onto the corresponding terminals according to the clear numbering on the terminal strip. Pay strict attention to polarity: Thermocouples have positive and negative (+/-) leads; incorrect wiring will cause erroneous readings. Terminals are typically marked "+" and "-" or use color coding.
Connector Installation: Securely plug the JAR, JAS, JAT connector cables into the corresponding sockets on the downstream TCQA or TCCA boards, noting orientation (align "trace" side).
2. Hardware Configuration
The DS200TBQAG1A itself has no hardware jumpers to configure. This is an important characteristic, meaning its interface is standardized.
Downstream Board Configuration: All measurement-related configuration is performed in the software of the downstream TCQA (for <R1>/<R2>/<R3>) or TCCA (for <R5>) boards. This includes:
Selecting the thermocouple type (J, K, E, T, etc.) for each channel.
Setting engineering units (°C or °F), range.
Configuring alarm thresholds (High, High-High, Low, Low-Low).
Enabling or disabling channel diagnostics (e.g., open circuit detection).
3. System Integration & Calibration
Upon system power-up, downstream I/O boards read the raw millivolt signals and cold junction compensation values from the TBQA.
Software Linearization: The control system software (based on database files like IOSCALE.DAT) uses the corresponding reference table algorithms for the configured thermocouple type to convert millivolt values to temperature values.
System Calibration: Typically, the temperature measurement accuracy of the system is achieved by calibrating the input circuits of the downstream TCQA/TCCA boards. Thermocouple sensor calibration is usually performed at the sensor end. The TBQA's cold junction compensation circuit is calibrated at the factory and generally does not require field adjustment.
4. Maintenance & Troubleshooting
Preventive Maintenance: Periodically check terminal tightness to prevent increased contact resistance or signal interruption due to loosening. Keep the module clean.
Troubleshooting:
HMI Preliminary Check: View the raw millivolt value for that point (via I/O monitoring tools). A value of zero or out-of-range may indicate an open or short circuit.
Field Measurement (with power off): At the TBQA terminal block, disconnect from the downstream system. Use a high-impedance millivolt meter to measure the EMF generated by that thermocouple loop and compare it with the estimated millivolt value based on actual field temperature. This helps determine if the issue is with the sensor/wiring or the control system channel.
Channel Swap Test: If possible, move the suspect thermocouple wires to a known-good spare channel to see if readings normalize, further isolating the fault.
Abnormal Temperature Display at a Point (e.g., displaying max/min values or jumping):
Drift in an Entire Group of Temperatures: Check the reliability of the JAR/JAS/JAT connection providing cold junction compensation for that group. Consider the possibility of a faulty ambient temperature sensor (cold junction compensation device) – rare.
Module Replacement: When replacing a DS200TBQAG1A module, exercise extreme care in documenting or labeling the position of every thermocouple wire. After installing the new board, restore all wiring exactly as before. As it is a passive board, the main verification point after replacement is the restoration of reasonable readings for all temperatures.
VI. Safety Precautions
Intrinsic Safety: The DS200TBQAG1A module handles low-energy thermocouple signals and poses no high-voltage hazard itself. However, wiring operations should still be performed with the control system powered down or confirmed safe, as other high-voltage lines may be present in the same cabinet.
Correct Wiring is the Foundation of Safety: Ensure correct polarity for each thermocouple. Reverse polarity causes incorrect temperature indication, potentially masking actual overtemperature conditions, leading to protection failure and serious safety incidents.
Grounding Considerations: Be aware of whether grounded or ungrounded thermocouples are used. Grounded thermocouples may conduct to equipment casing; this must be considered uniformly during wiring and system grounding design to prevent ground loops that introduce interference.
Prevent Signal Interference: Thermocouple signal wires should be routed separately from power cables and switchgear lines. Shielded cable is preferable, with the shield grounded at a single point at the TBQA end to prevent EMI from causing temperature reading fluctuations or distortion.
Professional Operation: Although the module is simple, the sensors it connects are critical. Installation, calibration, and maintenance should be performed by personnel familiar with thermocouple principles and control systems.
