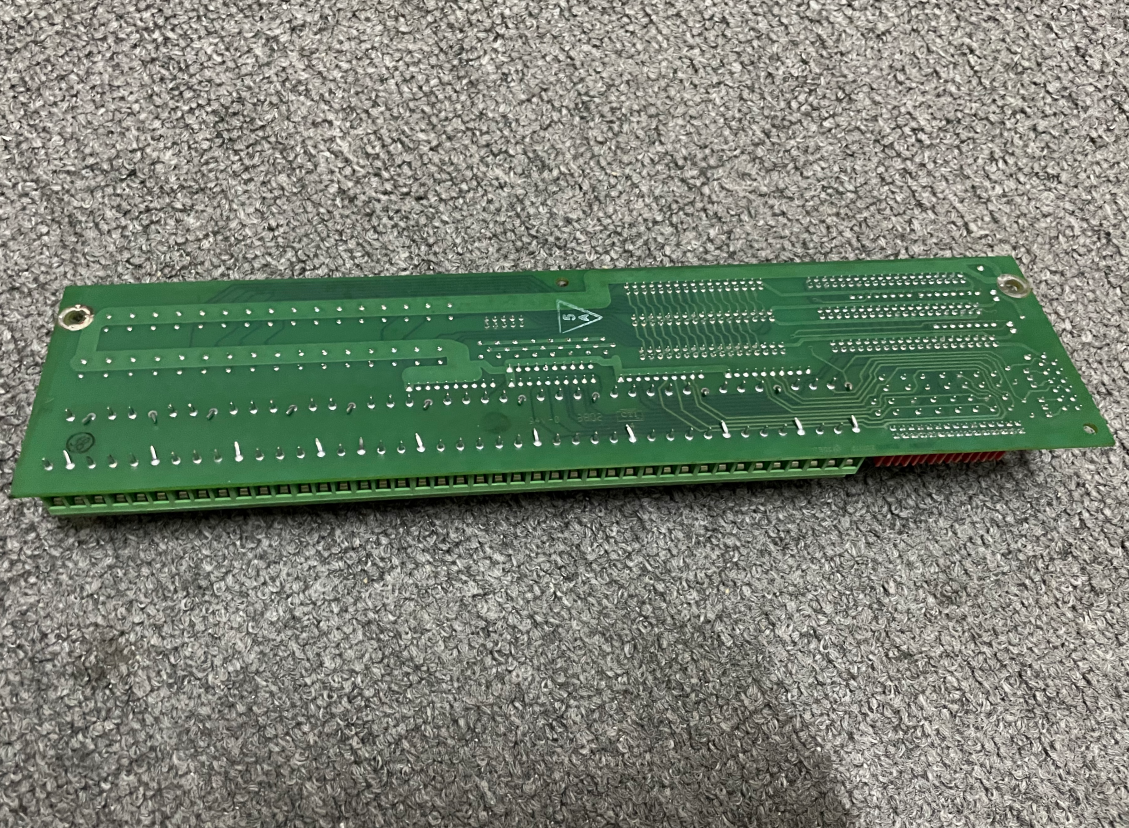

The DS200TBQCG1A Analog Input and Milliamp Input/Output Termination Module is a critical front-end interface within GE's SPEEDTRONIC Mark V LM Turbine Control System, specifically dedicated to the mid-to-high-precision analog signal acquisition and output. It is deployed in Slot 9 (Location 9) of the three core analog I/O cores (<R1>, <R2>, <R3>) of the Mark V LM controller. It serves as the primary physical hub for connecting field-critical continuous process variable sensors (e.g., pressure, temperature, flow transmitters) and position feedback devices, and for outputting analog control commands.
In the control architecture of the Mark V LM for high-performance aeroderivative gas turbines, the DS200TBQCG1A plays a crucial "analog-to-digital gateway" role. It reliably introduces 4-20mA industrial standard current signals and AC voltage signals from LVDT/R position feedback from the field into the control system's digital world. Simultaneously, it converts the digital commands calculated by control algorithms into high-drive-capability 20-200mA analog current signals for output to field actuators. Its performance directly impacts the accuracy, stability, and dynamic response of control loops, making it a foundational piece of hardware that ensures the efficient, precise, and safe operation of gas turbines under complex operating conditions.
II. Detailed Technical Specifications and Channel Capabilities
The DS200TBQCG1A module is a termination board specialized in analog signal processing, with clear and powerful technical specifications:
1. Input Channels (To Controller):
4–20 mA Analog Current Inputs: Each TBQC module provides 15 independent, isolated 4–20 mA current input channels. These channels are typically used to connect various transmitters that convert process variables (e.g., inlet pressure, fuel pressure, exhaust pressure, compressor discharge temperature) into standard current signals.
LVDT/LVDR Position Feedback Inputs: Provides interfaces for multiple channels (typically 4, depending on the core configuration) of AC voltage signals from Linear Variable Differential Transformers (LVDT) or Linear Variable Differential Reactors (LVDR). These sensors directly measure the mechanical position of critical actuators like fuel valves or variable guide vanes, forming the core feedback for achieving high-precision closed-loop position control.
Signal Conditioning and Power Supply: The module provides 21 V DC isolated loop power for connected 2-wire or 3-wire transmitters (requires hardware jumper configuration), simplifying field wiring. Input signals undergo preliminary filtering and distribution on the TBQC before being sent to the subsequent TCQA board.
2. Output Channels (To Field):
Configurable Range Current Outputs: Each TBQC module provides 2 high-drive-capability analog current output channels. Its core feature is that the output range can be field-configured via hardware jumpers:
Configured as 4–20 mA Output: Used to drive standard I/P converters, positioners, or serve as remote instrument signals.
Configured as 0–200 mA Output: Provides higher drive current to directly power specific models of servo valve coils or high-power electrical converters. This eliminates the need for additional power amplifier cards, simplifying system architecture and improving reliability.
Output Load Capacity: The output channels are designed with sufficient drive capability to directly power field devices, reducing reliance on external intermediate components.
3. Hardware Configuration and Interfaces:
Connectors:
JBR Connector: The core connector. It bi-directionally transmits the 15 channels of 4–20 mA input signals and the 2 channels of mA output signals via ribbon cable to and from the TCQA board in its respective core.
JFR Connector: Transmits the LVDT/LVDR position feedback input signals via ribbon cable to the TCQA board in its respective core.
JBS/T, JFS/T, TEST: Typically reserved or test interfaces.
Hardware Jumper Blocks:
When set for a 20 mA maximum range, the channel outputs a standard 4-20mA signal.
When set for a 200 mA maximum range, the channel's output capability expands to 0-200mA for directly driving high-current loads.
BJ1 through BJ15: These 15 jumpers correspond to the 15 mA input channels. Each jumper is used to connect the negative (NEG) terminal of its respective input channel to the Digital Common (DCOM). This is a critical setting for establishing signal reference ground, ensuring measurement stability and noise immunity. It is especially important for transmitters with independent external power supplies.
BJ16 and BJ17: These represent the most distinctive configurable feature of the TBQC module. These two jumpers work together to select the maximum current output range for the 2 mA output channels:
This hardware-level range selection grants the system significant field adaptability and flexibility.
4. Physical and Environmental Characteristics:
As a Printed Wiring Termination Board (PWTB), it employs industrial-grade design with robust and reliable terminal blocks suitable for repeated wiring.
Operating environment is consistent with the overall requirements of the Mark V LM controller.
III. Connection and Integration within the Mark V LM System
The DS200TBQCG1A acts as the "dedicated extended I/O panel" for the TCQA board within the analog I/O core, with clear and direct connection relationships:
Connection to the Core Processing Board (TCQA):
All analog signal inputs and outputs are directly connected to the DS200TCQA Analog I/O Board located in Slot 2 of the same core, via the high-density ribbon cable connectors JBR (current I/O) and JFR (LVDT position input).
The TCQA board is the "brain" of the signals, responsible for precision sampling, A/D conversion, digital filtering, linearization processing (for inputs), and D/A conversion, power driving (for outputs). The TBQC is the "hands and feet," responsible for the physical connections.
Field Signal Connection:

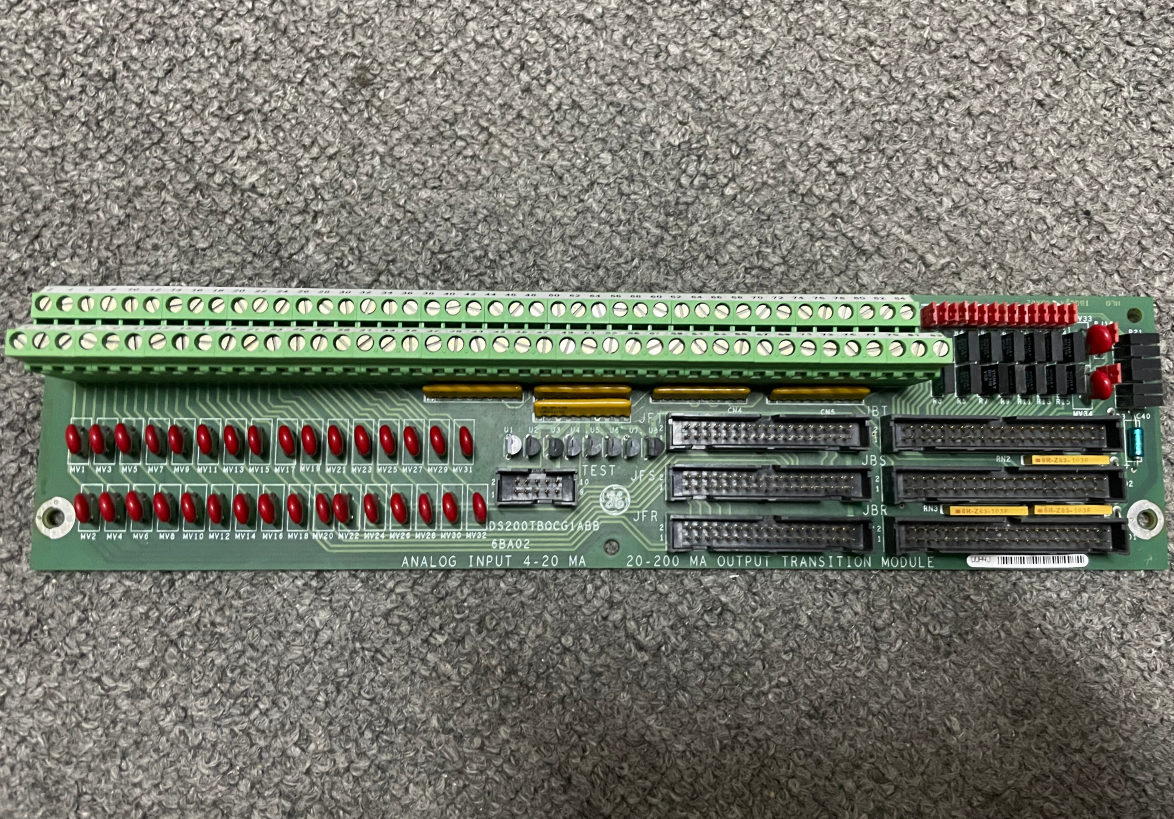

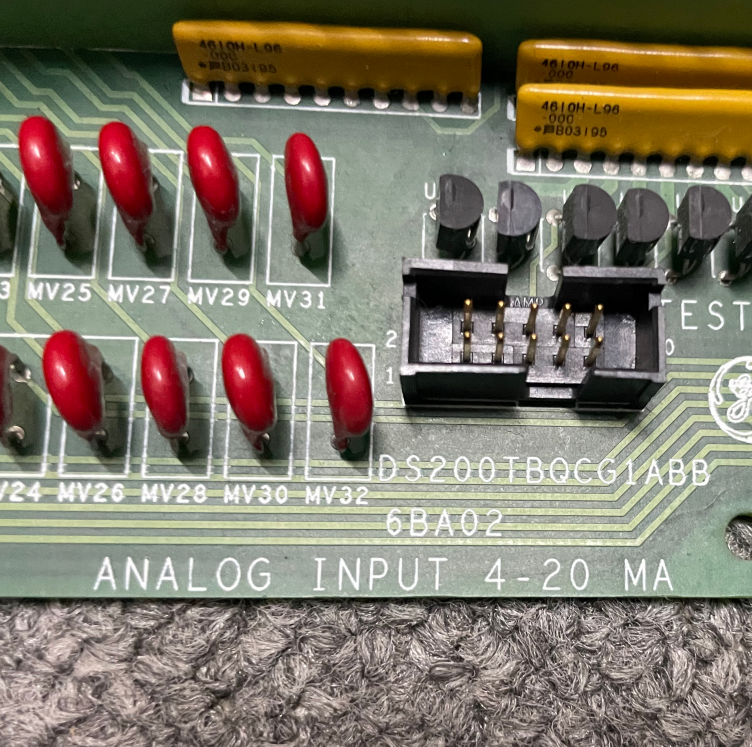

The front of the module features a clear screw-type terminal block. Field engineers securely connect signal wires from transmitters (+, -), LVDT sensor wires (typically Excitation, Signal A, Signal B, etc.), and output wires to actuators to the corresponding terminal points according to drawings.
Clear labeling on the module significantly reduces the risk of wiring errors.
System Signal Flow:
Input Flow: Field Sensor → TBQC Terminal Block → (via JBR/JFR cable) → TCQA Board (digitization and processing) → (via 3PL bus) → STCA/I/O Engine → (via COREBUS) → Control Engine <R>, entering control algorithms.
Output Flow: Control Engine <R> calculation result → (via COREBUS) → STCA/I/O Engine → (via 3PL bus) → TCQA Board (D/A conversion and driving) → (via JBR cable) → TBQC Terminal Block → Field Actuator.
IV. Core Functions, Features, and Design Advantages
High-Precision, High-Density Signal Acquisition:
A single module provides 15 high-precision mA input channels, meeting the gas turbine's need for continuous monitoring of numerous process parameters. The independence and good isolation design of the input channels prevent crosstalk, ensuring measurement accuracy for each signal. This is crucial for the advanced gas turbine algorithms based on multi-parameter coordinated control.
Direct Interface for Critical Position Feedback:
As the direct interface for LVDT/R sensors, the TBQC introduces the raw AC signals reflecting the core mechanical position of actuators into the system. The fidelity of this signal directly determines the performance of the position control loop. The TCQA board resolves the LVDT signal, providing the control system with high-resolution, highly reliable true position feedback, which is fundamental for preventing fuel valve sticking and achieving precise flow control.
Unique Configurable High-Drive Outputs:
The hardware-jumper-selectable output range is the most prominent highlight of the DS200TBQC. A simple setting of BJ16/BJ17 jumpers allows switching between standard instrument signals (4-20mA) and high-power drive signals (0-200mA).
The significant advantage of this design is system simplification and reliability enhancement. For servo valves requiring 200mA drive, there is no need to install additional bulky, failure-prone power amplifier cards external to the controller. The output drive circuit is integrated within the pathway of the TCQA board and TBQC, reducing external failure points, improving the overall system's MTBF (Mean Time Between Failures), and simplifying spare parts management and maintenance.
Comprehensive Signal Loop Management:
The BJ1-BJ15 jumper block allows engineers to flexibly configure the grounding of signal loops based on the transmitter's power supply method (internal controller-powered, external isolated, external common-ground). Correct grounding configuration is key to eliminating ground loop interference and ensuring signal stability; the TBQC provides this field-adjustable capability.
Modularity and Maintainability:
As a standardized termination module, it can be replaced directly if damaged without affecting the core processing board (TCQA). Clear interface definitions and jumper settings enable quick and accurate replacement.
The terminal block field interface facilitates circuit checking, signal measurement, and loop testing.
V. Engineering Application, Configuration, and Commissioning Guide
Typical Application Scenarios:
In LM-series gas turbines, signals connected to the three TBQC modules are typically carefully allocated to achieve functional separation and a degree of logical redundancy (not hardware voting level):
TBQC in <R1> Core: Typically connects the highest-priority analog quantities related to core control and safety protection, such as key feedback signals for control loops and analog quantities triggering protective trips (overtemperature, overpressure, etc.).
TBQCs in <R2> and <R3> Cores: May be used for connecting auxiliary system monitoring parameters, data needed for performance calculations, and backup or redundant measurement channels.
Installation and Hardware Configuration Steps:
Module Installation: Insert the TBQC into Slot 9 of the <R1>, <R2>, or <R3> core and lock it in place.
Internal Cable Connection: Securely connect the JBR and JFR cables to the TCQA board, paying attention to orientation.
Output Range Configuration (Critical Step):
Determine the load type and current requirement for each analog output based on design drawings.
Correctly set BJ16 and BJ17 using jumper caps to match the required output range (20mA or 200mA). Always perform this operation with power off.
Input Grounding Configuration:
Plan the grounding requirements for each mA input channel based on the power supply and grounding situation of the field transmitters.
For channels where the signal negative needs to be connected to the controller's DCOM, install its corresponding BJx jumper (x=1-15).
Field Wiring: Connect field cables to the terminal block strictly according to the wiring diagram, ensuring correct polarity and secure fastening.
Software Configuration and Commissioning:
I/O Configuration: In the TCI software's I/O Configuration Editor, assign software signal names to each hardware point on the TBQC (e.g., P25T_1, FSR_Out_1).
Parameter Setting:
For mA input channels: Set range limits (e.g., 0-500 psi), engineering units, filter time constants.
For mA output channels: The output scaling configured in the software must match the physical range selected by the hardware jumpers (BJ16/BJ17). For example, if the hardware is set for 200mA output, the 100% output value for that channel in the software should be set to 200mA (or the equivalent digital value).
For LVDT input channels: Configure excitation frequency (matching the excitation from QTBA), position range, linearization parameters, etc.
Power-up Commissioning and Verification:
Output Loop Test: Force an output percentage on the HMI, and measure the output current at the TBQC terminal block using a precision ammeter to verify it matches the command value and hardware range.
Input Loop Test: Simulate a standard current value (e.g., 12mA) at the TBQC terminal block using a process calibrator, and observe if the displayed value on the HMI is correct.
LVDT Simulation Test: Use an LVDT simulator to inject phase and amplitude adjustable AC signals at the terminal block, and check if the position feedback displayed on the HMI changes correctly.
Loop Integrity Check: Utilize the control system's internal diagnostic functions to check if communication and status for all configured channels are normal.
VI. Maintenance, Diagnostics, and Typical Fault Analysis
Routine and Periodic Maintenance:
Periodically check the tightness of terminal block connections to prevent loosening due to vibration.
Check that jumper caps are securely installed and free from oxidation.
Keep the module clean and well-ventilated.
Advanced Diagnostic Functions:
As part of the Mark V LM system, signal paths associated with the DS200TBQCG1A benefit from comprehensive diagnostics:
TCQA Board-Level Diagnostics: The TCQA board continuously monitors all input signals for over-range (>20.5mA), under-range (<3.5mA), or open wire conditions. Upon detection, a clear diagnostic alarm is immediately generated on the HMI (e.g., "AI Channel xx Open Wire").
Output Channel Diagnostics: The TCQA board can monitor the health status of the output drive circuits.
Communication Diagnostics: Through COREBUS and I/O engine status monitoring, it can be confirmed whether data from the TCQA board connected to the TBQC is being correctly transmitted and received.
Typical Troubleshooting:
Analog Input Display Value Fixed or Abnormal:
Possible Causes: Field transmitter failure, open/short circuit in wiring, loose connection at TBQC terminal, TCQA board channel failure, I/O configuration error (e.g., incorrect range setting).
Troubleshooting Steps: Measure if the current signal from the field is normal at the TBQC terminal block; check BJx grounding jumper settings; check software configuration.
No Analog Output Current or Inaccurate Current:
Possible Causes: Incorrect hardware jumper setting for the output channel (BJ16/BJ17) (one of the most common issues), open field load, TCQA board output drive failure, software output command not taking effect.
Troubleshooting Steps: First and foremost, check if the BJ16/BJ17 jumper settings match the design and software configuration; measure no-load output current at the terminal block with the field wire disconnected; check load impedance.
LVDT Position Feedback Jumps or No Signal:
Possible Causes: Damaged LVDT sensor, excitation signal not reaching the sensor from the QTBA, incorrect signal wiring, TCQA board LVDT resolver circuit failure.
Troubleshooting Steps: Measure if the correct 3.2kHz/7Vrms voltage is present at the LVDT excitation terminals; measure the LVDT output signal amplitude; check JFR cable connection.
Safety Warning:
When performing jumper setting, wiring, or measurement on the TBQC, lockout/tagout safety procedures must be followed. Exercise particular caution when measuring or handling the 200mA output circuits, as they possess high drive capability.
