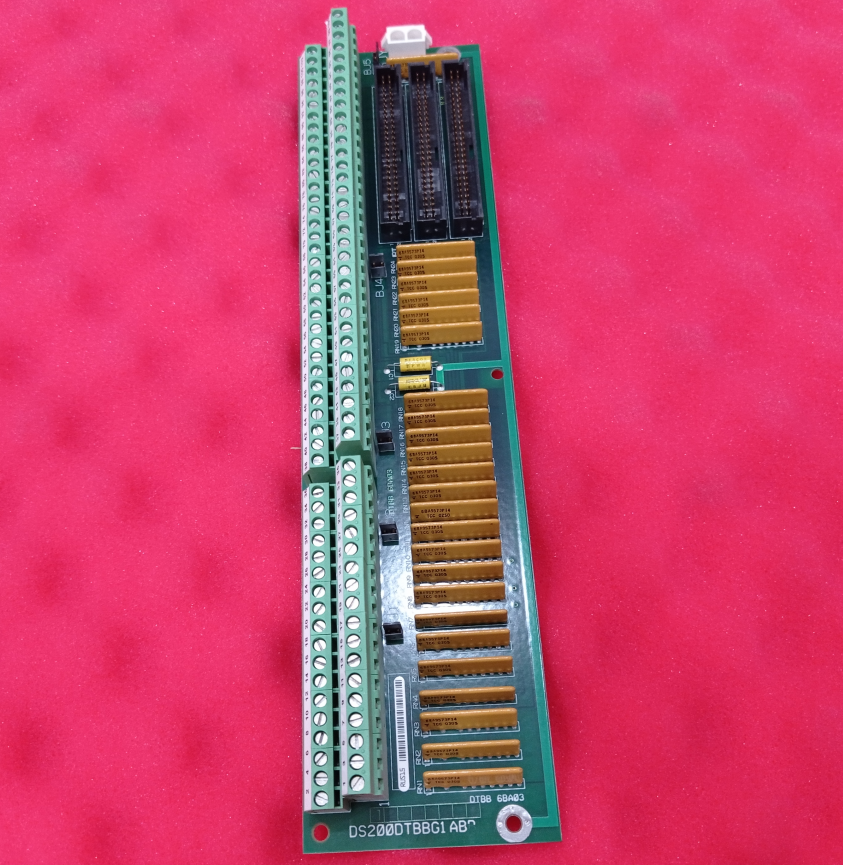

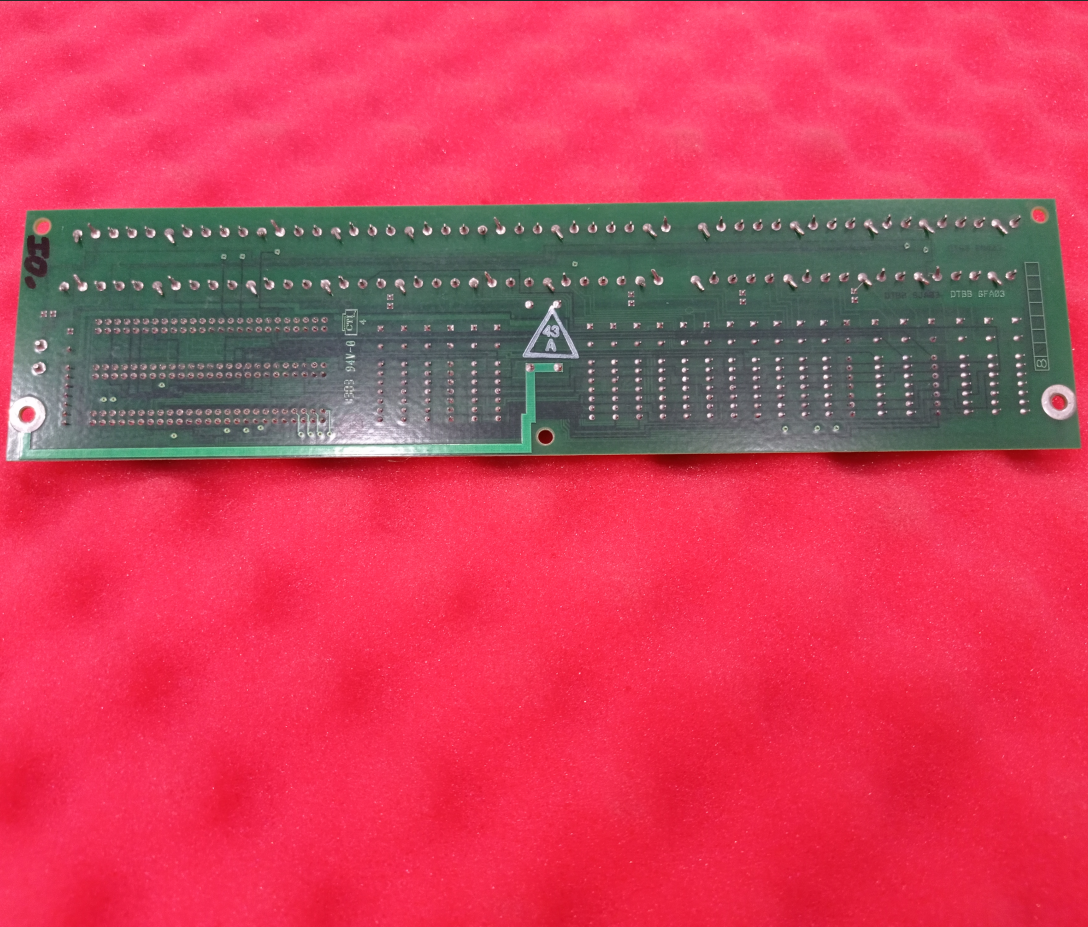

The DS200DTBBG1A Contact Input Expansion Termination Module is a critical digital input interface component designed by GE Industrial Systems for its advanced SPEEDTRONIC Mark V LM Turbine Control System. As a key part of the Mark V LM controller's Digital I/O Core, the DTBB module is specifically responsible for receiving and processing the last 46 contact input signals from field devices (such as switches, sensors, pushbuttons, etc.). Working in tandem with the basic contact input module DS200DTBBG1A, the DTBB forms a complete digital signal acquisition front-end, providing the Mark V LM system with up to 96 contact inputs. It is widely used in the control, protection, and monitoring of aeroderivative gas turbines.
Within the modular, core-based architecture of the Mark V LM, the Digital I/O cores (such as <Q11>, <Q51>, and the optional <Q21>) serve as the bridge for system interaction with external discrete signals. As an "Expansion" termination module, the DS200DTBBG1A embodies the system's high flexibility and scalability, meeting the needs of complex industrial sites for highly reliable and precise acquisition of a large number of status signals (e.g., valve position, breaker status, protective trip signals). Its design adheres to stringent industrial-grade standards, ensuring stable and safe long-term operation in critical sectors like power generation, oil & gas, and marine propulsion.
II. Technical Specifications and Parameters
Core Functionality:
Signal Type: Dry Contact Input.
Processing Capacity: A single module provides 46 independent contact input channels. Combined with the DTBA module (first 46 channels), it provides a total of 92 standard contact inputs for one Digital I/O core (some core configurations may vary slightly; the manual indicates a total of 96).
Signal Conditioning: The module primarily handles physical wiring and distribution. Actual electrical isolation, status detection, and time-stamping are performed by the connected DS200TCDA Digital I/O Board. The opto-isolator circuits on the TCDA board provide reliable electrical isolation for each input.
Electrical Characteristics:
Interrogation Voltage: Supplied by the Mark V LM controller's Power Distribution core (<PD>), standard is 125 V DC. The system also supports configuration (via the TB2 terminal board) to change to 24 V DC interrogation voltage to suit different field device requirements.
Input Current: Typical current per input is approximately 4 mA (at 125 V DC). Current increases accordingly when contacts are paralleled (e.g., manual mentions up to 12 mA for paralleled inputs).
Wiring Requirements: Supports the use of standard industrial field cabling with good adaptability to wire gauge and length, meeting typical power plant wiring distances.
Mechanical and Connection Features:
JRR: Core connector. Transmits the 46 contact input signals via ribbon cable or harness to the TCDA board within the same digital core.
JY: Power connector. Receives the 125 V DC interrogation power passed from the DTBA module, enabling cascaded power distribution between the two input modules.
JRS/T: Reserved or typically unused connectors for special configurations or expansion.
Board Type: Printed Wiring Terminal Board (PWTB), using high-quality materials and processes to ensure connection reliability and corrosion resistance.
Connectors:
Terminal Block: Provides a high-quality screw-type terminal block for secure field signal connection and easy maintenance.
Environmental and Reliability:
Conforms to the overall environmental specifications of the Mark V LM controller, suitable for typical industrial control room environments.
Storage Temperature: -20°C to 55°C.
Operating Temperature: 0°C to 45°C (recommended 20°C to 30°C).
Humidity: 5% to 95%, non-condensing.
Features good resistance to vibration, dust, and electromagnetic interference.
III. Hardware Interface and Connection Configuration
The DS200DTBBG1A module is typically located in Slot 7 (Location 7) of a Digital I/O core. Its connection relationships form a concise and efficient signal chain:
Field Signal Connection: Wires from field devices (46 pairs for common and signal) are connected directly to the DTBB module's terminal block.
Power Input: The 125 V DC interrogation voltage is routed from the Power Distribution core (<PD>), first to the DTBA module, then passed via the DTBA module's JY connector and interconnect cable to the DTBB module's JY connector, powering all input circuits on the DTBB.
Signal Output to Processor: The DTBB module transmits the status signals of all 46 physically connected contacts via the JRR connector and a dedicated ribbon cable to the DS200TCDA Digital I/O Board located in Slot 1 of the same digital core.
TCDA Board Processing: The TCDA board is the core of digital signal processing. Its internal opto-isolator circuits read the status (open/closed) of each input. This status data is then uploaded via the IONET (I/O Network) serial communication link to the corresponding I/O Engine processor (e.g., the STCA/UCPB board in the <R1> or <R5> core).
System Integration: Finally, this contact status data is transmitted via the internal COREBUS network to the Mark V LM's Control Engine (<R> core), incorporated into the Control Signal Database (CSDB). It is used by the Control Sequence Program (CSP) for logic decisions, interlocking protection, and sequential control, and can also be displayed, logged, and alarmed on the Human-Machine Interface (HMI).
Hardware Jumper Configuration:

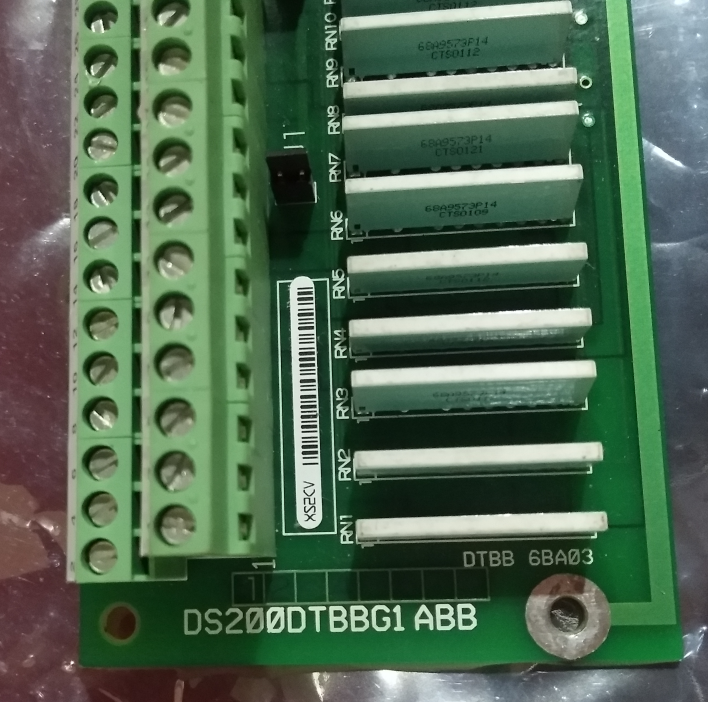

The DS200DTBBG1A module is equipped with five hardware jumpers: BJ1 through BJ5. Their primary function is for safe isolation during testing and maintenance. Each jumper controls the power supply to a group (typically 8 channels) of contact input circuits. When it is necessary to inspect a specific input group or troubleshoot a field ground fault, the corresponding jumper can be opened while the unit is NOT running, isolating the 125 V DC power for that group from the field wiring. This ensures operational safety without affecting other channels, demonstrating thoughtful design for maintenance convenience and system safety.
IV. Functional Features and Advantages
High Density and Modularity: A single module provides 46 high-density inputs. The DTBA/DTBB combination easily achieves a standard configuration of 92+ channels, greatly saving control cabinet space. The modular design facilitates easy installation, replacement, and expansion.
High-Reliability Design:
Failsafe Configuration Support: In the software configuration tool (I/O Configurator), an "Inversion Mask" can be set for each contact input. If communication is lost between the TCDA board and the I/O Engine, the system can automatically set the input status to a predefined safe logic value (typically "1" or "TRUE", representing a danger or trip condition), thereby achieving failsafe orientation—a critical feature for protective systems.
Electrical Isolation: Signals are opto-isolated at the TCDA board, effectively preventing electrical interference, surges, or grounding issues from the field side from entering the control system core, safeguarding the controller itself.
Grouped Power Isolation: Power isolation by group via BJ1-BJ5 jumpers simplifies fault diagnosis and safe maintenance.
High-Precision Sequence of Events (SOE) Logging: In conjunction with the TCDA board, status changes (open-to-close or close-to-open) of contacts connected via the DS200DTBBG1A can be time-stamped with an accuracy of 1 millisecond. This function is crucial for analyzing unit trip causes and sequencing events, forming a core tool for modern power plant incident analysis and protection system validation.
Flexible Signal Adaptation: Supports two universal industrial interrogation voltage levels: 125 V DC and 24 V DC, selectable via system-level configuration to adapt to interface standards from different regions and equipment manufacturers worldwide.
Powerful Diagnostic Capabilities: As part of the Mark V LM system, the DTBB module and its signal path benefit from the system's comprehensive online diagnostics. The TCDA board continuously monitors input circuits, capable of detecting faults like open wires and generating clear diagnostic alarms on the HMI to guide maintenance personnel to quickly locate issues.
Deep Integration with the Control System: Input signals are seamlessly integrated into the Mark V LM's CSDB, allowing for flexible programming via the CSP to implement complex control logic, interlocks, and protection functions. All signal statuses can be monitored in real-time on the HMI and logged or printed as needed.
V. Installation, Configuration, and Maintenance Guide
Installation:
Insert the DS200DTBBG1A module into the designated slot (typically Slot 7) of the Digital I/O core (<Q11>, <Q51>, etc.) as per the drawings and secure it.
Connect the power cable from the DTBA module (JY interface).
Connect the signal ribbon cable to the TCDA board (JRR interface), paying attention to orientation (color coding or key alignment).
Securely connect field cables to the module's screw terminal block, noting signal polarity (common, normally open/closed).
Initial Configuration and Check:
Jumper Settings: Verify that jumpers BJ1-BJ5 are in the CLOSED (IN) position during normal operation to ensure all input circuits are powered.
Software Configuration: In the Mark V LM engineering software (TCI), use the I/O Configuration Editor tool to assign a unique, meaningful software signal name (e.g., "21CV-001A OPEN") to each hardware point connected to the DTBB.
Parameter Setup: In the configuration tool, select for each point whether "Inversion" (CIM_I) is needed and whether to enable "Change Detect" for SOE logging.
Download and Verification: Download the configured IOCFG.AP1 file to the controller. Reboot the relevant I/O core and TCDA board for the configuration to take effect. Subsequently, verify the correct status display of each input point one by one using the HMI's forcing function or actual field operation.
Routine and Periodic Maintenance:
Utilize the system's built-in diagnostic alarm function to monitor for any contact input-related faults.
Periodically check the tightness of terminal block screws to prevent loosening due to vibration.
Before performing any work involving jumper removal/insertion or field wiring, safety procedures must be followed to confirm the relevant circuits are de-energized or the unit is in a safe state.
When replacing a DTBB module, be sure to record the setting positions of all jumpers on the original module and replicate them on the new module. Re-verify the functionality of related inputs after replacement.
VI. Typical Application Scenarios
The DS200DTBBG1A is an indispensable component in the following application scenarios:
Gas Turbine Generator Sets: Receiving numerous status feedback signals and manual trip pushbutton signals from lube oil systems, fuel systems, cooling systems, fire protection systems, turning gear, etc.
Mechanical Drive Gas Turbines (e.g., pipeline compression): Monitoring lubrication, seals, valve positions, and process interlock signals of compressor trains.
Marine Propulsion Systems: Integrated into ship Power Management & Control Systems (PMS), receiving monitoring signals from various engine room equipment.
Combined Cycle Power Plants: In addition to the gas turbine itself, used to receive status signals from Heat Recovery Steam Generators (HRSG) and steam turbine island auxiliaries.
Any high-reliability industrial process control requiring extensive discrete status monitoring.
VII. Market Positioning and Competitive Advantages
The GE SPEEDTRONIC Mark V LM system, to which the DS200DTBBG1A belongs, is a leading product specifically designed for the fast response and high-precision control requirements of aeroderivative gas turbines (e.g., LM series). Its competitive advantages are reflected in:
Brand and Technological Heritage: Inherits decades of leading technology and rich experience from GE in the field of turbine control (SPEEDTRONIC series).
Targeted Market: Specifically optimized for aeroderivative gas turbines, offering superior control speed (100Hz minor frame rate) and algorithm complexity (supporting DLE dry low emissions control) compared to general-purpose industrial controllers.
Complete Solution: As part of its I/O subsystem, the DTBB benefits from deep integration and optimization across the entire system's hardware, software, communications, and diagnostics, with performance and reliability proven in numerous demanding projects worldwide.
Full Lifecycle Support: GE provides full lifecycle services and support networks, from installation and commissioning to training, spare parts supply, and technical upgrades.
VIII. Summary and Outlook
The DS200DTBBG1A Contact Input Expansion Termination Module, while seemingly a passive wiring terminal, is in fact a critical nerve ending for the high-end GE Mark V LM Turbine Control System to sense the "pulse" of the external world. With its high-density, high-reliability, and high-safety design, it introduces vast amounts of field digital signals losslessly, efficiently, and diagnosably into the intelligent control core. Its support for failsafe configuration and millisecond-level SOE functionality meets the highest safety and incident traceability requirements of modern critical power equipment.
