The DS200TBCBG1A (Termination Module RTD and 4–20 mA Input) is a multifunctional, configurable mixed-signal termination module located within the <R5> Analog I/O core of General Electric's (GE) SPEEDTRONIC Mark V LM Turbine Control System. This module integrates the field connection and distribution functions for both Resistance Temperature Detector (RTD) signals and 4–20 mA / 0–1 mA analog current signals, serving as the critical interface connecting field process instruments to the controller's internal precision measurement circuitry. As a vital component of the <R5> core's general monitoring capabilities, the DS200TBCBG1A is specifically designed to interface with temperature and process variable signals that demand high accuracy but have relatively slower dynamic response, primarily intended for process monitoring, efficiency calculation, and trend analysis (rather than direct, fast-acting protection or control).
Within the Mark V LM's architectural design, the <R5> core typically assumes the role of a "data acquisition unit," focusing on broad state monitoring of the unit and its auxiliary systems. The DS200TBCBG1A module perfectly embodies this role, consolidating a vast number of temperature (RTD) and general process variable signals (such as 4-20mA outputs from transmitters for pressure, level, flow, etc.) scattered across lube oil systems, cooling water systems, fuel gas systems, generator auxiliary systems, and more, into a unified, high-density interface platform. Unlike the fast thermocouple signals in the <R1> core used for emergency protection, the signals accessed via DS200TBCBG1A provide greater value in offering operators a long-term, reliable health profile of the equipment and supporting predictive maintenance decisions.
A core innovation of this module lies in its flexible hardware jumper configuration capability, allowing users to adjust input signal ranges on-site based on sensor types. This significantly enhances the system's adaptability and scalability, making it a model example for building modular, configurable industrial control systems.
2. Product Model & System Positioning
Model: DS200TBCBG1A
Full Name: RTD and 4–20 mA Input Termination Module
Parent System: SPEEDTRONIC Mark V LM Turbine Control System
Core Function: Provides field wiring terminals, signal distribution, and hardware range configuration for up to 22 analog current input channels (4–20 mA or 0–1 mA) and 8 RTD input channels.
Installation Location: Inside the Mark V LM controller, in the <R5> Analog I/O Core, Slot 7.
3. Integration within the Control System & Signal Flow
The DS200TBCBG1A is the key entry point for the <R5> core's monitoring data stream. Its signal processing flow illustrates the standardized path for monitoring signals:
Field Sensing Layer:
RTD sensors detect temperature changes, altering their resistance.
Various transmitters (pressure, differential pressure, level, etc.) convert physical quantities into standard 4–20 mA (or 0–1 mA) current signals.
Signal Access & Pre-Configuration Layer (DS200TBCBG1A ):
Sensor and transmitter wires are connected to the corresponding terminals on the TBCB module.

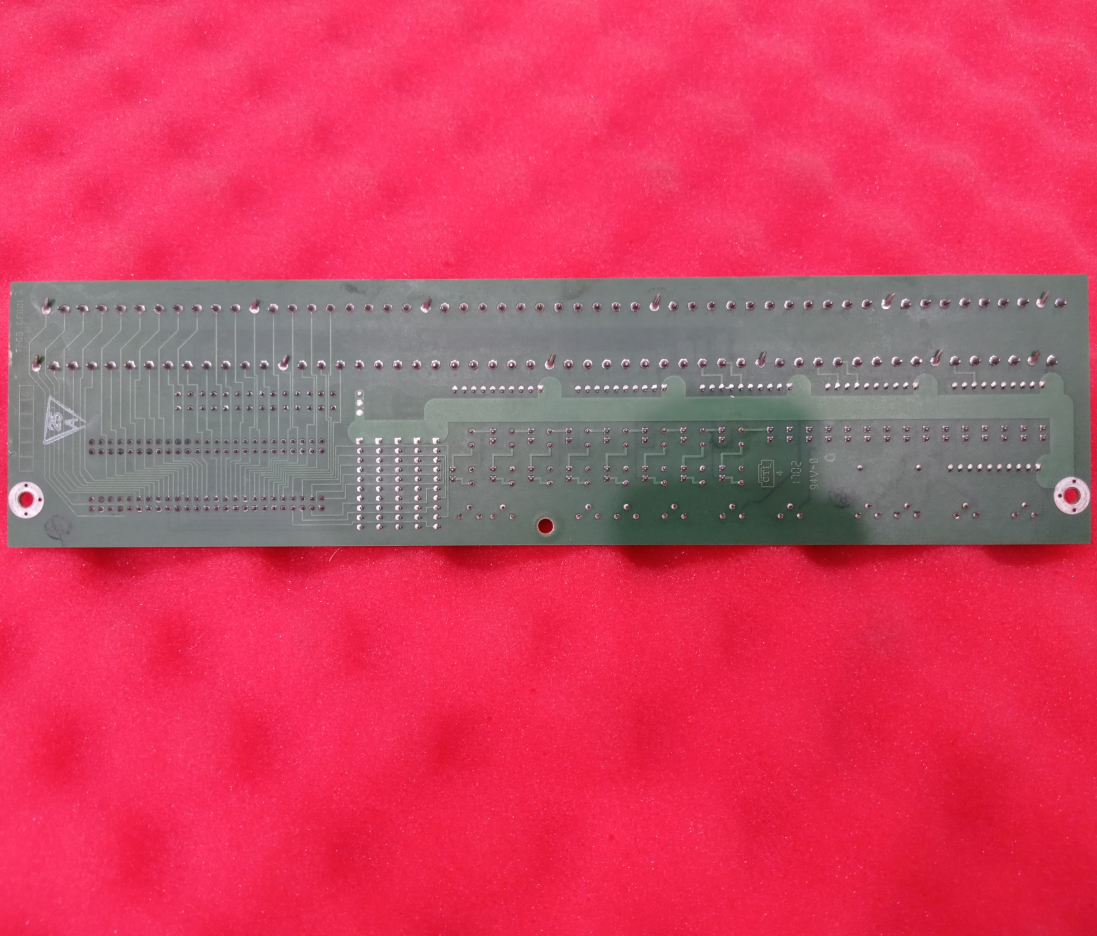

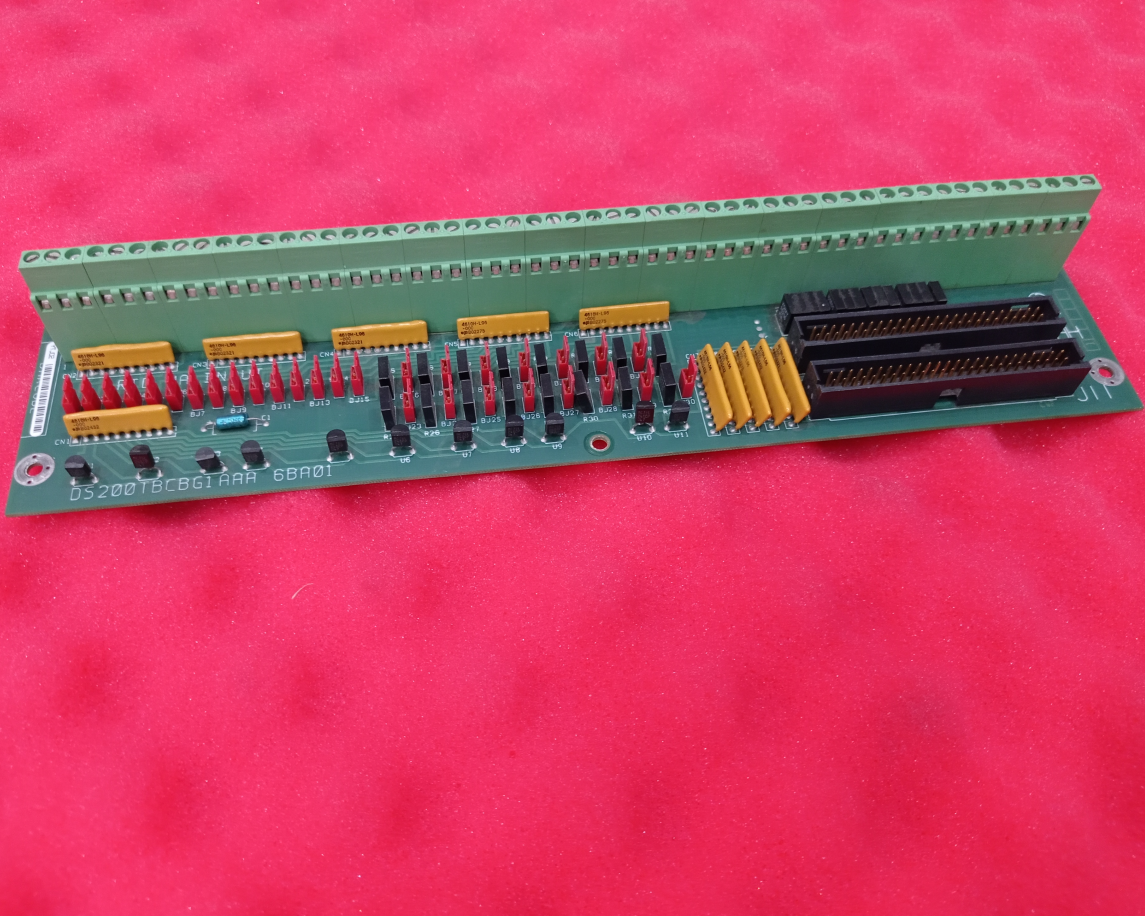

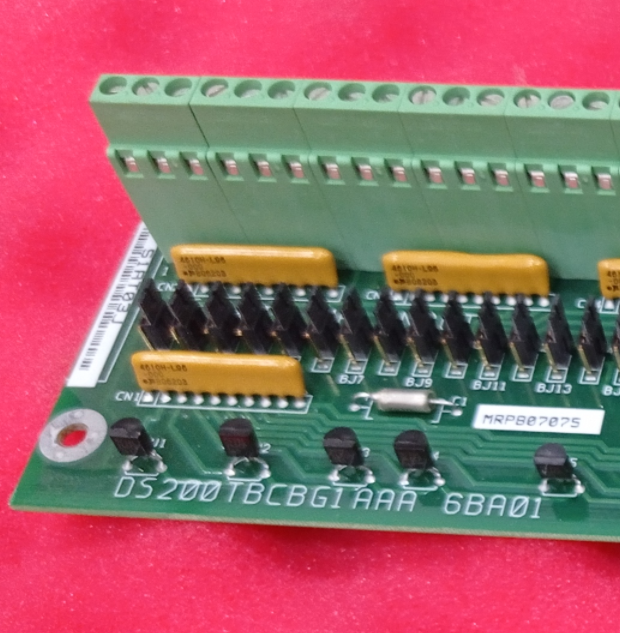

Critical Step: Based on transmitter specifications, technicians set the appropriate hardware jumpers (BJ1-BJ30). For example, ensure jumpers are inserted for 4-20mA signals; for 0-1mA signals, correctly set the corresponding jumpers within BJ23-BJ30.
The module internally routes the aggregated RTD signals (via JII) and mA signals (via JHH) to their respective output connectors.
Signal Conditioning & Digitization Layer (TCCB Board):
The JHH and JII connectors transmit the signal packages to the DS200TBCBG1A Extended Analog I/O Board in Slot 3 of the <R5> core.
For mA Inputs: The TCCB board internally switches to the corresponding range amplifier based on the hardware jumper setting. The current signal passes through a precision sampling resistor ("burden resistor") to convert to a voltage signal, which is then digitized by a high-precision ADC.
For RTD Inputs: The TCCB board provides constant current excitation, measures the voltage drop across the RTD, and digitizes it.
The TCCB board's processor, using I/O configuration data downloaded from the Control Engine, converts the raw digital values into engineering units (e.g., °C, psi, %).
Data Processing & Upload Layer:
System Integration & Application Layer:
HMI Display: Showing real-time values of all monitoring points on the operator station.
Alarm & Event Logging: Triggering alarms and logging events when parameters exceed limits.
Performance Calculation & Efficiency Analysis: e.g., calculating heat rate, pump efficiency.
Historical Data Recording & Trend Analysis: Providing a data foundation for predictive maintenance.
Signal Chain Summary: Field Sensor/Transmitter → DS200TBCBG1A Terminal Board (Hardware Jumper Config.) → (JHH/JII) → TCCB Extended Analog I/O Board → (3PL) → STCA Communication Board → (COREBUS) → Control Engine <R> → CSDB → HMI/Historical Database/Advanced Apps.
4. Supported Signal Types & Technical Configuration
4.1 Analog Current Inputs
Standard Range: 4–20 mA (default and primary application range).
Optional Range: 0–1 mA (configurable for channels 15-22 via jumpers BJ23-BJ30).
Transmitter Types: Supports 2-wire, 3-wire, and 4-wire transmitters. Transmitter power is typically supplied by an external distribution system or separate 24V DC power rails.
Wiring & Jumper Rules:
BJ1-BJ22: One jumper per input, used to connect the signal negative terminal to DCOM. Typically must be inserted to establish a complete measurement loop.
BJ23-BJ30: Each pair of jumpers controls the range selection for one input (15-22). Specific configuration must strictly follow the jumper table in Appendix A or site drawings. Incorrect configuration will cause severe reading distortion.
4.2 RTD Inputs
Supported Types: Similar to the TCCA board, supports various platinum, copper, nickel resistances (e.g., PT100, PT200, Cu10, etc.). Specific types are configured in the TCCB board's software.
Wiring Method: 3-wire configuration is strongly recommended to compensate for lead resistance and achieve the highest accuracy.
5. Application Scenarios & Importance
The DS200TBCBG1A module is the cornerstone for building a plant-wide process monitoring network for gas turbines and their power stations. Its typical applications span all auxiliary systems:
Lubrication Oil & Hydraulic Oil Systems:
Sump Temperature, Supply/Return Oil Temperature (RTD): Monitor oil condition and cooler effectiveness.
Filter Differential Pressure (4–20mA): Warn of filter clogging.
Sump Level (4–20mA): Monitor oil volume.
Fuel Gas System (Forwarding Module):
Fuel Gas Heater Outlet Temperature (RTD), Fuel Gas Pressure (4–20mA), Fuel Gas Flow (4–20mA, calculated): Used for heating value calculation and supply stability monitoring.
Cooling Water System:
Compressor Inlet & Exhaust Systems:
Generator Auxiliary Systems (for power generation units):
Other Auxiliary Equipment:
Significance:
Wide-Angle Lens for State Perception: Provides comprehensive data on the unit's "overall health" beyond core protection parameters, a prerequisite for digital power plants and condition-based maintenance.
Data Source for Efficiency & Optimization: Accurate auxiliary system parameters are indispensable inputs for calculating overall unit efficiency and operational optimization (e.g., reducing auxiliary power consumption).
Trigger for Predictive Maintenance: Trend analysis can warn of impending issues before failure occurs (e.g., gradual filter clogging, heat exchanger fouling), avoiding unplanned outages.
Embodiment of System Flexibility: Configurable mA input ranges allow the same hardware platform to adapt to transmitters from different suppliers and models, reducing spare parts inventory and engineering design complexity.
6. Installation, Configuration, Wiring & Maintenance Guidelines
6.1 Installation
The module is installed in <R5> core, Slot 7.
Ensure JHH and JII connectors are firmly mated with corresponding sockets on the TCCB board.
6.2 Hardware Jumper Configuration (Most Critical Step)
Pre-configuration Preparation: Possess an accurate I/O List and Jumper Configuration Table (typically from Appendix A or engineering design drawings).
Configuration Steps:
Determine if each channel connects to a 4-20mA or 0-1mA transmitter.
Consult the jumper table to find the corresponding BJx and BJy jumpers for that channel (x, y are specific numbers, e.g., BJ23/BJ24 for channel 15).
Set the jumper cap position according to the rule (e.g., "IN" for 4-20mA, "OUT" for 0-1mA).
Mandatory: Perform two-person verification and record the final configuration.
6.3 Field Wiring
Follow Drawings: Strictly adhere to wiring diagrams, connecting each cable core to the correct terminal.
Shielding Treatment: Use shielded cables and ground the shield at a single point on the controller end (typically at the CCOM bus).
Power Isolation: Pay attention to the independence of transmitter power supplies to avoid ground loops.
6.4 Software Configuration
In the HMI's I/O Configuration Editor, for each channel accessed via TBCB (mapped to TCCB hardware points), set:
Download the IOCFG.AP1 configuration file.
6.5 Maintenance & Troubleshooting
Routine Inspection: Check terminal tightness and observe for abnormalities.
Fault Diagnosis (Example: Inaccurate Reading):
Primary Task: Verify Hardware Jumpers! This is the most common cause of TBCB-related faults. Use a multimeter in continuity mode to confirm jumper caps have good contact and are in the correct position.
Check field wiring for looseness or short circuits.
Step 1 (HMI Diagnostics): Check the "raw count" or "mA value" for the channel in the DIAGC screen to determine if it's a signal source or channel issue.
Step 2 (Hardware Check):
Step 3 (Signal Measurement): Disconnect field wiring, simulate a standard current input signal at the TBCB terminals (using a process calibrator), and observe the reading on the HMI to judge if the TCCB board and subsequent channel are normal.
Step 4 (Substitution Method): Try temporarily connecting the field wires of the faulty channel to a known-good spare channel of the same type (requires simultaneous adjustment of jumpers and software configuration) to further isolate the fault.
