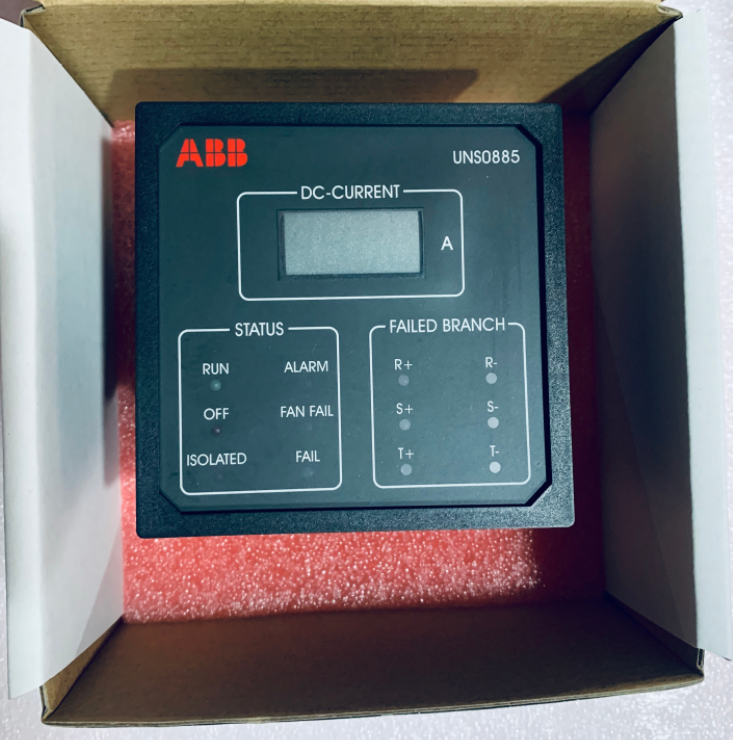

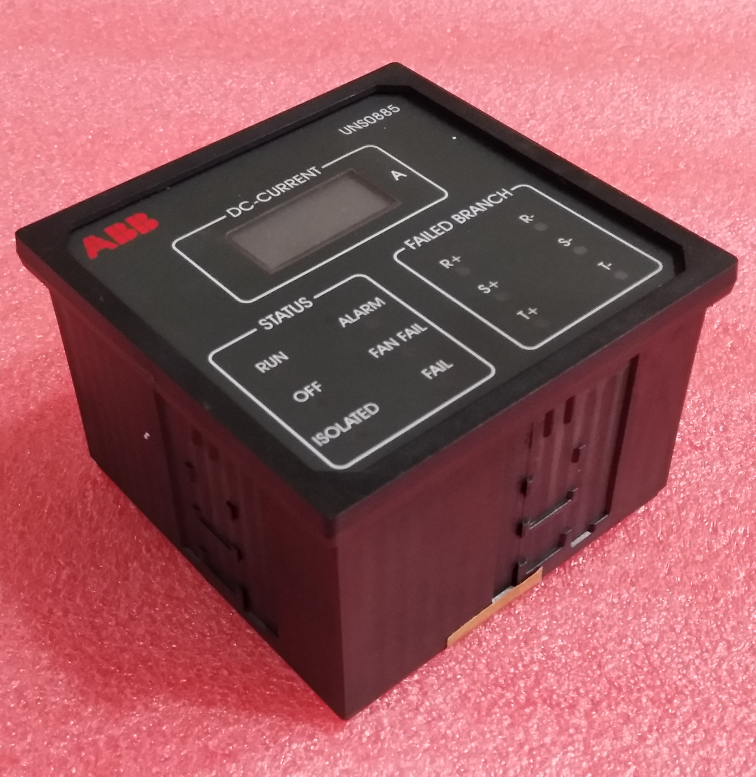

The UNS 0885 (abbreviated CDP, Converter Display Panel) is a localized status display and monitoring device specifically designed for the power converter bridges in the ABB UNITROL® 5000 excitation system. Acting as one of the human-machine interfaces directly facing on-site maintenance personnel, the CDP undertakes the critical task of visualizing the operational status of key power components. In the complex and crucial environment of an excitation system, obtaining real-time and accurate information about the working condition of each power converter bridge is indispensable for ensuring stable system operation, rapid fault localization, and performing preventive maintenance. Typically installed directly on power cabinet doors or near converter units, the CDP provides maintenance engineers with the most direct and rapid status observation window, serving as an important supplement and local reinforcement to the central control room monitoring system. Although it does not participate in core control logic calculations like the Control Board (COB) or Converter Interface (CIN), it plays a vital role in system maintainability, operational intuitiveness, and fault response speed, making it an indispensable component for ensuring the high availability of the excitation system.
II. Key Functions
1. Real-time Bridge Arm Current Display
The core function of the CDP is the real-time display of the total output DC current of its associated converter bridge. This current value is one of the most critical parameters for assessing the workload and health of the power converter. The panel usually uses a digital LCD screen to clearly show the current value in Amperes (A), enabling maintenance personnel to quickly obtain real-time output information for that bridge without relying on PC software or remote monitoring systems.
2. Converter Bridge Status Indication
Beyond the precise current value, the CDP also provides a comprehensive operational status of the converter bridge through multi-status indicator lights or character codes. These status indications typically include:
Normal Operation (Ready/Run): Indicates that the converter bridge is ready or operating normally.
Fault/Block: When the CIN board detects abnormalities in the bridge, such as overtemperature, fan failure, communication interruption, or pulse loss, the CDP gives a clear fault indication, alerting that the bridge has been automatically blocked by the system and has stopped output.
Conduction Failure: Specifically indicates that one or more thyristor arms in the bridge have failed to conduct normally, aiding in rapid fault localization at the power device level.
Standby/Offline: In redundant configuration systems, indicates that the bridge is currently in standby mode.
3. Visualized Branch Fault Status
In systems with multiple parallel converter bridges, the CDP acts as the "dedicated dashboard" for each bridge, intuitively displaying the fault status of a specific bridge. When a bridge in the system fails and drops out, operators can immediately identify which specific bridge has failed by inspecting the CDP displays on the respective power cabinets, significantly reducing fault diagnosis time.
4. Provision of Local Diagnostic Information
The information displayed by the CDP essentially represents the centralized reflection of the monitoring results provided by its upstream device – the CIN (Converter Interface) board. The CIN board continuously monitors all key parameters and statuses of its associated converter bridge. The CDP acts as the "spokesperson" for the CIN's monitoring function, translating these internal, electronic monitoring signals into visually understandable information for humans, achieving localized digital decoding and presentation of monitoring results.
5. On-site Display Calibration
According to the documentation, the current display offset of the CDP can be adjusted via a potentiometer on its rear. This feature is crucial as it allows for fine-tuning the display accuracy of each CDP on-site to compensate for potential minor errors introduced by sensors, line transmission, or the display circuit itself, ensuring the displayed current value accurately matches the actual value and maintaining the reliability of monitoring data.
6. Enhanced System Maintainability
The presence of the CDP makes daily inspection and fault diagnosis of the power conversion system highly efficient. Maintenance personnel can quickly gain a comprehensive overview of the operational health of the entire power cabinet group simply by observing the displays of individual CDPs, without needing complex diagnostic equipment or constant reliance on the central control room's SCADA system, significantly enhancing the system's on-site maintainability.
III. Working Principle
The working principle of the CDP can be understood as a data reception, processing, and display chain focused on specific functions. Its core lies in clearly and reliably presenting the key status data collected and processed by the CIN board to the user through a localized hardware interface.
1. System Integration and Data Link
The CDP's position in the UNITROL 5000 system is downstream in the information flow. Its operation starts with the CIN (Converter Interface) board. Each CIN board is responsible for monitoring one independent power converter bridge. The CIN board continuously acquires, through its internal controller and monitoring circuits:
Total Bridge DC Current: Typically from current measurement devices like Hall sensors.
Bridge Status Signals: Including comprehensive "health status" information derived from temperature sensors, fan monitoring, pulse feedback, fuse status, etc.
This raw data is processed and logically evaluated within the CIN board to form structured status data packets.
2. Data Communication and Interface
The CDP connects to the CIN board via a dedicated ribbon cable or similar local bus interface. This connection ensures direct and real-time data transfer. The CIN board periodically, or event-driven upon status changes, sends data to the connected CDP. The transmitted data typically includes:
Digital Values or Character Codes: Used to represent statuses like "Normal," "Fault," "Blocked."
Current Value represented as Analog or Digital Quantities: Used to drive the current display on the CDP.
As a display terminal, the CDP's internal circuitry is responsible for receiving and parsing this data stream from the CIN.
3. Display Driving and Signal Processing
After receiving the data sent by the CIN, the CDP's internal display driver circuitry activates.
For Current Display:
If an analog signal is received, it passes through the CDP's internal A/D (Analog-to-Digital) conversion circuit, is converted into a digital value, processed by the display driver chip, and finally shown as the corresponding numerical value on the LCD screen.
If a pre-processed digital value from the CIN is received, the CDP's driver circuit decodes it directly and sends it to the display.
For Status Indication:
The received status code is decoded, subsequently driving the corresponding LED indicator to light up (e.g., green LED for "Run," red LED for "Fault"), or displaying the corresponding status character or code (e.g., "FLT" for fault) in a specific area of the LCD screen.
4. Current Display Calibration Mechanism
The mentioned "adjustable current display offset" is a crucial part of its working principle for ensuring accuracy. The underlying technical principle is:
Within the CDP's display driver circuit, there exists an analog signal conditioning circuit or a reference voltage/bias setting circuit for the digital display.

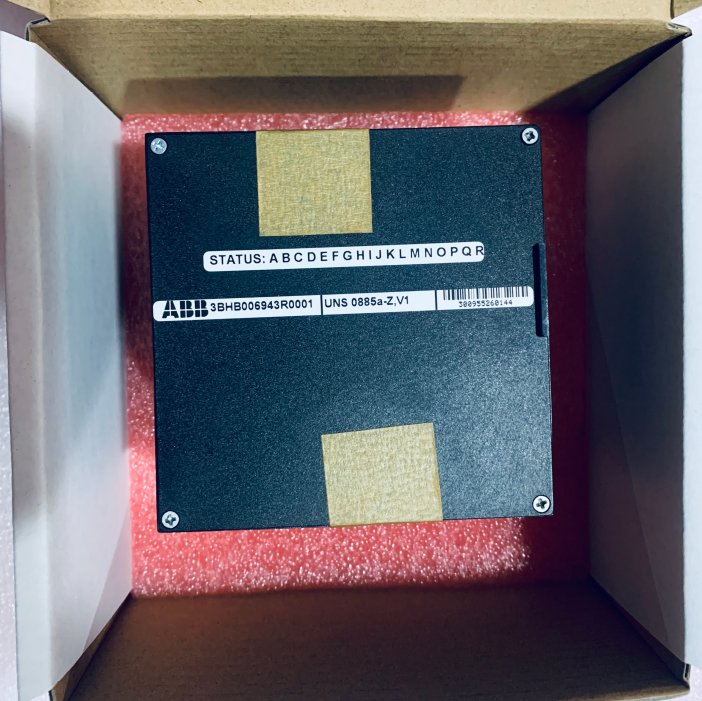

Connected to this circuit is an adjustable potentiometer (located on the back of the panel).
Calibration Process: When system maintenance personnel, using standard measurement equipment (e.g., a high-precision clamp meter), find a fixed deviation between the measured actual DC current value and the CDP display value, adjusting this potentiometer with a tool like a screwdriver can change the reference point or gain of the display circuit, thereby compensating for the system's fixed error and aligning the display value with the actual measured value. This is essentially a hardware-level "zero adjustment" or bias calibration process.
5. Human-Machine Interaction Design Principle
The design of the CDP follows the principle of highlighting important information for quick recognition.
High-Contrast LCD Display: Ensures clear readability of numbers, even in poorly lit industrial environments.
Colored LED Indicators: Utilize color psychology (Green = Safe/Normal, Red = Alarm/Fault) for instant status recognition.
Clean Layout: Typically displays the most important current value in the largest font, with status indicators placed in secondary but equally prominent positions to avoid information overload.
6. Synergistic Principle with System Architecture
The CDP is not an independent intelligent device but an extension and external manifestation of the CIN board's monitoring function. It does not participate in control decisions but faithfully reflects the CIN's judgment results. This architecture reflects a design philosophy of functional separation: the CIN handles complex monitoring logic processing, while the CDP handles efficient human-machine interaction. This division of labor allows the CIN to focus on its core control and protection tasks, while externalizing the display function also increases system configuration flexibility – allowing decisions on whether to install the CDP, or where to install it, based on need.
7. Reliability Assurance Principle
The CDP itself typically employs a low-power, fanless solid-state design with no vulnerable moving mechanical parts, ensuring long-term operational reliability. Its power is usually drawn directly from the system's low-voltage DC power supply (e.g., 24VDC), obtained either via the CIN board or directly, with a simple circuit design resulting in a low failure rate. Its presence, as an independent layer of local status feedback, can still provide the most direct status information to on-site personnel even if the upper-level communication system fails, constituting part of the system's defense-in-depth and reliability assurance.
IV. Technical Features
Localized Real-time Monitoring: Provides the most direct and rapid local status feedback for the power converter bridge, independent of the upper-level network.
Intuitive and Clear Display Content: Centrally displays critical bridge output current and comprehensive status, clear at a glance, facilitating quick decision-making.
High-Reliability Design: Solid-state circuitry, no moving parts, suitable for long-term continuous operation in industrial environments.
Field Calibratable: Features adjustable display offset, allowing on-site maintenance of display accuracy, ensuring data credibility.
Flexible Installation: Designed for cabinet door or equipment panel mounting, easy to observe.
Simple and Reliable Interface: Connects to the CIN board via standard cable, easy plug-and-play, simple wiring.
Low Power Consumption: Very low energy consumption itself, minimal burden on the system power supply.
Enhanced System Maintainability: Significantly simplifies daily inspection and initial fault assessment processes, improving operational maintenance efficiency.
V. Application Scenarios
The UNS 0885 CDP Converter Display Panel is an ideal choice for the following application scenarios:
UNITROL 5000 Excitation System Power Cabinets: Serves as a standard or optional status display unit for each power converter bridge.
High-Power Excitation Systems with Multiple Parallel Bridges: Helps quickly locate the specific faulty bridge arm, narrowing down the troubleshooting scope.
Industrial Sites with High Requirements for Local Monitoring: Such as switchgear rooms or generator locations far from the main control room, requiring frequent inspections by local operators.
Critical Power Facilities Requiring Rapid Fault Response and System Recovery: Such as power plants, large pumping stations, compressor stations, where its intuitive display can significantly reduce Mean Time To Repair (MTTR).
Serves as a redundant or backup visual channel to the central monitoring system, providing multi-layered status monitoring assurance.
