GE DS200DTBDG1A Contact Output Expansion Termination Module

The DS200DTBDG1A Contact Output Expansion Termination Module is a critical extended interface at the digital output execution layer within the General Electric (GE) Industrial Systems SPEEDTRONIC Mark V LM Gas Turbine Control System. Serving as a supplement and extension to the DTBC module's functionality, the DTBD module plays a core role as the "command execution terminal" and "power interface expander" in Slot 9 of the digital I/O cores (<Q11>, <Q21>, <Q51>). It is specifically responsible for connecting the second set of 30 relay outputs from the TCRA relay board in Slot 5, reliably converting low-level logic commands from the control system into high-power control signals capable of driving various field devices such as solenoid valves, contactors, indicator lights, and ignition transformers.

Within the complex sequence control and safety interlock logic of a gas turbine, a large number of output points are required to control the start/stop and switching of auxiliary systems (e.g., lube oil pumps, cooling fans, drain valves, ventilation fans). The DTBD module significantly expands the digital output capacity and drive flexibility of the control system through its high-density terminal interface and flexible hardware configuration capabilities. It is not only the physical outlet for control commands but also, through thoughtful design, provides optional configurations for both dry contact relay outputs and self-powered solenoid valve outputs. It offers a standardized solution for the diverse needs of field actuators, representing a vital hardware link ensuring the accurate and reliable execution of the unit's sequence control programs.

2. Product Functions and Features

2.1. Core Functions

As a purely passive signal and power interface board, the DS200DTBDG1A module's main functions are signal transition, distribution, and power configuration:

• Digital Output Channel Expansion: Provides terminal connections for 30 channels of digital outputs (corresponding to relays K31-K60 on the TCRA board in Slot 5). These channels are used to control the numerous devices in the gas turbine's auxiliary systems.

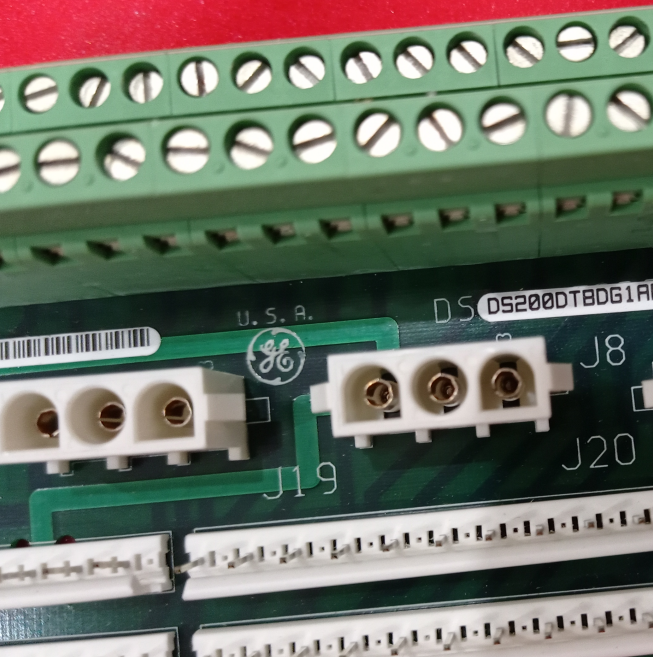

• Flexible Load Drive Mode Configuration: This is the core value of the DTBD. Via on-board jumpers, users can configure two operational modes for the first 16 outputs (channels #31 to #46):

• Dry Contact (Relay) Mode: With jumpers removed, the output is only the relay's passive contacts (Normally Open, Normally Closed, Common). Power for the field device is supplied externally; the DTBD is only responsible for switching control. Suitable for driving contactor coils, auxiliary relays, or status indicators that have their own power supply.

• Wet Contact (Solenoid) Mode: When the corresponding Px/Mx jumper pair (e.g., P1/M1) is both inserted, that output channel is configured for solenoid drive mode. In this mode, 125 V DC power from the TCPD board in the <PD> core is introduced via the J8 connector and directly applied between the Common and Normally Open terminals of that output channel. When the relay energizes, the 125 V DC power directly drives the field solenoid valve, eliminating the need for an external power supply. This greatly simplifies solenoid valve wiring and improves reliability.

• Dedicated High-Power Output Interface: Provides two special contact output channels (#47 and #48) that can be connected via the J19 and J20 connectors to 120/240 V AC power from the <PD> core. These two channels are typically reserved for use with ignition transformers, capable of directly supplying the high-power AC required for ignition. These channels are usually shorted by factory-installed wire jumpers; for use, these jumpers must be removed and the J19/J20 power cables connected as per instructions.

• Reliable Signal and Power Routing: Establishes a reliable connection with the 30 relays on the TCRA board in Slot 5 via 8 high-density connectors (JS1 to JS8), accurately mapping the contact status of each relay to its corresponding output terminal.

2.2. Design Features

• Dual-Mode Configuration Flexibility: The paired jumper design of P1/M1 to P16/M16 is the essence of the design. It allows engineers to independently configure each output point on-site based on the type of device connected (contactor requiring external power, or solenoid valve requiring controller power). This "configure-as-needed" capability avoids the need for different board models for different types of actuators, simplifying design, inventory, and operation & maintenance.

• High-Power Handling Capability: Designed for driving inductive loads (e.g., solenoid valve coils). When configured in solenoid mode, it can safely carry the operating current of the 125 V DC circuit. The J19/J20 interface can handle the high inrush current (up to 15A AC) of ignition transformers. All related paths are protected by independent fuses in the <PD> core.

• Clear Partitioning and Labeling: Terminal block layout is clear with consecutive channel numbering. The jumper area corresponds one-to-one with each output channel and is clearly marked to prevent misconfiguration. The J19/J20 power interfaces are separately located and prominently marked, emphasizing their special purpose and high-power nature.

• High-Reliability Connections: Utilizes industrial-grade screw terminals and reliable board-to-board connectors, ensuring long-term electrical connection stability under high-current and frequent switching conditions. All signal and power paths are optimized to reduce voltage drop and heating.

• Maintenance and Diagnostic Friendliness: The status of each output channel is ultimately determined by the relay status on the TCRA board and can be monitored via the control system's HMI. Output points on the terminal block are convenient for field measurement using a multimeter to verify command execution.

3. Application Fields

As an expanded digital output interface, the DS200DTBDG1A module's applications cover all auxiliary equipment of a gas turbine requiring automatic or logic control:

1. Auxiliary System Sequence Control: Controls the start/stop and interlock of key auxiliary equipment such as lube oil systems (main/auxiliary oil pumps, heaters), fuel forwarding systems (forwarding pumps, circulation valves, drain valves), and cooling & sealing systems (cooling fans, seal air fans).

2. Valve Actuation: Drives solenoid pilot valves for numerous pneumatic or hydraulic valves. These valves control the on/off and regulation of working fluids like fuel, air, cooling water, and steam, serving as the direct mechanism for executing control strategies. The DTBD's configurable solenoid output mode is tailor-made for such loads.

3. Ignition and Flame Monitoring System: Its dedicated J19/J20 AC output channels directly supply power to high-energy ignition transformers, a crucial part of the gas turbine ignition sequence. It may also control devices like flame detector purge solenoid valves.

4. Status Indication and Alarm: Drives indicator lights, alarm horns, or annunciator panels on control consoles, providing operators with intuitive equipment status and alarm information.

5. External Communication and Interlocking: Provides dry contact signals to the plant Distributed Control System (DCS), Fire & Gas (F&G) system, or other third-party systems for unit status reporting and external safety interlocking.

In these applications, the DS200DTBDG1A module ensures the "final step" of control logic can be executed powerfully and reliably, transforming software "1"s and "0"s into the "Run" and "Stop" of field equipment.

4. Product Advantages

1. Significant Expansion Capability and Cost-Effectiveness: Expands an additional 30 high-quality output points within limited slot space. Combined with the DTBC module in Slot 8, a single digital core can provide up to 60 output points, meeting the demands of complex units for numerous digital outputs and avoiding the high cost of adding extra hardware cores.

2. Unparalleled Output Mode Flexibility: The Px/Mx jumper pair design provides exceptional on-site adaptability. During project commissioning or later modifications, switching between "dry contact" and "wet contact (solenoid)" modes can be done simply by adjusting jumpers without changing wiring or replacing boards, greatly enhancing engineering implementation flexibility and responsiveness.

3. Integrated High-Power Drive Capability: Directly integrates 125 V DC and 120/240 V AC power distribution, enabling safe and reliable driving of high-power inductive loads (e.g., solenoid valves, small motors, ignition transformers). This eliminates the need for external discrete power supplies and contactors, simplifying system design and improving overall reliability.

4. High Reliability and Safety: All power comes from the protected <PD> core, with each path having independent fuses. Relay contacts are mechanical, offering strong surge resistance and good isolation, avoiding risks like leakage current or breakdown associated with solid-state outputs. Clear labeling and paired jumper design prevent misconfiguration.

5. Ease of Maintenance and Diagnostics: Output status can be measured directly at the terminal block. Each output's corresponding relay drive command (and feedback if available) can be monitored remotely via the HMI, facilitating quick identification of issues related to control logic, board faults, or field devices.

6. Standardization and Modularity: As part of the standard Mark V LM module library, the DTBD benefits from unified technical support, documentation, and spare parts supply. Its modular design allows for quick and easy maintenance and replacement.

5. Installation, Configuration, and Maintenance Guide

5.1. Installation

• The DS200DTBDG1A module is installed in Slot 9 of the <Q11>, <Q21>, <Q51> cores.

• Power Cable Connections:

• Reliably connect the 125 V DC power cable from the TCPD board in the <PD> core to the J8 connector.

• If required by the application, connect the 120/240 V AC power cable from the TCPD board to the J19 and J20 connectors (Note: in the <Q21> core, these are typically not connected).

• Signal Cable Connections: Use the provided flat cable harnesses to firmly insert the JS1 through JS8 connectors into the corresponding sockets on the TCRA board in Slot 5, paying attention to orientation.

• Field Device Wiring: Connect cables from field actuators (solenoid valves, contactor coils, indicator lights, etc.) to the corresponding channels on the terminal block per the drawings, distinguishing between Normally Open (NO), Normally Closed (NC), and Common (COM) terminals.

5.2. Hardware Configuration (Critical Step)

This configuration must be performed with system power OFF and directly impacts equipment operation and safety.

• Solenoid/Dry Contact Mode Selection (P1/M1 to P16/M16):

• To configure a channel for Solenoid (Wet Contact) Mode: Locate the Px and Mx two jumpers for that channel and insert both. For example, to configure channel #31 to drive a solenoid, both P1 and M1 jumpers must be inserted.

• To configure a channel for Dry Contact Mode: Ensure the Px and Mx two jumpers for that channel are both removed.

• Golden Rule: For the 16 configurable channels (#31-#46), Px and Mx must have the same status (both in or both out). Having one in and one out is not allowed.

• Configuration must be based on final wiring diagrams and I/O lists, clearly defining the type and power requirements of the device driven by each output point.

• Ignition Transformer Channel Configuration:

• Confirm that J19 and J20 are correctly connected to the AC power cables.

• Check if the factory-installed wire jumpers for channels #47 and #48 have been removed per the installation instructions.

• These two channels typically have fixed purposes and do not require P/M jumper adjustment.

5.3. Software Association

• The DS200DTBDG1A itself has no software configuration. However, each of its output channels has a unique software signal name (e.g., L31, L32) in the control system software (CSP - Control Sequence Program).

• On the HMI, operators can view the status (TRUE/FALSE) of these signals, i.e., the command issued by the controller. The drive status of the TCRA board relays can also be indirectly monitored via the DIAGC tool.

5.4. Maintenance and Troubleshooting

• Preventive Maintenance: Periodically check terminal screw tightness; check jumper cap contact quality for looseness; clean the module surface.

• Troubleshooting:

• Single Output Not Functioning:

• Multiple Outputs Abnormal: Check TCRA board power, JS bus connectors, or common power connections (J8, J19/J20).

• Module Replacement: Before replacing a DTBD, clearly record or photograph the position of all jumpers and the wiring of J8, J19, J20. After installing the new board, restore everything exactly as before. After replacement, verify the functionality of the related outputs.

1. HMI Check: Confirm the control logic signal for that output point is active (TRUE).

2. Field Measurement (with power off): At the DTBD terminal block, measure the continuity of that output circuit when the relay should be energized. If the relay contacts are not closed, the issue may be upstream (TCRA relay, JS connection cable, or control signal).

3. Check Configuration: If the channel is configurable (#31-#46), verify the Px/Mx jumper setting is correct. If it should be solenoid mode but jumpers are out, the field device has no power. If it should be dry contact but jumpers are mistakenly in, it may introduce unintended power causing issues.

4. Check Power: For solenoid mode, measure voltage at the J8 input. For ignition transformer channels, measure voltage at J19/J20.

6. Safety Precautions

• High Voltage Hazard: The DS200DTBDG1A module handles 125 V DC and up to 240 V AC voltages, sufficient to cause serious electric shock. Its J8, J19, J20 connectors and corresponding output terminals may be live when the controller is powered. All installation, configuration, and wiring work must be performed only after the controller is completely de-energized and Lockout/Tagout (LOTO) procedures are followed.

• Load Matching: Ensure connected field devices (especially solenoid valves and ignition transformers) have voltage, current, and load type (inductive/resistive) ratings that comply with the relay contact capacities specified in Table 6-3. Overloading is prohibited, as it can burn out relay contacts or cause a fire.

• Correct Configuration is Crucial: It is strictly forbidden to connect a device requiring external power (dry contact load) to an output terminal whose Px/Mx jumpers are mistakenly inserted. This will cause a conflict between the external power source and the internal 125V DC power, potentially damaging equipment, burning jumpers, or causing a short circuit. Configuration must be checked by two persons against drawings.

• Ignition Transformer Special Risk: Ignition transformers operate at high voltages. Their connecting wires must have good insulation, and ensure circuits are fully discharged during maintenance.

• Grounding and Insulation: Ensure field device metal enclosures are grounded as required. When measuring or servicing, use insulated tools to prevent short circuits.
