The DS200RTBAG3A ADS200RTBAG3AHC (Relay Terminal Board Assembly) is a critical interface and signal expansion component specifically designed by General Electric Company (GE) for the EX2000 series Pulse Width Modulated (PWM) Digital Exciter Regulator systems. As a vital part of the Control Electronics Module within the EX2000 exciter hardware architecture, the RTBA board serves as a reliable and flexible signal bridge between the system and external equipment, user control circuits, and protection schemes.
In complex generator excitation control applications, the system needs to exchange status and command signals with numerous external devices (e.g., remote indicators, alarm annunciators, protection relays, sequence control logic). The DS200RTBA was developed precisely to meet this need for highly reliable and flexible input/output (I/O) expansion. It converts and isolates the logical control signals generated by the microprocessor control core into physical contact signals capable of directly driving external relays, indicator lights, or receiving external status feedback, thereby seamlessly connecting the "intelligence" of the digital control system with the actual electrical equipment in the field.
2. Technical Specifications and Design Features
2.1 Basic Electrical Specifications
Relay Configuration: The DS200RTBA board integrates seven (7) Double-Pole Double-Throw (DPDT, Form C) relays. Each relay provides one set of Normally Open (NO), Normally Closed (NC), and Common (COM) contacts, offering maximum wiring flexibility for the user.
Contact Rating: The relay contacts are designed for controlling medium-power auxiliary circuits. Typical ratings are 250VAC/30VDC, 5A. This capacity is sufficient to drive most alarm devices, indicator lights, small-to-medium contactor coils, or serve as passive dry contacts for other PLC/DCS system inputs.
Coil Drive: The relay coils are driven by the EX2000 control core via low-voltage, low-current pilot relays on the LAN Terminal Board (LTB) or by external direct signals. This design provides effective electrical isolation between the control logic (low voltage) and the field loads (higher power).
Status Indication: Each relay is equipped with a Light Emitting Diode (LED) indicator. When the relay coil is energized and the contacts actuate, the corresponding LED illuminates, providing intuitive status indication for field operators and maintenance personnel, facilitating rapid diagnostics.
2.2 Structure and Interface Design

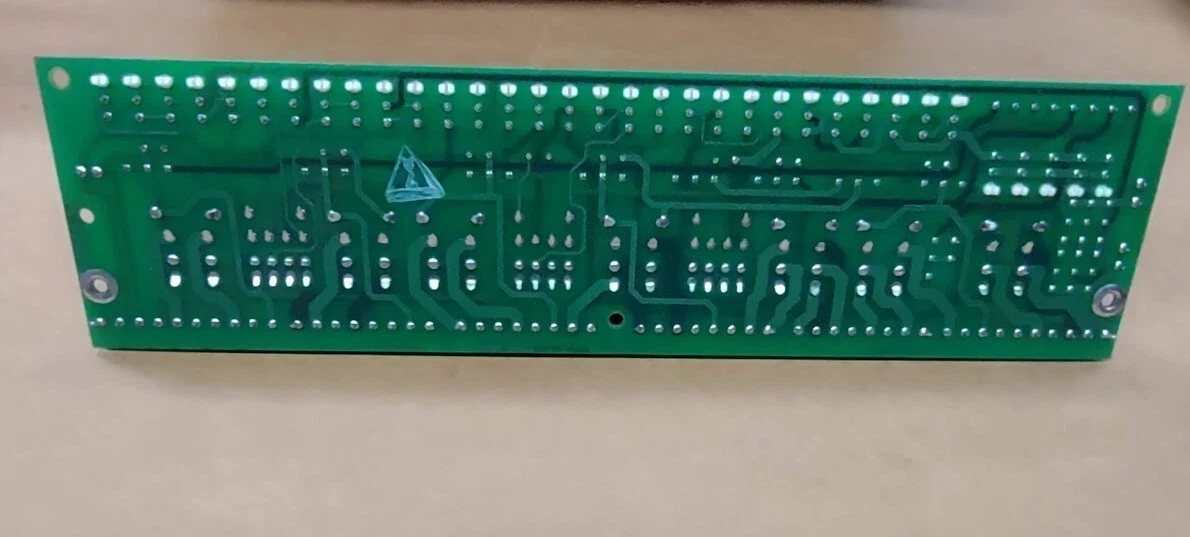

Board Design: The DS200RTBA employs an industry-standard printed circuit board (PCB) design, robust in construction with a clear layout. Components such as relays, terminal blocks, and indicators are arranged orderly for easy identification and wiring.
Connection Method: All external wiring is connected via high-quality pluggable screw terminal blocks. This connection method ensures reliable connectivity and conductivity while greatly facilitating wiring during installation, commissioning, and subsequent maintenance.
Mounting: As part of the EX2000 Control Electronics Module, the DS200RTBA is typically installed alongside other control boards (e.g., LDCC, TCCB, PSCD, GDDD) on the front door or a designated card rack inside the exciter regulator cabinet, interconnected with internal components like the LTB board via ribbon cables.
2.3 Drive Modes and Configuration Flexibility

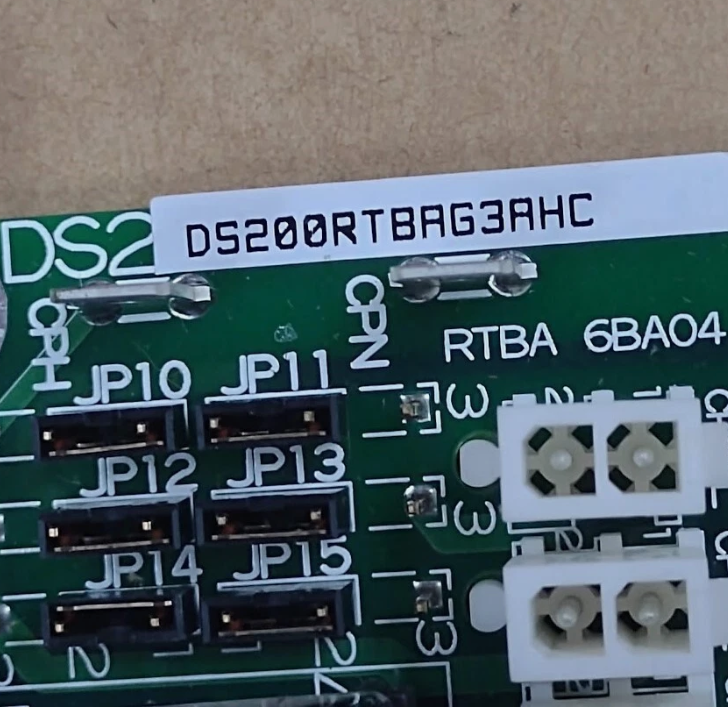

A core design feature of the DS200RTBA is its dual driving mode, selectable via jumper settings on the board:
Software-Driven Mode: In this mode, the operation of the RTBA relays is entirely controlled by the EX2000 core control software through the pilot relays on the LTB board. Users can map specific software variables (e.g., alarm conditions, status flags, fault codes) to designated LTB output points using the EX2000 configuration software (like ST2000 or GE Control System Toolbox), thereby indirectly controlling the RTBA relays. This approach offers high software configurability, allowing control logic changes without altering hardware wiring.
External Direct Drive Mode: By changing the jumper settings, control of the RTBA relay coils can bypass the LTB board and be handed over directly to an independent control power source and signals provided externally. This mode is suitable for scenarios where specific relays need to be operated directly by external safety systems, hard-wired logic, or backup manual controls, providing additional safety redundancy and flexibility.
This configurable drive architecture allows the DS200RTBA to adapt to various complex application scenarios, from fully automatic software control to hybrid manual/automated control schemes.
3. Functional Characteristics and System Integration
3.1 Core Functions
Within the EX2000 PWM excitation system, the DS200RTBA is primarily responsible for providing the following key hard-wired interface functions:
Status and Alarm Outputs: Converts internally monitored system statuses (e.g., "Regulator Running", "Auto/Manual Mode") and alarm/fault information (e.g., "Exciter Trouble Alarm (30EX)", "Protective Transfer to DC Regulator alarm (60EX)", "Exciter Trip Request (94EX)", "Exciter Field Ground Alarm/Trip (64FA/64FT)") into relay contact signals. These are sent to the plant's main alarm system, Distributed Control System (DCS), or audible/visual annunciators on the control panel.
Trip and Protection Interface: Provides the critical "Exciter Trip Request (94EX)" output contact. When the EX2000 detects a severe fault endangering the generator or excitation system (e.g., severe overcurrent, critical hardware failure), it closes this contact, typically wired directly to the generator lockout protection relay (86G) to initiate an emergency generator trip.
External Command Input (Indirect): Although the RTBA itself is primarily an output board, in conjunction with the LTB and system software, it responds to software commands that ultimately require driving external indications or interlocks, forming part of a complete I/O chain.
3.2 Typical Applications within the EX2000 System
According to the EX2000 user manual, RTBA output signals are typically the system's highest-level, most critical external interface signals. Common applications include:
1. 30EX (Exciter Trouble Alarm): Activated by any non-trip abnormal or warning condition, alerting operations personnel.
2. 60EX (Protective Transfer to DC Regulator / Transfer Alarm): Output when a PT (Potential Transformer) failure is detected, causing an automatic switch from the Automatic Voltage Regulator (AVR) to the Manual (field current) regulator, accompanied by this alarm signal.
3. Regulator On Indication: Signifies that the EX2000 exciter regulator is powered and in a run-ready state.
4. 94EX (Exciter Trip Request): The highest priority fault signal, demanding immediate opening of the generator circuit breaker.
5. 64FA/64FT (Exciter Field Ground Alarm or Trip): Depending on customer settings, provides either an alarm or a direct trip signal upon detection of a ground fault in the excitation circuit.
These contacts provide indispensable hard-wired connection points for the user's plant monitoring and protection systems, ensuring critical protection and status information is transmitted reliably even if communication networks fail.
3.3 Collaboration with Other System Components
Collaboration with the LTB Board: In software-driven mode, the RTBA works in tandem with the LTB board. The LTB receives logic signals from the LDCC main processor board and drives its small pilot relays. The contacts of these pilot relays are then connected via ribbon cable to the RTBA board, driving its higher-capacity output relays. This two-stage relay drive method ensures isolation safety for the control core while achieving amplified output drive capability.
Integration with System Software: The output behavior of the RTBA is deeply integrated into the EX2000 system software. The final actions of software modules such as fault detection algorithms, protection limiter logic, and sequence control logic can be mapped to specific RTBA output relays through variable assignment. Engineers can configure and debug these mappings using GE's provided configuration tools.
4. Application Value and Advantages Summary
4.1 High Reliability and Safety
The DS200RTBA utilizes high-quality electromechanical relays whose contact status is unaffected by microprocessor hangs or software glitches, providing a "fail-safe" hard-wired output path. Particularly the 94EX trip contact offers a final hard-wired protection barrier for the generator, independent of software cycles, aligning with the power industry's high-reliability requirements for critical protection circuits.
4.2 Excellent Flexibility and Adaptability
The dual-drive mode design allows it to integrate perfectly into both new and legacy plant control architectures. Whether for a new fully digital plant or an older plant undergoing control system retrofit, the RTBA provides a suitable interface method. The seven Form C relays offer ample contact resources, and the purpose of each contact can be flexibly defined via software, reducing the variety of hardware boards and spare parts inventory.
4.3 Ease of Installation and Maintenance
Clear board layout, status LEDs, pluggable terminals, and detailed documentation support (in the GEH-6375 manual and related board-level guides) make the installation, wiring, testing, and troubleshooting of the DS200RTBA relatively straightforward. Maintenance personnel can quickly determine if a command has reached the board level by observing the LEDs and verify the output circuit by measuring contact continuity.
4.4 Durability as an Industrial-Grade Component
Designed for typical power plant environments, it can withstand certain levels of temperature, humidity variation, and electrical noise, ensuring long-term stable operation under the complex electromagnetic and climatic conditions found in power plants.
5. Key Points for Installation, Configuration, and Maintenance
5.1 Installation Precautions
Before installing or performing any work on the RTBA board, ensure the EX2000 system is completely de-energized, and follow safe operating procedures to prevent electrical shock hazards.
During installation, ensure the board is securely fixed to its rail or mounting bracket. Pay attention to the orientation when connecting ribbon cables to prevent misinsertion.
Use appropriate wire gauges for external connections. Tighten terminal screws with proper torque to ensure a reliable connection without damaging the terminals.
Refer to the specific project drawings (elementary diagrams, connection diagrams) supplied with the equipment to ensure each RTBA output contact is correctly wired to its corresponding external device.
5.2 Software Configuration (for Software-Driven Mode)
Connect to the EX2000 system using GE SuperTool 2000 (ST2000) or GE Control System Toolbox software.
2. Within the software, locate the variable mapping parameters related to LTB outputs and RTBA drive.
3. According to project requirements, associate specific internal status variables or fault flags (e.g., those represented by VAR.XXX such as "PT Fail Latched", "Overexcitation Limiter Active", etc.) with the corresponding LTB output addresses.
4. Verify that the jumpers on the RTBA board are set to "Software Drive" mode.
5. Download the configuration and test: By simulating fault conditions or forcing internal variables, observe if the corresponding RTBA relay actuates, its LED lights, and the external circuit conducts.
5.3 Maintenance and Troubleshooting
Routine Inspection: Observe if the LED indications on all relays correspond to the actual system status.
Periodic Testing: During unit outages, use system test functions or simulate drive signals to verify the integrity of each RTBA output circuit, including relay operation and external wiring.
Troubleshooting: If an output channel is abnormal, follow these steps:
a. Check the corresponding LED: If the LED is off, the issue may lie in software configuration, the LTB board, or connecting cables.
b. If the LED is on but the external device does not operate, the problem may be with the RTBA relay contacts, external wiring, or the external device itself. In this case, with power off, measure the continuity resistance of the contacts at the RTBA terminal block.
c. Check if the jumper settings are correct.
Spare Part Replacement: If replacing the entire RTBA board, re-verify the jumper settings after replacement and it is recommended to re-test the output circuits.
