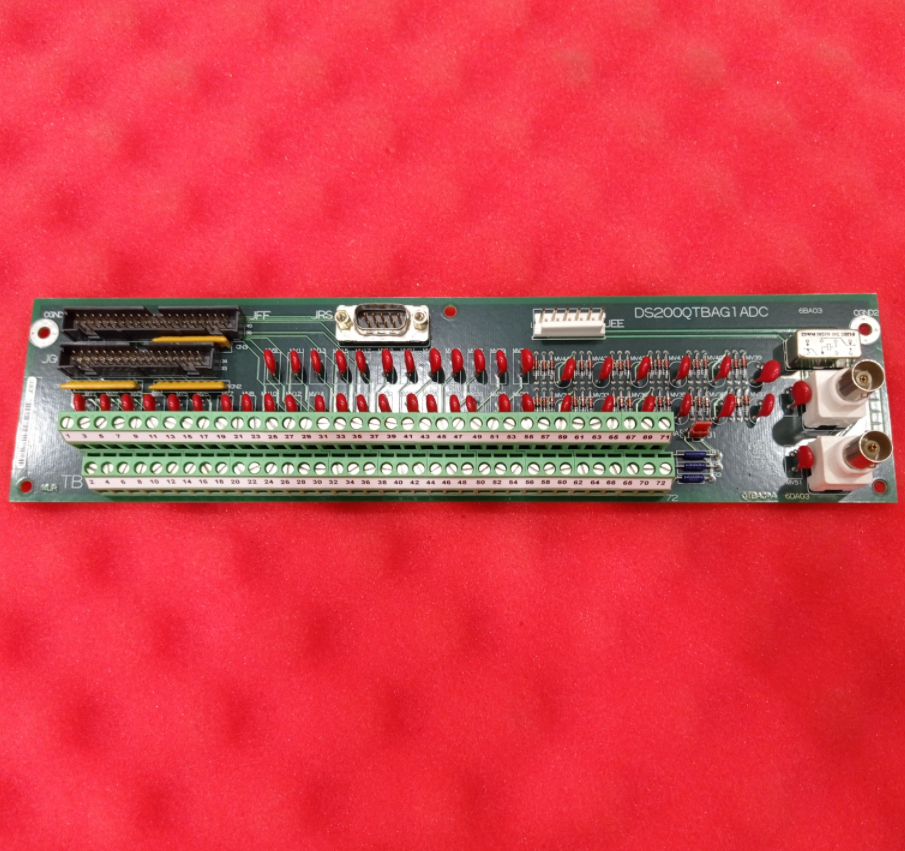

The DS200QTBAG1A Termination Module is an indispensable core interface and signal hub within GE Industrial Systems' SPEDTRONIC Mark V LM Turbine Control System. This module is not a simple terminal block but a highly intelligent termination unit that integrates critical communication link interfaces, key control signal conditioning and distribution, and auxiliary monitoring functions. It is deployed in Slot 6 (Location 6) of every analog I/O core (<R1>, <R2>, <R3>) of the Mark V LM controller, playing a pivotal role in connecting the controller's internal "nervous system" (COREBUS) with its "limbs and extremities" (field actuators and sensors).
In the Mark V LM's architecture designed for the high-speed, high-precision control of aeroderivative gas turbines (e.g., LM2500, LM6000, LM1600), the DS200QTBAG1A is the foundational hardware platform enabling servo drive, speed feedback, power monitoring, and internal reliable communication. Its design profoundly reflects the system's ultimate pursuit of determinism, reliability, and modularity, serving as one of the physical cornerstones that ensures the entire turbine control system can achieve a 100Hz high-speed control frame rate, execute complex algorithm loops, and maintain extremely high operational availability.
II. Detailed Technical Specifications and Functional Breakdown
The DS200QTBAG1A module is a multifunctional integrated termination board. Its technical specifications can be broken down by functional domain:
1. Core Communication Link Interfaces:
COREBUS Connectors: The module provides standard COREBUS (internal ARCNET network) connection points (JA1, JAJ). This is the lifeline for data exchange between the I/O Engine (on the STCA/UCPB board) and other parts of the controller. All processed analog inputs from the field (e.g., LVDT position, pulse signals) are placed on the COREBUS here, and all output commands from the Control Engine (<R>) (e.g., servo valve current) arrive at this module via the COREBUS.
Communication Bypass Relay: The QTBA incorporates a critical bypass relay. This is a key safety redundancy design: even if the QTBA module itself loses power, this relay ensures the COREBUS communication link remains open between other nodes, preventing a single interface module failure from paralyzing the entire internal network, significantly enhancing system fault tolerance.
TIMN Interface: Provides an RS-232 connection point (JRS) for the Terminal Interface Monitor (TIMN), used for engineering debugging and in-depth diagnostics, allowing technicians direct access to the internal data of a specific I/O core.
2. Analog and Pulse Signal Interfaces:
Pulse Rate Inputs: Via the JGG connector, receives raw pulse signals from magnetic speed sensors (e.g., monitoring HP/LP shaft speed) or TTL pulse generators (e.g., flow meters) and transmits them to the TCQC board for counting, conditioning, and calculation, ultimately converting them into engineering values like speed or frequency.

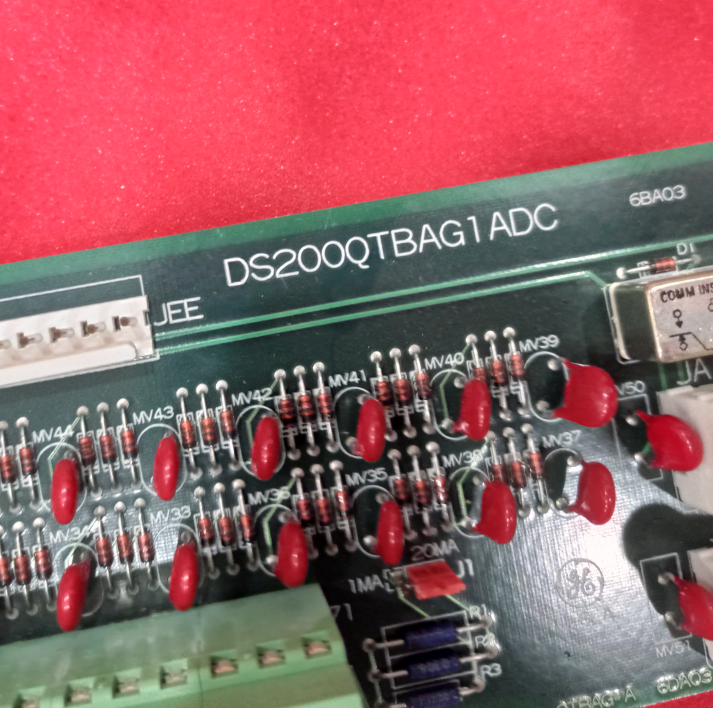

Milliamp Input: Typically used to connect a power transducer (megawatt transducer). The hardware jumper J1 on the module allows field selection of the input signal range as either 0-1 mA (requires an external 5kΩ burden resistor) or 4-20 mA (requires an external 250Ω burden resistor), providing flexibility to adapt to different field instrument standards.
Servo Valve Outputs: Via the JFF and JGG connectors, outputs the servo valve drive current (configurable in multiple ranges such as ±10, ±20, ±40, ±80, ±120, ±240 mA) from the TCQC board—after amplification and conditioning—to the field servo valves, precisely controlling the position of actuators like fuel valves or variable guide vanes.
LVDT/LVDR Excitation Output: Via the JFF connector, provides a 3.2 kHz, 7 V RMS AC excitation signal to power Linear Variable Differential Transformer (LVDT) or Linear Variable Differential Reactor (LVDR) position sensors.
3. Electrical and Mechanical Characteristics:

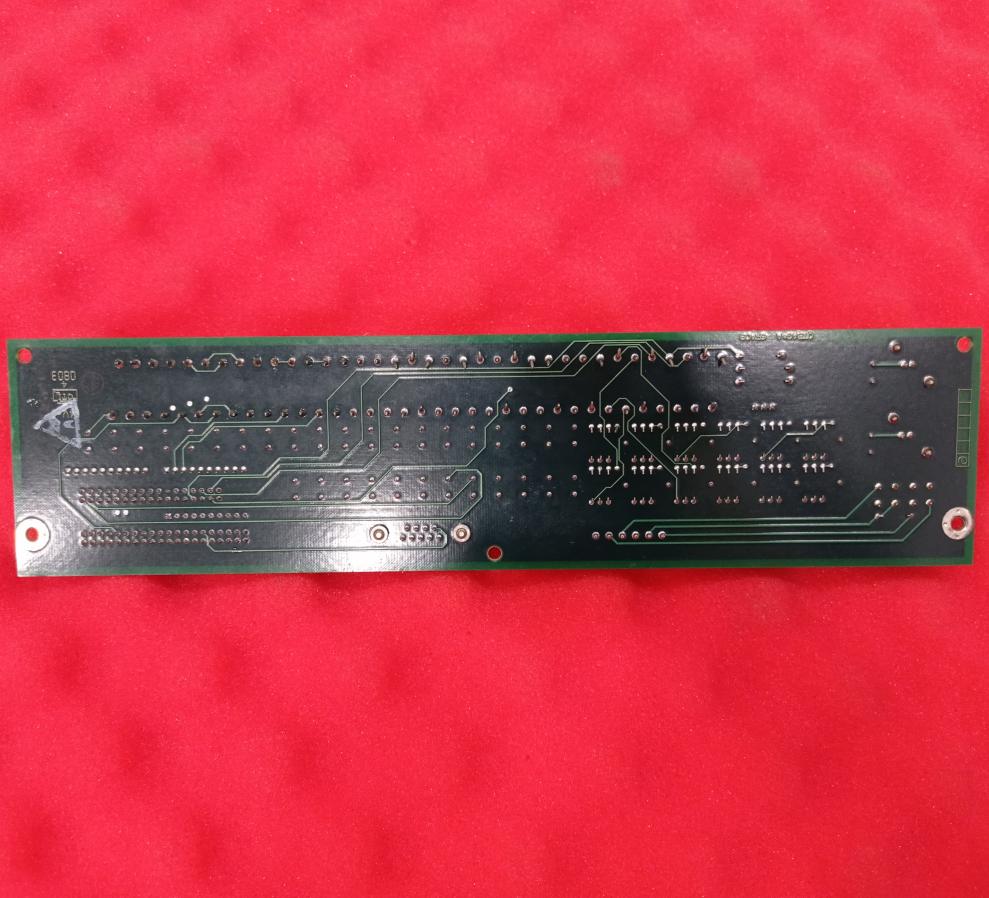

Board Type: High-density Printed Wiring Termination Board (PWTB).
Connectors: Mainly include JEE (to STCA board), JGG & JFF (to TCQC board), JA1 & JAJ (COREBUS), JRS (TIMN), etc., utilizing reliable high-frequency and power connectors.
Environmental Compatibility: Consistent with the overall requirements of the Mark V LM controller, suitable for industrial control room environments. Operating temperature 0-45°C, storage temperature -20 to 55°C, humidity 5-95% non-condensing.
III. System Connections and Signal Flow
The DS200QTBAG1A occupies a central, connecting position within the Mark V LM's analog I/O core:
Upstream Connections (To Controller Internals):
JEE Connector: Connected via a dedicated cable directly to the corresponding interface on the core's STCA board. This is the core data channel between the QTBA and the I/O Engine processor; all signals requiring processing or forwarding are exchanged via this path.
COREBUS Connection Points (JA1, JAJ): Connected to the system's COREBUS network via coaxial cable (BNC interface), making this I/O core a node on the network for periodic high-speed data packet communication with the Control Engine <R> and other I/O cores (<R1>, <R2>, <R3>, <R5>).
Downstream Connections (To Other Boards in the Core and the Field):
Field pulse and milliamp signals are sent to the TCQC via JGG for initial processing.
Servo drive signals and LVDT excitation signals generated by the TCQC are sent back to the QTBA via JFF and JGG, ready for output to the field.
JGG & JFF Connectors: Connected via ribbon cable to the core's TCQC board. This is the key stage for signal conditioning:
Terminal Block: All hardwired connections to/from field devices ultimately converge on the QTBA's screw terminal block, including servo valve output wires, LVDT excitation wires, pulse sensor signal wires, megawatt transducer signal wires, etc.
Signal Flow Summary:
Input Signal Flow: Field Sensor → QTBA Terminal Block → (via JGG) → TCQC Board → (via inter-board bus) → STCA Board → (via COREBUS) → Control Engine <R>.
Output Signal Flow: Control Engine <R> → (via COREBUS) → STCA Board → (via inter-board bus) → TCQA/TCQC Board → (via JFF/JGG) → QTBA Terminal Block → Field Actuator (Servo Valve).
IV. Core Functions and Unique Advantages
System Communication Hub and Safeguard:
Critical COREBUS Node: As the physical access point for the COREBUS in the I/O core, its stability is directly related to the entire control network. The built-in bypass relay is a prominent safety design that distinguishes it from other termination modules, ensuring network-level high availability.
Deterministic Communication Support: Provides reliable physical layer support for the Mark V LM's deterministic communication at a fixed 100Hz frame rate, forming the foundation for high-speed control loops.
Pathway for Critical Control Signals:
Final Gateway for Servo Drive: The most important control action of a gas turbine—fuel flow regulation—is executed via the servo valve current output through the QTBA. The design of this pathway directly impacts the dynamic response speed and precision of control.
Entry Point for Core Feedback Signals: Speed pulse signals enter the system through this module, forming the cornerstone for almost all major control functions such as overspeed protection, speed control, and load control.
Flexible Engineering Adaptability:
Jumper-Configurable: Via hardware jumper J1, it can flexibly adapt to 0-1mA or 4-20mA power transducers, meeting the needs of different projects without hardware replacement.
Emphasis on Application Uniqueness: The manual specifically notes: "As there is no voting being performed for the I/O inputs and outputs, redundant signals would not be used. Signals for the same inputs and outputs would only be used in one of the three locations, <R1>, <R2>, or <R3>." This clarifies that the QTBA configuration in different cores is independent and unique. Engineers must clearly define signal allocation during design and maintenance to avoid misconnection.
Enhanced Reliability and Maintainability:
Integrated Design: Integrating communication and key I/O interfaces into a single module reduces the complexity and potential failure points of internal interconnections.
Diagnostic Access Point: The provided TIMN (JRS) interface offers field engineers the capability to connect directly to the I/O Engine's底层 for advanced diagnostics and troubleshooting, facilitating rapid resolution of complex issues.
V. Application Configuration and Engineering Practice Guide
Installation and Wiring:
Securely install the DS200QTBAG1A module into Slot 6 of the <R1>, <R2>, or <R3> core.
Correctly connect the JEE cable from the STCA board and the JGG, JFF cables from the TCQC board, paying attention to interface key orientation.
According to engineering drawings, carefully connect field cables (servo valve, LVDT, speed sensor, power transducer, etc.) to the corresponding points on the QTBA terminal block, ensuring correct polarity and secure fastening.
Use coaxial cable to connect the COREBUS interfaces (JA1/JAJ), and ensure the network terminator resistor is correctly installed on the last node.
Hardware Configuration Steps:
Power Transducer Range Selection: Based on the output signal type of the connected megawatt transducer, set hardware jumper J1:
COREBUS Terminator Resistor: If this QTBA module is the end node of the COREBUS link, a 93-ohm terminator resistor must be installed on the open JA1 or JAJ interface to ensure network signal integrity.
Software Configuration Essentials:
In the Mark V LM's engineering software (TCI) I/O Configuration Editor, signals accessed via the QTBA require software-level configuration:
Configure tooth count, filter constants, and range for pulse rate inputs (e.g., TNHC, TNLC).
Configure the range (matching hardware jumper J1: 4-20mA or 0-1mA) and engineering unit scaling for the power transducer input (e.g., MW).
Configure servo output channel characteristics.
Commissioning and Verification:
After power-up, first check the COREBUS link status via the HMI's DIAGC screen to confirm normal communication between <R> and all I/O cores (including the core containing this QTBA).
Using the TIMN interface or HMI forcing functions, test the servo output loop: issue a command and measure the output current at the QTBA terminal block to see if it matches the expectation.
Simulate a pulse input (using a signal generator) and observe if the speed display on the HMI is correct.
Verify the power transducer input: inject a standard current signal and check the power display value on the HMI.
VI. Typical Application Scenarios and Importance
The DS200QTBAG1A is the physical implementation core for the following turbine control functions:
Gas Turbine Speed Regulation and Overspeed Protection: Magnetic speed sensor signals for the Low-Pressure (LP) and High-Pressure (HP) shafts enter through the QTBA. They are the primary source for speed control loops (e.g., L14HM, L14LM) and the emergency overspeed protection (TCEA) system. Their signal quality directly determines protection accuracy and control stability.
Fuel Control Actuation: The servo drive current for the Fuel Metering Valve (FMV) or Gas Control Valve (GCV) is output through the QTBA. This is the final, most critical execution point in the control loop. Its precision and dynamic response directly impact combustion efficiency, emissions, and unit safety.
Generator Power Monitoring (for power generation applications): Grid power (Megawatt) and/or generator power signals are input via the QTBA's milliamp input channels, used for power control, load sharing, and performance calculations.
Auxiliary Controls like Compressor Guide Vanes: Servo valves driving variable inlet guide vanes (IGV) or compressor bleed valves on some engine models also receive their control signals via the QTBA.
VII. Maintenance, Diagnostics, and Troubleshooting
Routine Maintenance:
Periodically check the tightness of terminal block screws.
Inspect COREBUS coaxial cable connectors (BNC) for firm connection and damage.
Keep the module well-ventilated and free from dust accumulation.
Common Fault Diagnostics:
COREBUS Communication Failure:
Symptom: Data from the I/O core shows "bad value" or communication alarms on the HMI.
Troubleshooting: Check COREBUS cable connection on the QTBA; check network terminator resistor; utilizing the bypass relay feature, attempt to temporarily bypass this node to determine if the QTBA module itself is faulty.
Servo Output Anomaly:
Symptom: Valve does not move or moves erratically.
Troubleshooting: Measure output current at the QTBA terminal block against the command; check JFF/JGG cable to the TCQC board; check field load (servo valve coil) impedance.
Pulse Input Signal Loss:
Symptom: Speed display shows zero or fluctuates.
Troubleshooting: Measure the AC voltage signal from the pulse sensor input at the QTBA terminal block (while the unit is rotating); check sensor power supply and loop resistance.
Safety Warning:
When performing any wiring, jumper setting, or measurement operations on the QTBA module, strict safety procedures must be followed. Ensure relevant circuits are safely isolated, especially the 125V DC power and servo drive output circuits, due to the risk of electric shock.
