In modern power generation systems, the excitation control system plays a crucial role, directly impacting the voltage regulation of synchronous generators, reactive power control, and the stable operation of the entire power network. As a core component of General Electric's (GE) third-generation digital excitation control system, the EX2100™, the IS200ERBPG1A (Exciter Regulator Backplane) is an advanced hardware platform specifically designed for regulator-type excitation control applications. It serves not only as the physical carrier and electrical connection hub for various control and interface boards but also represents the critical foundation for achieving system modularity, high reliability, and flexible configuration. This introduction will comprehensively analyze the technical characteristics, architectural design, functional composition, and application value of the IS200ERBPG1A backplane within the EX2100 system.

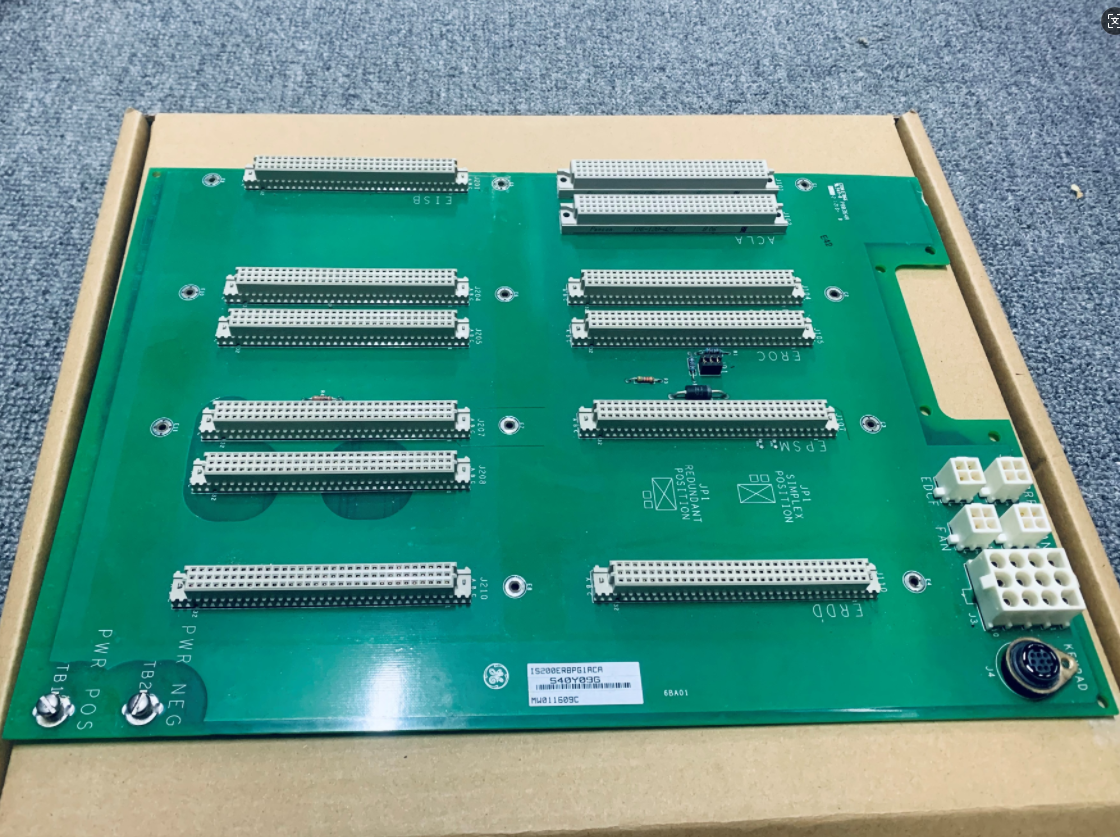

1. Product Overview and Positioning
The IS200ERBPG1A is the main control backplane within the EX2100 excitation control family, intended for "Regulator" type excitation schemes. Distinct from the EBKP (Exciter Backplane) used in "Full Static" excitation systems, the ERBP focuses on applications paired with rotating exciters (such as AC exciters or brushless excitation systems) to achieve precise, rapid control of generator field current or voltage. It forms the "heart" and "skeleton" of the regulator control cabinet. All critical control logic processing, signal input/output, power conversion, and system protection functions are realized through the collaborative operation of various boards installed on it.
The ERBP backplate design adheres to the high standards of the EX2100 system. It supports configurations ranging from simple simplex control to highly reliable redundant control, meeting the excitation control requirements of thermal, gas turbine, and hydroelectric power plants of various scales and reliability demands.
2. Core Functions and System Architecture
The core function of the IS200ERBPG1A is to provide a highly integrated, reliably interconnected hardware environment, specifically manifested in the following aspects:

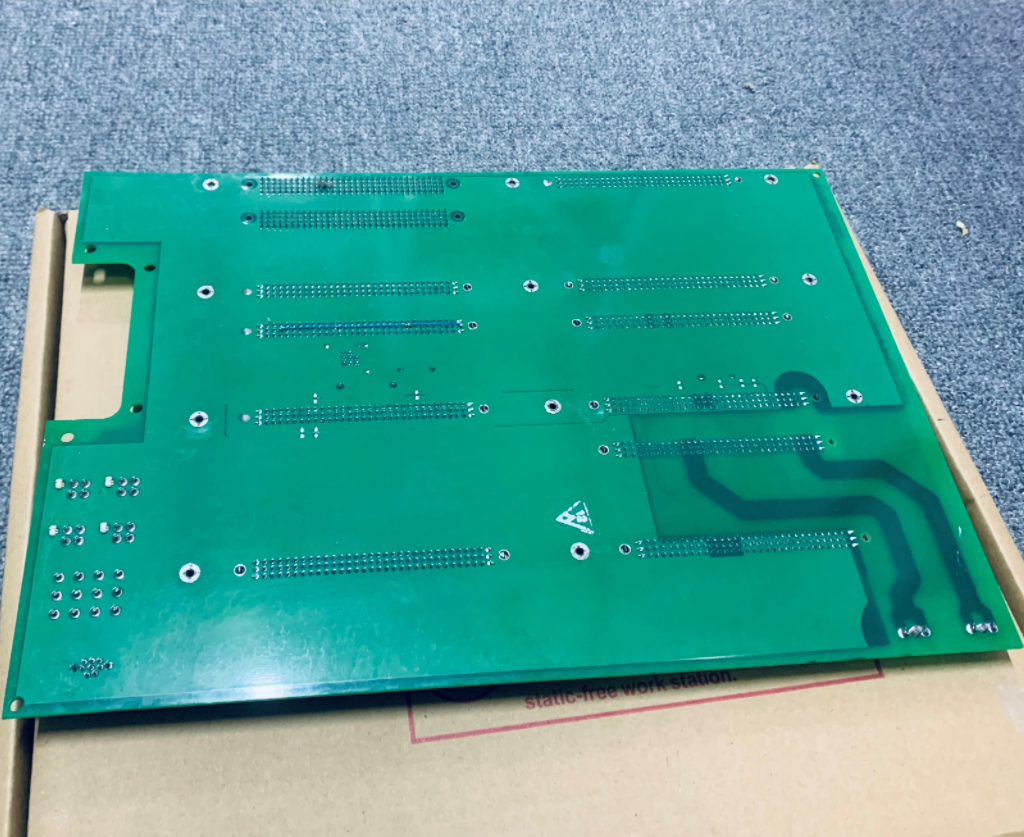

Physical Integration and Electrical Interconnection: The ERBP is a multi-layer printed circuit board assembly featuring a large number of high-density connectors. It provides precise mounting slots for all necessary controller boards, interface boards, power modules, and option boards. Internal backplane wiring facilitates high-speed, stable electrical connections between these cards, eliminating the need for extensive and complex inter-card cabling. This enhances system tidiness, reliability, and noise immunity.
Control System Carrier: In a simplex regulator system, the entire control logic core—including the main controller, signal processor, and I/O interfaces—is housed on a single ERBP backplane. In a redundant system, a complete configuration typically consists of one ERBP serving as M1 (Master #1) and one ERRB (Exciter Regulator Redundant Backplane) serving as M2/C (Master #2/Protection).
Signal Routing and Distribution Hub: All signals from the generator terminals (PT voltages, CT currents), field switchgear commands and status feedbacks, and control signals destined for the exciter field are routed through connectors on the ERBP to the appropriate processing boards (e.g., ERIO, EROC) or controller boards (e.g., ACLA, DSPX).
Power Distribution Nexus: The ERBP receives various DC voltages (e.g., +5V, ±15V, +24V) converted by the power supply module (EPSMG2) and distributes them accurately and in an isolated manner via backplane traces to all boards requiring power, ensuring the entire control subsystem has clean, stable logic power.
3. Hardware Composition and Board Configuration
A typically configured IS200ERBPG1A backplane contains the following key board modules, which work together to accomplish the excitation regulation task:
Application Control Layer Module (ACLA - IS215ACLA): Acting as one of the system's "brains," the ACLA is a scalable microprocessor-based controller operating at 100MHz. It is primarily responsible for outer-loop control/regulation functions, such as setpoint control for the Automatic Voltage Regulator (AVR), Var/Power Factor (PF) control, the Power System Stabilizer (PSS), and various limiter functions (e.g., Over-Excitation Limiter, Under-Excitation Limiter). Simultaneously, the ACLA acts as a communication gateway. Through its integrated Ethernet port and RS-232C serial ports, it facilitates data exchange with upstream systems (e.g., Mark VI turbine control, Human-Machine Interface HMI, plant DCS), supporting protocols like EGD (Ethernet Global Data) and ModBus.
Digital Signal Processor Control Board (DSPX - IS200DSPX): As the system's "nerve center," the DSPX, based on a high-speed 60MHz Digital Signal Processor chip, is the core for inner-loop control and the local operator interface. It handles fast closed-loop control for field voltage/current regulators, start-stop sequencing, field flashing, generator instrumentation signal processing, and the operation of the built-in Generator Simulator (GEN SIM). Furthermore, the DSPX connects directly via a serial interface to the local operator keypad on the cabinet door, providing parameter setting, data monitoring, and fault diagnosis capabilities.
Exciter Regulator Input/Output Board (ERIO - IS200ERIO): The ERIO is the primary interface between the system and the external world. It is responsible for acquiring customer and system I/O signals (analog and digital) from terminal boards (e.g., EPCT, ECTB) and outputting control commands to corresponding actuators. An onboard Field-Programmable Gate Array (FPGA) handles high-speed data acquisition, storing data in Dual-Ported Memory (DPM) for real-time access by the DSPX.
Exciter Regulator Options Card (EROC - IS200EROC): The EROC provides essential extended functionality support. Crucially, it integrates interfaces for ground detection, supporting both GE's patented active ground detection module (EGDM) and providing connection capabilities for third-party ground detection devices (up to 3 inputs: Ground Alarm, Detector Malfunction, Diode Fault Monitor). Additionally, the EROC provides the RS-232C communication interface for the local keypad, with keypad connectors on both its faceplate and the backplane to accommodate different cabinet layouts.
IGBT Exciter Regulator Interface and Dynamic Discharge Board (ERDD - IS200ERDD): For IGBT (Insulated Gate Bipolar Transistor) based regulator systems, the ERDD is the critical power control interface. It generates pulse signals to drive the IGBTs, enabling Pulse Width Modulation (PWM) control of the exciter field voltage. Furthermore, the ERDD integrates a dynamic discharge function to rapidly dissipate excessive voltage on the DC link capacitors during events like load rejection or unit trips, protecting equipment. It also monitors DC link voltage, output current, bridge temperature, and IGBT gate drive status.
Exciter Power Supply Module (EPSM - IS200EPSMG2): Designed specifically for regulator systems, the EPSMG2 power module mounts directly on the ERBP. It converts voltage from the system's DC link (typically supplied by rectified AC or station batteries) via a buck-regulator and push-pull inverter to generate the various isolated, stable low-voltage DC supplies required by the control system. These include +5Vdc, ±15Vdc, +24Vdc for logic circuits, and +70Vdc for contactor coil wetting, among others. Its attached daughterboard (EPSD) enhances input voltage withstand capability and safety.
Optional: Exciter ISBus Board (EISB - IS200EISB): The EISB board can be installed as an option when a Triple Modular Redundancy (TMR) protection architecture similar to the EX2100 static system or specific communication needs are required. It communicates via high-speed fiber-optic links with field feedback boards (e.g., EDCF) and establishes proprietary ISBus communication among the M1, M2, and C controllers for voting and synchronization of critical protection signals.
4. Application in System Configurations
Simplex Regulator System: In basic applications, only one IS200ERBPG1A backplane is used. This backplane hosts a complete set of control boards (ACLA, DSPX, ERIO, EROC, ERDD, EPSMG2), forming a standalone exciter regulator. This configuration is cost-effective and suitable for applications with lower redundancy requirements. Its Mean Time Between Forced Outage (MTBFO) is sufficient for many needs.
Redundant Regulator System: To enhance availability, a "Warm Backup" redundant configuration is employed. The system then consists of two independent control modules:
M1 Module: Composed of one IS200ERBPG1A backplane and its full complement of boards.
M2/C Module: Composed of one IS200ERRBG1A redundant backplane. This backplane physically integrates the M2 control section (containing boards similar to the ERBP: ACLA, DSPX, ERIO, EROC, ERDD, EPSMG2) and the C protection control section (primarily containing DSPX, ERIO, EISB).
In a redundant system, M1 and M2 operate synchronously as active and backup controllers, while the C controller provides the third element for I/O and protection voting. If the active controller (e.g., M1) fails, the system can perform a bumpless transfer to the backup controller (M2), significantly improving system reliability. The MTBFO can be nearly triple that of a simplex system.
5. Physical and Electrical Characteristics

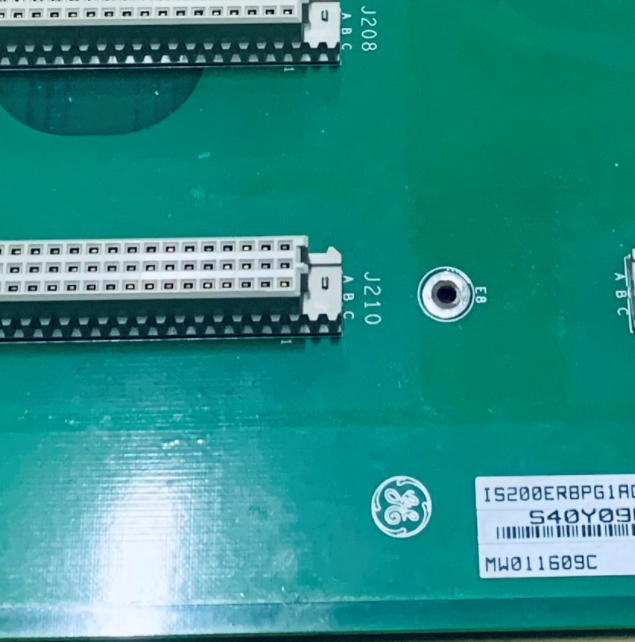

Mechanical Structure: The ERBP backplane is designed for mounting in standard 19-inch (approx. 480mm wide) racks or on control cabinet doors. Its structure is robust, with a compact and logical layout of board slots, complying with industrial control equipment mechanical standards.
Electrical Isolation: The backplane design incorporates necessary electrical isolation, particularly in power distribution and signal transmission paths, to reduce interference and ensure independent, stable operation of subsystems.
Environmental Compatibility: As part of the EX2100 system, the ERBP and its boards are designed for continuous, reliable operation within a standard industrial ambient temperature range of 0°C to 40°C. They can also withstand certain levels of vibration and electromagnetic interference, complying with relevant international standards such as UL, CSA, CE (including EMC and Low Voltage Directives), and IEEE.
Thermal Management: The layout of the backplane and boards considers thermal requirements. Cabinets are typically equipped with forced-air cooling systems to ensure power devices and integrated circuits operate within permissible temperature ranges.
6. Summary of Advantages
High Integration and Reliability: Integrating all core control and interface functions onto a single backplane and using reliable internal connections reduces external cabling and connection points, significantly lowering connection failure rates and improving overall system Mean Time Between Failures (MTBF).
Flexible Configuration Capability: By selecting different boards (e.g., with or without EISB, choosing different versions of ERIO/EROC), the system can be flexibly adapted to various application scenarios, from basic regulation to advanced redundant protection, meeting customer customization needs.
Powerful Processing and Control Performance: The collaborative processing architecture of the ACLA and DSPX, combined with advanced software algorithms (e.g., software transducers, multi-variable PSS), delivers fast, precise excitation control performance, effectively enhancing the static and dynamic stability of the power system.
Comprehensive Diagnostics and Maintenance Support: Features such as abundant status LED indicators, detailed diagnostic information accessible via the keypad or Toolbox software, and the built-in Generator Simulator (GEN SIM) greatly facilitate system commissioning, startup, routine maintenance, and troubleshooting.
Open Communication and Integration: Support for various industrial standard communication protocols like Ethernet EGD and ModBus RTU/TCP enables seamless integration with GE's Mark VI series turbine control systems, third-party DCS systems, and remote monitoring centers (e.g., OnSite Center™), supporting intelligent plant management.
Compliance with Global Standards: The product's design, manufacturing, and testing adhere to a series of international safety, electromagnetic compatibility, and quality standards such as UL, CSA, CE, and IEEE, ensuring its safe and legal deployment and operation worldwide.
