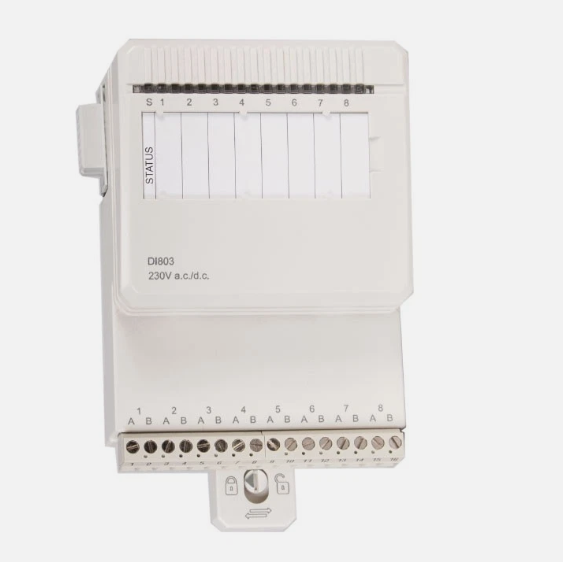

The DI803 is a core component of the ABB Ability™ System 800xA® series for the S800 I/O system. It is a high-performance, highly reliable 8-channel digital input module designed for industrial automation control systems. This module is suitable for monitoring high-voltage alternating current (AC) or direct current (DC) field signals and transmitting these signals safely and accurately to the control system. It supports a wide input voltage range of 230V AC and 220V DC. It features advanced functions such as individual electrical isolation between channels, field supply voltage supervision, digital signal filtering, and status indication. It is widely used in demanding fields with high requirements for signal reliability and safety, such as power generation, energy, chemical, marine, and heavy machinery.
The DI803 module adopts a compact S800 mechanical design and supports field process connection via detachable connectors, greatly facilitating installation, wiring, and maintenance. Each input channel integrates current limiting, electromagnetic compatibility (EMC) protection, optocoupler isolation, and status indicator LEDs, ensuring stable operation even in harsh industrial environments. Furthermore, Channel 8 can be configured as a process voltage supervision input for Channels 1-7, providing an additional layer of system diagnostics and safety protection.
II. Key Features and Benefits in Detail
1. High Voltage Compatibility & Wide Input Range
The DI803 module is designed to directly interface with common industrial field signal sources of 230V AC or 220V DC, eliminating the need for additional signal converters or isolating transmitters. Its wide input voltage range (AC: 164-264V, DC: 175-275V) can accommodate line voltage fluctuations or unstable power supplies, ensuring reliable signal recognition. Clear "0" and "1" level thresholds effectively prevent false triggering due to marginal voltage levels.
2. Fully Independent Channel Isolation
Each input channel is individually electrically isolated from the others and from the system bus via independent optocoupler barriers. This design effectively prevents damage to the control system side caused by high-voltage transients, ground loop interference, or potential differences from the field side. It significantly enhances the overall system's immunity to interference and safety, making it particularly suitable for applications with multiple power supplies or complex grounding systems.
3. Integrated Process Voltage Supervision (Channel 8)
Channel 8 of the module can be configured as a Process Voltage Supervision Input, specifically for monitoring the status of the field power supply to Channels 1 through 7. When the monitored voltage is lost, the module immediately activates an error signal and reports the fault status to the higher-level control system via the ModuleBus. This function provides an additional diagnostic layer for critical safety loops, allowing the system to execute predefined safe actions upon power failure. Users can flexibly enable or disable this supervision function via configuration parameter "a". When disabled, Channel 8 can be used as a normal input channel.
4. Configurable Digital Signal Filtering
The module features built-in digital filters with four selectable filter times: 2ms, 4ms, 8ms, and 16ms. This function effectively suppresses short-duration interference pulses (glitches) caused by electromagnetic noise or contactor bounce on field wiring. For example, with an 8ms filter selected, all noise pulses shorter than 8ms are filtered out, while valid signal pulses longer than 12ms can pass through. This significantly improves signal acquisition stability and accuracy, reducing false alarms caused by interference.
5. Clear Local Status Indication
The module's front panel is equipped with an independent LED indicator for each input channel, displaying the real-time logic state ("0" or "1") of that channel. Additionally, a separate "S" status LED indicates the overall module Run or Fault condition. This intuitive local diagnostic capability greatly facilitates rapid troubleshooting and maintenance by field engineers.
6. Convenient Engineering & Maintenance
Detachable Connectors: All process signals are connected via pluggable connectors on the module side, simplifying wiring, commissioning, and module replacement, thereby reducing system downtime.
Flexible Wiring Support: Supports a wide range of field cable sizes from fine to larger gauge, with clear torque and stripping length guidelines to ensure reliable connections.
Long-Distance Transmission Capability: Supports field cables up to 600 meters (DC) and 200 meters (AC), meeting the wiring requirements of large-scale plants.
III. Installation, Wiring & Application Guide
Process Connection Diagram
The 8 channels of the DI803 correspond to 16 process terminals (two terminals, A and B, per channel). Please refer to the wiring diagram in the module manual for specific connection methods. When wiring, strictly adhere to the recommended torque (0.5-0.6 Nm) and stripping length (6-7.5 mm), and use cables that meet the specifications to ensure good electrical contact and long-term connection reliability.
Typical Application Scenarios
High-Voltage Equipment Status Monitoring: Such as motor run/stop status, high-voltage circuit breaker position signals, transformer cooling fan status, etc.
Power System Monitoring: Utilizing the voltage supervision function of Channel 8 for continuous monitoring of the power supply to critical control loops.
Safety Interlock Systems: Connecting high-level safety signals like safety door switches and emergency stop buttons, which are then filtered and isolated before being sent to the safety control system.
Marine and Offshore Applications: Benefiting from its comprehensive marine certifications (ABS, BV, DNV, LR), the DI803 is ideally suited for ship automation systems to monitor the status of deck machinery, pumps, fans, and other equipment.
IV. Diagnostics, Monitoring & System Integration
The DI803 not only provides local LED diagnostics but also seamlessly integrates with the ABB System 800xA or Symphony Plus DCS via the ModuleBus, offering rich remote diagnostic information:
Module-Level Status: Such as "Module Error", "Module Warning", indicating internal hardware or communication issues.
Channel-Level Status: Such as "Channel Error", which, combined with the voltage supervision function, can pinpoint power supply faults to specific channels.
Process Voltage Supervision Status: When supervision is enabled and voltage is abnormal, the system can quickly obtain alarm information.
This diagnostic data can be centrally displayed and logged through the control system's Human-Machine Interface (HMI), enabling operations and maintenance personnel to monitor the health status of the entire I/O subsystem in real-time and implement predictive maintenance.
V. Environmental Suitability & Quality Assurance
The DI803 is strictly designed to industrial environmental standards:
Stable operation within a wide temperature range of 0°C to 55°C and storage under extreme conditions from -40°C to 70°C.
Good resistance to vibration and shock, compliant with IEC/EN 61131-2 standards.
Pollution Degree 2 and IP20 protection class, suitable for general industrial control cabinet environments.
Compliance with multiple international safety and EMC certifications such as CE, UL, and major marine classification societies, meeting stringent entry requirements worldwide.
Compliance with RoHS and WEEE directives, reflecting ABB's commitment to product environmental protection and social responsibility.
