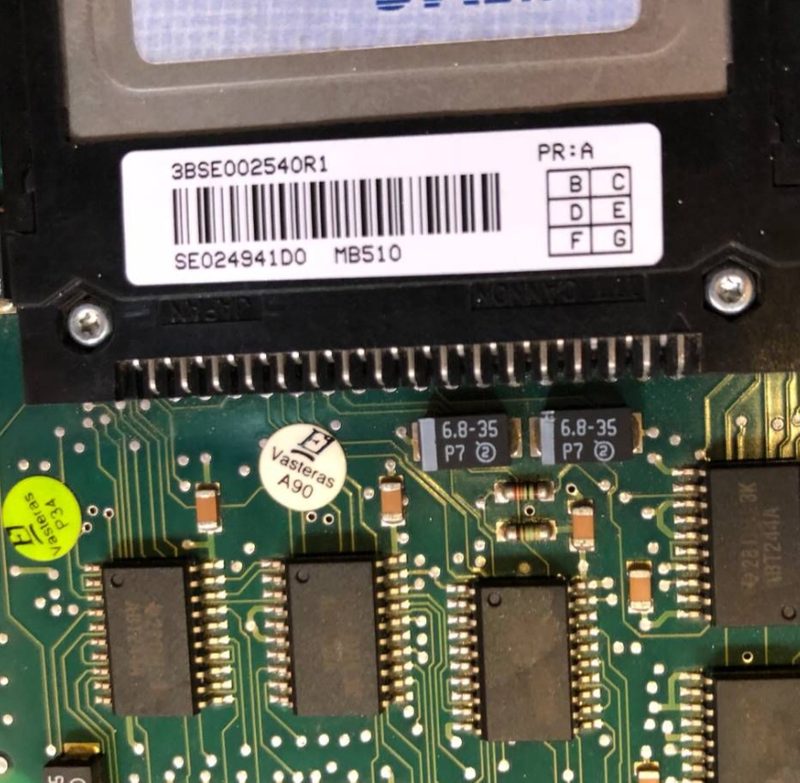

The MB510 Program Card Interface Module is a critical hardware component of the ABB Advant Controller 450, a large-scale programmable industrial controller, and belongs to the Advant OCS (Open Control System) product family. This module plays a vital role within the system architecture, serving as the physical storage carrier interface for the system software and application programs. It is responsible for connecting to flash memory program cards using the PCMCIA 2.0 standard and is fundamental to achieving the modularity, configurability, and high reliability of the controller's core functionality.
The Advant Controller 450 is a large controller designed for mixed binary, regulatory, and supervisory control, capable of operating standalone or integrated as part of a distributed control system. Within this system, both hardware and software employ a highly modular design, and the MB510 is a typical embodiment of this design philosophy. It is not an independent computing unit but rather a dedicated, intelligent storage interface ensuring the controller can reliably access, load, and back up the various program modules required for its operation.

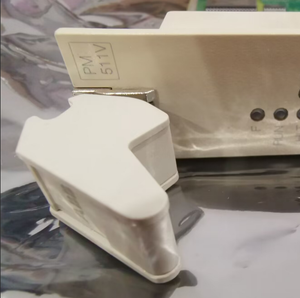

From a system hierarchy perspective, the MB510 resides in the controller hardware architecture's "Storage & Backup" layer. The controller hardware primarily consists of the Processor Module (PM511V), various communication submodules, the power supply subsystem, and support modules including the MB510. The MB510 is typically installed in a Submodule Carrier SC510 or SC520, communicating with the processor module via the backplane bus. This design allows for the installation, replacement, and maintenance of program cards independently of the core processor, significantly enhancing system maintainability and flexibility.
II. Detailed Core Functions
The functionality of the MB510 module extends far beyond that of a simple "card reader." It undertakes several core tasks throughout the lifecycle of the Advant Controller 450:
1. Physical Hosting and Backup of System and Application Programs:
System Program Backup: The standard system software (operating system, basic function libraries, etc.) of the Advant Controller 450 is solidified on a flash memory program card (PCMCIA card). This card must be inserted into the dedicated interface located on the front of the Processor Module PM511. This is the foundation for system startup and operation. The MB510 is used to install additional program cards. These cards carry optional software function libraries (e.g., QC07-LIB41, QC07-LIB42, etc.) to extend the controller's capabilities.
Application Program Backup (Key Optional Function): This is an extremely important value-added function provided by the MB510. Users can back up the complete controller system configuration and application program (i.e., the PC programs, databases, etc., created by the user to solve specific process control problems) via the engineering station's "DUAP" (Dump of Application Programs) function onto another dedicated PCMCIA flash card. This card is then inserted into the MB510. When the controller recovers power after an incident that clears the RAM (e.g., extended power loss beyond battery backup, severe fault), the system can not only automatically load the system program from the card on the PM511 but can also automatically restore the user application program from the application backup card in the MB510. This avoids the time-consuming process of relying on an engineering station and manual intervention by skilled personnel for reloading, greatly reduces system downtime, and enables rapid, unattended restart. This is crucial for industrial applications with high availability requirements.
2. Modular Expansion of Software Functionality:
The ABB Master system software employs a modular design. Basic system functions are contained in the QC07-BAS41 module, but more advanced functions (such as advanced PID control, fuzzy control, batch process support, user-defined function blocks, etc.) are encapsulated in independent program modules (e.g., QC07-LIB42, QC07-FUZ41, QC07-BAT41, QC07-UDP41). By installing the corresponding program cards via the MB510 interface, users can flexibly "add" software functions to the controller according to project needs without replacing core hardware. This "pay-as-you-need, flexible expansion" model reduces initial investment costs and enhances system adaptability.
3. Reliable Storage and Access Interface:
The MB510 provides a robust electrical and physical interface compliant with the PCMCIA 2.0 standard, ensuring high-speed, reliable data communication with the flash memory card. Internally, it contains address/data buffers and interface logic control circuits responsible for managing the processor's addressing of the program card, data reading, and status monitoring. This specialized interface design is superior to integrating flash memory directly onto the main board, as it reduces the load on the main processor and isolates the impact of storage medium failures on the core system.
4. Operational Status Monitoring and Diagnostics:
The module front is equipped with two LED status indicators:
Green RUN Light: Indicates the module is operating normally with good communication to the carrier and system backplane.
Red F Light (Fault Light): Illuminates when the following issues are detected:
a) Hardware Error: A fault in the module's own circuitry.
b) Checksum Error: Integrity check of data read from the program card fails, indicating possible data corruption on the card or card failure.
c) Program Card Missing: No inserted program card is detected.
Furthermore, the system primarily uses Cyclic Redundancy Check (CRC) to continuously monitor the integrity of data on the program card. This proactive diagnostic mechanism allows potential data storage issues to be detected early, before they affect system operation.
5. Support for Hot-Swapping (Subject to System Design):
Although the user manual does not explicitly emphasize hot-swap procedures, given that the MB510 and its program card are physically independent from the processor module and architecturally belong to configurable peripheral modules, it is theoretically possible to replace or upgrade program cards under correct system operating modes (e.g., in configuration mode or when certain that the card is not essential for current operation). However, this must strictly follow ABB's prescribed safety regulations and operational procedures to avoid damage to hardware or data from live operations.
III. Working Principles and System Collaboration
The working principle of the MB510 is tightly integrated into the overall startup, operation, and backup processes of the Advant Controller 450:
1. Role in the System Startup (Initialization) Process:
When the controller is powered on or recovers from a deep fault, the Processor Module PM511 begins its startup sequence. During this process:
Primary Step: PM511 reads the basic system software (bootloader, OS kernel, etc.) from the system program card in its own slot, loading it into its dynamic RAM.
Extension Step: Simultaneously or subsequently, the system queries, via the backplane bus, the additional program cards installed in the MB510 (or other MB510 modules if the system is configured with multiple). It identifies the software modules stored on the cards (e.g., function libraries) and loads these optional software components into the controller's RAM as well. At this point, the controller possesses the complete software environment required to run user application programs.
2. Collaboration with Software Module Structure:
As mentioned, the controller's software consists of a series of "program modules," for example:
QC07-BAS41: Basic system, containing core PC elements and functional units for logic, arithmetic, communication support, etc.
QC07-LIB42: Extended PC element library, containing advanced PID controllers (PIDCON, PIDCONA), etc.
QC07-UDP41: Supports user-defined PC element libraries.
The MB510 serves as the physical distribution and activation channel for these software modules. Engineering personnel insert program cards containing the required modules into the MB510. During subsequent system configuration phases, the configuration tool (e.g., Advant Station 100 Series Engineering Station) can then recognize and allow users to utilize these extended functions to build application programs.
3. Central Role in Data Backup and Recovery Strategy:
The RAM of the Advant Controller 450 is protected by a backup power supply (battery) against main power loss. However, this only lasts for several hours (standard is 4 hours, 2 hours with redundant CPUs). For applications requiring longer data retention or higher security, the application backup function of the MB510 forms a second line of defense.
Backup Process: During normal system operation (typically in operation mode), the complete application program image from the RAM is dumped (DUAP) via an engineering station command onto a dedicated flash card inserted into the MB510.
Recovery Process: After a catastrophic failure (e.g., prolonged power outage depleting the battery, or needing to replace a faulty processor module), the new or restarted controller, after completing the basic system load, will automatically detect and load the contents from the application backup card in the MB510. This achieves an automated recovery from a "bare-metal" state to a "fully functional application-ready" state. The principle is similar to computer system image recovery, but for an industrial controller, its reliability and degree of automation are key.
4. Interaction with the Processor Module:
The MB510 connects to the controller's Futurebus+ parallel bus communication system via the submodule carrier. The processor accesses the MB510 via memory-mapped I/O or specific firmware protocols. When the processor needs to access an extended function library (whose code is stored on the card in the MB510), the relevant code segments are dynamically or statically loaded into the processor's executable memory space. For application backup recovery, it is likely a batch data loading process triggered by the bootloader.
IV. Physical and Electrical Characteristics

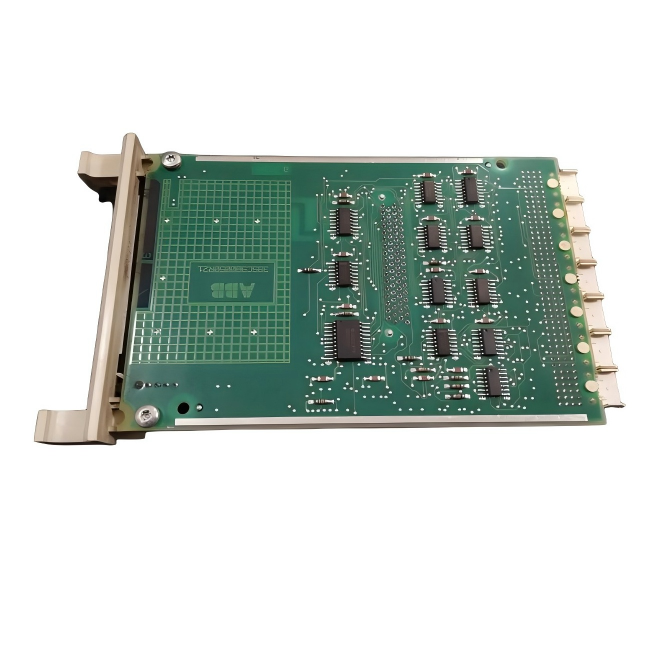

Module Specifications: The MB510 is a standard submodule occupying one submodule slot. It is compact in size, weighing approximately 0.12 kg, suitable for dense installation environments within the controller subrack.
Power Requirements: Operating voltage is 5 V DC. Typical operating current is only 10 mA, with very low power consumption (approx. 0.05 W). Maximum current may reach 170 mA during active reading from the program card. This low-power design helps reduce the total heat load within the cabinet.

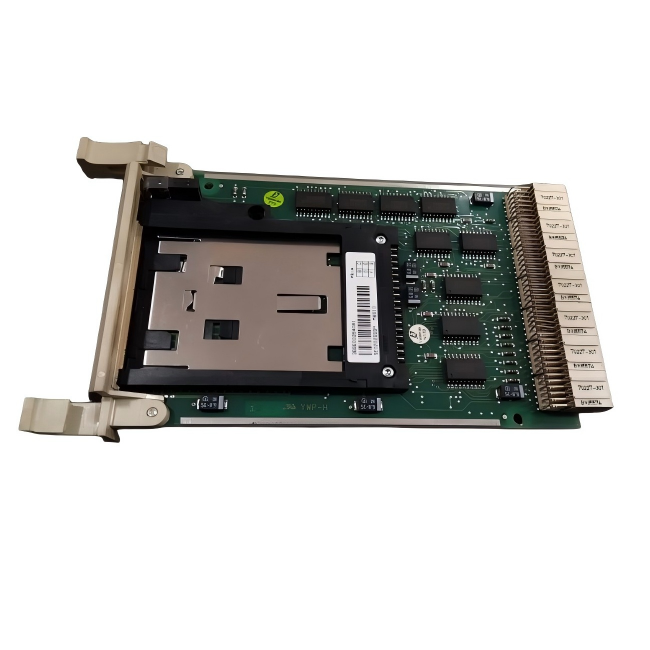

Interface: The front features a PCMCIA Type II or III slot (depending on card specification), with an eject button and a directional arrow indicator to ensure correct insertion of the program card by the user. The rear connects to the submodule carrier via an edge connector.
Environmental Suitability: As part of the Advant Controller 450 system, the MB510 is designed for standard industrial environments. Its reliability depends on the environmental protection (temperature, humidity, EMC compatibility, etc.) provided by the overall cabinet. Specific metrics should refer to the controller's overall environmental specifications.
V. Application Value and Summary
In the field of industrial automation, system Reliability, Availability, and Maintainability (RAM) are crucial metrics. Although small, the MB510 Program Card Interface Module plays a significant role in enhancing these metrics for the Advant Controller 450:
Enhanced System Reliability: By providing reliable, independent program storage media and robust data verification functions, it ensures the integrity of core software and application programs. Even if other hardware fails, critical data assets (application programs) remain safely preserved.
Improved System Availability: The automated application backup and recovery function reduces system recovery time from catastrophic failures from "hours" (relying on manual intervention) to "minutes," significantly cutting unplanned downtime and meeting the stringent availability requirements of continuous process industries.
Optimized Maintainability and Flexibility: The modular design enables quick and easy software upgrades, functional expansions, and faulty module replacements. Maintenance personnel do not need to bring complex programming equipment to the site; most maintenance and upgrade tasks can be completed simply by carrying pre-loaded software or backup program cards.
Support for Full Lifecycle Management: From functional configuration in the initial project phase, application iteration during debugging, to backup maintenance during operation, and even functional upgrades in later stages, the MB510 and the program card mechanism it represents provide a unified, physical tool for the controller's full lifecycle management.
