The PM511V16 is the high-specification version of the Central Processing Unit (CPU) for the Advant Controller 450 system. As the "brain" of the entire controller, it is responsible for executing the system software, controller configuration, and application programs, serving as the platform for all real-time control and computing tasks. The "16" in its model designation signifies that it is equipped with 16 Mbytes of Dynamic Random-Access Memory (RAM). Compared to the standard version (PM511V08, 8 Mbytes), it offers greater memory capacity, enabling support for more complex, larger-scale control applications and data processing tasks.
ABB Advant OCS (Open Control System) is a comprehensive system for industrial automation, consisting of a family of computer-based units and a local area network for communication. Within this architecture, the Controller is the core computer unit where control applications are executed.
The Advant Controller 450 is a large-scale controller within the Advant OCS series, designed for mixed binary, regulatory, and supervisory control. It can operate as a standalone system or be integrated as a controller within a distributed control system, communicating with other Advant OCS equipment (such as other controllers, operator stations, and engineering stations) to form an advanced automation network. The system can handle thousands of input/output signals, connected directly or remotely, and can interface with distributed I/O units, PLC-type controllers, and DC motor drives via fieldbuses.

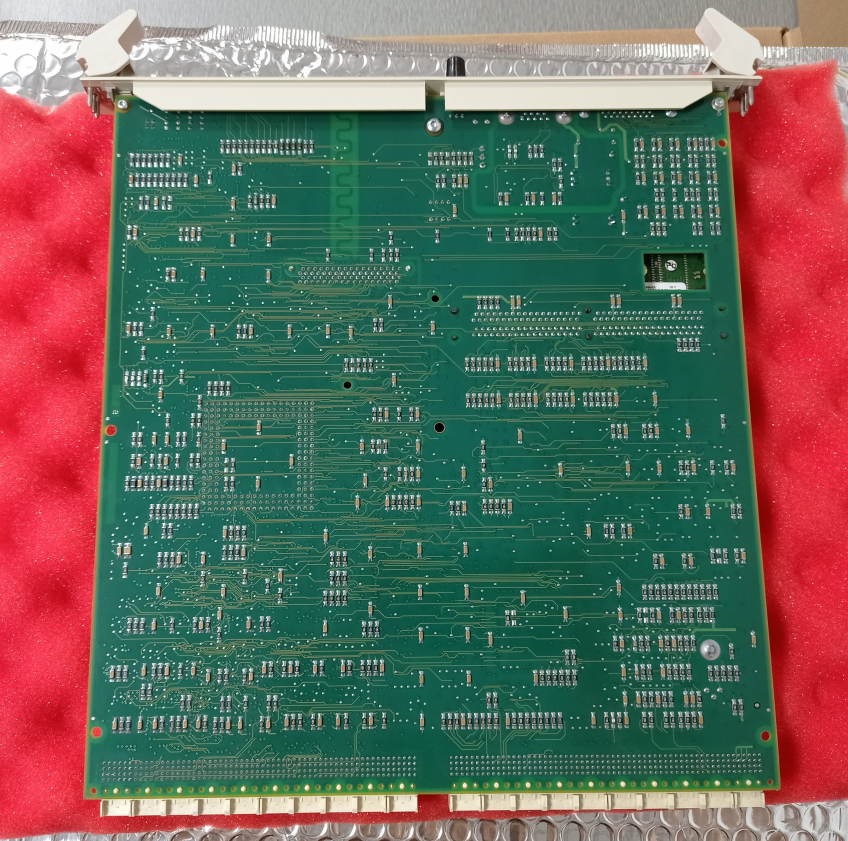

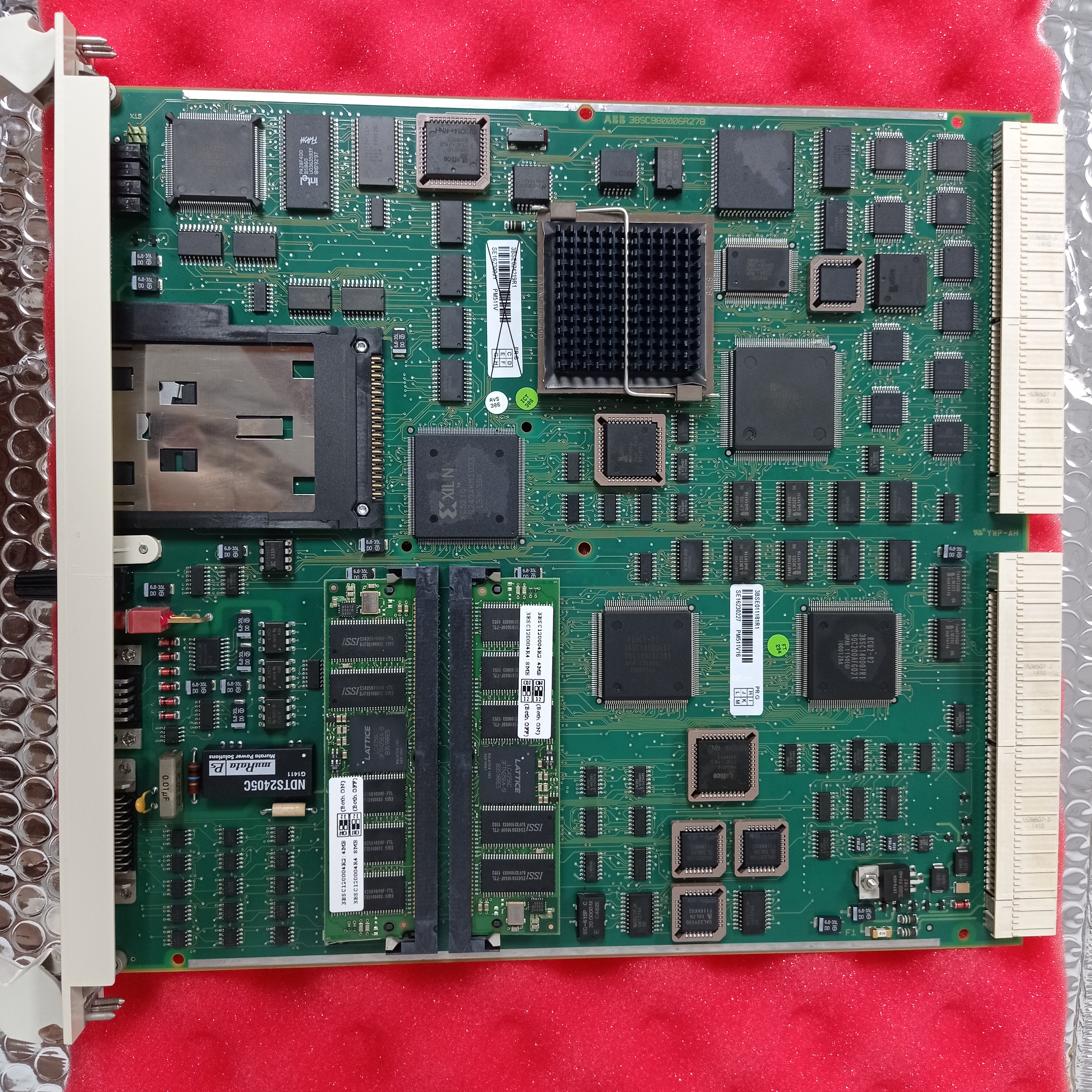

2. Detailed Hardware Specifications of PM511V16
2.1 Core Processor and Performance
The PM511V16 module is built around a Motorola 68040 microprocessor. This is a 32-bit virtual memory microprocessor with a core operating frequency of 25 MHz. Its key features include:
Integrated Floating-Point Unit (FPU): Capable of efficiently handling complex mathematical operations and regulatory control algorithms without requiring an additional coprocessor.
Independent Memory Management Units (MMUs): Incorporates dual independent instruction and data demand-paged memory management units, supporting virtual memory management, which enhances multitasking efficiency and memory protection.
Dual-Channel Cache: Features separate 4 kB instruction and 4 kB data caches, effectively reducing memory access latency for the processor and significantly boosting instruction execution speed.
2.2 Memory System
One of the core advantages of the PM511V16 lies in its high-capacity, highly reliable memory configuration:
Capacity: Provides 16 Mbytes of dynamic RAM for storing the runtime system program, controller system configuration, and user application programs.
Organization and Checking: The memory is organized in a 64-bit structure and is equipped with an 8-bit Cyclic Redundancy Check (CRC) and Error Correction Code (ECC) functionality. ECC can detect and correct single-bit errors and detect double-bit errors. This is crucial for ensuring data integrity and long-term system stability in industrial control environments, preventing control anomalies or downtime caused by memory soft errors.
Purpose: This RAM serves as the active workspace for all software during controller runtime, from the operating system to user-written control logic.
2.3 Bus and Interfaces
Futurebus+ Interface: The module utilizes an advanced Futurebus+ board-level interface, supporting 32-bit address/data lines and employing compelled transfer mode. It uses a distributed arbitration mechanism supporting arbitration messages, ensuring high-speed, reliable data exchange with other modules (e.g., communication submodules) on the controller backplane.
S100 I/O Interface: Provides a dedicated interface to the S100 I/O extension bus. Through this interface, the PM511V16 can connect to bus extension boards (such as DSBC 174 or DSBC 176) located in S100 I/O racks, thereby managing and controlling a large number of S100 series process I/O boards potentially distributed across multiple cabinets.
PCMCIA Slot: The module front panel features a PCMCIA slot designed specifically for inserting a flash memory card. This card is used to back up the system software (basic system program module and optional function libraries). During system startup, the software is automatically loaded from the flash card into the RAM, forming the foundation for system recovery.
Service Tool Connector: The front panel also includes a connector for service tools, facilitating maintenance personnel in connecting engineering stations (e.g., Advant Station 100 Series Engineering Stations) for configuration, diagnostics, program upload/download, and other operations.
2.4 Redundant Processing Support
The PM511V16 is designed with high availability requirements in mind, featuring built-in hardware support for processor redundancy configuration:
Hot Standby Mechanism: When configured in a dual-processor redundant system (one primary, one backup), the logic circuitry within the PM511V16 enables real-time copying of all "write" operations from the primary processor to the backup processor.
Seamless Switchover: This ensures that the backup processor's memory always maintains a complete, up-to-date mirror image of the primary processor's data. Upon detection of a failure in the primary processor, the backup processor can immediately take over control and resume operation from the point of interruption, achieving millisecond-level bumpless switchover. This significantly enhances the overall control system's availability and fault tolerance, meeting the demands for continuous operation in critical process control applications.
2.5 Status Indicators and Operator Interface
The module front panel provides rich human-machine interface elements for easy on-site monitoring and maintenance:

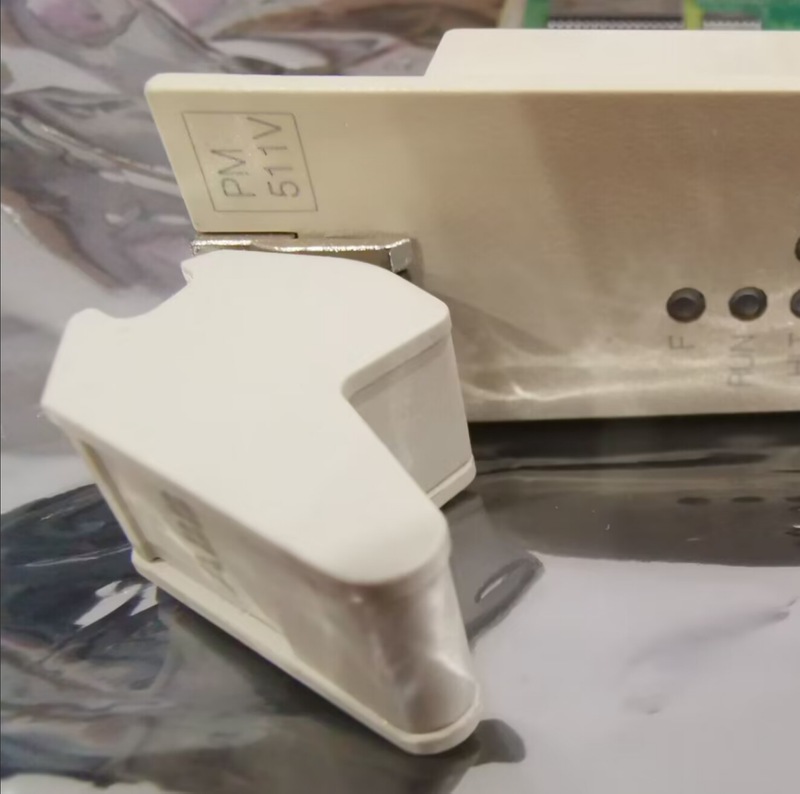

LED Indicators:
F (Red): Module fault indicator.
RUN (Green): Module running normally indicator.
HLT (Red): CPU halted indicator.
TO (Yellow): Bus time-out indicator.
BC (Green): Backup voltage for RAM connected indicator.
DUAL (Green): Redundant processor ready indicator (in redundant configurations).
Start Mode Selector Switch: A four-position rotary switch for selecting the controller's start and operating modes (e.g., CLEAR, STOP, AUTO, OFF LINE). This is a key setting point for controlling system startup behavior.
ENTER Push Button: Used for manually initializing the controller.
2.6 Electrical and Mechanical Characteristics
Power Requirements:
5 V DC: Typical 4900 mA, Maximum 6000 mA.
24 V DC: Typical 200 mA, Maximum 280 mA.
Power Dissipation (Heat): Typical 25 W.
Mechanical Data:
Module Size: Conforms to the 12 SU (Subrack Unit), 6 mp (mounting position) standard.
Module Weight: Approximately 0.8 kg.
3. The Role of PM511V16 within the Advant Controller 450 System
3.1 Platform for System Software and Application Programs
The 16 MB RAM of the PM511V16 hosts all running software for the Advant Controller 450:
System Program: Includes the real-time operating system, communication protocol stacks, diagnostic programs, PC element interpreters, etc., typically factory-installed on the PCMCIA flash card and loaded at startup.
Controller System Configuration: Defines the system's hardware structure (e.g., number, type, addresses of I/O boards, communication links, etc.), generated via configuration on an engineering station.
Application Program (PC Program): Control logic written by the user using AMPL (ABB Master Programming Language). AMPL is a graphical function block language where users build complex control strategies by combining standard PC elements like AND, PID, timers, counters, etc. The PM511V16 is responsible for interpreting and executing these programs.
3.2 Execution Engine for Control Loops
The Advant Controller 450 supports multi-tasking cyclic execution. Users can assign different cycle times, ranging from 5 ms to 32 s, to various control function blocks (execution units). The powerful 68040 CPU and large memory of the PM511V16 ensure that even with high I/O point counts and complex control algorithms, strict real-time requirements can be met, accurately completing the entire process of input signal sampling, control calculations, and output signal refreshing within each cycle.
3.3 Hub for Communication and Integration
As the control core, the PM511V16 manages all internal and external communications of the Advant Controller 450 through various communication submodules in its controller subrack:
Upward Connection: Exchanges data with Advant Station 500 Series Operator Stations and Information Management Systems (IMS) via control networks like MasterBus 300/300E, receiving operator commands and uploading process data and alarms.
Downward Connection: Communicates with a wide range of field devices (sensors, actuators, distributed I/O, smart instruments, drives) via fieldbuses like Advant Fieldbus 100, PROFIBUS-DP, LONWORKS, and via S100 I/O bus extension.
Lateral Connection: Performs peer-to-peer communication with other Advant Controllers to implement complex distributed control strategies.
External Interfaces: Supports EXCOM (communication with external computers), Multi-Vendor Interfaces (MVI, e.g., Modbus, Siemens 3964(R)), etc., facilitating integration with third-party systems.
4. Technical Advantages and Application Value
4.1 High Reliability and Availability
ECC Memory: Effectively guards against random memory errors, enhancing data reliability.
Hardware Redundancy Support: Provides a solid foundation for building redundant CPU systems without single points of failure, particularly suitable for industries like chemicals, oil & gas, and power generation with extremely high continuity requirements.
Comprehensive Diagnostics: Front-panel LEDs and detailed system status information accessible via engineering stations facilitate rapid fault localization.
4.2 Powerful Processing Capability and Scalability
25 MHz 68040 CPU + 16 MB RAM: Represented a high-end configuration for industrial controllers of its era, capable of easily handling large-scale, highly dynamic mixed control tasks, including extensive logic operations, analog regulation, and Advanced Process Control (APC) algorithms.
Modular Design: As a pluggable module within the Advant Controller 450, it facilitates upgrades and maintenance. Its large memory also reserves space for future functional expansions and more complex applications.
4.3 Flexible Applicability
The PM511V16, as the "brain" of the Advant Controller 450, enables this controller to be widely applied in:
Process Industries: Continuous and batch process control in industries like petrochemicals, chemicals, pharmaceuticals, and food & beverage.
Manufacturing: Complex production line and machinery control in industries like automotive, steel, and pulp & paper.
Energy and Utilities: Power plant control (including coal handling, water treatment, auxiliary systems), water/wastewater treatment, district heating systems, etc.
Infrastructure: Building automation, traffic monitoring, etc.
4.4 Open Ecosystem
Leveraging the ABB Advant OCS platform, the controller housing the PM511V16 can seamlessly integrate into the vast Advant ecosystem. It can utilize the rich existing software function libraries (e.g., PIDCON, PIDCONA self-tuning regulator, Functional Units), engineering tools, and operator interface solutions, reducing the complexity and cost of engineering implementation and subsequent maintenance.
