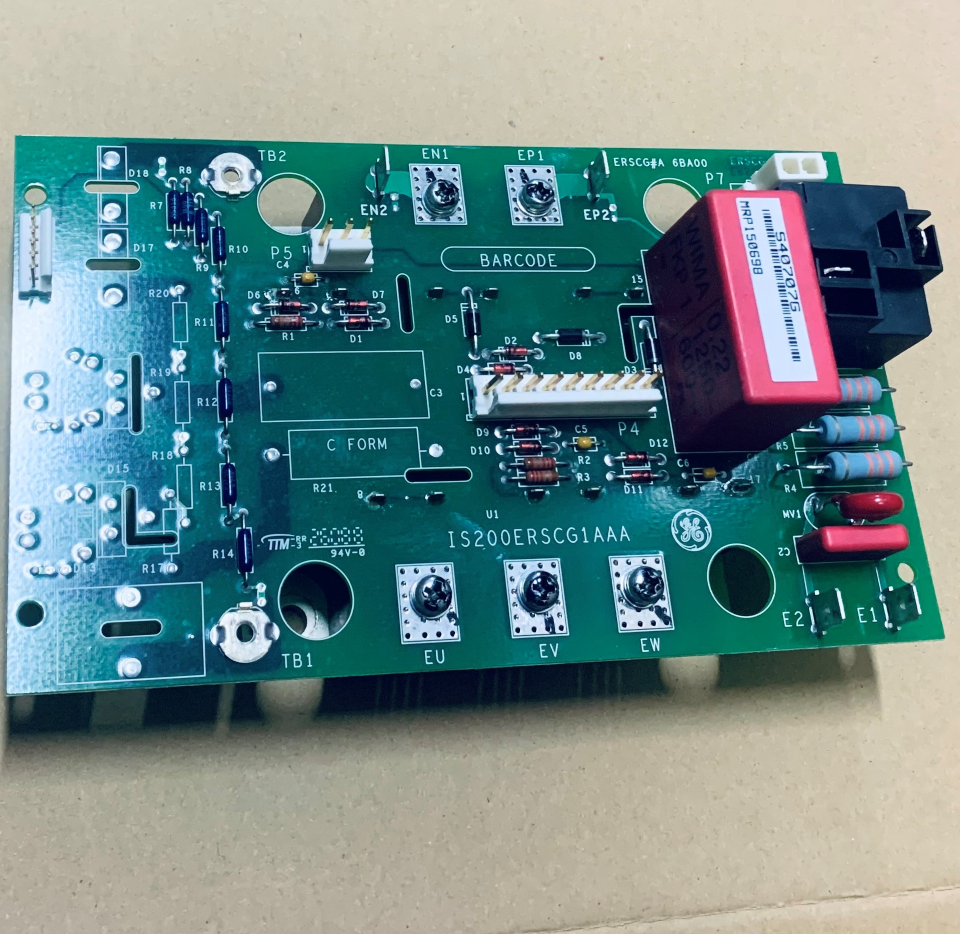

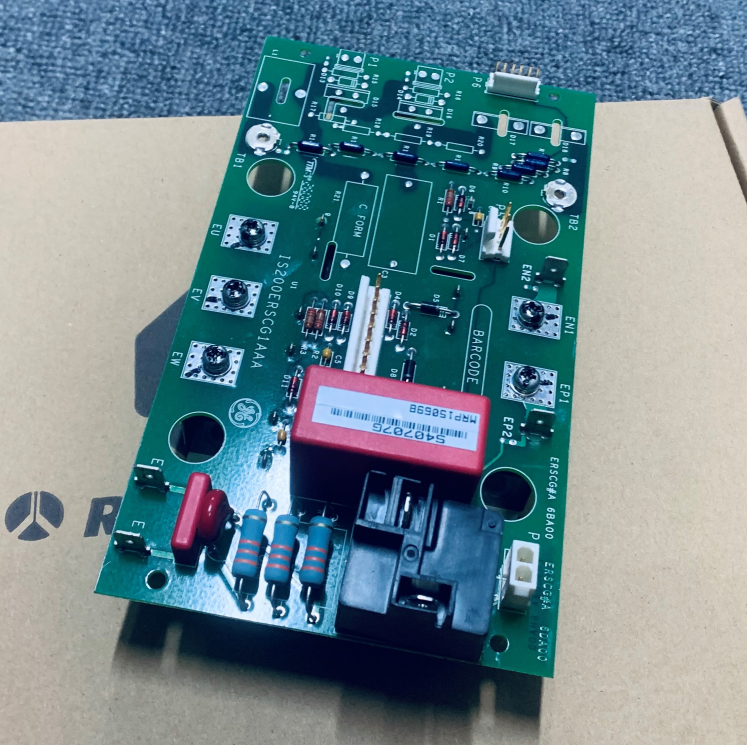

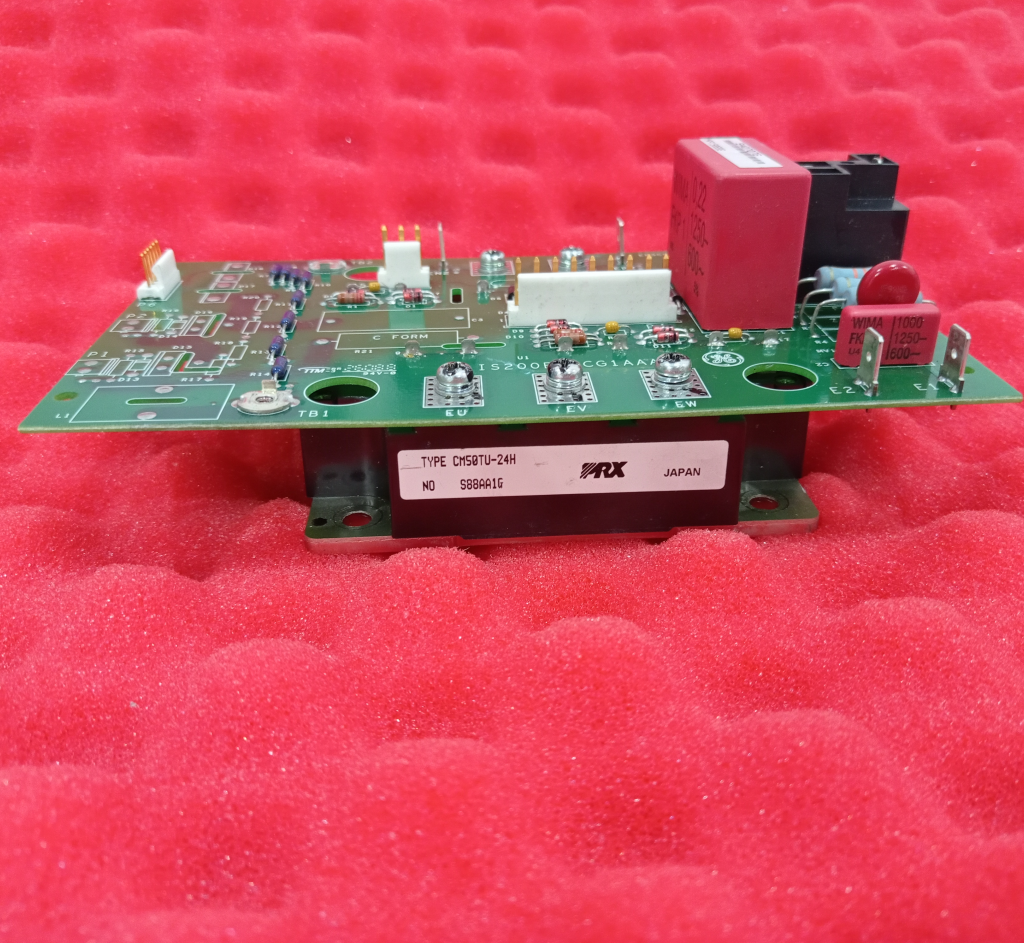

The IS200ERSCG1AAA is a specialized safety-critical control board engineered for the General Electric (GE) EX2100 and EX2100e digital excitation regulator systems. As a member of the Exciter Regulator Trip Control (ERSC) board family, the IS200ERSCG1AAA is dedicated to the reliable acquisition, processing, and execution of protective trip signals that ensure the safe and immediate shutdown of the generator excitation system under fault or abnormal operating conditions. The IS200ERSCG1AAA forms a crucial link in the overall protection chain, acting as the hardware-level interface between the system's protection logic and the physical actuators that disconnect the excitation power from the generator field winding.
Installed within the standard EX2100 control module rack, the IS200ERSCG1AAA operates in close coordination with the DSPX digital signal processor board, the ERIO input/output board, and the ACLx application control layer board. Together, these components form a comprehensive protection and control architecture that monitors the generator and excitation system for conditions such as overvoltage, overexcitation, loss of excitation, field ground faults, and external lockout commands. Upon detection of a trip-worthy condition, the IS200ERSCG1AAA participates in the deterministic sequence that de-energizes the field contactor, triggers the de-excitation module, and reports the event to the controller for annunciation and historical logging. The reliability and speed of response of the IS200ERSCG1AAA are critical factors in preventing damage to the generator rotor, the excitation power converter, and associated auxiliary equipment during fault events.
System Positioning and Architecture Integration
In the layered protection architecture of the EX2100 system, the IS200ERSCG1AAA resides at the hardware trip execution level, complementing the software-based protection functions running on the DSPX and ACLx processors. While the application software performs continuous monitoring and implements time-coordinated protection curves, the IS200ERSCG1AAA provides the hardwired signal paths and voting logic necessary to guarantee a trip even in the event of a partial control system failure. This hybrid approach—combining software intelligence with hardware determinism—is fundamental to achieving the high Safety Integrity Level (SIL) and reliability expected of modern generator excitation equipment.
The IS200ERSCG1AAA interfaces with multiple subsystems within the EX2100 cabinet:
Backplane Interface (ISBus): The IS200ERSCG1AAA communicates with the DSPX processor via the high-speed synchronous ISBus backplane. This channel is used for transmitting trip status information, receiving configuration parameters, and participating in system-level diagnostic routines.
Protection Inputs: Dedicated hardwired inputs on the IS200ERSCG1AAA receive trip initiation signals from the ECTB (Exciter Contact Terminal Board), the protection module (PPRO), and the customer's external lockout relay (typically designated 86G). These signals are optically isolated to ensure complete galvanic separation between the field wiring and the control electronics.
Trip Output Drivers: The IS200ERSCG1AAA provides high-reliability output drivers capable of directly energizing the trip coils of the DC field contactor (41A/41B) and sending firing commands to the EDEX (Exciter De-Excitation) board. These outputs are designed with redundant parallel paths to eliminate single points of failure.
Feedback Monitoring: Auxiliary contact feedback from the field contactor and conduction sense signals from the EDEX board are returned to the IS200ERSCG1AAA, allowing the controller to verify that the trip sequence has been successfully completed.
In a Triple Modular Redundant (TMR) configuration, three IS200ERSCG1AAA boards—one in each of the M1, M2, and C controller sections—operate in parallel. Critical trip signals are voted using a 2-out-of-3 hardware logic scheme, ensuring that a single board failure cannot cause either a nuisance trip or a failure to trip when required. This voting architecture is a cornerstone of the EX2100 system's high availability and fault tolerance.
Detailed Core Functions
1. Protective Trip Signal Acquisition and Processing
The IS200ERSCG1AAA is equipped with multiple dedicated inputs for receiving trip initiation signals from various protection sources. These inputs are designed with fast response times and high noise immunity to prevent false triggering in the electrically noisy environment of a power plant. The primary trip signals acquired by the IS200ERSCG1AAA include:
External Lockout (86G): A customer-supplied hardwired lockout signal, typically originating from the generator protection relay panel. When this normally-closed contact opens, it indicates that a critical generator fault has been detected, and the excitation system must be immediately de-energized. The IS200ERSCG1AAA detects the transition and initiates the trip sequence within microseconds.
Protection Module Trip (PPRO): In simplex applications, an emergency overspeed or other critical condition detected by the PPRO protection module results in a hardwired trip signal to the IS200ERSCG1AAA. This signal bypasses the software communication path entirely, providing the fastest possible response to a life-threatening machine condition.
Software-Initiated Trip: The DSPX controller, upon detecting a trip condition through its software protection algorithms (e.g., Over-Excitation Trip OET, Loss of Excitation LOE, V/Hz Trip), sends a trip command to the IS200ERSCG1AAA over the ISBus. The board then executes the trip sequence and reports the completion status back to the controller.
Each trip input on the IS200ERSCG1AAA is optically isolated and filtered to reject transient noise while maintaining a response time compatible with the protection requirements defined in IEEE 421 series standards for excitation systems.
2. Deterministic Trip Sequence Execution
Upon receiving a valid trip command from any of the enabled trip sources, the IS200ERSCG1AAA executes a precise, pre-defined sequence of actions designed to safely de-energize the generator field in the shortest possible time. The trip sequence typically includes the following steps, coordinated in hardware on the IS200ERSCG1AAA:
De-Excitation Firing: The IS200ERSCG1AAA immediately sends a firing command to the EDEX (Exciter De-Excitation Control) board. This triggers the de-excitation thyristor (SCR), which provides a conduction path through the field discharge resistor. The stored inductive energy in the generator field winding is dissipated as heat in the discharge resistor.
Field Contactor Trip: Simultaneously, the IS200ERSCG1AAA de-energizes the trip coil of the DC field contactor (41A and optional 41B), causing the contactor to open and physically disconnect the excitation power converter from the generator field. The auxiliary contacts on the contactor provide independent feedback to the IS200ERSCG1AAA to confirm that the contactor has opened.
Trip Verification: The IS200ERSCG1AAA monitors the conduction sense feedback from the EDEX board and the auxiliary contact status from the field contactor. It compares the actual state of these devices against the commanded state. A discrepancy triggers a diagnostic alarm, such as the DDCmdFbkDif (fault code 200) or related contactor diagnostic codes (e.g., CMD41_DIAG, fault code 107).
Status Reporting: The completion status of each step in the trip sequence is transmitted to the DSPX over the ISBus for logging in the Sequence of Events (SOE) recorder and for annunciation on the HMI and the keypad display.
3. Trip Circuit Supervision and Diagnostics
The IS200ERSCG1AAA incorporates comprehensive trip circuit supervision (TCS) functionality. Even when the excitation system is in normal operation and no trip is active, the IS200ERSCG1AAA continuously monitors the integrity of the critical trip paths. This includes:
Continuity Monitoring of Trip Coils: A small sensing current is passed through the trip coil of the field contactor to verify that the coil circuit is intact and that no open-circuit fault exists.
86G Lockout Input Supervision: The integrity of the external 86G lockout circuit is continuously monitored. If the circuit opens due to a wiring fault or an inadvertently operated disconnect, the system can be configured to generate an alarm (TripLockout, fault code 44) or to execute a trip, depending on the plant protection philosophy.
Power Supply Monitoring: The IS200ERSCG1AAA monitors its own 28 V DC supply voltage from the backplane. If the supply voltage falls below the operational threshold, the board transitions to a fail-safe state that defaults to a trip condition, ensuring that a loss of control power does not leave the generator field energized without protection.
ID Chip Verification: Each IS200ERSCG1AAA is equipped with an onboard electronic ID chip. During system initialization, the DSPX reads this chip and validates that the correct board type and revision are installed. A mismatch generates a hardware incompatibility diagnostic.
4. TMR Voting and Redundancy Management
In a TMR control system, the three IS200ERSCG1AAA boards (in M1, M2, and C) operate in a coordinated manner to provide fault-tolerant trip execution. The trip signals from the three boards are hardware-voted such that a trip is executed if at least two of the three controllers command it. Conversely, a single board erroneously commanding a trip will be outvoted and will not cause an unnecessary shutdown.
The IS200ERSCG1AAA also supports online maintenance in redundant configurations. If a fault is diagnosed on one of the three boards, the affected controller section can be taken offline, the IS200ERSCG1AAA replaced, and the section returned to service without interrupting the operation of the generator. This capability is subject to the specific configuration of the system and must be performed in accordance with the documented online repair procedures in the EX2100 Maintenance and Troubleshooting Guide (GEH-6675).
Reliability and Serviceability
The IS200ERSCG1AAA is manufactured to meet the exacting reliability standards required for continuous operation in power generation facilities. The printed circuit board is protected by a conformal coating that guards against moisture, dust, and mild chemical contaminants prevalent in industrial environments. The board is mechanically secured in the control module rack with two captive screws and includes integrated ejector tabs for safe, tool-free extraction.
Because of its role in the safety trip chain, the IS200ERSCG1AAA is designed with a "fail-safe" philosophy. Any internal failure that compromises the board's ability to execute a trip will cause the board to default to a state that commands a trip, rather than remaining silently inoperative. This design principle ensures that the excitation system is always biased toward the safe, de-energized state.
Replacement of the IS200ERSCG1AAA requires strict adherence to Lockout/Tagout (LOTO) procedures, as the board is directly connected to circuits that carry hazardous voltages. The board is classified as Electrostatic Discharge (ESD) sensitive and must be handled using a grounding wrist strap and stored in anti-static packaging. After replacement, the system configuration must be verified using the ToolboxST application, and a functional test of the trip chain should be performed with the generator offline to confirm proper operation.
