The IS200ERDDH1ABB is a specialized power protection and energy management board within the General Electric (GE) EX2100 and EX2100e excitation regulator control modules. As a member of the Exciter Regulator Dynamic Discharge (ERDD) product family, the IS200ERDDH1ABB fulfills the critical task of safely dissipating residual energy stored in the DC link capacitors of the excitation system's power converter. This controlled discharge is essential during generator shutdowns, protective trips, or when an abnormally high DC bus voltage condition is detected.
The IS200ERDDH1ABB operates in conjunction with an external high-power discharge resistor, typically rated at 17 Ω and 600 W for common regulator applications. Upon receiving a command or detecting a hardware overvoltage threshold, the board precisely switches the resistor into the DC bus circuit using a soft-start control strategy. This prevents excessive inrush currents and thermal shock to both the resistor and the DC link capacitors. The energy is then converted into heat and safely dissipated into the ambient air within the control cabinet.
System Positioning and Functional Context
In the EX2100 excitation architecture, the IS200ERDDH1ABB is mounted inside the power conversion module, which also houses the rectifier bridge (SCR or IGBT), the DC bus filter capacitors, and the associated cooling components. The ERDD board is directly wired to the positive and negative DC bus terminals and interfaces with the system backplane through dedicated connectors.
The board operates under the supervision of the DSPX digital signal processor, which communicates with the IS200ERDDH1ABB via the ISBus backplane. In redundant control configurations (M1 and M2/C controllers), each power conversion module is equipped with its own independent IS200ERDDH1ABB board. This physical separation ensures that a failure in one controller's discharge circuit does not compromise the other's ability to protect its own DC link.
The IS200ERDDH1ABB is designed for use with both static excitation systems and brushless rotating exciter regulators. It is compatible with the full range of EX2100 configurations, from 35 A and 120 A regulator systems to large thyristor-based static exciters.
Detailed Functional Description
1. Dynamic Discharge Activation and Overvoltage Protection
The IS200ERDDH1ABB continuously monitors the DC bus voltage through a precision resistive divider network. Under normal operating conditions, the DC bus is maintained at approximately 125 V DC (for regulator systems) or at a higher level for thyristor bridges, depending on the application. The discharge circuit remains in a high-impedance state, drawing negligible power.
The board supports three independent discharge triggers, providing defense-in-depth protection:
Software-Initiated Discharge: During a normal stop or a controlled trip, the excitation control software sends a discharge command to the IS200ERDDH1ABB via the ISBus backplane. The board then activates the discharge sequence with a controlled duty cycle ramp.
Hardware Overvoltage Trip: A dedicated hardware comparator circuit on the IS200ERDDH1ABB directly senses the DC bus voltage. If the voltage exceeds a preset threshold (for example, 145 V DC for a 125 V nominal system), the board autonomously initiates the discharge, bypassing the software path entirely. This provides a response time measured in microseconds.
Fail-Safe Power Loss Mode: In the event of a complete loss of the 28 V DC control power supply that powers the IS200ERDDH1ABB and its logic, the board defaults to connecting the discharge resistor. This fail-safe state guarantees that even during a catastrophic control power failure, the DC bus energy is dissipated, preventing a hazardous high-voltage condition from persisting in the cabinet.
2. Soft-Start and Ramp Control
A unique feature of the IS200ERDDH1ABB is its integrated soft-start discharge controller. When a discharge event is triggered, the board does not simply close a relay or hard-switch the resistor into the circuit. Instead, a pulse-width modulation (PWM) controller on the board gradually increases the conduction duty cycle of the discharge switch (which may be an IGBT or a MOSFET, depending on the board revision). This controlled ramp-up limits the peak current flowing into the discharge resistor, thereby reducing electromagnetic interference (EMI), preventing contact arcing, and extending the life of the discharge resistor and DC bus capacitors.
The voltage across the DC bus is continuously sampled during the discharge. When the voltage falls below a safe level (typically below 50 V DC), the controller either turns the discharge switch off completely or reduces the duty cycle to a minimal holding level, ensuring the bus remains fully discharged while avoiding unnecessary power consumption in the resistor.
3. Comprehensive Status Monitoring and Diagnostics
The IS200ERDDH1ABB reports several key parameters back to the DSPX controller, which are integrated into the EX2100 diagnostic system:
Discharge Active Status: A logic signal confirms whether the discharge circuit has been triggered and is actively conducting.
DC Bus Voltage Feedback: The board provides a scaled analog representation of the DC bus voltage, allowing the controller to verify the effectiveness of the discharge and to log the voltage decay profile.
Switch Device Health: The conduction state of the discharge switching element (IGBT or MOSFET) is monitored for desaturation or open-circuit faults.
Resistor Power Dissipation: An analog signal proportional to the current through the discharge resistor is conditioned and sent to the controller. Software calculates the instantaneous power and accumulated energy, generating an alarm (DDWatts_Hi, fault code 202) if the power limit of the resistor is exceeded.
Thermal Monitoring: An optional thermistor input on the IS200ERDDH1ABB can be connected to a temperature sensor on the discharge resistor assembly. This provides direct thermal protection.
4. Diagnostic Fault Codes
The EX2100 control software associates several diagnostic fault codes directly with the dynamic discharge function managed by the IS200ERDDH1ABB. Key codes include:
Fault Code | Mnemonic | Description |
190 | SS_DD_Test | Dynamic discharge circuit failed its startup sequence test. |
193 | TripBridge | Bridge trip due to ERDD hardware feedback. Check for overcurrent or gate driver faults (Leg V, Leg U, dynamic discharge). |
195 | RDFD_Trip_1 | Rotating diode failure detected based on harmonic level 1, related to dynamic discharge circuit analysis. |
196 | RDFD_Trip_2 | Rotating diode failure detected based on harmonic level 2. |
200 | DDCmdFbkDif | Discrepancy between the dynamic discharge command and the actual feedback state. |
202 | DDWatts_Hi | Dynamic discharge resistor power dissipation limit exceeded. |
203 | Hw_IGBT_U | IGBT U-leg fault (desaturation or driver failure), potentially linked to dynamic discharge switch. |
204 | Hw_IGBT_V | IGBT V-leg fault. |
205 | Hw_IGBT_DD | Dynamic discharge IGBT fault (desaturation or driver failure). |
These diagnostic messages are displayed on the EX2100 keypad and are accessible via the ToolboxST configuration and maintenance application.
Mechanical and Electrical Interface

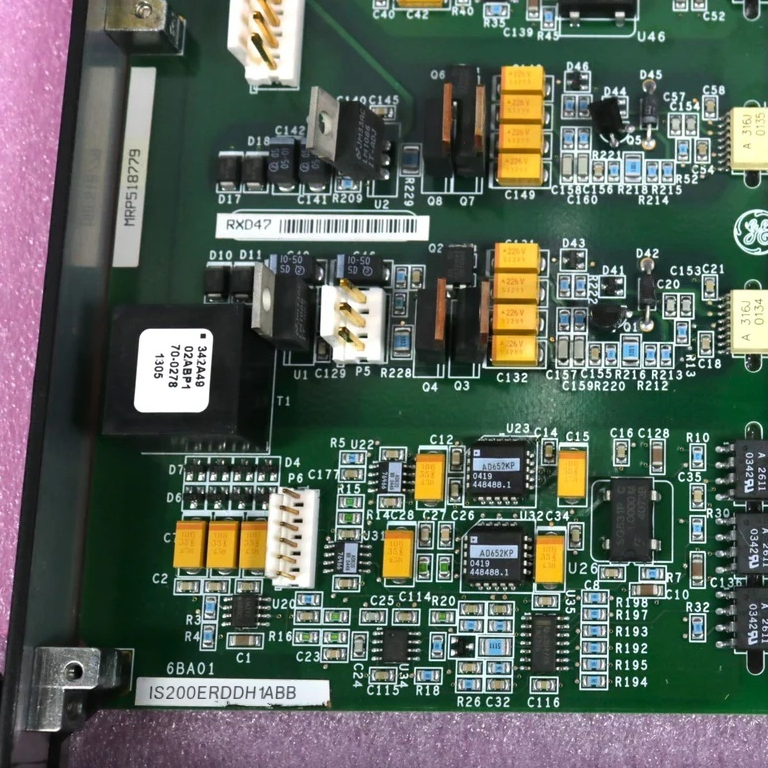

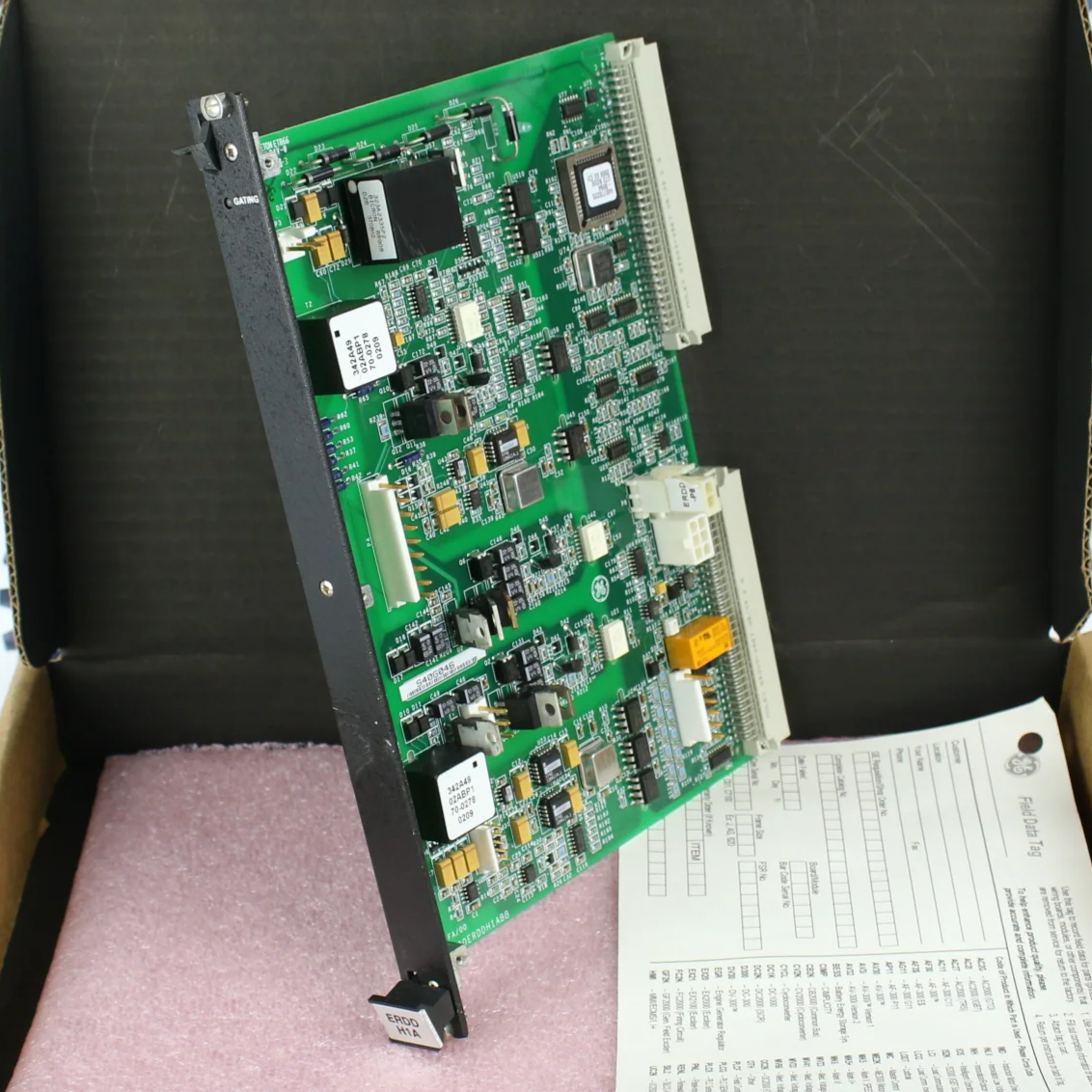

The IS200ERDDH1ABB is a printed circuit board with a form factor designed for installation inside the power conversion module. It is secured by screws to standoffs on the module's metal chassis. Electrical connections are made via:
A multi-pin backplane connector carrying ISBus communication signals and low-voltage power (28 V DC).
High-current fast-on or screw-terminal connections for the positive and negative DC bus.
A dedicated two-pin connector for the external discharge resistor.
Optional connectors for a discharge resistor temperature sensor and for fan status monitoring.
All high-voltage terminals are clearly marked and designed to maintain required creepage and clearance distances in accordance with UL 508C and EN 61010 standards. The board is coated with a conformal protective layer to resist dust, moisture, and chemical contaminants commonly found in industrial environments.
Installation and Replacement Procedure
Warning: The power conversion module and discharge resistor can reach high temperatures during operation. Allow at least one hour for the resistor to cool before attempting any maintenance. Verify that all AC and DC power sources are disconnected and locked out before proceeding.
The replacement steps for the IS200ERDDH1ABB are as follows:
De-energize the entire excitation system and follow local Lockout/Tagout (LOTO) procedures.
Open the control cabinet door and use a properly rated voltmeter to confirm the absence of voltage on all terminals.
Locate the power conversion module within the controller rack. Loosen the two knurled screws securing the hinged access cover and swing the cover open.
Identify the IS200ERDDH1ABB board inside the module. Before disconnecting any cables, verify that each wire and connector is correctly labeled. If labels are missing or illegible, create new labels matching the board’s connector designations.
Disconnect the discharge resistor wiring, the DC bus fast-on terminals, and any sensor cables from the board.
Unplug the backplane connector by gently pulling the board away from the backplane socket. Remove the mounting screws securing the board to the standoffs.
Carefully lift the old IS200ERDDH1ABB out of the module.
Inspect the replacement IS200ERDDH1ABB for any signs of shipping damage. Ensure the board revision is compatible with the system configuration.
Position the new board onto the mounting standoffs and secure it with the original screws. Tighten to the torque specified in the system assembly guidelines.
Reconnect all cables to their respective connectors. Double-check that the discharge resistor and DC bus connections are firmly seated to prevent hot spots or arcing.
Close the hinged cover and tighten the knurled screws.
Close the cabinet door, remove LOTO devices, and restore power.
After the controller boots, use the ToolboxST application to verify that the IS200ERDDH1ABB is correctly identified and that no diagnostic faults related to the ERDD are present. Execute a manual discharge test if the system is offline to confirm proper operation.
Troubleshooting Common Faults
When the EX2100 controller reports a fault related to the IS200ERDDH1ABB, the following systematic checks should be performed:
Fault 190 (SS_DD_Test): This indicates the startup self-test of the discharge circuit failed. Check the connection between the ERDD board and the discharge resistor. Verify the resistor is not open-circuited using a multimeter. Check the DC bus capacitor bank for short circuits.
Fault 200 (DDCmdFbkDif): The discharge command was sent, but the feedback signal does not confirm activation. Inspect the backplane connector for bent pins or contamination. Check the 28 V DC supply voltage at the board.
Fault 202 (DDWatts_Hi): The discharge resistor power limit has been exceeded, possibly due to repeated or prolonged discharge events. Allow the resistor to cool, check for obstructions in the ventilation path, and verify the resistor value matches the design specification.
Fault 205 (Hw_IGBT_DD): A desaturation or driver fault has been detected in the dynamic discharge IGBT. This typically requires replacement of the IS200ERDDH1ABB board, as the switching device is not field-replaceable.
In all cases, after replacing the IS200ERDDH1ABB, a full discharge test should be performed using the ToolboxST software while the generator is offline to validate the repair.
