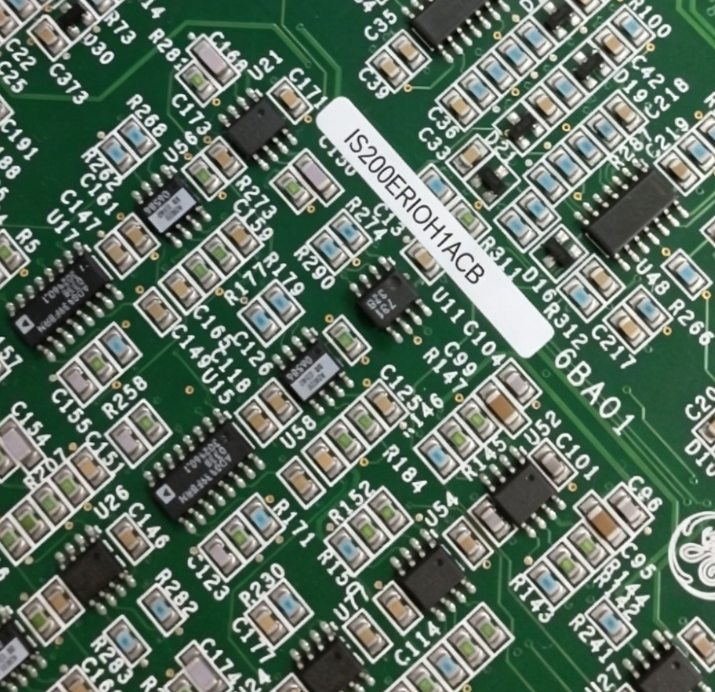

The IS200ERIOH1ACB is a high-performance input/output interface board engineered for the General Electric (GE) EX2100 and EX2100e excitation regulator control modules. As a specific revision within the Exciter Regulator Input/Output (ERIO) board family, the IS200ERIOH1ACB shares the identical core architecture and functional footprint as the established IS200ERIOH1A and IS200ERIOH1AAA variants, while incorporating specific board-level updates, component optimizations, and manufacturing enhancements characteristic of its revision level. The IS200ERIOH1ACB serves as the indispensable signal bridge between the digital control logic and the external excitation power system, facilitating precise generator terminal voltage regulation, comprehensive equipment status monitoring, and deterministic protective interlocking.

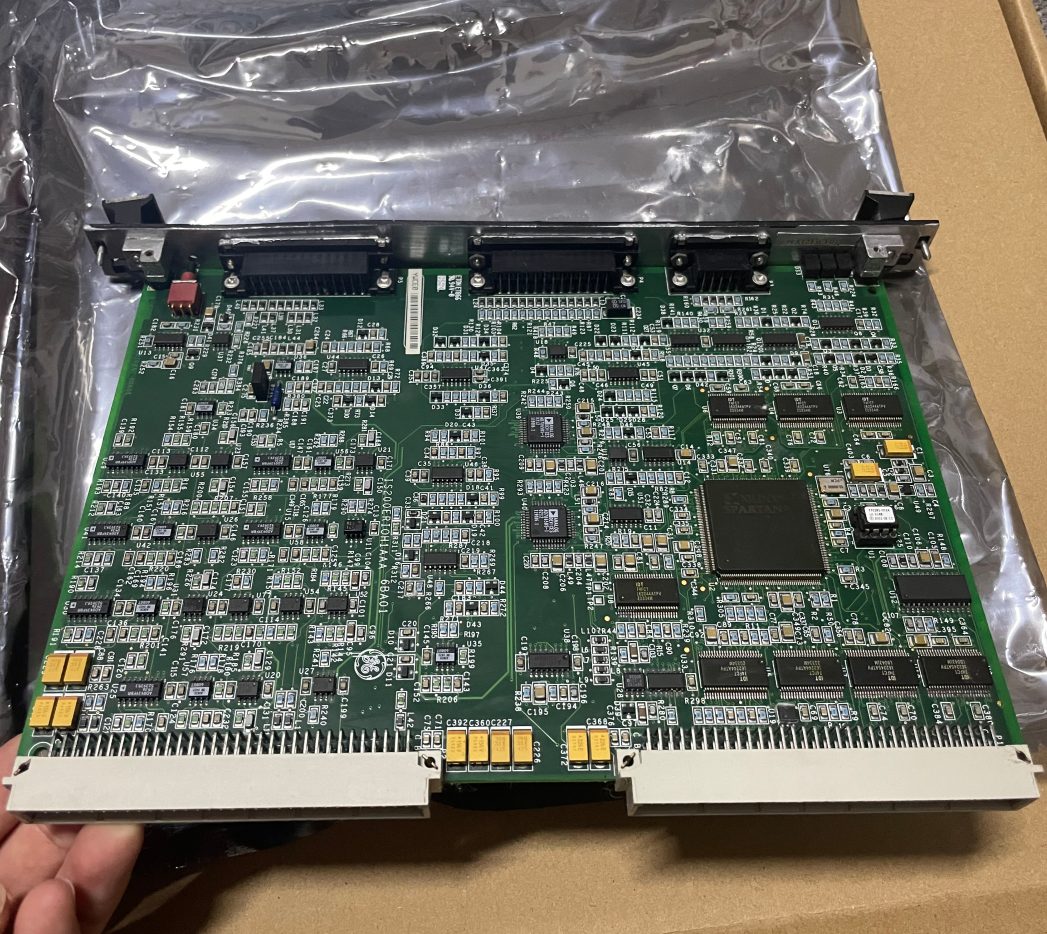

The IS200ERIOH1ACB is installed within the standard EX2100 control module rack and operates in tight coordination with the DSPX digital signal processor board and the ACLx application control layer board. Collectively, these components form the complete excitation control chain—from real-time acquisition of generator voltage and current feedback, through execution of complex regulation and limiting algorithms, to the generation of precisely timed firing pulses for the power bridge thyristors or IGBTs. The front panel of the IS200ERIOH1ACB features a stainless steel fascia with multiple I/O connectors, including analog input and output channels, isolated digital inputs and outputs, and dedicated excitation-specific control signal interfaces. The operational reliability of the IS200ERIOH1ACB has a direct and measurable impact on the dynamic response and steady-state accuracy of the entire excitation system.
System Positioning and Architecture Integration
In the hierarchical EX2100 control architecture, the IS200ERIOH1ACB occupies the critical interface layer between the application control processor (ACLx) and the power conversion hardware. Its communication model is built around the ISBus, a high-speed synchronous serial backplane bus that provides deterministic, low-latency data exchange with the DSPX board. The DSPX, in turn, communicates with the operator interface, the HMI, and the plant-wide Ethernet network through the ACLx board's network interfaces.
The front-panel connectors on the IS200ERIOH1ACB terminate the following essential signal categories required for excitation system operation:
Analog Inputs: The IS200ERIOH1ACB accepts conditioned generator voltage and current feedback signals from the EPCT (Exciter PT/CT) board, as well as DC excitation voltage and current feedback from the EDCF (Exciter DC Feedback) board. These signals are used by the AVR, PSS, and various limiters.
Analog Outputs: The IS200ERIOH1ACB provides multiple analog output channels in industry-standard 4-20 mA or ±10 V DC formats, suitable for driving external metering equipment, customer DCS inputs, or local chart recorders.
Digital Inputs: Isolated digital input channels on the IS200ERIOH1ACB acquire discrete status signals, including DC contactor auxiliary contacts (41A/41B), field flashing contactor status (53A/53B), generator breaker position (52G), and critical protection signals such as the 86G lockout input.
Digital Outputs: The IS200ERIOH1ACB drives external relays for alarm annunciation, trip signaling, de-excitation module control, and field flashing sequence initiation.
All field-facing I/O channels on the IS200ERIOH1ACB incorporate galvanic isolation to ensure complete electrical separation between the field-level high-voltage environment and the sensitive low-voltage control electronics. Integrated transient voltage suppression devices protect the inputs from surge events. In a TMR configuration, three IS200ERIOH1ACB boards—one in each of the M1, M2, and C controller sections—operate independently and in parallel. Critical discrete signals are validated through a 2-out-of-3 voting scheme executed within the application software, ensuring that no single board failure can cause a nuisance trip.
Detailed Core Functions
1. Precision Analog Signal Acquisition and Conditioning
The IS200ERIOH1ACB provides multiple high-precision analog input channels capable of handling both AC and DC measurement signals. Generator terminal voltage feedback from the PTs (nominally 115 V AC) and stator current feedback from the CTs (nominally 1 A or 5 A AC) are routed to the IS200ERIOH1ACB after initial conditioning on the EPCT board. The onboard signal processing chain includes anti-aliasing low-pass filters, precision instrumentation amplifiers, and isolation barriers. The resulting signals are digitized and used by the AVR software running on the DSPX to maintain the generator terminal voltage at its reference setpoint.
DC excitation feedback signals—field current derived from a precision shunt in the DC output circuit, and field voltage from a resistive divider—are also acquired by the IS200ERIOH1ACB. These measurements support manual regulation modes (FVR/FCR), the Over-Excitation Limiter (OEL), field temperature calculation, and the Loss of Excitation (LOE) protection function. The A/D conversion resolution and sampling rate of the IS200ERIOH1ACB are sufficient to capture the fast dynamics of the excitation circuit during load rejection and system fault events.
2. Isolated Digital Input and Output Channels
The IS200ERIOH1ACB is equipped with a comprehensive set of digital I/O channels. The digital inputs continuously monitor the status of key excitation system components. These include the auxiliary contacts of the DC field contactor (providing proof of open or closed state), the status feedback from field flashing relays 53A and 53B, the generator breaker 52G auxiliary contact for online/offline determination, and the dedicated 86G lockout input. Additionally, general-purpose customer contact inputs, wetted by 55 V DC supplied from the system, are terminated on the associated ECTB terminal board and routed through the IS200ERIOH1ACB.
The digital output channels on the IS200ERIOH1ACB are responsible for energizing command relays that control the field flashing sequence, closing the DC contactor, and driving alarm and trip indication relays on the ECTB board. The output states are continuously verified by reading back auxiliary feedback signals. If a diagnostic discrepancy is detected between the commanded state and the feedback state, the system generates a fault alarm such as GPOUT1_DIAG (fault code 6), GPOUT2_DIAG (fault code 87), or corresponding codes for GPOUT3 and GPOUT4 (fault codes 91 and 93). Similarly, input channel voting disagreements in TMR configurations trigger GPIN1_DIAG through GPIN6_DIAG (fault codes 153, 170-174).
3. High-Speed ISBus Communication
The IS200ERIOH1ACB communicates with the DSPX processor over the ISBus, the proprietary high-speed synchronous serial backplane bus of the EX2100 system. The ISBus architecture supports deterministic, collision-free data transfer with configurable frame rates of 1, 2, 4, or 8 milliseconds. This deterministic timing is essential for the closed-loop voltage regulator, which must receive fresh feedback data and issue updated firing commands within each control cycle. The IS200ERIOH1ACB automatically synchronizes its local timing with the ISBus master clock generated by the DSPX. The board also receives its 28 V DC operating power directly from the backplane, simplifying the module's internal wiring and eliminating the need for an external power supply connection.
Loss of ISBus communication between the IS200ERIOH1ACB and the DSPX triggers diagnostic alarms. For example, AlrmNHrdM1 (fault code 50) indicates ISBus communication to the M1 controller section has been lost. This condition may be caused by a poorly seated ERIO board, a faulty backplane connector, or a failure in the EISB (Exciter ISBus) board.
4. Onboard Identification and Diagnostic Monitoring
Each IS200ERIOH1ACB incorporates an onboard electronic identification chip that non-volatilely stores the board's unique serial number, board type identifier, and hardware revision level. During the system power-up initialization sequence, the DSPX reads this ID information and verifies it against the expected configuration parameters stored in the controller's application code. If the identification check fails—indicating that an incorrect or incompatible board has been installed—the system generates the "ERIO_Bad_" fault (fault code 191). This diagnostic lockout prevents configuration mismatches that could lead to incorrect signal scaling or improper system operation.
Beyond identification, the IS200ERIOH1ACB continuously monitors its internal secondary power supply voltages, the integrity of the ISBus physical layer, and the health of critical analog and digital signal chains. Any detected anomaly is reported as a diagnostic alarm to the DSPX and is logged in the non-volatile event history. In the event of a critical failure, the IS200ERIOH1ACB defaults its outputs to a fail-safe state.
Reliability, Serviceability, and Compatibility
The IS200ERIOH1ACB is designed and manufactured to meet the demanding reliability requirements of continuous-duty power generation equipment. Its printed circuit board assembly features a conformal coating that provides protection against humidity, airborne dust, and mildly corrosive industrial atmospheres. The board is mechanically secured within the control module rack by two captive screws and features integrated ejector tabs that facilitate safe removal without the use of tools.
Within a TMR control architecture, the IS200ERIOH1ACB contributes to the system-level Mean Time Between Forced Outage (MTBFO) specification of up to 175,000 hours. This high availability is achieved because the failure of a single IS200ERIOH1ACB in the M1, M2, or C section does not result in a system-wide trip; the remaining two operational controllers maintain full excitation control while maintenance is scheduled. However, the IS200ERIOH1ACB is not designed as a hot-swappable module. Replacement must be performed either with the entire controller section de-energized, or, in specific redundant configurations, by strictly following the online repair procedures defined in the EX2100 Maintenance and Troubleshooting Guide (GEH-6675).
The IS200ERIOH1ACB is fully backward compatible with the I/O connector pinouts and mechanical form factor of earlier ERIO revisions. When replacing an earlier revision board with the IS200ERIOH1ACB, no changes to the external cabling or the backplane are required. Following physical installation, the DSPX may need to reload the application code to ensure full firmware-level compatibility.
