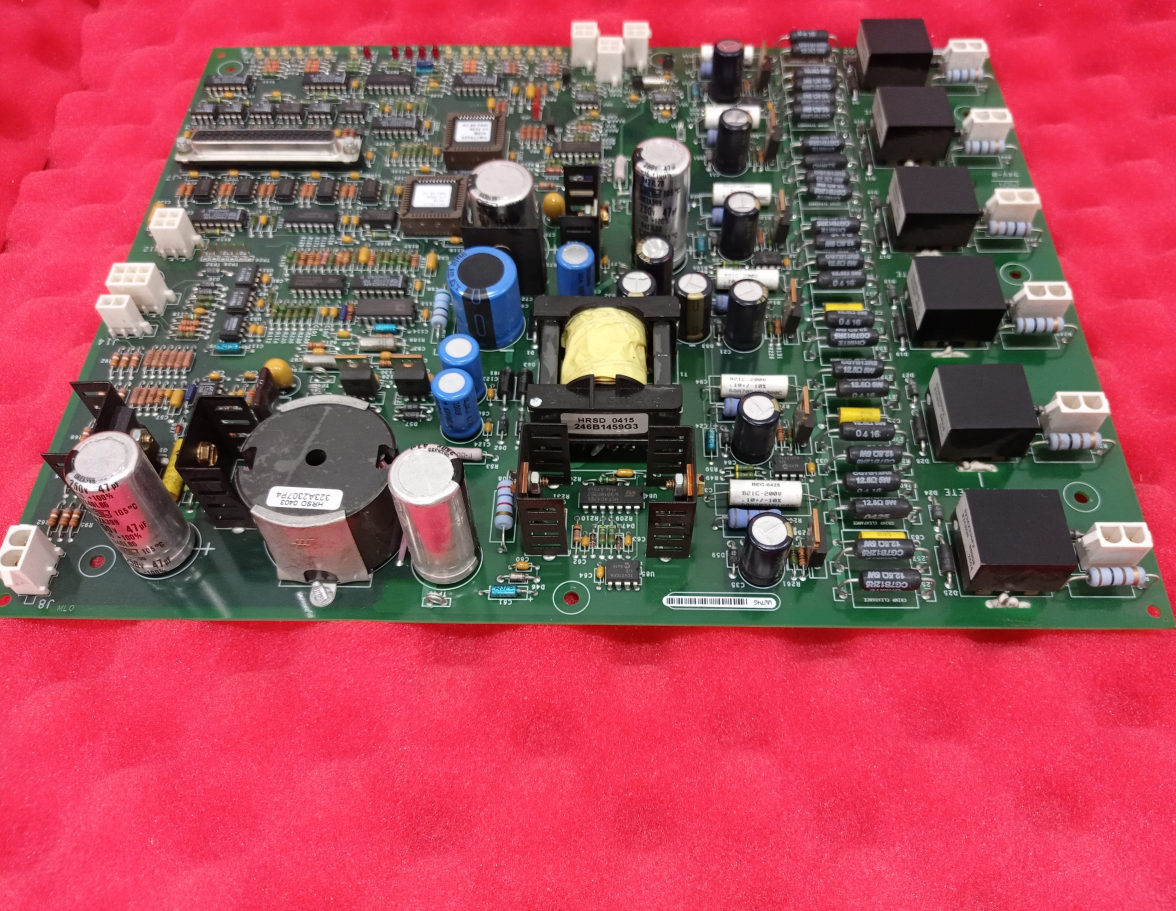

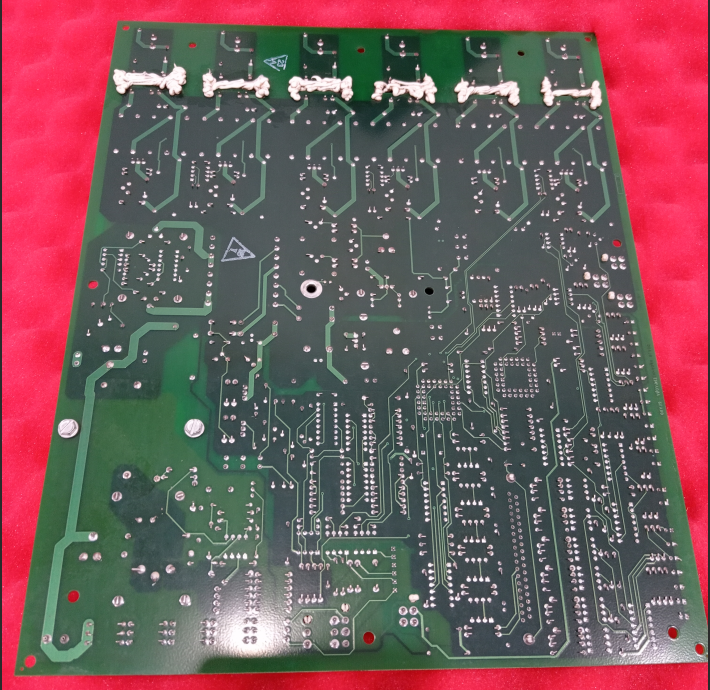

The GE IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is a specialized power interface board used in 100 mm EX2100™ Excitation Control systems. As a member of the EHPA board family, the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board receives gate commands from the ESEL board and controls the gate firing of up to six Silicon Controlled Rectifiers on the Power Bridge. In addition to its gate firing function, the board serves as the interface for current conduction feedback, bridge airflow monitoring, line filter airflow monitoring, blown fuse detection, and bridge temperature monitoring, making it a comprehensive monitoring and control node for the excitation power bridge.
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is identified by the GE part numbering convention used throughout the Industrial Control Systems product line. The "IS200" prefix identifies the board as a GE Industrial Control Systems product, with "200" specifically indicating that the board is a base-level board. The "EHPA" acronym identifies the board's functional designation as an Exciter Gate Pulse Amplifier Board. The "G1" designation identifies the hardware group and normal coating, while the "ADC" suffix identifies the artwork and functional revision combination. All digits are important when ordering or replacing any board, as boards of different revision levels may not contain identical hardware, and GE ensures backward compatibility of replacement boards while noting that different revision levels may not contain identical components.
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is powered from a nominal 125 V DC source from the EPDM, which supplies an onboard DC/DC converter that provides power for SCR gating over the full range of input supply voltage. The board includes a comprehensive array of LEDs that provide visual indication of the status of the EHPA power supply, the input gate commands from the ESEL, the EHPA outputs to the SCRs, the currents into the bridge, the line filter, the cooling fan rotation, the bridge temperature, and alarm or fault conditions. Some revisions of the EHPA board include support for the EHFC, an optional daughterboard that allows start/stop control of the bridge cooling fan or redundant lead/lag bridge cooling fans.
This product introduction provides detailed technical information, functional descriptions, connector assignments, configuration guidance, and comprehensive specifications for the GE IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board, serving as an essential reference for excitation control engineers, maintenance technicians, and system integrators working with GE industrial control equipment.
Functional Architecture and Signal Processing
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is built around a robust architecture that combines gate command reception, optical isolation, gate pulse amplification, conduction sensing, environmental monitoring, and fault logic to ensure reliable and safe control of the excitation power bridge.
The gate command inputs of the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board receive a total of six gate commands from the ESEL through a twisted-pair, multiconductor, shielded cable. The gate commands over the differential pair are optically coupled, filtered, AC coupled, and sent to the Gate Pulse Amplifiers (GPAs). There are six GPAs, one for each SCR, and the EHPA provides galvanic isolation between the individual SCR gates. This isolation is essential because each SCR in the bridge may be at a different potential, and the gate drive signals must be delivered without compromising the isolation between the devices.
The sensor inputs of the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board monitor the mechanical and electrical operating variables on the bridge and feed them back to the control system. Conduction currents are sensed on all three phases of the bridge input, with the EHPA acting as the interface between the Hall Effect sensors located on the EMCS boards and the system control. The EHPA provides power to the EMCS and receives a signal from the EMCS indicating the status of current flow through each leg of the three-phase bridge input. These status signals are delivered to the EHPA at connectors J9, J10, and J11, and the EHPA then conditions these signals and sends the bridge status out to the controller.
Bridge temperature is sensed through an RTD (thermistor) sensor input at connector J13. The bridge airflow sensor detects loss of fan cooling in the bridge, and one fan can be connected to the EHPA through connector J12. The EHPA accepts either a pulsed or dry-contact, normally open sensor input from the fan, and the mode of signal detection is configured through berg jumper JP2. A second redundant fan may be connected through the optional daughterboard EHFC. Line filter fuse failure is sensed at connector J14, which accepts a single normally closed dry contact input. Line filter fan rotation is sensed at connector J20, and this feature, when required, is configured through berg jumper JP3.
Sensor Feedback Logic and Fault Protection
The fault and alarm conditions of the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board are generated in a logic circuit, and the resulting signals are sent to the control system. An alarm is generated on a signal from the line filter or fans, or if the RTD exceeds an alarm threshold. A temperature trip is generated if the RTD exceeds a fault threshold, or if the bridge cooling fan or fans fail. There are two failure modes that cause the bridge to be shut down: a temperature trip or an EHPA power supply failure. If either one of these occurs, the EHPA stops gating until the EHPA control power is cycled, ensuring that the bridge does not continue to operate under unsafe conditions.
The sensor feedback logic provides comprehensive protection for the excitation power bridge. The conduction sensors confirm that current is flowing through each phase of the bridge, allowing the control system to verify that the SCRs are firing correctly and that the bridge is operating as commanded. The temperature monitoring protects the SCRs from overheating, which could lead to device failure and costly downtime. The airflow monitoring protects the bridge from cooling loss, which could cause rapid overheating and failure. The line filter fuse detection protects the line filter from damage due to fuse failure, which could cause the filter to overheat or fail.
I/O Connections and Connectors

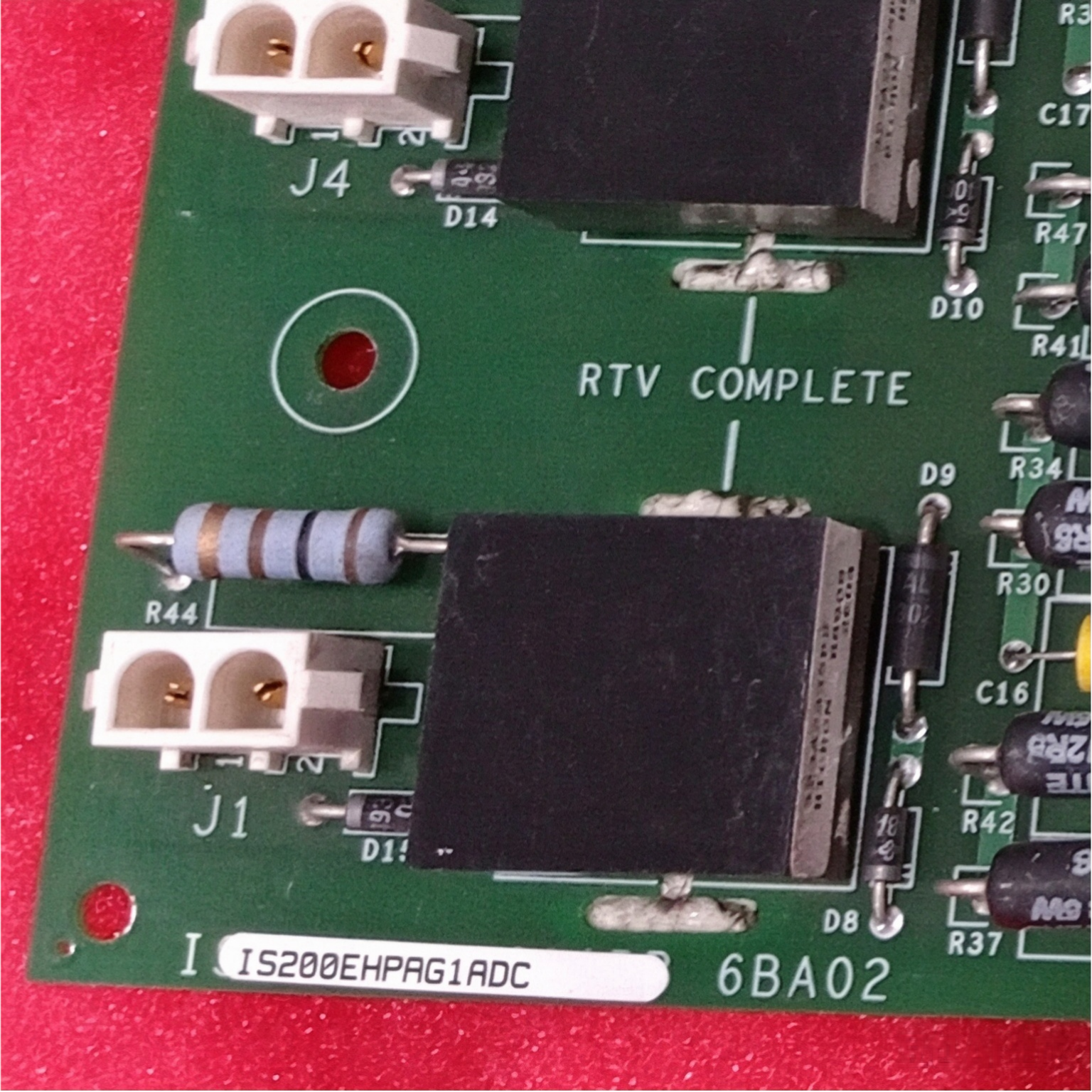

The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board provides individual SCR gate outputs that are cabled to the bridge through two-pin connectors J1, J2, J3, J4, J5, and J6. The connector number and SCR number match, so that J3-1 is the cathode connection for SCR3 and J3-2 is the gate connection for SCR3. The power supply is a nominal 125 V DC (80 to 140 V DC) through connector J8, with pin 1 providing the power supply input and pin 2 providing the power supply common.
The J7 cable connector carries the gate commands from the ESEL board and carries the bridge temperature and alarm signals back to the control. The J7 connector is a 39-pin connector with detailed pin assignments for the gate input positive and negative signals for gates 1 through 6, the conduction sensor positive and negative signals for phases A, B, and C for both M1 and M2, the alarm and fault positive and negative signals for M1 and M2, and the capacitance to ground connections.
The J9, J10, and J11 connectors provide the conduction sensor pins for phases A, B, and C respectively. Each connector provides power to the sensor, the phase current sensor input, the power supply common, and a second phase current sensor input. The J12 and J20 connectors provide the fan sensor connections, with power to the fan sensor, power supply common, return from the fan sensor, and a not connected pin. The J13 connector provides the RTD connections, with the voltage supply to the thermistor on the bridge and the current signal return from the RTD. The J14 connector provides the line filter fuse sensor connections, with the power-to-line filter fuse sensor and the return from the fuse sensor.
LED Indicators and Diagnostics
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board includes a comprehensive set of LED indicators that provide visual indication of the board's status and the status of the excitation power bridge. The PSOK green LED indicates that the EHPA power is on and the power supply is OK. The GT1I through GT6I yellow LEDs indicate that the gate pulse inputs 1 through 6 are active. The ALRM yellow LED indicates an alarm condition feedback, and blinking is normal. The FAN red LED indicates the air flow sensor status, and a flashing LED indicates that the fan is not running. The FUSE red LED indicates the line filter sensor status, and a flashing LED indicates that the line filter fuse has failed.
The TEMP red LED indicates an RTD low temperature alarm, and flashing indicates an alarm. The FAULT red LED indicates a bridge temperature fault, fan fault, and/or EHPA power failure. The TFLT red LED indicates a temperature sensor or RTD high temperature alarm, and flashing indicates an alarm. The PHA, PHB, and PHC yellow LEDs indicate the conduction sensor inputs for phases A, B, and C respectively. The GT10 through GT60 yellow LEDs indicate that SCR gate pulse amplifiers 1 through 6 are active.
It is important to note that blinking of the red FAN LED when the bridge is not gating does not necessarily indicate a failure, but only that the fan is not running or that the fan health is not known. Operation of the FAN LED is affected by the EHFC board. Two brief flashes approximately every 10 seconds of the yellow ALRM LED are normal, and longer flashes during this interval indicate that an alarm is being reported to the control module, which can be read in the control fault buffer.
Jumpers and Testpoints
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board includes jumpers that configure the sensor inputs. Jumper JP2, when shorted, enables the fan 1 operation sensor in pulse train mode, and when open, disables the fan 1 operation sensor in dry contact mode. Jumper JP3, when shorted, enables the line filter fan sensor operation at J20, and when open, disables the line filter fan sensor operation. These jumpers allow the board to be adapted to the specific sensor types and monitoring requirements of the application.
The board also includes a comprehensive set of testpoints that allow maintenance personnel to measure the power supply voltages and the line filter sensor input. TP40 provides the power supply input voltage P1FA, TP41 provides the power supply negative N50, TP42 provides the power supply 8 V DC P8, TP43 provides the power supply 40 V DC P40, TP44 provides the COM for the 40 V DC power supply PCOMP, TP45 provides the power supply +15 V DC P15, TP46 provides the ACOM for the 15 V DC power supply, TP47 provides the power supply 15 V DC negative N15, TP48 provides the DCOM for the 5 V DC power supply, TP49 provides the power supply 5 V DC P5, TP50 provides the power supply 12 V DC P12, TP51 provides the COM for the 12 V power supply PCOMP, and TP54 provides the line filter sensor input LINFILN.
Application Suitability and System Integration
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is an integral component of the 100 mm EX2100™ Excitation Control system, providing the gate firing and bridge monitoring functions that are essential for the operation of the excitation power bridge. Its six gate pulse amplifiers, comprehensive sensor inputs, and fault protection logic ensure that the SCRs are fired correctly and that the bridge is protected from overheating, cooling loss, and other adverse conditions.
In the EX2100 Excitation Control, the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board receives the gate commands from the ESEL board and drives the gates of up to six SCRs on the power bridge. The conduction sensors confirm that current is flowing through each phase of the bridge, allowing the control system to verify that the SCRs are firing correctly. The temperature, airflow, and fuse monitoring inputs protect the bridge and the line filter from damage, and the fault logic ensures that the bridge is shut down safely if a critical condition is detected.
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is designed for installation in the Power Conversion Cabinet, where it is accessible for maintenance and troubleshooting. The board is not online-maintainable unless the power converter section includes the online repair switch option, so replacement requires that the bridge and EHPA power be turned off and the board de-energized before any work is performed. The comprehensive LED indicators and testpoints simplify troubleshooting, allowing maintenance personnel to quickly identify the source of a fault and to verify the operation of the board after repair or replacement.
Maintenance and Lifecycle
The IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is designed for long service life with minimal maintenance. The board contains no moving parts, and its solid-state construction ensures high reliability in continuous industrial operation. Routine maintenance consists of periodic visual inspection of the board, connectors, and LEDs, verification of the testpoint voltages, and confirmation that the jumpers are set correctly for the application.
If a board fails, replacement requires careful attention to safety procedures. After turning off power to the excitation system and verifying that no power exists on the board, all cables must be labeled with the correct connector name to simplify reconnection. All cables must be carefully disconnected from the board, and if the EHFC daughterboard is present, the procedures in GEI-100548 must be followed. The EHPA board must be removed from its mounting, and the replacement board must be checked to verify that all jumpers are located in the correct positions, the same as on the original board. The replacement board must be re-inserted on its mounting, and all cables removed in the previous step must be reconnected and tightened.
GE Industrial Control Systems ensures compatibility of its replacement boards, even though boards of different revision levels may not contain identical hardware. When ordering a replacement IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board, provide the complete part number and description, the exciter serial number, and the Material List (ML) number. The factory may substitute later versions based on availability and design enhancements, but backward compatibility of replacement boards is guaranteed.
Conclusion
The GE IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is a reliable, robust, and highly integrated gate pulse amplifier and bridge monitoring module for the 100 mm EX2100™ Excitation Control system. Its six gate pulse amplifiers, galvanic isolation between SCR gates, comprehensive sensor inputs for conduction current, bridge temperature, airflow, line filter fuse, and line filter fan, and its fault protection logic provide the gate firing and monitoring functions required for safe and reliable operation of the excitation power bridge.
With its comprehensive LED indicators, testpoints, configurable jumpers, and clearly labeled connectors, the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board is an essential component in EX2100 Excitation Control installations worldwide. Backed by GE's quality manufacturing, global support network, and commitment to backward compatibility, the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board continues to deliver the performance, durability, and ease of use that industrial users expect from GE. Whether used in a new installation or as a replacement for an existing board, the IS200EHPAG1ADC Exciter Gate Pulse Amplifier Board provides the gate firing and bridge monitoring functionality required for reliable and efficient excitation control operation.
