GE IS200DTCIH1AAA Simplex Contact Input Terminal Board

The GE IS200DTCIH1AAA Simplex Contact Input Terminal Board is a compact, high‑density digital input interface designed for DIN‑rail mounting in industrial control systems. This board, belonging to the DTCI family, provides 24 dry contact voltage input channels with group isolation, making it an ideal solution for monitoring discrete field devices such as switches, pushbuttons, limit switches, proximity sensors, and relay contacts in simplex (non‑redundant) applications. The IS200DTCIH1AAA connects to a VCCC or VCRC processor board via a single shielded cable, enabling seamless integration into GE’s distributed control architectures.

The IS200DTCIH1AAA is specifically engineered for 24 V DC nominal excitation, with a wide operating range of 18 to 32 V DC, accommodating typical industrial power supply variations. Its threshold voltage is set at 50% of the excitation voltage, ensuring reliable detection of contact closure or opening even under fluctuating supply conditions. The board incorporates robust input filtering to reject high‑frequency noise and suppress surges, ensuring stable and accurate signal acquisition in electrically noisy environments.

Up to two IS200DTCIH1AAA boards can be connected to a single VCCC or VCRC processor, providing a total of 48 contact inputs per processor, which scales easily for medium‑sized digital I/O requirements. The vertical stacking capability on a standard 35 mm DIN‑rail allows multiple boards to be mounted in a compact vertical arrangement, significantly conserving cabinet space compared to traditional rack‑mounted solutions. The IS200DTCIH1AAA is available only in a simplex version; it does not support triple‑modular redundant (TMR) configurations and is not compatible with the PDIA I/O Pack.

An onboard identification (ID) device – a read‑only chip containing the board’s serial number, board type, revision number, and connector location (JR1/JS1/JT1) – is interrogated by the I/O pack/board during system initialization. This enables automatic board detection, configuration validation, and hardware compatibility checks, enhancing system reliability and simplifying maintenance.

This product introduction provides comprehensive technical information, installation guidance, operational principles, diagnostic features, and detailed specifications for the GE IS200DTCIH1AAA Simplex Contact Input Terminal Board, serving as an essential reference for system integrators, control engineers, and maintenance personnel.

Functional Architecture and Signal Conditioning

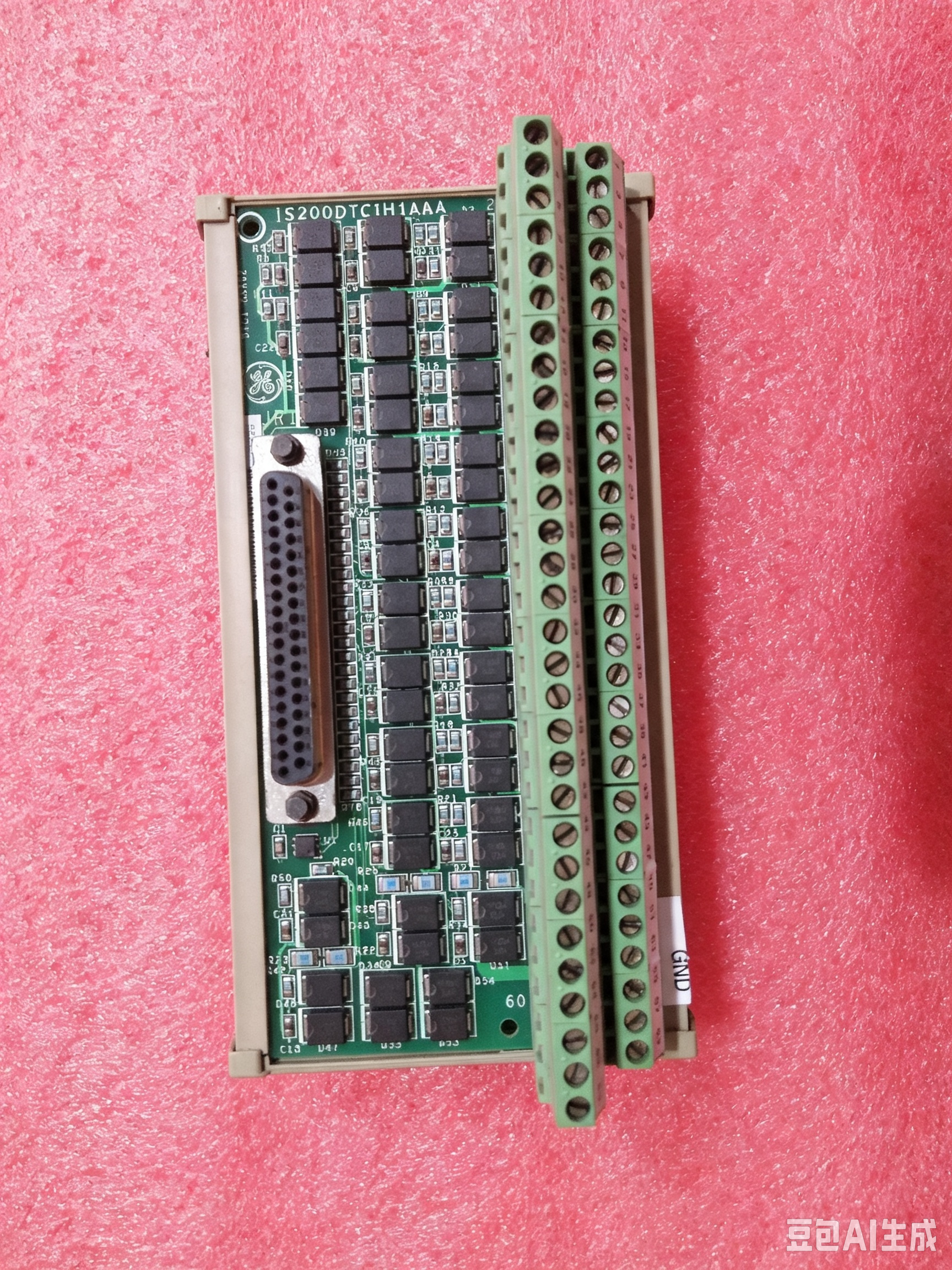

The IS200DTCIH1AAA Simplex Contact Input Terminal Board is built around a straightforward yet robust architecture for digital contact sensing. The board accepts 24 independent dry contact inputs, each connected to a terminal on the 60‑position euro‑block terminal block. The inputs are excited by a floating 24 V DC nominal supply that is applied to the common side of the contact circuits. When a contact closes, the excitation voltage is applied across the input circuit, and the resulting current flow is detected by the VCCC or VCRC processor board.

The input current is carefully designed to provide reliable wetting current for dry contacts while minimizing power dissipation. The first 21 input circuits draw a nominal 2.5 mA (equivalent to approximately 50 kΩ impedance), which is sufficient for most standard switch and relay contacts. The last three circuits (channels 22 through 24) draw a higher nominal current of 10 mA (approximately 12.5 kΩ), providing increased wetting current for contacts that may be prone to oxidation or contamination. This differentiation allows the IS200DTCIH1AAA to accommodate a wider range of field contact types without external modification.

The excitation voltage is applied as a floating supply, meaning it is isolated from the system ground. This floating design, combined with group isolation, helps to prevent ground loops and improves noise immunity. The threshold voltage for detecting a closed contact is set at 50% of the excitation voltage, providing a well‑defined switching point that is immune to moderate voltage fluctuations. For example, with a nominal 24 V excitation, the threshold is approximately 12 V; the input is considered closed when the voltage exceeds this threshold, and open when it falls below.

The IS200DTCIH1AAA incorporates hardware filters on each input, located near the point of signal entry. These filters have a time constant of 4 ms, effectively attenuating high‑frequency noise and suppressing voltage transients caused by inductive loads or electrostatic discharge. This filtering ensures that the VCCC/VCRC processor receives clean, debounced signals, reducing the likelihood of false triggers and improving system reliability.

Once the conditioned signals pass through the input filters, they are sent over the cable to the VCCC or VCRC board, which further processes them through optical isolators. The optical isolation provides galvanic separation between the field wiring and the processor electronics, protecting the control system from voltage spikes and ground potential differences. The isolated signals are then transferred over the VME backplane to the VCMI (VME Communications Interface), which ultimately communicates the contact status to the main controller.

Physical Design and Mounting

The IS200DTCIH1AAA Simplex Contact Input Terminal Board is mechanically optimized for space‑efficient installation. Its DIN‑rail mounting system uses a plastic holder that snaps onto a standard 35 mm rail, and the board slides into the holder with a positive latch. The vertical orientation allows boards to be stacked one above another, with the front‑facing terminal block providing easy access for wiring, troubleshooting, and maintenance.

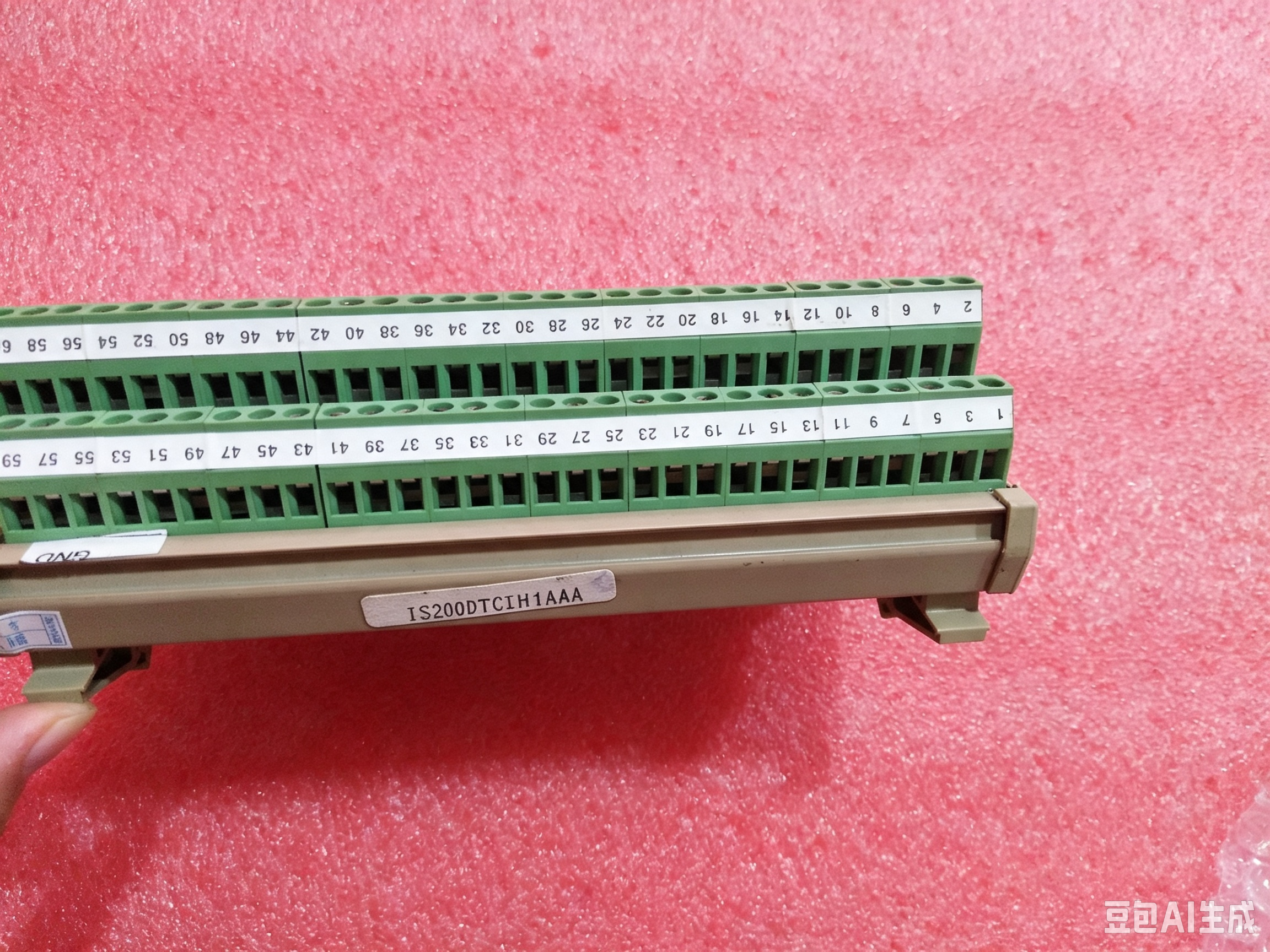

The terminal block is a high‑density euro‑block type with 60 screw terminals, permanently soldered to the board. It accepts solid or stranded wires up to #18 AWG, and shielded cable is not required for contact inputs, though twisted‑pair wiring is recommended for long runs. The terminal block is clearly numbered from 1 to 60, and the wiring diagram provides the corresponding signal assignments.

Two dedicated screw terminals, numbered 55 and 56, are provided for the SCOM (signal common) ground connection. These terminals must be connected to chassis ground with the shortest possible lead length to ensure a low‑impedance return path and minimize noise. Six additional screws are provided for the 24 V DC excitation power connection, ensuring a secure and low‑resistance power feed to the board.

The board does not include a dedicated shield terminal strip; cable shields, if used, must be terminated externally at the field device or through a common grounding bar. This design is typical for contact input applications where high‑voltage isolation is not required.

The physical dimensions of the IS200DTCIH1AAA, with its support plate, are approximately 8.6 cm wide by 16.2 cm high (3.4 inches by 6.37 inches). The board’s compact footprint enables dense packing in control cabinets, and its vertical stacking capability allows multiple boards to be mounted within the same horizontal space, significantly reducing overall cabinet volume.

Installation and Wiring Procedures

Proper installation of the IS200DTCIH1AAA Simplex Contact Input Terminal Board is critical for reliable operation. The following step‑by‑step guidance covers mechanical mounting, electrical wiring, and system integration.

Mechanical Mounting: Begin by securing the plastic DIN‑rail holder to a standard 35 mm rail. The holder snaps onto the rail with an audible click. Then, align the IS200DTCIH1AAA board with the guide slots in the holder and slide it downward until it locks into place. Ensure that the board is firmly seated and that the terminal block and cable connector are accessible. When stacking multiple boards, maintain sufficient vertical clearance for cable bending and termination access.

Wiring the Contact Inputs: Each of the 24 input channels has a dedicated pair of terminals: one terminal for the field contact’s common return (connected to the excitation supply return) and another for the input signal. The wiring configuration depends on whether the contacts are normally open or normally closed, and whether they are powered from the board’s internal excitation or from an external source. The IS200DTCIH1AAA is designed to work with dry contacts; the excitation voltage is supplied by the board itself. Connect the positive side of the excitation supply to the common rail of the contacts, and connect each contact’s output to the corresponding input terminal. When the contact closes, the circuit is completed and the input is detected.

Grounding: The SCOM terminals (55 and 56) must be connected to chassis ground using the shortest possible wire. Both screws are provided for this purpose; either or both can be used to create a low‑impedance ground path. This connection establishes the reference potential for the excitation supply and is essential for noise immunity. The board does not provide a separate shield terminal; cable shields should be terminated at one end (usually at the field device) and connected to ground at that point, or routed to a common ground bar.

Excitation Power: The board requires a nominal 24 V DC excitation supply, which is typically derived from the system power supply. Six screw terminals are provided for this connection, allowing for secure and redundant power wiring. The excitation voltage must be within the range of 18 to 32 V DC to ensure proper operation. The excitation supply is floating, meaning it is not referenced to the system ground, which helps to prevent ground loops.

Cable Connection: After all field wiring is complete, connect the single cable between the IS200DTCIH1AAA and the VCCC or VCRC processor board. The connector is keyed and latched to prevent accidental disconnection. Upon power‑up, the VCCC/VCRC will interrogate the onboard ID chip to identify the board and verify compatibility. If a mismatch is detected – for example, if the board type does not match the expected configuration – a hardware incompatibility fault is generated, preventing incorrect operation.

Power‑Up and Verification: Apply power to the system and observe the diagnostic indicators on the VCCC/VCRC or through the system software. The IS200DTCIH1AAA should be identified correctly, and contact status should be reflected accurately. If any channel reads incorrectly, verify wiring continuity, excitation voltage, and contact condition.

Operational Characteristics

The IS200DTCIH1AAA Simplex Contact Input Terminal Board operates with the same functional logic and onboard signal conditioning as the larger TBCI terminal boards, with the key difference that the IS200DTCIH1AAA is scaled specifically for 24 V DC excitation. This scaling ensures compatibility with standard industrial discrete sensors and controls.

The input excitation voltage ranges from 18 to 32 V DC, accommodating typical variations in power supply output. The threshold voltage for detecting a contact closure is fixed at 50% of the applied excitation voltage, providing a consistent and noise‑immune switching point. For example, at 24 V excitation, the threshold is 12 V; at 28 V, the threshold is 14 V. This percentage‑based threshold ensures reliable operation across the entire excitation range.

The board rejects AC voltage superimposed on the DC input, with a specified AC rejection of 12 V RMS. This feature is particularly important in industrial environments where AC ripple or induction from nearby power cables can couple into the input wiring. The hardware filter (4 ms time constant) further attenuates high‑frequency noise and suppresses surge transients, ensuring that only valid contact transitions are reported.

The input current draw is modest, with the first 21 circuits taking 2.5 mA (nominal) and the last three circuits taking 10 mA (nominal). This design provides adequate wetting current for reliable contact closure while minimizing the load on the excitation supply. The higher current on the last three channels is useful for contacts that have higher resistance due to oxidation or longer cable runs.

Once the signals are conditioned and filtered, they are transmitted to the VCCC or VCRC processor board. The VCCC/VCRC passes these signals through optical isolators, providing complete galvanic isolation between the field wiring and the control system electronics. The isolated signals are then placed on the VME backplane, where they are read by the VCMI and communicated to the controller. This multi‑stage isolation ensures that the control system is protected from electrical noise, surges, and ground potential differences that may exist in the field wiring.

Diagnostics and Fault Detection

The IS200DTCIH1AAA Simplex Contact Input Terminal Board incorporates comprehensive diagnostic capabilities that enhance system reliability and simplify maintenance. The diagnostics are performed by the VCCC/VCRC processor board in conjunction with the IS200DTCIH1AAA’s onboard ID chip and excitation monitoring circuits.

Excitation Voltage Monitoring: The excitation voltage supplied to the board is continuously monitored. If the excitation voltage drops below 40% of the nominal voltage (approximately 9.6 V for a 24 V nominal supply), a diagnostic alarm is set and latched by the I/O pack/board. This alarm indicates a potential power supply fault or a wiring problem. When this condition is detected, all inputs associated with the IS200DTCIH1AAA are forced to the open contact (fail‑safe) state as a precautionary measure, preventing erroneous operation of the control system.

Test Mode Forcing: As a diagnostic test, all inputs on the IS200DTCIH1AAA can be forced to the open contact state under software control. This allows the system to verify that the input circuitry and the processor are functioning correctly. Any input that fails this diagnostic test – i.e., it does not respond as forced – is held in the fail‑safe state, and a fault is generated. This test can be run periodically as part of system health checks.

TMR Voting Mismatch (if applicable): Although the IS200DTCIH1AAA itself is simplex, in systems where multiple boards are used for redundancy (not with this board, but with others), if the input from this board does not match the voted value from all three boards in a TMR system, a fault is created. For simplex operation, this feature is not applicable, but the diagnostic infrastructure remains in place for broader system compatibility.

Connector ID Device: Each IS200DTCIH1AAA board includes a read‑only chip that stores the board serial number, board type (DTCI), revision number, and the connector location (JR1, JS1, or JT1). During system initialization, the VCCC/VCRC interrogates this chip. If the chip’s data does not match the expected configuration – for example, if a different board type is installed, or the revision is incompatible – a hardware incompatibility fault is generated. This prevents the system from operating with incorrect or mismatched hardware, enhancing reliability.

Cable Unplugged Detection: The VCCC/VCRC can detect when the cable connecting the IS200DTCIH1AAA is unplugged. A loss of communication triggers a fault, alerting the operator to a wiring issue. This detection is based on the absence of expected ID chip responses or signal activity.

All diagnostic alarms and faults are reported to the controller, where they can be displayed on the operator interface, logged in the event history, and used to trigger appropriate actions (e.g., shutting down a process or switching to backup equipment).

Configuration and Hardware Settings

The IS200DTCIH1AAA Simplex Contact Input Terminal Board is designed for simplicity and ease of use. There are no jumpers, dip switches, or other hardware settings on the board that require user configuration. All operational parameters – including input filtering, excitation voltage monitoring, and threshold detection – are fixed at the factory and do not require adjustment.

The board’s configuration is entirely determined by the system software. The VCCC/VCRC processor reads the ID chip to automatically recognize the board type and its capabilities. The system software can then assign the 24 input channels to specific control functions, map them to I/O points, and set up diagnostic thresholds as needed. This plug‑and‑play approach reduces setup time and eliminates configuration errors.

The absence of jumpers also simplifies field replacement: a faulty IS200DTCIH1AAA can be removed and replaced with a new one of the same type without any manual reconfiguration. The VCCC/VCRC will automatically detect the new board and resume normal operation, provided the excitation and wiring are intact.

Technical Specifications

The following table provides comprehensive technical specifications for the GE IS200DTCIH1AAA Simplex Contact Input Terminal Board. All values are typical unless otherwise noted.

Application Suitability and System Integration

The GE IS200DTCIH1AAA Simplex Contact Input Terminal Board is ideally suited for a wide range of industrial discrete input applications where simplex operation is acceptable. Its 24 contact inputs are perfect for monitoring status of motor starters, valve positions, level switches, pressure switches, temperature switches, emergency stop pushbuttons, and operator panel pushbuttons. The 24 V DC excitation is compatible with most industrial sensors and dry contacts.

In power generation, the board can monitor generator breaker status, turbine trip signals, lube oil pressure switches, and cooling water flow switches. In chemical processing, it can read tank level alarms, pump running status, and interlock conditions. In manufacturing automation, it can capture machine cycle start/stop signals, part presence sensors, and safety interlocks.

The ability to connect two IS200DTCIH1AAA boards to a single VCCC or VCRC processor provides up to 48 contact inputs, which is sufficient for many medium‑sized control systems. The vertical stacking and compact footprint allow for dense packaging, making the board an excellent choice for retrofit projects where cabinet space is at a premium.

The group isolation design ensures that noise and surges on one group of inputs do not affect other groups or the processor electronics. The optical isolation on the VCCC/VCRC side provides an additional layer of protection, making the system robust against ground potential differences and electrical transients.

For system integrators, the automatic ID chip recognition simplifies configuration and reduces commissioning time. The diagnostic capabilities – including excitation monitoring, test mode forcing, and cable unplug detection – contribute to high system availability and easier troubleshooting.

Maintenance and Lifecycle

The IS200DTCIH1AAA Simplex Contact Input Terminal Board is a solid‑state device with no moving parts or user‑adjustable components, ensuring long service life with minimal maintenance. Routine maintenance consists of periodic visual inspection of terminal connections, cable integrity, and overall board cleanliness. In dusty or corrosive environments, occasional cleaning with a soft brush or low‑pressure air is recommended.

If a board fails, replacement is straightforward. De‑energize the system, disconnect the field wiring (after marking terminal assignments if necessary), unplug the cable, release the DIN‑rail holder, and slide the board off. Install the new IS200DTCIH1AAA board, reconnect all wiring, and apply power. The VCCC/VCRC will automatically recognize the new board via its ID chip; no software reconfiguration is required, as the board type and channel mapping remain the same. However, if the board revision has changed, the system will verify compatibility and generate a fault if there is a mismatch, ensuring that only approved hardware is used.

GE maintains a comprehensive spares inventory for the IS200DTCIH1AAA, and backward compatibility is ensured across all revisions. When ordering a replacement, provide the complete part number (IS200DTCIH1AAA), the associated system serial number, and the Material List number if available. The factory may substitute later revisions based on availability, but functional compatibility is guaranteed.
