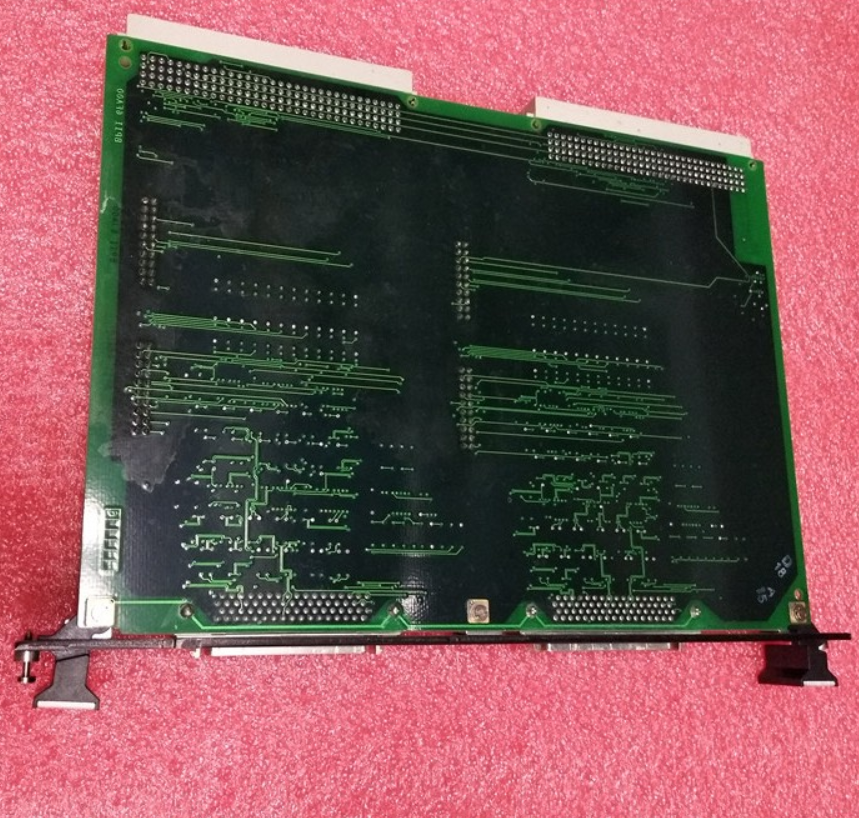

The IS200BPIIH1A Bridge Power Interface Board is a critical signal relay and interface component designed by GE Industrial Systems for bridge inverter systems employing Integrated Gate Commutated Thyristors (IGCTs) as switching devices. Within the control architecture of the Innovation Series™ drive system, the IS200BPIIH1A plays a pivotal central role: it is responsible for accurately relaying 24 gate firing commands and 24 gate status feedback signals between the IS200BICI Bridge Interface Control Board and two remotely mounted IS200GGXI Expander Load/Source Boards. This establishes a complete signal link from the control core to the power gate driver modules.
The IS200BPIIH1A board mounts in an Innovation Series™ standard board rack, occupying the J16 and J21 connector slots on the IS200CABP Cable Assembly Backplane Board. Through close coordination with the BICI board, the IS200BPIIH1A enables distributed control of the IGCT power bridge. A core feature of this design is that high-voltage isolation is provided by fiber-optic connections at the GGXI board level, while voltage feedback isolation is provided through attenuation by the DS200NATO Voltage Feedback Scaling Board. This allows the IS200BPIIH1A itself to focus on high-speed digital signal processing and interface driving tasks on the low-voltage side.
Core Functional Architecture
The functional design of the IS200BPIIH1A revolves around three core objectives: reliable transmission of high-speed gate commands, accurate collection of gate status signals, and intelligent diagnostics of system connection integrity.
Gate Command and Status Signal Relay: The IS200BPIIH1A distributes 24 gate firing commands (corresponding to 12 outer cells and 12 inner cells) from the BICI board to the first and second GGXI boards via two JGATE connectors. Simultaneously, the 24 gate status feedback signals from the GGXI boards are aggregated by the IS200BPIIH1A and sent back to the BICI board through backplane connectors P1 and P2. Each signal uses the RS-422 differential transmission standard for point-to-point, high-speed, noise-immune communication over distance. Notably, if a cable is disconnected from a given receiver, the RS-422 receiver will default to a "bad gate signal status," ensuring the system can immediately detect the connection fault and preventing a dangerous information vacuum caused by a broken wire.
Gate Command ON Retention: IGCT devices have strict requirements for a minimum ON time. If a gate drive command is removed too early, the IGCT may be forced to turn off before it is fully conducting, risking device damage. Since some gate drivers do not include this necessary protection, the IS200BPIIH1A assumes this critical responsibility. When a gate command signal from the BICI board transitions low (turn-on command), and if that signal line subsequently "floats" for any reason, an R-C time constant circuit on the IS200BPIIH1A will maintain the command in the low state for a minimum period. The command will only be allowed to turn off after the capacitor in the R-C circuit charges to a logic high level. Additionally, per bridge configuration requirements, the inner cells (numbered 2 and 3) must remain ON for a minimum of 5 microseconds longer than the outer cells (numbered 1 and 4). The IS200BPIIH1A precisely guarantees this timing constraint through its circuit design. The capacitor value is sufficiently small so that it does not cause timing issues when the gate command is actively driven by the BICI board.
High-Frequency Power Supply Status Signal Conditioning: The IS200BPIIH1A is responsible for conditioning the P160 signal coming from the DS200GDPA High Frequency Power Supply Board. This signal originates from the 115 V AC power source that supplies the GDPA board. The AC voltage is rectified and passed through a resistor and a 6.8 V zener diode, and the voltage across the zener diode is supplied to the IS200BPIIH1A for sensing. The high side is introduced via the VAC1 pin and the low side via the VAC2 pin; these points connect to connector J5 on the CABP backplane. This design allows the IS200BPIIH1A to directly monitor the power supply status of the GDPA board, providing critical power health information to the system.
Board Identification and Cable Connection Integrity Detection
The IS200BPIIH1A integrates advanced electronic board identification and cable connection detection mechanisms, ensuring the system can autonomously verify the integrity of all critical connections before startup and during operation.
Electronic Board Identification: The IS200BPIIH1A incorporates an onboard serial PROM identification chip connected to the board identification bus line (BRDID). The board supplies pull-up resistors to +5 V and the return paths to digital common (DCOM) for the BRDID line. The pull-up signal passes through to the GGXI board(s), which forward it on to the NATO board, where it is ultimately connected to chassis ground. This "daisy-chain" connection design allows the control system to verify whether the entire cable path from the IS200BPIIH1A, through the GGXI board, to the NATO board is properly connected. The return path (DCOM) can also be used by other boards along the path to determine if they are connected to the IS200BPIIH1A.
Cable Cross-Check Detection: In conjunction with the BICI board, the IS200BPIIH1A implements an ingenious cable cross-verification mechanism. A pair of wires in the PFBK cable (from the BICI board to the GGXI board) and in the JGATE cable (from the GGXI board to the IS200BPIIH1A) are dedicated for this purpose. To verify that the cables for the two GGXI boards (Bridge 1 and Bridge 2) are not crossed, current is passed in opposite directions through these two pairs of wires. The IS200BPIIH1A provides opto-isolation to detect whether the current direction through the GGXI board is correct. The detection results are fed back to the BICI board via backplane signals (BIC_CCHK_OK1 and BIC_CCHK_OK2). This design effectively prevents bridge arm control mismapping caused by crossed cables and is a key element in ensuring system operational safety.
Open-Collector Status Signals and Fault Default Handling
The status signals received from the GGXI boards (including the 115 V AC power status, P160 power status, P5 power status, and fuse status, etc.) are driven by open-collector opto-isolators. The IS200BPIIH1A is responsible for supplying the pull-up resistors to +5 V and the return paths to DCOM for these signals. The current to the opto-isolators is limited to less than 1 milliamp, and the low-to-high transition has a time constant of approximately one microsecond. An important safety characteristic of this open-collector design is its "fault default" behavior: if the JGATE cable is disconnected, the input signal defaults to a pulled-up high level, indicating a fault state. This means that any accidental connection interruption is immediately captured and reported as a fault by the system, preventing continued operation with a missing connection.
Interface and Connector Configuration

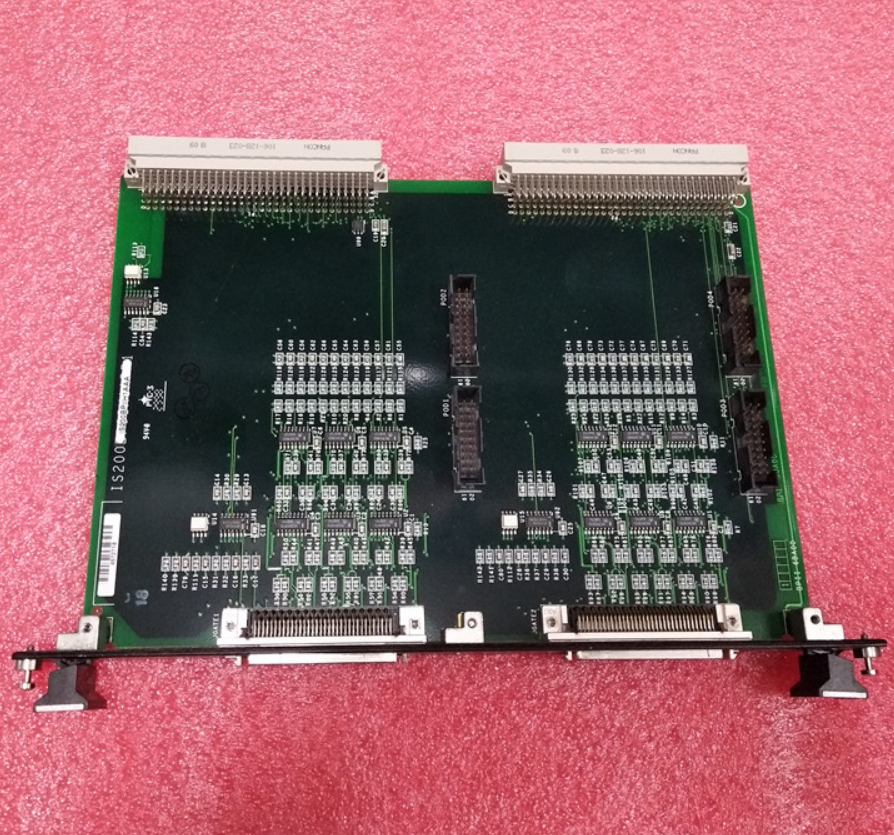

The interface design of the IS200BPIIH1A board is clear and well-defined, consisting of two 128-pin backplane connectors and two front panel connectors.
Backplane Connectors P1 and P2: These two connectors handle the signal interaction between the IS200BPIIH1A and the Innovation Series™ rack backplane, carrying the following main signal types:
Gate Command Signals: 24 gate firing commands, received from the IS200BICI board via the backplane, divided into commands for outer cells (OFO) and inner cells (OFI), numbered 1 through 12, corresponding to the first and second GGXI boards. Command signals are active low (0 = Gate Turn-On).
Gate Status Signals: 24 gate status feedback signals, sent to the IS200BICI board via the backplane, similarly categorized by outer and inner cells. A low level indicates that the status is normal (0 = OK).
System Status Signals: Including the GDPA board connection status, 115 V power status, +5 V power status, and fuse status for the GGXI boards, as well as cable connection check signals. These are typically active high to indicate OK (1 = OK).
High-Frequency Power Supply Detection: The P160 status signal from the GDPA board, introduced differentially (VAC1/VAC2) with a minimum high-voltage isolation capability of 225 V peak.
Tachometer Signals: Three sets of differential tachometer signals (TACH1, TACH2, TACH3), passed through the IS200BPIIH1A to the BICI board. In addition, three sets of HIFI differential signals from the BAIA board are present.
Power and Reset: +5 V DC digital power, ±15 V non-isolated DC power, isolated 24 V DC power (for customer relays), a board reset signal (active low), and numerous digital common points.
Board ID and Cable Check: The BRD_ID board identification bus and the BIC_CCHK_OK cable check signals.

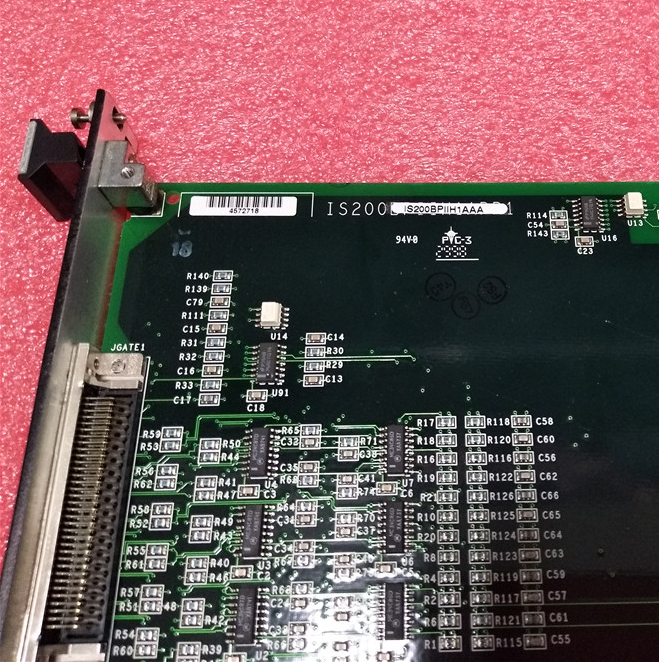

Front Panel Connectors JGATE1 and JGATE2: These two 68-pin connectors connect to the first and second GGXI boards, respectively. Each JGATE connector contains:
12 Gate Command Differential Pairs: Utilizing the RS-422 standard, command signals are forwarded from the BICI board through the IS200BPIIH1A to the GGXI board. Each gate command occupies one differential pair (TX N and TX P), with a low level indicating a gate turn-on command.
12 Gate Status Differential Pairs: Also using the RS-422 standard, status signals are returned from the GGXI board through the IS200BPIIH1A to the BICI board. Each gate status occupies one differential pair (RX N and RX P), with a low level indicating normal status.
GGXI Board Status Signals: Include V115 (115 V AC status), P160 (GDPA high-frequency power supply status), P5 (+5 V power supply status), and FUSE (fuse status). All are open-collector signals, with a low level indicating normal.
Cable Check Signals: Include BIC_CCHK (the cable connection check signal from BICI to GGXI to IS200BPIIH1A) and CCHK_OK (the connection check signal through GGXI/NATO/NATP).
Commons and Shields: Ample digital commons (DCOM) and chassis ground shield connections.
Application Data
The IS200BPIIH1A board features a clean and compact design. It has no LED indicators, no fuses, no adjustable hardware, and no user-accessible testpoints. While four test pads are present on the board, they are for development use only, intended for connecting discrete test equipment, and are not to be accessed by the user. This design philosophy minimizes field-serviceable points, enhancing the long-term reliability of the equipment in industrial environments.
