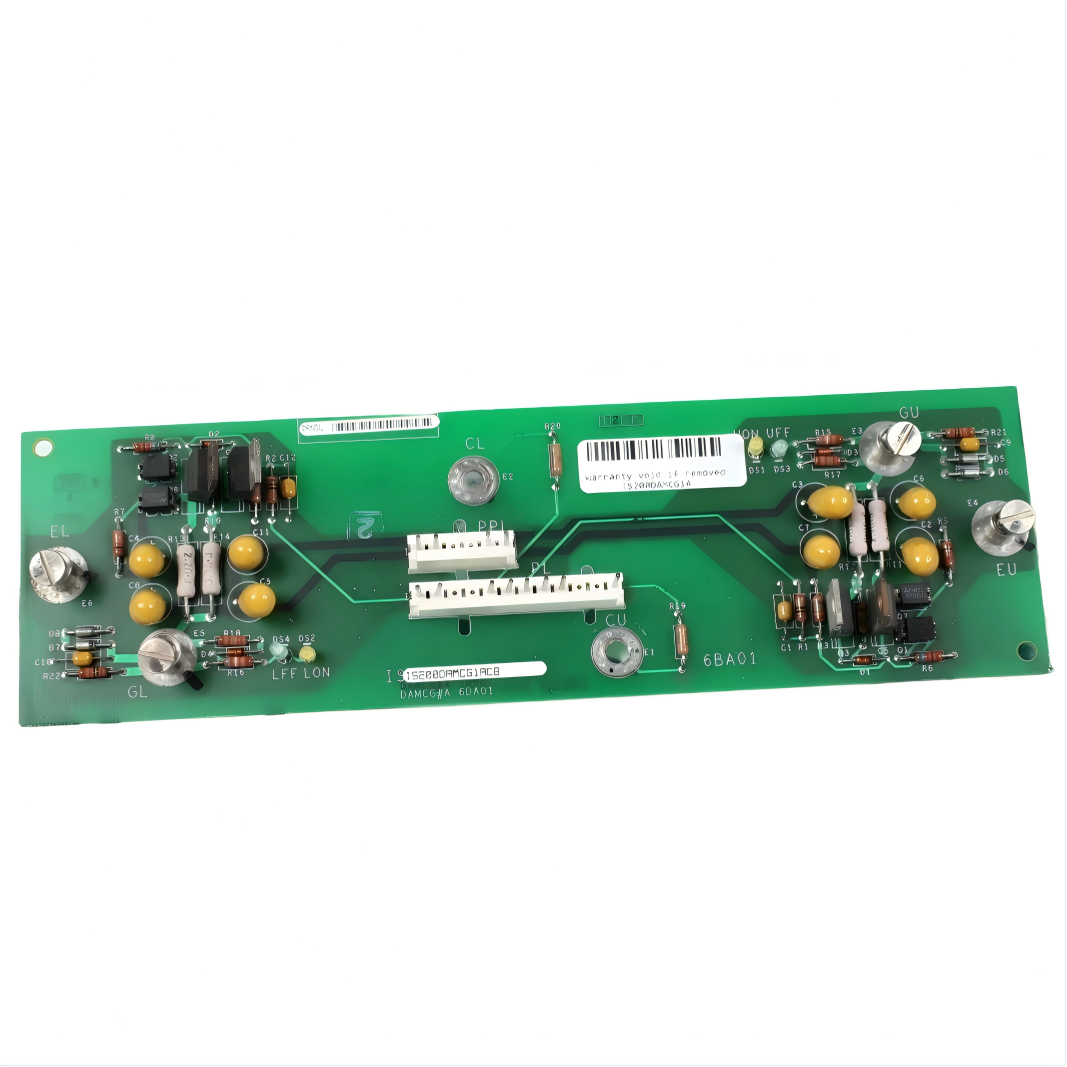

GE IS200DAMCG1ACB Gate Drive Amplifier Board

The IS200DAMCG1ACB is a gate drive amplifier board belonging to the Innovation Series™ 200DAM_G family from GE Industrial Systems. It is specifically designed for the 250 frame low voltage drive and serves as the final stage gate drive interface for one phase leg of the drive’s power bridge. The board provides high‑current amplification to drive the gate of an IGBT (Insulated Gate Bipolar Transistor) module, ensuring precise switching control and reliable operation of the power conversion system.

The IS200DAMCG1ACB is part of the DAMC variant, which is optimized for drives with a power rating that uses the CM400HA‑28H IGBT module. It receives a +15 V / ‑7.5 V power supply input and directly connects to the IGBT’s gate, emitter, and collector terminals, as well as to the control rack’s IS200BPIA Bridge Personality Interface (BPIA) board. The board contains no fuses, test points, or user‑configurable items, making it a straightforward, high‑reliability component for industrial drive systems.

This gate drive amplifier is essential for applications requiring high power switching, such as industrial motor drives, renewable energy systems, and other variable frequency drive (VFD) installations. Its robust design, combined with visual status indicators (LEDs), simplifies troubleshooting and maintenance.

Functional Description

The IS200DAMCG1ACB operates as a current amplifier that provides the final stage of gate drive for one phase leg of the drive’s power bridge. A typical three‑phase drive uses three such boards (one per phase leg). Each board drives a single IGBT module for the upper phase leg and another single IGBT module for the lower phase leg. The board receives low‑power gate control signals from the BPIA board and amplifies them to the levels required to properly turn the IGBTs on and off.

Key functional features include:

• Direct IGBT connection – The board mounts directly onto the IGBT module’s stud terminals, minimizing stray inductance and ensuring clean gate drive signals.

• LED status indication – LEDs on the board indicate the on/off status of the corresponding IGBT, allowing quick visual verification of switching operation.

• Isolated interface – The board provides electrical isolation between the control rack and the high‑power IGBTs, enhancing safety and noise immunity.

• Plug‑and‑play design – No on‑board configuration, fuses, or test points are required. The board is ready to use after proper mechanical and electrical installation.

The block diagram (similar to Figure 1 in the attached document) shows that the IS200DAMCG1ACB receives power from the +15 V / ‑7.5 V supply and gate drive signals from the BPIA, then outputs the amplified gate current to the IGBTs.

Hardware Characteristics

1 Physical Dimensions and Mounting

The IS200DAMCG1ACB is a printed wiring board with a standard form factor for the DAMC series. It mounts directly onto the IGBT module using captive fasteners and Keps nuts. The board is designed to be placed on top of the IGBT stud connections, with four captive fasteners securing it to the module.

2 Connectors and I/O

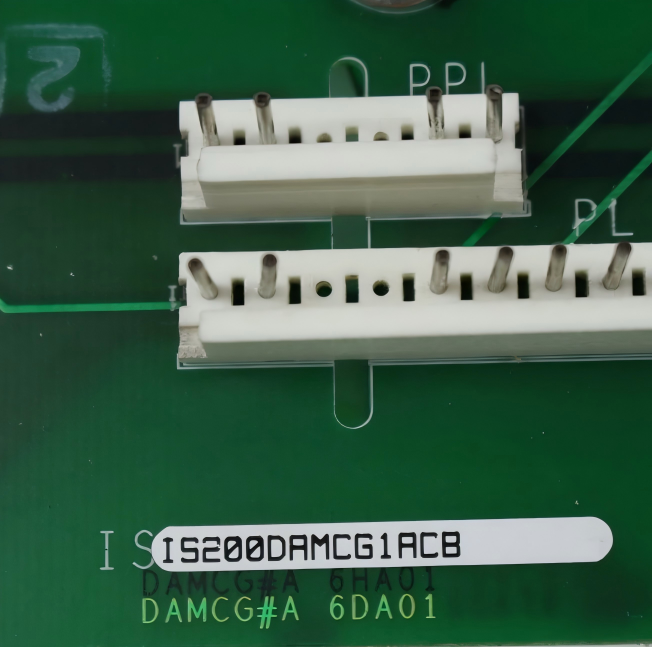

The board is equipped with the following connectors (typical for DAMC boards, as described in the attached document for DAMA/B/C):

3 LED Indicators

The IS200DAMCG1ACB includes LEDs that provide visual indication of the IGBT gate drive status. Based on the typical DAMC implementation (refer to DAMA/B/C LED descriptions in the attached document), the board likely contains:

These LEDs are invaluable for troubleshooting, allowing technicians to verify that the gate drive signals are active without needing an oscilloscope.

Application Data

The IS200DAMCG1ACB is intended for use in GE Innovation Series low voltage drives that employ a 250 frame power structure. Typical applications include:

• Industrial motor control (pumps, fans, compressors, conveyors)

• HVAC systems

• Machine tool drives

• Renewable energy inverters

• Test stands and dynamometers

Each drive phase leg requires one IS200DAMCG1ACB board. For a three‑phase drive, three boards are used – one for phase A, one for phase B, and one for phase C. The board connects directly to the IGBT module’s studs, which are part of the drive’s power stack. The BPIA board in the control rack sends pulse‑width modulated (PWM) gate commands to the IS200DAMCG1ACB, which then amplifies the signals to reliably switch the IGBTs on and off at high frequencies (typically 2‑8 kHz, depending on drive rating).

Installation and Replacement Procedure

1 Important Safety Precautions

• Hazardous voltages are present on the IGBT modules, heat sinks, and the board itself when the drive is energized. Always de‑energize the drive and verify zero voltage using appropriate high‑voltage testing equipment before touching the board or any connected circuits.

• Static sensitivity – The IS200DAMCG1ACB contains static‑sensitive components. Always wear a grounded wrist strap and handle the board only at a grounded workstation. Store the board in its original antistatic bag until ready for use.

• Do not remove, insert, or adjust board connections while power is applied – Doing so may cause equipment damage or personal injury.

• Note – If a DAMC board requires replacement, the associated IGBT module should also be replaced (as recommended by GE for DAMA/B/C boards).

2 Removal Procedure

1. De‑energize the drive and open the cabinet door. Verify that no voltage is present on any electrical circuit.

2. Locate the heatpipe heat exchanger assembly and the IGBT modules with the IS200DAMCG1ACB boards mounted directly below.

3. Disconnect the cable from connector PL on the board to be removed, and secure it out of the way.

4. Disconnect the cable from connector PPL on the board, and secure it out of the way.

5. Remove the two Keps nuts securing the board to the IGBT module.

6. Loosen the four captive fasteners, then slide the board off the IGBT stud connections.

3 Installation Procedure

1. Properly orient the new IS200DAMCG1ACB board over the IGBT stud connections. Finger‑tighten the four captive fasteners, then install the two Keps nuts finger‑tight.

2. Torque each Keps nut to 13 inch‑pounds. Then fully tighten the four captive fasteners (no specific torque given, but ensure they are snug).

3. Reconnect the cable to connector PPL on the new board.

4. Reconnect the cable to connector PL on the new board.

5. Visually inspect all connections, buses, and bolted hardware for correct installation.

6. Check the drive cabinet for any tools, debris, or loose hardware.

7. Close the cabinet door and restore power.

Ordering Information and Part Number Convention

When ordering the IS200DAMCG1ACB, use the full part number exactly as shown. The part number follows GE’s standard convention:

• IS200 – Product family (Innovation Series, 200V class)

• DAM – Functional acronym: Gate Drive Amplifier

• C – Variant: DAMC (250 frame)

• G1 – Generation or revision level

• A – Additional modifier (e.g., coating or feature)

• C – Another modifier (e.g., connector type)

• B – Revision (B indicates a specific design iteration)

To place an order:

• For warranty replacements (within warranty period): Contact GE Industrial Control Systems Product Service Engineering directly at:
  GE Industrial Control Systems
  Product Service Engineering
  1501 Roanoke Blvd.
  Salem, VA 24153‑6492 USA
  Phone: +1‑540‑387‑7595
  Fax: +1‑540‑387‑8606

• For spare parts or non‑warranty orders: Contact your nearest GE Sales or Service Office. Provide:

  • Full part number: IS200DAMCG1ACB

  • Drive serial number

Note: All digits are important. GE may substitute later compatible revisions, but backward compatibility is ensured.

Handling and Storage Precautions

• Antistatic protection – Always store the IS200DAMCG1ACB in an antistatic bag or box. Use a grounded wrist strap when handling.

• Avoid mechanical stress – Do not bend or flex the board. Handle by the edges.

• Moisture – Keep the board in a dry environment. If condensation is possible, allow the board to acclimate before installation.

• Shipping – Use original GE packaging or an equivalent antistatic, cushioned container.

Troubleshooting and LED Indication

The on‑board LEDs provide real‑time status of the gate drive signals. Under normal operation:

• When the drive is running, the yellow LEDs (ON) and green LEDs (OFF) will flash alternately at the switching frequency, indicating proper gate drive.

• If a yellow LED remains constantly on or off without toggling, there may be a missing gate signal from the BPIA or a fault in the drive control.

• If all LEDs are off, check the +15 V / -7.5 V power supply to the board and the cable connections.

Refer to the drive’s diagnostic manual for detailed fault analysis. The IS200DAMCG1ACB itself does not generate diagnostic codes; it is a pass‑through amplifier. Faults are typically detected by the control board (BPIA) or the drive’s main processor.

Compatibility and System Integration

The IS200DAMCG1ACB is specifically designed for 250 frame drives using CM400HA‑28H IGBTs. It is not interchangeable with DAMA (620 frame), DAMB (375 frame), DAMD (180/125/92 frame), or DAME (65 frame) boards. Always verify the frame size and IGBT type before replacement.

The board is compatible with the following GE drive models (typical, but not exhaustive):

• GE Innovation Series LV5 drives (250 frame)

• Certain AF‑300E and AF‑600FP drives using the same power platform

For exact compatibility, consult the drive’s bill of materials or contact GE support.

Maintenance and Lifetime
