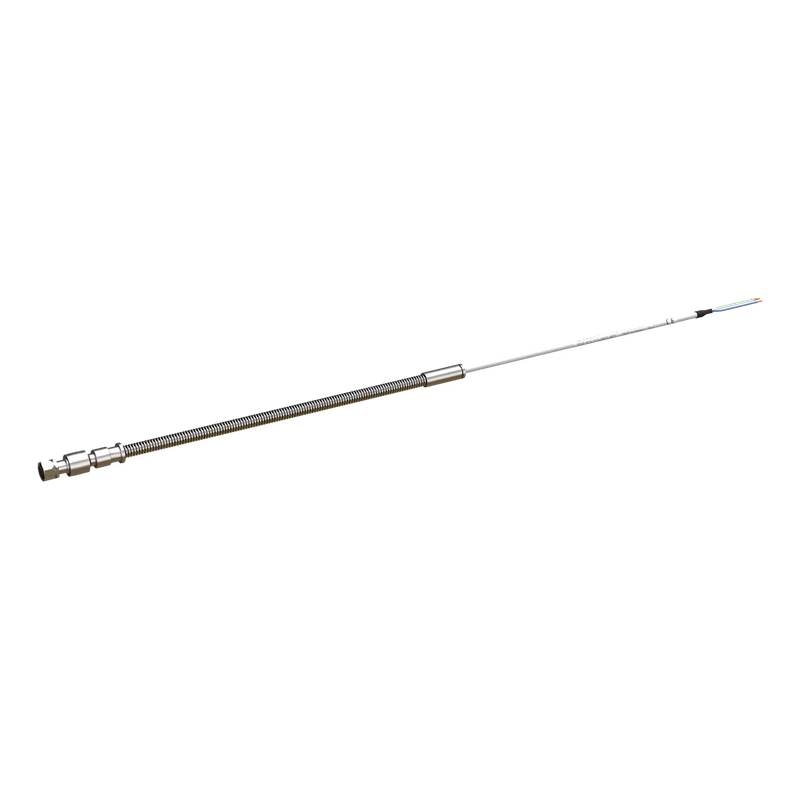

The EC119 922-119-000-003-P2000-U2000 is a high-performance industrial sensor system component from the Meggitt Sensing Systems' Vibro-Meter brand. This product is specifically designed for monitoring critical rotating machinery operating in extreme environments. It is widely used in the condition monitoring and protection of key rotating equipment such as gas turbines, steam turbines, hydroelectric generators, compressors, and fans. The EC119 series features high reliability, high precision, and excellent anti-interference capabilities, making it a crucial component in machinery protection and predictive maintenance systems.
In this specific model, "P2000" and "U2000" indicate a probe length of 2000 mm and an installation depth of 2000 mm, making it suitable for medium to large-scale industrial equipment installation requirements. The EC119 series is particularly suitable for demanding applications requiring long-distance signal transmission, high ambient temperatures, strong electromagnetic interference resistance, and high ingress protection ratings, meeting stringent user requirements for high-precision, long-life sensors.
II. Key Features
High-Precision Measurement: Supports precise monitoring from small displacements to wide-range vibrations, adaptable to various monitoring systems.
Long-Distance Signal Transmission: Supports signal transmission distances exceeding 1000 meters, suitable for large-scale industrial facility layouts.
Wide Measurement Range: Displacement measurement range from 0.2 mm to 12 mm, applicable to various mechanical structures.
Multiple Configuration Options: Offers various probe lengths, diameters, mounting methods, and protection grades to meet diverse installation environments.
Compliance with International Standards: Product design complies with API 670 standards, suitable for international projects.
High Ingress Protection: Supports up to IP68 protection rating, suitable for humid, corrosive gas, or liquid environments.
High-Temperature Adaptability: Can operate stably in extreme temperatures up to 700°C (when paired with high-temperature sensors).
Explosion-Proof Performance: Suitable for use in explosive atmospheres, requiring matching cables and connected equipment that comply with EC certifications.
Moderate Installation Size: The P2000 and U2000 configuration offers a moderate installation size while maintaining performance, suitable for most industrial sites.
III. Applications
The EC119 922-119-000-003-P2000-U2000 is widely used in the following equipment and scenarios:
Heavy-Duty Gas Turbines (e.g., Siemens SGT5-4000F)
Steam Turbines (Conventional and Nuclear Power Plants)
Hydroelectric Generators (e.g., Cahora Bassa HPP)
Compressors, Fans, Pumps
Generator Stator and Rotor Air Gap Monitoring
Bearing Vibration and Axial Displacement Monitoring
Gas Turbine Combustion Pulsation Monitoring Systems
Ice Detection and Anti-Icing Systems (with EW series)
Air Gap Monitoring Systems (with LS series)
Large Electric Motors and Propellers Condition Monitoring
Boiler Feed Pump Turbines and Motor Monitoring
IV. Installation and Usage Instructions
When installing the EC119 922-119-000-003-P2000-U2000, the following points should be noted:
Probe Mounting Location: Should be selected on a stable part of the mechanical structure, ensuring no obstacles between the probe and the measured surface. The mounting surface should be flat and clean to ensure measurement accuracy. For axial displacement monitoring, ensure the probe is aligned with the thrust collar surface.
Cable Routing: Should be kept away from strong electromagnetic interference sources such as high-voltage cables and variable frequency drives. It is recommended to use metal conduits or shielded trays for wiring to enhance anti-interference capability. The cable bending radius should comply with the product manual to avoid internal damage from excessive bending.
Explosion-Proof Requirements: If used in an explosive atmosphere, the inductance and capacitance of the cable must strictly comply with EC certification requirements, and installation must strictly follow explosion-proof regulations. Explosion-proof junction boxes should be used at connection points.
Environmental Adaptability: Depending on the site conditions, consider adding armored protection or anti-corrosion coating. For high-temperature areas, ensure adequate heat dissipation space at the cable connections. For underwater or high-humidity environments, ensure all connections are well-sealed.
Calibration and Testing: After installation, system calibration should be performed to ensure accurate output signals. It is recommended to use Meggitt's calibration tools or third-party certified equipment for testing. Calibration should include zero and span adjustments.
Mechanical Fixing: Ensure the probe is firmly installed to prevent loosening or displacement due to mechanical vibration. The installation torque should comply with the values specified in the product manual. For long probes, consider adding support points to prevent resonance.
Initial Gap Setting: Set an appropriate initial gap according to monitoring requirements during installation, typically near the midpoint of the probe's range, to ensure sufficient measurement margin in both positive and negative directions.
V. Compatible Systems
EC119 series sensors integrate seamlessly with Meggitt's VM600 series machinery protection and condition monitoring systems, supporting the following functions:
Real-time data acquisition and processing
Multi-channel simultaneous monitoring
Multi-parameter fusion analysis (dynamic pressure, vibration, displacement)
Fault diagnosis and trend prediction
Data upload to SCADA or DCS systems
Support for Modbus, TCP/IP, Profibus, and other industrial communication protocols
Compatibility with third-party monitoring platforms, providing standard 4-20 mA or voltage output signals
Can be used with Meggitt's vibration monitoring software for remote diagnostics and early warning
VI. Ordering Information
| Order Code | Description |
| EC119 922-119-000-003-P2000-U2000 | Standard high-temperature sensor system, probe length 2000 mm, installation depth 2000 mm |
| Optional Configurations | Probe length, mounting method, cable type, output signal type, connector type, etc., can be customized according to user requirements |
Ordering Notes:

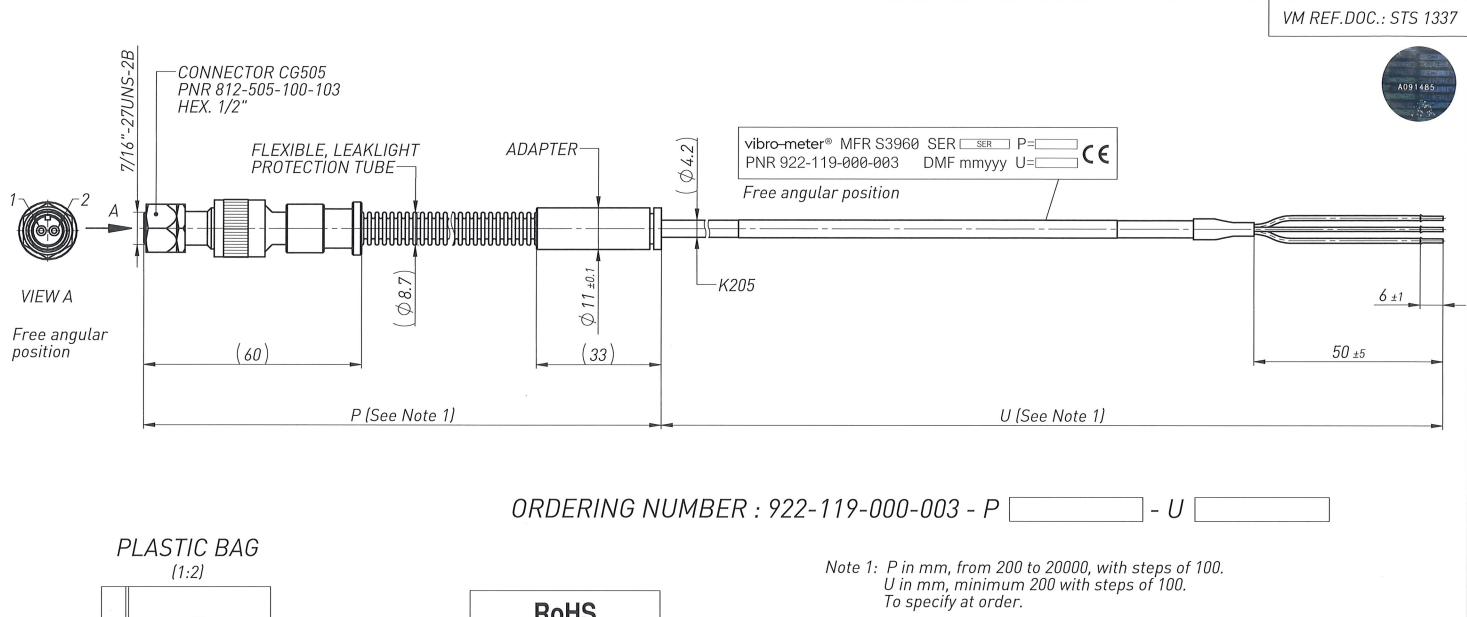

P (Probe Length): Customizable range from 200 mm to 20000 mm, in 100 mm increments.
U (Installation Depth): Minimum 200 mm, in 100 mm increments.
Special requirements (such as high-temperature cables, armored protection, explosion-proof certification, special connectors, extended temperature range, etc.) should be specified when ordering.
It is recommended to order matching installation accessories and calibration tools simultaneously to ensure installation quality and long-term stability.
