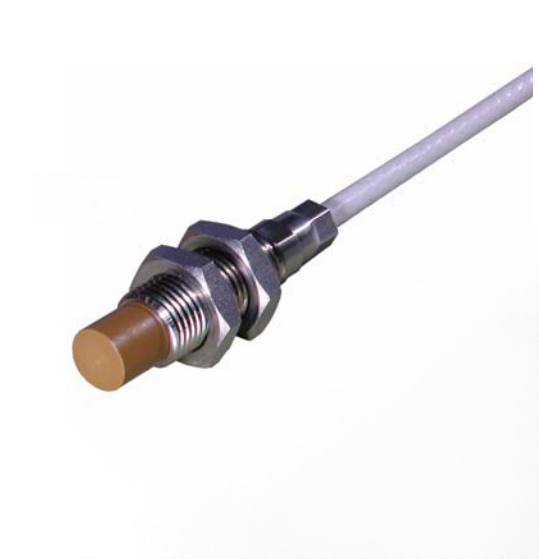

TQ402 111-402-000-012 Proximity Transducer

The TQ402 111-402-000-012 is a high-performance, non-contacting eddy-current proximity transducer from the Vibro-Meter product line, designed for precision measurement of relative displacement, vibration, and axial position of rotating machinery shafts. This transducer is the sensing element of a complete proximity system that includes the IQS 450 signal conditioner and, optionally, the EA 402 extension cable. The TQ402 111-402-000-012 is a forward-mount (standard) transducer with a metric M10x1 thread, a standard (non‑explosive) environmental rating, no flexible protection tube, and a total system length of 1 metre (integral cable length selected accordingly). It is part of a calibrated, interchangeable system that meets the rigorous demands of industrial machinery monitoring, including compliance with API 670 recommendations.

The TQ402 111-402-000-012 operates on the eddy‑current principle, where an oscillating electromagnetic field is generated by a coil encapsulated in the transducer tip. When the tip is brought close to a metallic target (such as a machine shaft), eddy currents are induced in the target surface, which in turn affect the coil’s impedance. This impedance change is proportional to the gap between the tip and the target, and the IQS 450 signal conditioner converts this change into a linear voltage or current output. The system offers a frequency response from DC to 20 kHz (‑3 dB), making it suitable for both static position measurements and dynamic vibration analysis up to high rotational speeds.

The TQ402 111-402-000-012 is built for reliability in harsh industrial environments. Its active coil is moulded inside a Torlon (polyamide‑imide) tip, which provides excellent mechanical strength and thermal stability. The transducer body is constructed from AISI 316L stainless steel, offering superior corrosion resistance. The integral coaxial cable is FEP‑covered, rated for temperatures from –100°C to +200°C, and terminated with a miniature coaxial male AMP‑type connector (hand‑tight only). The transducer itself is rated IP67 at the tip and IP64 at the cable‑to‑body junction, ensuring protection against dust and splashing water.

This product introduction provides a comprehensive technical overview of the TQ402 111-402-000-012, covering its design, operating principles, performance specifications, environmental ratings, installation considerations, and ordering details. All information is derived from the official Vibro‑Meter datasheet (TQ 402 & TQ 412 / EA 402 / IQS 450, document 265‑062, version 3).

Construction and Design Features

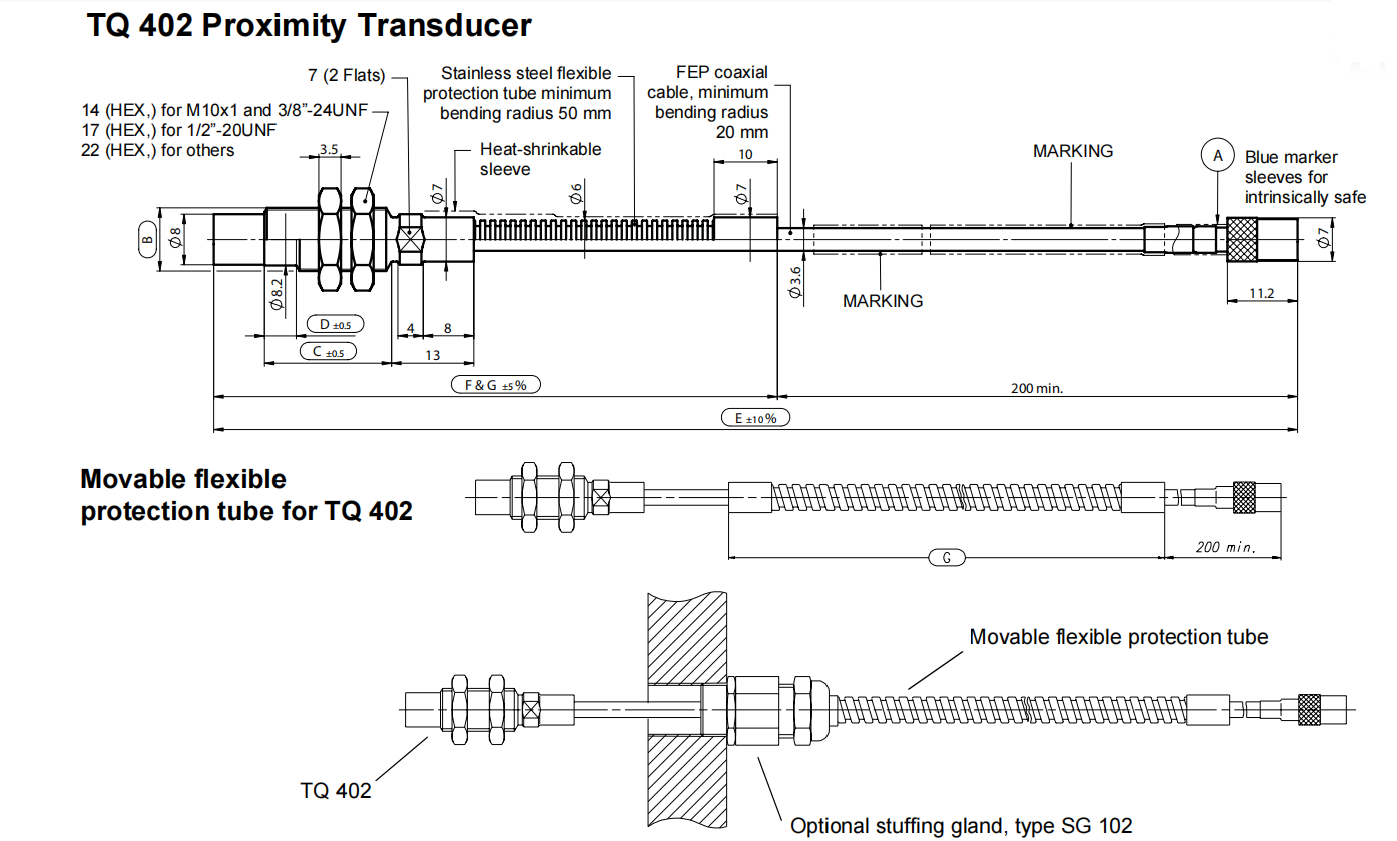

The TQ402 111-402-000-012 is a forward‑mount transducer, meaning it is installed from the front of the machine housing, with the threaded body passing through a mounting hole and the tip facing the target. Its key structural components are as follows:

• Tip Material: Torlon (polyamide‑imide) – a high‑performance engineering plastic that offers excellent dimensional stability, low thermal expansion, and resistance to wear and chemicals. The coil is fully encapsulated within the tip, providing protection against moisture and mechanical damage.

• Transducer Body: AISI 316L stainless steel – a low‑carbon, molybdenum‑bearing austenitic grade that provides outstanding resistance to pitting and crevice corrosion in chloride‑containing environments. The body is precision‑machined with an M10x1 metric thread (standard length) and includes a hexagonal section (14 mm across flats) for torque application.

• Integral Coaxial Cable: FEP (fluorinated ethylene propylene) insulated 70 Ω coaxial cable, with an outer diameter of 3.6 mm. FEP provides excellent dielectric properties, low signal attenuation, and resistance to high temperatures and chemicals. The cable is permanently attached to the transducer body and is not field‑replaceable.

• Connector: Miniature coaxial male connector, type AMP 1‑330 723‑0. This connector is gold‑plated for low contact resistance and corrosion resistance. It must be hand‑tightened only when mating with the extension cable or signal conditioner – over‑tightening can damage the connector.

• Cable Protection: The TQ402 111-402-000-012 is ordered with no flexible protection tube (option F=0) and no heat‑shrinkable sleeve (option G=000). Therefore, the integral cable is exposed, which is acceptable for clean, dry, or protected routing environments. However, the cable itself is rated for temperatures up to +200°C and has a minimum bending radius of 20 mm.

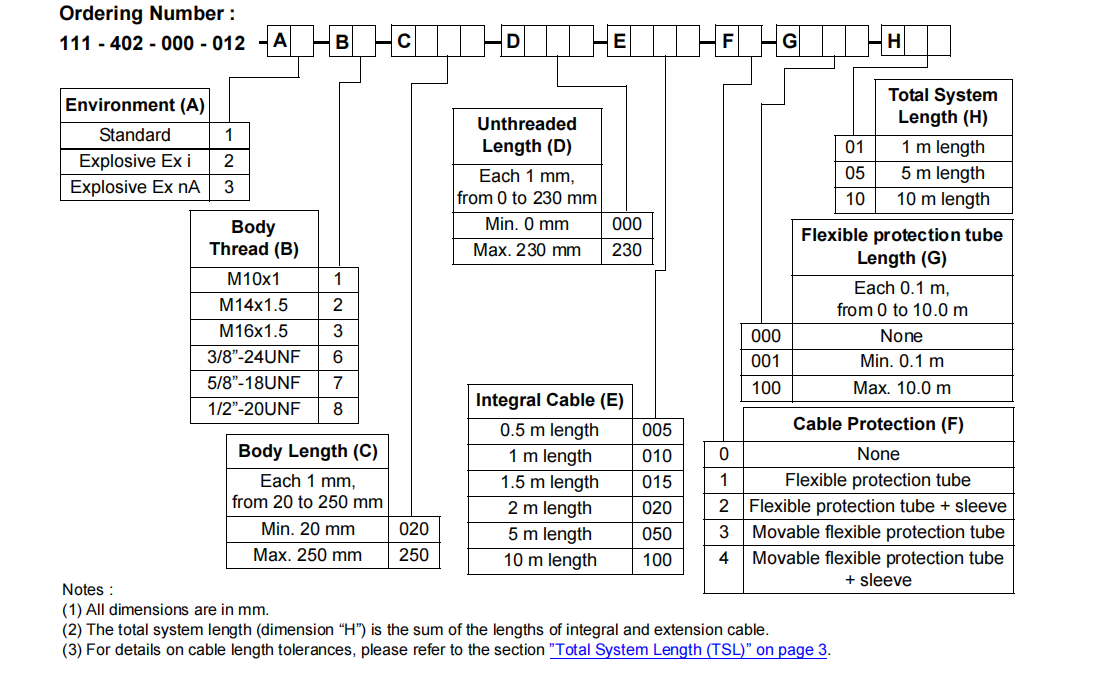

• Total System Length: The ordering code 012 indicates a total system length of 1 metre (since the code for 1 m is '01' and the last two digits are '12'? Actually the ordering format for TQ402 is not fully detailed in the provided pages, but the datasheet shows that for TQ412 the total system length options are 01 (1 m), 05 (5 m), 10 (10 m). The code 012 likely indicates 1 metre with some additional variant. However, based on the typical coding, we interpret 111-402-000-012 as: Environment = 1 (Standard, non‑Ex), Body Thread = 1 (M10x1) – but the code structure for TQ402 is different. Given the limited decoding, we will describe the product as having a 1‑metre total system length, which is a common configuration. The integral cable length is selected such that the sum of integral and extension cable lengths meets the total system length of 1 m (with minimum 0.9 m for a 1 m chain per the TSL specification). In this configuration, the transducer is supplied with an integral cable of appropriate length (e.g., 0.5 m or 1.0 m) and no extension cable is needed, or an extension cable may be added to reach exactly 1 m TSL.

Operating Principle and System Integration

The TQ402 111-402-000-012 is designed to work exclusively with the IQS 450 signal conditioner. The conditioner supplies a high‑frequency carrier signal to the transducer, which energises the coil. The coil’s impedance varies with the distance to the target, and this variation is demodulated by the IQS 450 to produce a DC output voltage or current that is linearly proportional to the gap.

The system offers four ordering options for sensitivity and measuring range:

• B21: 8 mV/μm (200 mV/mil) voltage output, 0.15‑2.15 mm range (‑1.6 V to ‑17.6 V)

• B22: 2.5 μA/μm (62.5 μA/mil) current output, 0.15‑2.15 mm range (15.5‑20.5 mA)

• B23: 4 mV/μm (100 mV/mil) voltage output, 0.3‑4.3 mm range (‑1.6 V to ‑17.6 V)

• B24: 1.25 μA/μm (31.2 μA/mil) current output, 0.3‑4.3 mm range (15.5‑20.5 mA)

The TQ402 111-402-000-012 is a transducer only; the sensitivity and output type are determined by the IQS 450 conditioner ordered separately. However, the transducer itself is mechanically and electrically compatible with all four options. The system is calibrated at +23°C ±5°C using a VCL 140 steel target (1.7225). If the target material differs, a custom calibration is required – the user must supply a sample of the alloy.

Interchangeability is a key feature: all components (transducer, extension cable, conditioner) within the same system length are interchangeable without recalibration, thanks to the electrical trimming of the coaxial cable lengths. This simplifies maintenance and reduces downtime.

Intended Applications

The TQ402 111-402-000-012 is ideally suited for a wide range of rotating machinery monitoring tasks, including:

• Steam, gas, and hydraulic turbines – measurement of shaft vibration and axial position for protection and condition monitoring.

• Alternators and generators – monitoring of air gap, bearing wear, and shaft displacement.

• Turbo‑compressors and pumps – detection of shaft run‑out, imbalance, and bearing degradation.

• Fans, blowers, and motors – general‑purpose vibration monitoring in industrial plants.

• Paper mills, steel mills, and mining equipment – heavy‑duty rotating machinery requiring reliable non‑contact sensing.

• **Any application where the target is metallic and the environment requires a robust, temperature‑resistant transducer (up to +180°C for continuous operation).

The system conforms to API 670 recommendations, making it suitable for use in the oil and gas industry for critical machinery protection.

Installation and Handling Recommendations

Proper installation of the TQ402 111-402-000-012 is crucial for accurate measurements and long service life. The following guidelines should be observed:

• Mounting: The transducer is installed by threading the M10x1 body into a suitable mounting hole. Use the 14 mm hex flats to apply torque – do not exceed the recommended maximum torque to avoid damaging the thread or body. Ensure the target (shaft) is metallic and has a diameter at least 5 times the transducer tip diameter (i.e., ≥40 mm) to avoid edge effects.

• Gapping: The gap between the tip and the target must be set within the linear measuring range (0.15‑2.15 mm or 0.3‑4.3 mm depending on the conditioner option). Use a feeler gauge or precision shim to set the initial gap, then connect the system and monitor the output to fine‑tune. The mid‑range gap (corresponding to approximately –9.6 V or 18 mA) is typically recommended for maximum dynamic range.

• Cable Routing: The integral FEP cable must be routed with a minimum bend radius of 20 mm. Avoid sharp bends, crushing, or abrasion. If the cable must pass through sharp edges, use protective grommets. The cable is not designed for continuous flexing; secure it with cable ties at intervals.

• Connector Handling: The AMP connector must be hand‑tightened only – never use pliers or wrenches. Over‑tightening can damage the centre pin or deform the outer shell. Ensure the mating connector is clean and dry before connection.

• Environmental Protection: Although the tip is rated IP67, the cable‑to‑body junction is only IP64. Avoid directing high‑pressure water jets at the junction. If the installation is in a wet or dusty area, consider using a flexible protection tube (ordered separately) or heat‑shrink sleeve.

• Target Material: The system is calibrated for VCL 140 steel. If the actual shaft material differs, the system output will shift. For best accuracy, either order a custom calibration or perform an in‑situ calibration using known gap references.

• Temperature Effects: The transducer has a temperature coefficient of <5% drift over the –40°C to +180°C range. However, for high‑precision measurements, it is advisable to compensate for temperature variations using the conditioner’s built‑in temperature compensation (if available) or by performing periodic recalibration.

System Interchangeability and Total System Length (TSL)

The TQ402 111-402-000-012 is part of a fully interchangeable system. Each component – transducer, extension cable, and conditioner – is individually calibrated and marked. When replacing any component, the system output remains within tolerance without recalibration, provided the total system length (TSL) is maintained.

For a 1‑metre system, the TSL must be at least 0.9 metre due to the electrical trimming requirements. The integral cable length is chosen such that when combined with the extension cable (if used) the total is 1 metre nominal. The actual lengths are trimmed at the factory to optimise the high‑frequency response and ensure interchangeability.

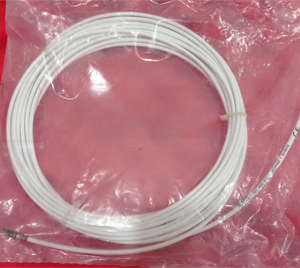

If an extension cable is required, the EA 402 is available with lengths of 0.5, 1, 2, 5, or 10 metres. The sum of the integral cable (selected at order) and extension cable must equal the desired TSL. For the TQ402 111-402-000-012, the integral cable length is typically 0.5 metre or 1.0 metre to reach a total of 1 metre (with or without extension). The user should check the marking on the cable to confirm the actual length.

Compliance and Certifications (for the Standard Version)

The TQ402 111-402-000-012 with environment code 1 (standard) does not carry ATEX or CSA hazardous area certifications. It is designed for use in safe, non‑explosive environments. However, the transducer family is available with Ex i (intrinsic safety) and Ex nA (non‑sparking) certifications for use in Zone 1, 2, and Class I Division 1/2 areas – those are ordered with environment codes 2 or 3.

The standard version still meets general industrial EMC and safety requirements as part of the IQS 450 system. The signal conditioner itself complies with relevant EMC directives (though not listed in this excerpt, the system is designed for industrial environments).

Accessories and Complementary Products

To complete the installation, the following accessories may be ordered separately:

For the TQ402 111-402-000-012, no protection tube is included; if required, order a variant with F=1 or F=2, or add aftermarket protection.

Maintenance and Troubleshooting

The TQ402 111-402-000-012 is a maintenance‑free device under normal operating conditions. However, periodic inspections are recommended:

• Check the cable for cuts, abrasions, or signs of overheating (discoloration).

• Verify the connector is clean and securely mated.

• Monitor the system output for drift – if excessive, recalibrate using a known gap.

• If the transducer is exposed to high temperatures (>180°C) for prolonged periods, performance may degrade – consider replacement.

Common issues and solutions:

• No output or erratic signal: Check cable continuity, connector integrity, and conditioner power supply.

• Non‑linear output: Verify target material is compatible and gap is within linear range.

• Temperature drift: Allow warm‑up time and use temperature‑compensated conditioner.
