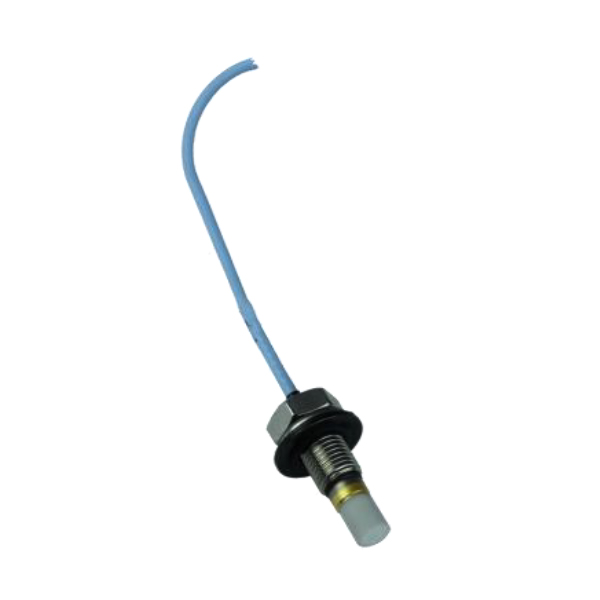

The 146054-12-05-02-05 is a precision non-contact proximity probe from the Bently Nevada 3300 series, engineered specifically for machinery condition monitoring in aggressive chemical, high‑pressure, and extreme pH environments. This model is a 3300 Ceramic Capped Probe featuring a standard 3/8‑24 UNF mounting thread, supplied without armor, and configured with a 1.2‑inch overall case length, a 5.0‑meter total integral cable, a miniature coaxial ClickLoc connector with standard cable, and multiple international hazardous area approvals (CSA, ATEX, IECEx).
The defining feature of this probe family is the alumina (Al₂O₃) ceramic cap that protects the sensing tip. This ceramic material offers exceptional hardness, chemical inertness, and electrical insulation, making it ideally suited for installations where the probe front end is exposed to corrosive gases, liquid ammonia, hydrogen sulfide, or other aggressive media. The probe case is manufactured from AISI 304 stainless steel, providing robust mechanical protection and resistance to oxidation and pitting in humid or saline atmospheres. When combined with a 3300 Proximitor Sensor and extension cable, the 146054-12-05-02-05 forms a complete transducer system for measuring shaft vibration, axial position, and eccentricity in turbines, compressors, pumps, and fans.
This introduction provides a comprehensive technical description of the 146054-12-05-02-05, covering its mechanical and electrical construction, performance characteristics, environmental limits, certification details, installation best practices, and ordering code interpretation. All data are derived from the official Bently Nevada datasheet (172932 Rev. J) and validated for the specific case length and cable option selected.
Design Philosophy and Construction
The 146054-12-05-02-05 belongs to a subset of the 3300 ceramic‑capped probe family developed for applications where only the front portion of the probe case assembly encounters corrosive fluids or vapours. The front‑end ceramic‑to‑metal interface is subjected to a rigorous helium leak test at the factory to guarantee a hermetic seal, preventing any ingress of corrosive agents into the internal sensing coil or cable junction. This leak‑tight construction is rated to 34 Bar (500 psi) nitrogen, with custom modifications available for higher‑pressure requirements.
It is critical to understand that the 146054-12-05-02-05 does not include a rear fitting or stainless steel tubing. Consequently, the rear end of the probe—where the coaxial cable exits the case—is not sealed against the environment. This design choice simplifies the probe geometry, reduces cost, and facilitates easier cable routing, but it imposes a strict operational limitation: the rear of the probe must never be exposed to destructive environments such as water, ammonia (NH₃), ammonium hydroxide (NH₄OH), hydrogen sulphide, or any condensing corrosive vapour. In practice, this means the cable exit zone must be routed through clean, dry, non‑corrosive areas, typically within a protective junction box or instrument panel. For applications requiring full front‑and‑rear sealing, the 146056 variant with stainless steel tubing and NPT fittings should be selected instead.
The 1.2‑inch case length specified in the 146054-12-05-02-05 ordering code represents the distance from the mounting thread shoulder to the probe tip. This intermediate length offers a balance between reaching recessed targets and maintaining mechanical rigidity. The probe is installed using the 5/16‑inch wrench flats machined onto the case, allowing controlled torque application without stressing the cable or connector.
Intended Applications
The 146054-12-05-02-05 is particularly suited for the following industrial scenarios:
Anhydrous ammonia compressors in refrigeration and fertiliser production
Chemical reactor agitators and mixers handling acidic or caustic slurries
High‑pressure centrifugal pumps in petrochemical refining
Turbomachinery located in offshore platforms where saline spray and corrosive gases are prevalent
Gas turbine fuel skids and auxiliary drives exposed to sour gas
Any rotating equipment requiring reliable shaft relative vibration or position measurement in pH‑extreme environments where standard 3300 XL probes would suffer premature corrosion or failure
The ceramic cap eliminates galvanic corrosion concerns and provides a chemically inert sensing face that does not degrade over time, ensuring long‑term measurement stability and reducing maintenance intervals.
Ordering Code Breakdown for 146054-12-05-02-05
The complete product number 146054-12-05-02-05 is decoded as follows:
Position | Segment | Code | Meaning |
Base | 146054 | – | 3300 Ceramic Capped Probe, 3/8‑24 UNF thread, without armour |
-AA | Case Length | 12 | 1.2 inches overall case length (30.5 mm) – ordered in 0.1‑inch increments |
-BB | Total Cable Length | 05 | 5.0 metres (16.4 feet) integral cable |
-CC | Connector and Cable Type | 02 | Miniature coaxial ClickLoc connector with standard cable (no connector protector) |
-DD | Agency Approval | 05 | Multiple approvals: CSA (cNRTLus), ATEX, and IECEx |
When ordering, it is essential to specify the full 11‑character string 146054-12-05-02-05 to ensure the correct case length, cable length, connector style, and certification package are delivered.
Installation and Gapping Guidelines
Proper installation of the 146054-12-05-02-05 is critical to achieving accurate measurements and prolonging service life. The following practical recommendations are drawn from the datasheet and standard Bently Nevada best practices.
The probe is installed by threading the 3/8‑24 UNF mounting thread into a suitably tapped hole in the machine casing or mounting bracket. The 5/16‑inch wrench flats allow controlled tightening; however, the torque should be limited to avoid over‑stressing the thread or deforming the case. It is advisable to use a thread locking compound or the optional 04301007 lock nut with safety wire holes to prevent loosening due to vibration.
Gapping the probe requires electrical monitoring rather than mechanical feeler gauges. Because the ceramic‑capped probes exhibit a shifted linear range compared with standard 3300 XL probes, the traditional practice of setting a mechanical gap based on physical distance is not recommended. Instead, connect the probe to a 3300 Proximitor Sensor and power supply, then monitor the DC output voltage. Position the probe so that the target (shaft) lies within the linear voltage band of approximately –4 Vdc to –16 Vdc. The mid‑range gap (corresponding to approximately –10 Vdc) is typically chosen to allow equal excursion in both directions. Care must be taken to avoid any physical contact between the ceramic tip and the rotating shaft, as the alumina material is hard but brittle and will chip or crack under impact. Such damage is not covered under warranty.
The 5.0‑metre integral cable must be routed with a bend radius of at least 25.4 mm (1.0 inch) at all points. Sharp kinks or tight bends can permanently deform the coaxial dielectric, altering the characteristic impedance and causing measurement non‑linearities or signal loss. Where the cable passes through conduit or cable trays, it should be secured with gentle supports to prevent strain on the probe‑to‑cable junction.
Because the rear of the 146054-12-05-02-05 is not sealed, special attention must be given to the cable exit area. If the installation site has high humidity, occasional condensation, or chemical vapours, the cable should be routed upwards or into a sealed junction box to prevent liquids from tracking along the cable and entering the probe rear. For environments where this cannot be guaranteed, the 146056 variant (with rear tubing and NPT fitting) is the recommended alternative.
Calibration and System Interchangeability
The 3300 system, including the 146054-12-05-02-05, is factory‑calibrated using an AISI 4140 steel target. This material is chosen as a reference because it exhibits consistent eddy‑current response across the frequency range of interest. If the actual machine shaft is constructed from a different alloy – for example, 304 stainless steel, Inconel, titanium, or a plated surface – the scale factor and linearity will deviate from the factory values. Bentley Nevada offers a custom calibration service for such cases; the target material must be specified at the time of ordering.
The interchangeability error of ±6.5 % is a key feature of the 3300 system. It guarantees that a replacement probe, extension cable, or Proximitor Sensor can be installed without requiring a full system recalibration, provided the new component is of the same type and length. This simplifies maintenance and reduces downtime. However, for critical machinery protection applications (e.g., overspeed or thrust monitoring), it is prudent to perform an in‑situ system verification using a calibrated micrometer or dial gauge to confirm the gap‑to‑voltage relationship under actual operating conditions.
Hazardous Area Approvals and Conditions of Safe Use
The 146054-12-05-02-05 with approval option -05 carries multiple international certifications, making it suitable for installation in explosive atmospheres. The following certifications apply:
CSA (cNRTLus): Class I, Zone 0; AEx/Ex ia IIC T4/T5 Ga; also Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III. Temperature classification T5 for ambient –55°C to +40°C, and T4 for –55°C to +80°C. For Zone 2, nA/ec ratings apply similarly.
ATEX: II 1 G; Ex ia IIC T5…T1 Ga; and Ex ia IIIC T90°C … T280°C Dc for dust environments.
IECEx: Ex ia IIC T5…T1 Ga; Ex nA/ec IIC T5…T1 Gc.
The entity parameters for intrinsic safety (ia) are:
Parameter | Value |
Ui (maximum input voltage) | –28 V |
Ii (maximum input current) | 140 mA |
Pi (maximum input power) | 0.91 W |
Ci (internal capacitance) | 1.5 nF |
Li (internal inductance) | 610 µH |
These parameters are valid when the probe is connected via Bently Nevada extension cables to a Bently Nevada Proximitor Sensor that shares compatible entity ratings.
Conditions of safe use specified in the certificate require:
For ia installations, comply with Bently Nevada drawing 141092.
For nA / ec (Zone 2) installations, comply with drawing 140979. The Proximitor must be housed such that its terminals achieve at least IP54 protection.
The temperature schedule (see table below) must be observed to ensure the probe surface temperature does not exceed the auto‑ignition temperature of the surrounding flammable atmosphere or dust cloud.
Temperature Schedule for Hazardous Areas (Probe Only)
Temperature Class | Permissible Ambient Temperature Range | Application (EPL) |
T1 | –55°C to +232°C | Ga and Gc |
T2 | –55°C to +177°C | Ga and Gc |
T3 | –55°C to +120°C | Ga and Gc |
T4 | –55°C to +80°C | Ga and Gc |
T5 | –55°C to +40°C | Ga and Gc |
T280°C (Dc) | –55°C to +232°C | Dc (dust) |
T225°C (Dc) | –55°C to +177°C | Dc |
T170°C (Dc) | –55°C to +120°C | Dc |
T130°C (Dc) | –55°C to +80°C | Dc |
T105°C (Dc) | –55°C to +100°C | Dc |
T90°C (Dc) | –55°C to +40°C | Dc |
The 146054-12-05-02-05 itself does not generate significant heat under normal operation; the temperature classification depends primarily on the maximum ambient temperature of the installation site. The probe meets all listed T‑ratings when operated within the specified ambient limits.
Limitations and Critical Warnings
Users of the 146054-12-05-02-05 must adhere strictly to the following limitations to ensure safe and reliable operation.
The rear of the probe is not hermetically sealed. Exposure of the cable exit and rear case to water, ammonia, ammonium hydroxide, hydrogen sulphide, or any corrosive chemical will lead to rapid degradation of the FEP insulation, corrosion of the centre conductor, and eventual short‑circuit or open‑circuit failure. This is the single most important operational constraint for this model.
The ceramic tip is mechanically robust against chemical attack but is susceptible to impact damage. Any direct contact with the rotating shaft, whether during installation, maintenance, or transient machine conditions, can cause chipping, cracking, or complete fracture of the alumina cap. Such damage is immediately catastrophic to measurement integrity and is not covered by the product warranty. Mechanical stops or gap‑setting tools must be used with extreme care.
The pressure rating of 34 Bar (500 psi) applies exclusively to the front‑end ceramic‑to‑metal seal. It does not imply that the entire probe body can withstand differential pressure across the mounting thread. If the process pressure exceeds this value, custom engineering modifications are required – please consult Bentley Nevada.
Thread engagement beyond 0.563 inch (14.3 mm) is forbidden. The internal threads of the mounting hole must conform to industry standard fit classes matching the external thread. If the mounting hole is deeper than the recommended engagement, a thread spacer or lock nut must be used to limit insertion depth.
Cable bend radius must be maintained at or above 25.4 mm (1.0 inch). Smaller radii cause deformation of the coaxial dielectric and change the capacitance per unit length, introducing measurement errors and potentially causing intermittent signal drop‑out.
Accessories for the 146054-12-05-02-05
Although the 146054-12-05-02-05 is supplied without a connector protector or armour, several accessories are available to enhance installation robustness and environmental protection. The following table lists the most commonly ordered companions.
Accessory Part Number | Description |
40113‑02 | Connector Protector Kit for probes and extension cables; includes installation tools. Note: the female protector (03800001) must be ordered separately. |
136536‑01 | Connector Protector Adapter – allows use of pre‑1998 installation tools with modern 75 Ω ClickLoc connectors. |
03839410 | 75 Ω Triaxial Male Connector Protector – installed onto the extension cable and mates with the female protector on the probe. |
03800001 | 75 Ω Coaxial Female Connector Protector – installed onto the probe lead; also used on extension cables to protect the connection to the Proximitor Sensor. |
04301007 | 3/8‑24 Probe Lock Nut with safety wire holes – secures the probe in position and prevents loosening due to vibration. |
Bently_Manuals | Customer DVD containing all Bently Nevada manuals, application notes, firmware (FWD), and installation guides in all supported languages. |
For installations requiring cable armour (mechanical protection against abrasion or crushing), the 146054 base model can be ordered with modification 164523, but this is not part of the 146054-12-05-02-05 configuration. If armour is essential, a different ordering code must be specified.
Comparison with Other Variants
The 146054-12-05-02-05 differs from its siblings primarily in case length and approval options. The -12 case length of 1.2 inches is a mid‑range choice, shorter than the maximum 4.0 inches but longer than the minimum 0.8 inches. This length is often selected to position the probe tip at a specific distance from a recessed shaft surface or to clear structural obstructions. The -05 total length (5.0 metres) is the standard offering for most industrial installations; longer 9.0‑metre cables are available but impose a higher capacitance load.
Compared with the 146056 variant, the 146054-12-05-02-05 lacks rear sealing and stainless steel tubing. Therefore, it is less expensive and easier to install but demands a clean, dry rear environment. In contrast, the 146056 is fully sealed at both ends and includes NPT exit fittings for conduit connections, making it suitable for wet or corrosive rear‑end conditions.
For metric thread requirements (M10 x 1), the 164517 model should be specified instead of the 146054. The present model uses the imperial 3/8‑24 thread, which remains the most common standard in North American and many international turbomachinery applications.
